8qja

T6SS-linked Rhs repeat protein - Advenella mimigardefordensis VgrG-Rhs core

Method: X-RAY DIFFRACTION D_max: 229.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

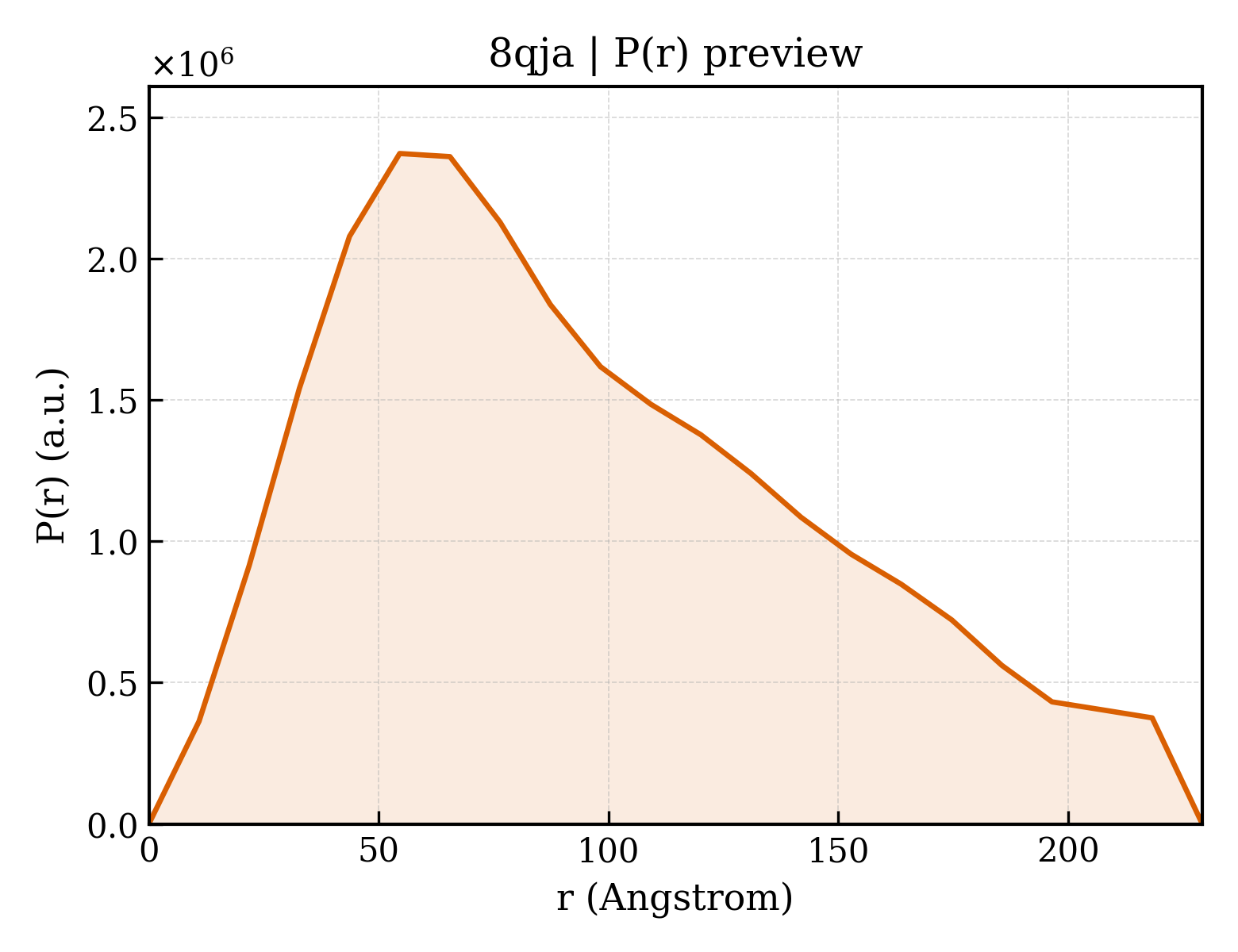

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qja
沉积日期 deposition_date	2023-09-13
结构标题 title	T6SS-linked Rhs repeat protein - Advenella mimigardefordensis VgrG-Rhs core
关键词 keywords	Rhs, T6SS, VgrG-Rhs, toxin cannister, Rhs-repeat, CELL INVASION; CELL INVASION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	75.81 Å
回转半径 Rg (电子) rg_electron	76.75 Å
零角强度 I(0) i0	3401590000.00
分子量 molecular_weight	472760.0 kDa
排除体积 excluded_volume	582650 Å³
包络体积 envelope_volume	955600 Å³
水化壳体积 shell_volume	113650 Å³
包络直径 envelope_diameter	267.4 Å
壳层 Rg shell_rg	62.72 Å
包络 Rg envelope_rg	75.41 Å
形状 Rg shape_rg	76.74 Å
总 Rg total_rg	76.55 Å
总原子数 total_atoms	33470
残基数 n_residues	4088
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	229.2 Å
Rg (实空间) rg_real	75.87 Å
Rg 误差 (实空间) rg_real_error	1.51 Å
I(0) (实空间) i0_real	3.3880e+09
I(0) 误差 (实空间) i0_real_error	6.8680e+07
Rg (倒空间) rg_reciprocal	72.93 Å
I(0) (倒空间) i0_reciprocal	3376000000.0000
解质量估计 total_estimate	0.8123
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.6 Å
偏度 Skewness skewness	0.557
峰度 Kurtosis kurtosis	-0.513
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0280
最高正则化参数 α highest_alpha	284600000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.793; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.969; Smooth: 0.207

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

Entity 1 polymer

描述 description	Putative type VI secretion system YD repeat-containing Rhs element Vgr protein
分子量 formula_weight	212823.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	33470

GSGSMNRTVNATTPLGDKLKFKSLKGHEQLSDLFEWTVEFVSDSPGLVLEDLLGKTISLEVETSAAPRYMHGVITAFKLVHRETQTRRYYIYEATVRPWLWYSTQVTDNRIFQDQTAVQIITQVLQAYDYPIENRLVGQYRKWGYSVQFQESDFNFISRLMEHEGIYYWFRHEKDQHVLVLMDDAHSHAPLPVMPDIPFYPDDTRSVPLEEYIRDWQIAGELTPTTYSTMDYDFQKPQAEMSARRWVKNQNTQGLDLDWYDPMGGYVDSADSDHYARVHLESMQCLQEQAWAVSNVRNLAPGYTFSLKYYPNSEENKSYLILRAEYDFRDPSYASAGGVQENATFVIRSQHIPASVQFRAPRSTPAPRMSGPQTATVVGPDGQEIWTDKYGRIKVQFHWDRQGAMDENSSCWLRVSSPWAGGGFGGVQIPRVREEVVVDFINGDVDRPIAVGRVYNASNMPPVSLPENATQSGFLTRTKNGTPENANKMLFEDSQGNELLSMVAEKDMNTHVKNNQQHDVVGNAVSSIGGLRSHTAHSTSSITMASGAVKSYQSNHNRTVQASLDDSVGGNLEQTLSDGVDETITGAHSHTVSGAASHQLLGLHVNTTTQDVETVNGTVTETVSADETTNVTSSSELEAADITLETPSLYKESTKQDININAGGSLDIQSTGPGIIQTPTDIEKESPANLEAAVMLDNNTVNREDKYILKLNLDAMSDVMVSGAKTDRNIADLAFYGMGGTMQLANVGIYGASIQMGSSDQKMGLASLSITGLELDKGFKIKTMGAGGRSGYKGKHRAAGGGRGPRGGKGGRHRAGNKGDPKKPHADCKECRGRVGGSIGLDVGDERFSHLDFVLPGVFPLEWNRTYRSNMTAKDGQGELGPRWITAFTLVVLPLETGGYEYISEVGRAVSVIELEPGQEWYDRTEELIWRRPDVDTLEVSQKYQRTETFERSGDVFRLKTIADRAGNQAQLIYDAENGFLVRVETAIQTVHLDHDAHGRITTIWHEVTGDDGTPLRRTLARYQYDEAHDLVAAVDQYERTHTYAYQNHLITRYSDKTGRGINLEWDGDHPQAKCVREYRDDGSNLLRFRWDESESKTYVTDALSATTVYTFDAHNYIIHIDFADGTRQSRIRDEFHNIVEVRYPDDSFEKYEYDEFDNILKLTRADHTTVGWEYDQYSQITKIVDPGGNIWTRDYDQFGNMIRETDPKGHTSEFQYTAEGLLIQSVNPAGGVSTLSYNPAGLLIRYSDCSNKTRRWEYDLLGRTVKQTDPCGNAESYEYNRYGFINEVRRPDGSVLTLDFDEEGRLLSFIDPIDNLTVYAYDGAGRLARKTDPLKQDFHYNYDKKGRLASLQDENGAQFTFQFDPVDRLIRTVGFDGKVKKYNYDKPTGLLFSMEDADRETHFEYDVMGQLLKRRAGHLVDSFEYDISNRIIRAHNEYCDQHFEYDVLNNPIRETHIYNAFGQNREYVWENEFDELSNRLTTRRPSGEKVSWLRYGAGHVHGILLDDQEVLSFERDNSHRAVRKRQSNSLLAVTNYDVMGRVKEQKLNLAQGNRTNLRSRQYAYGLDGSLVAIEDSRHGTTTYRYDALDRLVSATAFNETELFAFDPASNLVDRDKTERSKPANTFPKNVSKVLGNILKRCAGMHFEYDAQGNLIRKRKPDSLQEFEWDEFGRLRKTVNTDLNSKHVSEAEYIYDTFDRRIGKVNQQETSGAAVTFYGWDGHHLAFEESTVGDAVDKTHYLYEENSFVPLIQYQYSADNTIAEGRNHLSVSHYQCDHIGTPQLLTDDNGHIVWEGRYSALGKQLDSIGGDAGVAGGQNNLCYQGQYYDRESGLHYNRFRYYDPDIGRFIQQDPIGLFGDSNFYTYAPNTANWIDPFGL

来源 Source

来源生物 organism	Advenella mimigardefordensis DPN7
NCBI 分类编号 ncbi_taxonomy_id	1247726
宿主生物 host_organism	Escherichia coli B

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	66.239 Å
晶胞边长 b length_b	97.783 Å
晶胞边长 c length_c	215.006 Å
晶胞夹角 α angle_alpha	85.69 °
晶胞夹角 β angle_beta	89.99 °
晶胞夹角 γ angle_gamma	76.89 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.360 Å
最低分辨率 resolution_low	48.480 Å
R 因子 r_factor	0.2598
R_work r_work	0.2568
R_free r_free	0.3173

fit	/app/data/saxs_computation/qj/8qja/8qja.fit
pddf	/app/data/pr_computation/qj/8qja/8qja.pr.out
profile	/app/data/saxs_computation/qj/8qja/8qja.dat
