SAXSdb — 8qx8

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8qx8
沉积日期 deposition_date	2023-10-23
结构标题 title	Endosomal membrane tethering complex CORVET
关键词 keywords	CORVET, membrane fusion, endosome, Rab GTPase, tethering, ENDOCYTOSIS; ENDOCYTOSIS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	90.41 Å
回转半径 Rg (电子) rg_electron	89.37 Å
零角强度 I(0) i0	2740190000.00
分子量 molecular_weight	424990.0 kDa
排除体积 excluded_volume	523500 Å³
包络体积 envelope_volume	1321500 Å³
水化壳体积 shell_volume	130250 Å³
包络直径 envelope_diameter	320.2 Å
壳层 Rg shell_rg	72.22 Å
包络 Rg envelope_rg	92.29 Å
形状 Rg shape_rg	89.66 Å
总 Rg total_rg	88.11 Å
总原子数 total_atoms	30086
残基数 n_residues	4443
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	246.5 Å
Rg (实空间) rg_real	85.86 Å
Rg 误差 (实空间) rg_real_error	1.03 Å
I(0) (实空间) i0_real	2.6320e+09
I(0) 误差 (实空间) i0_real_error	4.9130e+07
Rg (倒空间) rg_reciprocal	86.85 Å
I(0) (倒空间) i0_reciprocal	2710000000.0000
解质量估计 total_estimate	0.9195
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	116.0 Å
偏度 Skewness skewness	0.270
峰度 Kurtosis kurtosis	-0.589
角度范围 angular_range	— – 0.0850 Å⁻¹
当前正则化参数 α current_alpha	0.7114
最高正则化参数 α highest_alpha	101800000.0000
实空间数据点数 n_real_points	18
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.999; Stabil: 0.980; Sysdev: 1.000; Positv: 1.000; Valcen: 0.998; Smooth: 0.017

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Vacuolar protein sorting-associated protein 8
分子量 formula_weight	148102.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F
原子数 atom_count	30086

MEQNGLDHDSRSSIDTTINDTQKTFLEFRSYTQLSEKLASSSSYTAPPLNEDGPKGVASAVSQGSESVVSWTTLTHVYSILGAYGGPTCLYPTATYFLMGTSKGCVLIFNYNEHLQTILVPTLSEDPSIHSIRSPVKSIVICSDGTHVAASYETGNICIWNLNVGYRVKPTSEPTNGMTPTPALPAVLHIDDHVNKEITGLDFFGARHTALIVSDRTGKVSLYNGYRRGFWQLVYNSKKILDVNSSKEKLIRSKLSPLISREKISTNLLSVLTTTHFALILLSPHVSLMFQETVEPSVQNSLVVNSSISWTQNCSRVAYSVNNKISVISISSSDFNVQSASHSPEFAESILSIQWIDQLLLGVLTISHQFLVLHPQHDFKILLRLDFLIHDLMIPPNKYFVISRRSFYLLTNYSFKIGKFVSWSDITLRHILKGDYLGALEFIESLLQPYCPLANLLKLDNNTEERTKQLMEPFYNLSLAALRFLIKKDNADYNRVYQLLMVVVRVLQQSSKKLDSIPSLDVFLEQGLEFFELKDNAVYFEVVANIVAQGSVTSISPVLFRSIIDYYAKEENLKVIEDLIIMLNPTTLDVDLAVKLCQKYNLFDLLIYIWNKIFDDYQTPVVDLIYRISNQSEKCVIFNGPQVPPETTIFDYVTYILTGRQYPQNLSISPSDKCSKIQRELSAFIFSGFSIKWPSNSNHKLYICENPEEEPAFPYFHLLLKSNPSRFLAMLNEVFEASLFNDDNDMVASVGEAELVSRQYVIDLLLDAMKDTGNSDNIRVLVAIFIATSISKYPQFIKVSNQALDCVVNTICSSRVQGIYEISQIALESLLPYYHSRTTENFILELKEKNFNKVLFHIYKSENKYASALSLILETKDIEKEYNTDIVSITDYILKKCPPGSLECGKVTEVIETNFDLLLSRIGIEKCVTIFSDFDYNLHQEILEVKNEETQQKYLDKLFSTPNINNKVDKRLRNLHIELNCKYKSKREMILWLNGTVLSNAESLQILDLLNQDSNFEAAAIIHERLESFNLAVRDLLSFIEQCLNEGKTNISTLLESLRRAFDDCNSAGTEKKSCWILLITFLITLYGKYPSHDERKDLCNKLLQEAFLGLVRSKSSSQKDSGGEFWEIMSSVLEHQDVILMKVQDLKQLLLNVFNTYKLERSLSELIQKIIEDSSQDLVQQYRKFLSEGWSIHTDDCEICGKKIWGAGLDPLLFLAWENVQRHQDMISVDLKTPLVIFKCHHGFHQTCLENLAQKPDEYSCLICQTESNPKIVDYKDDDDKDYKDDDDKDYKDDDDK

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 2 polymer

描述 description	Vacuolar protein sorting-associated protein 33
分子量 formula_weight	79355.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MNRFWNTKKFSLTNADGLCATLNEISQNDEVLVVQPSVLPVLNSLLTFQDLTQSTPVRKITLLDDQLSDDLPSALGSVPQMDLIFLIDVRTSLRLPPQLLDAAQKHNLSSLHIIYCRWKPSFQNTLEDTEQWQKDGFDLNSKKTHFPNVIESQLKELSNEYTLYPWDLLPFPQIDENVLLTHSLYNMENVNMYYPNLRSLQSATESILVDDMVNSLQSLIFETNSIITNVVSIGNLSKRCSHLLKKRIDEHQTENDLFIKGTLYGERTNCGLEMDLIILERNTDPITPLLTQLTYAGILDDLYEFNSGIKIKEKDMNFNYKEDKIWNDLKFLNFGSIGPQLNKLAKELQTQYDTRHKAESVHEIKEFVDSLGSLQQRQAFLKNHTTLSSDVLKVVETEEYGSFNKILELELEILMGNTLNNDIEDIILELQYQYEVDQKKILRLICLLSLCKNSLREKDYEYLRTFMIDSWGIEKCFQLESLAELGFFTSKTGKTDLHITTSKSTRLQKEYRYISQWFNTVPIEDEHAADKITNENDDFSEATFAYSGVVPLTMRLVQMLYDRSILFHNYSSQQPFILSREPRVSQTEDLIEQLYGDSHAIEESIWVPGTITKKINASIKSNNRRSIDGSNGTFHAAEDIALVVFLGGVTMGEIAIMKHLQKILGKKGINKRFIIIADGLINGTRIMNSIS

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 3 polymer

描述 description	Vacuolar protein sorting-associated protein 16
分子量 formula_weight	92857.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MKNPSFDWERLKDVFYRSRAIGELKWPTQYEEFKCALSLTVIAVEIQDFIQVYNYFGQLLGKINLQRIHEDIIKFEFDKDEKLILVTKSSIKIVKGWSPLTIESVPLQDPTIDTIWDYHNGIMLLAKSRDIYKLNGNEWELLYENKDKKYNLLTKNHWSCNDDSIILLDVDHVYQVSTSNGALLKLITDSSWHKVTISSRGFICLYNMKDNKLQIFRDPARILMEHNLDSTPDDICWCGNDTVACSFEDEIKLYGPDGLYVTFWYPFTVTNLRAEVDGLKVITTEKIYFLSRVQPQTSNIFRIGSTEPGAMLVDSFSLLEDHAPKAIEILKNFVLEKGVLDCIAAAIDEFEPKLQKMLLNAASYGKASLQYKSFDASIFVNACNTIKLLNCFRSFGIFLTVEEYRCISLKGVIDRLLKYHRYYECIQICKLANERFLLGYVFTEWAKDKIKGSPDMEDDELLDKIKSRLSVIDMTDTLQMVAVAKVAYLEGRFQLSRNLALLEKNEEARIEQLYNLDDDSIALKECIKVQNYSLTISLLIALSKKLTNSQLTKLLIIDMFNNPLYLYYMRMDKAYLYDFYRQTDRFIDLAHVLLQQGKEQQSLHSFLPQIKDLYSQVQNSEVVNNTIEQLQRQEKLWIYQESLGKRFAISFTNMTLDQTLSKLIETGQDKQVKEIVKKFKISEKKLYHLKCKTLVEAKKFDELLQFAQSRKSPIGYMPFYTYLKSRGHMDKASPYVNMIPGLSYQEKKKLYVECRGFRDAIQLAGKEKDIPGLKEIYNIIPPNEPELKALANETMSRI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 4 polymer

描述 description	E3 ubiquitin-protein ligase PEP5
分子量 formula_weight	117617.2 kDa
EC 编号 ec_number	2.3.2.27
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MSLSSWRQFQLFENIPIRDPNFGGDSLLYSDPTLCAATIVDPQTLIIAVNSNIIKVVKLNQSQVIHEFQSFPHDFQITFLKVINGEFLVALAESIGKPSLIRVYKLEKLPNREQLYHSQVELKNGNNTYPISVVSISNDLSCIVVGFINGKIILIRGDISRDRGSQQRIIYEDPSKEPITALFLNNDATACFAATTSRILLFNTTGRNRGRPSLVLNSKNGLDLNCGSFNPATNEFICCLSNFIEFFSSSGKKHQFAFDLSLRKRIFCVDKDHILIVTEETGVPTTSISVNELSPTIINRIFIIDAKNKIISLNFVVSSAIIDIFSTSQSGKNITYLLTSEGVMHRITPKSLENQINIIIQKELYPFALQLAKQHSLSPLDVQEIHKKYGDYLFKKGLRKEATDQYIQCLDVVETSEIISKFGVKEVPDPESMRNLADYLWSLIKNSISQRDHVTLLLIVLIKLKDVEGIDTFIQHFDRKGIWNEGVVMDDMDDVTFFYSDNDFFDLDLILELMKESDFKRLSYRLAKKYSKDSLIIVDILLNLLHNPVKAIKYIKSLPIDETLRCLVTYSKKLLEESPNETNALLIEVFTGKFKPSTFEVDLDRRDTTGDFSENIRTVFYSYKTFFNYMNSNGTSDAMSESSEASHEHEEPTYHPPKPSIVFSSFVTKPFEFVVFLEACLACYQQYEGFDEDRQVILTTLYDLYLNLAQNDVPERIDDWRSRATGVLRESNKLVYSAASNNTSKRVDNSIMLLISHMDQSSASAKDKTKIDIASFANDNPEMDLLSTFRAMTLNEEPSTCLKFLEKYGTEEPKLLQVALSYFVSNKLIFKEMGGNEVLKEKVLRPIIEGERMPLLDIIKALSRTNVAHFGLIQDIIIDHVKTEDTEIKRNEKLIESYDKELKEKNKKLKNTINSDQPLHVPLKNQTCFMCRLTLDIPVVFFKCGHIYHQHCLNEEEDTLESERKLFKCPKCLVDLETSNKLFEAQHEVVEKNDLLNFALNSEEGSRDRFKVITEFLGRGAISYSDITI

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 5 polymer

描述 description	Vacuolar protein sorting-associated protein 3
分子量 formula_weight	117069.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MVKKKTNNDKGKEVKENEGKLDIDSESSPHERENDKKKTEDDSLRATESEETNTHNANPNETVRADKFSQEESRPIEDSPHTDKNTAQESCQPSSAEDNVINTDITSLNEKTSTNDEQEKGLPLKISEGPFTISTLLDNVPSDLIYTCCEAYENHIFLGTTTGDLLHYFELERGNYMLVSQTKFDAESNSKIDKILLLPKVEGALILCDNELVLFILPEFAPRPNTTRLKGISDVVICNFSRSSKAYRIYAFHAEGVRLLKISADSLVLTKAFNFKLIDKACAHEETLMVSKLNSYELINLKSSQVIPLFRISETDEDLEPIITSFNEQSEFLVCSGGGSYDSGAMALVVNHHGDIIKGTIVLKNYPRNVIVEFPYIIAESAFQSVDIYSALPSEKSQLLQSITTSGSDLKISKSDNVFTNTNNSEEFKEKIFNKLRLEPLTHSDNKFRIERERAFVEESYEEKTSLIVYNNLGIHLLVPTPMVLRFTSCEESEIDNIEDQLKKLAKKDLTKFEHIEAKYLMSLLLFLMTLHYDHIEDEVMKKWCDFSDKVDIRILFYMFGWKVYSEIWCFHGLINIVERLKSLKLTNKCENILKMLLMMKNELKKKNKTGLLTNDFDDIMKTIDITLFKLRLEKKETITVDMFERESYDEIIREINLHDDKLPRIELLIEIYKEKGEYLKALNLLREAGDYISLVSFIEENLKKLPEDYIKERIADDLLLTLKQGDENTEECAIKKVLKILDMACINKNDFLNKIPAEETSLKVSFIEQLGVQNSNDSKFLFNYYLAKLREIINQSNIWSILGDFIKEYKDDFAYDKTDITNFIHIKLKHSLQCENFSKYYEKCENLKSENEKDDEFINFTFDEISKIDKEHILTLLFFPNELTNWVSSEELLKIYLSFNDFRSVEKYIGKQNLVAVMKQYLDISSLNYSVELVTNLLQRNFELLDDTDIQLKILETIPSVFPVQTISELLLKVLIKYQEKKEESNLRKCLLKNQISISDELSRNFDSQG

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

Entity 6 polymer

描述 description	Vacuolar membrane protein PEP3
分子量 formula_weight	107531.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MIKTRIEEVQLQFLTGNTELTHLKVSNDQLIVTTQRTIYRINLQDPAIVNHFDCPLSKELETIMNVHVSPMGSVILIRTNFGRYMLLKDGEFTQLNKIKNLDLSSLHWINETTFLMGIKKTPKLYRVELTGKDITTKLWYENKKLSGGIDGIAYWEGSLLLTIKDNILYWRDVTNMKFPLVLPDESEQFERLKHHAIKKFDSYNGLFAWVTSNGIVFGDLKEKQMEKDPASNNFGKFLSSSKVLLNFELPDYQNDKDHLIKDIVLTAFHILLLRKNTVTMVSQLNNDVVFHETIPRHQLTGSNTDSNEKFLGLVRDSVKETFWCFSNINVFEIIIENEPNSVWNLLVRDNKFDKALSLKGLTVREIESVKLSKAMYLFHTAKDFHSAAQTLGSMKDLSHFGEIALNFLQIKDYNDLNVILIKQLDNVPWKSTQVVLSSWIIWNFMKQLNDIELKINTTKPASTDEDNLLNWNLNLKEKSNELTKFLESHLEKLDNETVYQIMSKQNRQNELLIFASLINDMKFLLSFWIDQGNWYESLKILLTINNHDLVYKYSLILLLNSPEATVSTWMKIKDLDPNKLIPTILKFFTNWQNNSKLITNISEYPENYSLTYLKWCVREVPKMCNPIVYNSILYMMITDPRNDMILENDIIKFMKSNENKYDLNFQLRLSLKFKKTKTSIFLLTRLNLFEDAIDLALKNNLIDDCKVIVNDEILIEDYKLRKRLWLKIAKHLLLSMKDIDIKQLIRTILNDSNEILTIKDLLPFFNEYTTIANLKEELIKFLENHNMKMNEISEDIINSKNLKVEINTEISKFNEIYRILEPGKSCDECGKFLQIKKFIVFPCGHCFHWNCIIRVILNSNDYNLRQKTENFLKAKSKHNLNDLENIIVEKCGLCSDININKIDQPISIDETELAKWNE

来源 Source

来源生物 organism	Saccharomyces cerevisiae
通用名 common_name	;brewer's yeast ;
NCBI 分类编号 ncbi_taxonomy_id	4932
宿主生物 host_organism	Saccharomyces cerevisiae

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	219391

fit	/app/data/saxs_computation/qx/8qx8/8qx8.fit
pddf	/app/data/pr_computation/qx/8qx8/8qx8.pr.out
profile	/app/data/saxs_computation/qx/8qx8/8qx8.dat

Endosomal membrane tethering complex CORVET

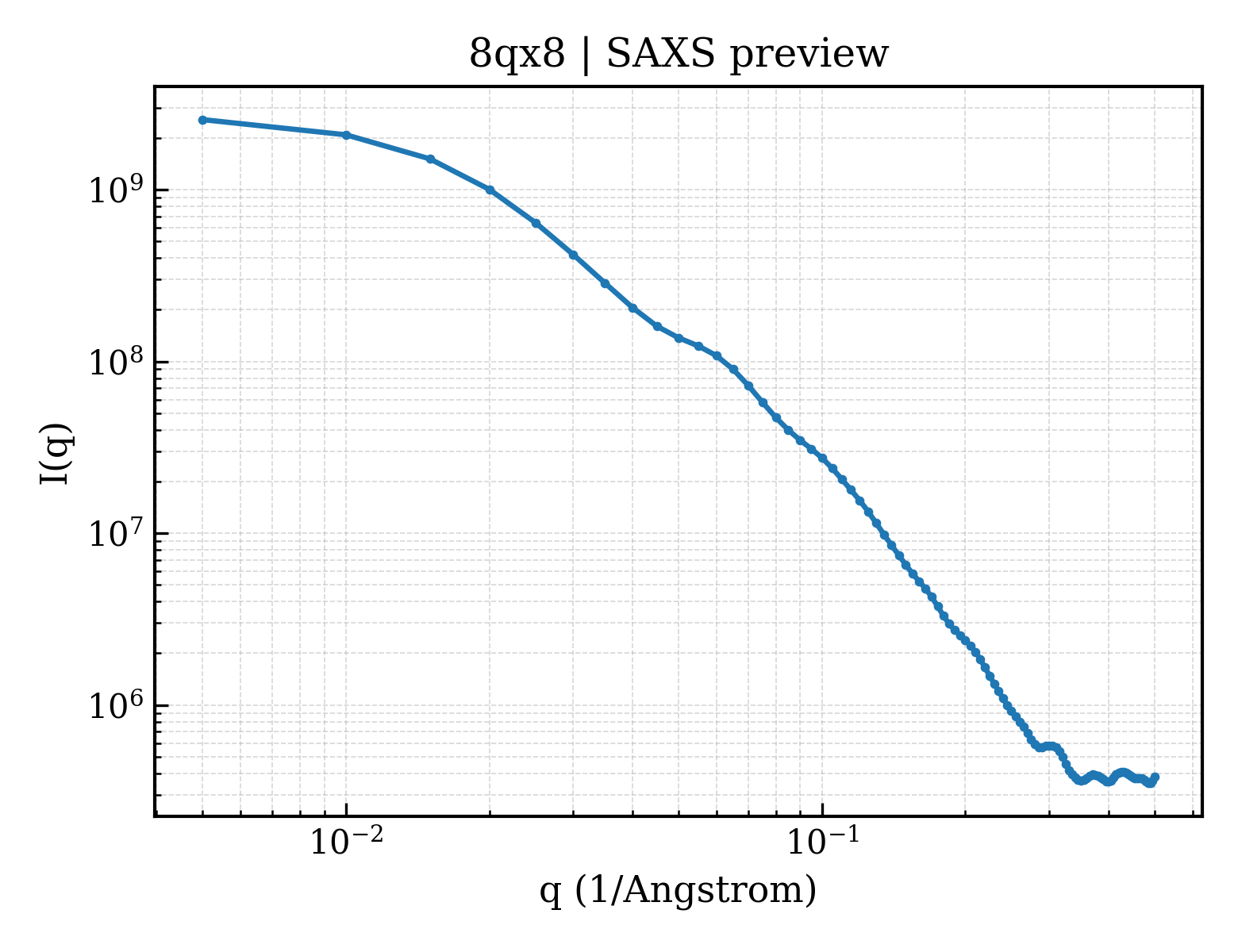

SAXS 散射曲线 SAXS Profile

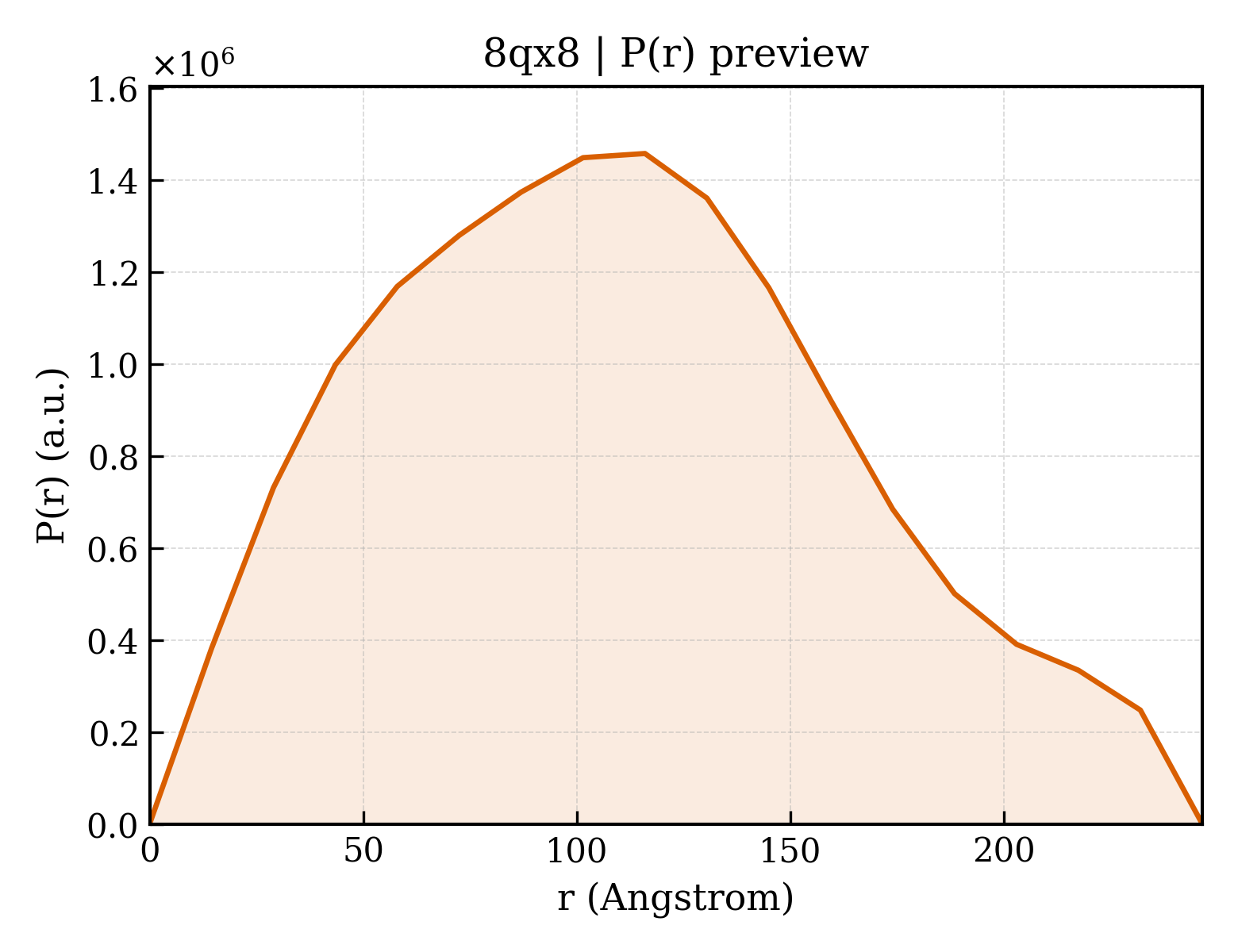

P(r) 距离分布 P(r) Distribution
