8r5o

Plastid-encoded RNA polymerase

Method: ELECTRON MICROSCOPY D_max: 250.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

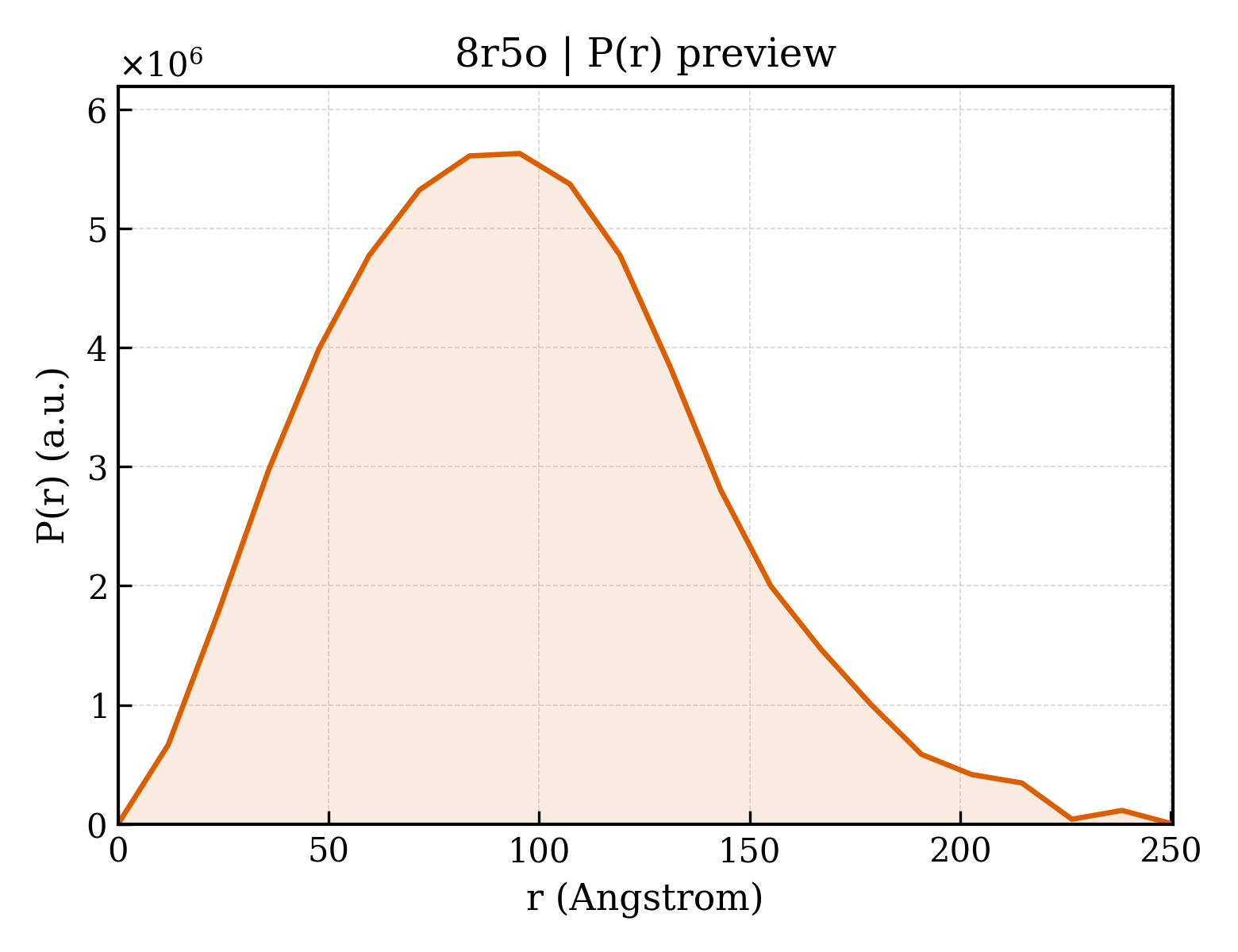

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8r5o
沉积日期 deposition_date	2023-11-17
结构标题 title	Plastid-encoded RNA polymerase
关键词 keywords	Transcription, chloroplast, RNA polymerase, photosynthesis, GENE REGULATION; GENE REGULATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	73.86 Å
回转半径 Rg (电子) rg_electron	73.86 Å
零角强度 I(0) i0	8017550000.00
分子量 molecular_weight	769440.0 kDa
排除体积 excluded_volume	966590 Å³
包络体积 envelope_volume	1466300 Å³
水化壳体积 shell_volume	167330 Å³
包络直径 envelope_diameter	263.3 Å
壳层 Rg shell_rg	72.58 Å
包络 Rg envelope_rg	72.32 Å
形状 Rg shape_rg	73.88 Å
总 Rg total_rg	73.79 Å
总原子数 total_atoms	54218
残基数 n_residues	6679
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	250.4 Å
Rg (实空间) rg_real	73.95 Å
Rg 误差 (实空间) rg_real_error	3.46 Å
I(0) (实空间) i0_real	8.0180e+09
I(0) 误差 (实空间) i0_real_error	1.8710e+08
Rg (倒空间) rg_reciprocal	73.46 Å
I(0) (倒空间) i0_reciprocal	8009000000.0000
解质量估计 total_estimate	0.8510
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	95.4 Å
偏度 Skewness skewness	0.406
峰度 Kurtosis kurtosis	-0.122
角度范围 angular_range	— – 0.1050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	433100000.0000
实空间数据点数 n_real_points	22
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.857; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.978; Smooth: 0.512

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (22)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit alpha
分子量 formula_weight	37945.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	54473

MVREKVKVSTRTLQWKCVESRRDSKRLYYGRFILSPLMKGQADTIGIAMRRALLGEIEGTCITRAKFENIPHDYSNIVGIQESVHEILMNLNEIVLKSNLYGTRNALICVQGPGYITARDIILPPSVEIVDNTQHIATLTEPINLCIGLKIERNRGYSLKMSNNFEDRSYPIDAVFMPVQNANHSIHSYGNGNEKQEILFIEIWTNGSLTPKEALHEASRNLINLFIPFLHVEEETFYLENNQHQVTLPLFPFHNKLVNLRQKKKELAFQYIFIDQLELPPRIYNCLKKSNIHTLLDLLNNSQEDLIKMEHFHIEDVKKLLDILEKK

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	121209.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MLGDGKEGTSTIPGFNQIQFEGFYRFIDQGLIEELSKFPKIEDIDHEIEFQLFVETYQLVEPLIKERDAVYESLTYSSELYVSAGLIWKTNRNMQEQRIFIGNIPLMNSLGTFIVNGIYRVVINQILQSPGIYYQSELDHNGISVYTGTIISDWGGRLELEIDKKARIWARVSRKQKISILVLSSAMGSNLREILENVCYPEIFLSFLTDKEKKKIGSKENAILEFYQQFSCVGGDPIFSESLCKELQKKFFHQRCELGRIGRRNINWRLNLNIPQNNIFLLPRDILAAADHLIGMKFGMGTLDDMNHLKNKRIRSVADLLQDQLGLALARLENVVKGTIGGAIRHKLIPTPQNLVTSTPLTTTYESFFGLHPLSQVLDRTNPLTQIVHGRKLSYLGPGGLTGRTANFRIRDIHPSHYGRICPIDTSEGINVGLIGSLSIHARIGDWGSLESPFYELVEKSKKAQIRMLFLSPSQDEYYMIAAGNSLALNRGIQEEQVVPARYRQEFLTIAWEEVHLRSIFPFQYFSIGASLIPFIEHNDANRALMSSNMQRQAVPLSRSEKCIVGTGLERQVALDSGVPAIAEHEGKILYTDTEKIILSGNENTLSIPLIMYQRSNKNTCMHQKPQVRRGKCIKKGQILADGAATVGGELALGKNVLVAYMPWEGYNFEDAVLISECLVYGDIYTSFHIRKYEIQTHVTTQGPERITKEIPHLEGRLLRNLDKNGIVMLGSWVETGDILVGKLTPQVAKESSYAPEDRLLRAILGIQVSTSKETCLKLPIGGRGRVIDVRWVQKKGGSSYNPEIIRVYISQKREIKVGDKVAGRHGNKGIISKILPRQDMPYLQDGRPVDMVFNPLGVPSRMNVGQIFECSLGLAGSLLDRHYRIAPFDERYEQEASRKLVFSELYEASKQTANPWVFEPEYPGKSRIFDGRTGDPFEQPVIIGKPYILKLIHQVDDKIHGRSSGHYALVTQQPLRGRSKQGGQRVGEMEVWALEGFGVAHILQEMLTYKSDHIRARQEVLGTTIIGGTIPKPEDAPESFRLLVRELRSLALELNHFLVSEKNFQINRKEV

Entity 3 polymer

描述 description	;DNA-directed RNA polymerase subunit beta' ;
分子量 formula_weight	78761.9 kDa
EC 编号 ec_number	2.7.7.6
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MIDRYKHQQLRIGLVSPQQISAWATKKIPNGEIVGEVTKPYTFHYKTNKPEKDGLFCERIFGPIKSGICACGNYRVIGDEKEDPKFCEQCGVEFVDSRIRRYQMGYIKLTCPVTHVWYLKRLPSYIANLLDKPLKELEGLVYCDFSFARPITKKPTFLRLRGSFEYEIQSWKYSIPLFFTTQGFEIFRNREISTGAGAIREQLADLDLRIIIENSLVEWKQLGEEGPTGNEWEDRKIVRRKDFLVRRMELAKHFIRTNIEPEWMVLCLLPVLPPELRPIIQIEGGKLMSSDINELYRRVIYRNNTLTDLLTTSRSTPGELVMCQEKLVQEAVDTLLDNGIRGQPMRDGHNKVYKSFSDVIEGKEGRFRETLLGKRVDYSGRSVIVVGPSLSLHRCGLPREIAIELFQTFVIRGLIRQHLASNIGVAKSQIREKKPIVWEILQEVMQGHPVLLNRAPTLHRLGIQSFQPILVEGRTICLHPLVCKGFNADFDGDQMAVHVPLSLEAQAEARLLMFSHMNLLSPAIGDPISVPTQDMLIGLYVLTSGTRRGICANRYNPCNRKNYQNERIYETNYKYMKEPFFCNSYDAIGAYRQKRINLDSPLWLRWQLDQRVIASKEVPIEVHYESFGNYHEIYAHYLIVRSVKKETLYIYIRTTVGHISFYREIEEAIQGFSQACSYDT

Entity 4 polymer

描述 description	;DNA-directed RNA polymerase subunit beta'' ;
分子量 formula_weight	156388.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MAERANLVFHNKVIDGTAIKRLISRLIDHFGMAYTSHILDQVKTLGFQQATATSISLGIDDLLTIPSKGWLVQDAEQQSLILEKHHHYGNVHAVEKLRQSIEIWYATSEYLRQEMNPNFRMTDPFNPVHMMSFSGARGNASQVHQLVGMRGLMSDPQGQMIDLPIQSNLREGLSLTEYIISCYGARKGVVDTAVRTSDAGYLTRRLVEVVQHIVVRRTDCGTIRGISVSPRNKSRMMSERIFIQTLIGRVLADDIYIGSRCVAFRNQDLGIGLVNRFITFGTQSISIRTPFTCRSTSWICRLCYGRSPTHGDLVELGEAVGIIAGQSIGEPGTQLTLRTFHTGGVFTGGTAEHVRAPYNGKIKFNEDLVHPTRTRHGHPAFLCYIDLSVIIESEDIIHSVTIPPKSFLLVQNDQYVESEQVIAEIREGTYTFHFKERVRKYIYSDSEGEMHWSTDVSHAPEFTYSNVHLLPKTSHLWILSGGSCGSSLILFSIHKDQDQMNIPFLSVERKSISSLSVNNDQVSQKFFSSDFSDKKKSGIPNYSELNGIVGTSHYNFIYSAIFHENSDLLAKRRRNRFLIPFQSIQEQEQEKEFIPHSGISVEIPINGIFRRNSIFAFFDDPRYRRKSSGILKYGTLKADSIIQKEDMIEYRGVQKFKTKYEMKVDRFFFIPEEVHILPESSAIMVENYSIIGVDTRITLNIRSQVGGLIRVERKKKRIELKIFSGDIHFPDKTDKISRHSGILIPPGRGKTNSKESKNLKNWIYVQRITPTKKKFFVLVRPVATYEIADSINLATLFPKDLFREKDNIQLRVFNYILYGNGKPTRGISDTSIQLVRTCLVLNWDQDNKNSSLEEVRAFFVEVNTKGLIRDFIRIGLVKSHISYIRKRNNPPDSGLISADSMNPFYSISPKAGILHQSLRQNHGTIRMFLNRNKESQSLLILSSSNCFRIGPFNHVKYHNVINQSIKKKPLITIKNSSGPLGTAIQISNFYSFLPLLTYNQISVIKYLQLDNFKYIFQVIHSYLIDENGRIFNLDPYSNLVLNPFKLNWYFLHQNYNNNYCEETSTIISLGQFFCENVCIAKKEPYLKSGQVLIVQRDSVVIRSAKPYLATPGAKVHGHYREILYEGDTLVTFIYEKSRSGDITQGLPKVEQVLEVRSIDSISLNLEKRIKGWNRCITRILGIPWGFLIGAELTIVQSRISLVNKIQKVYRSQGVQIHNRHIEIIVRQITSKVLVSEEGMSNVFLPGELIGLLRAERTGRALEEAICYRAVLLGITRASLNTQSFISEASFQETARVLAKAALRGRIDWLKGLKENVVLGGVIPAGTGFNKGLVHCSRQHTNILLEKKTKNLSLLEGDMRDILFYHREFCDSSI

Entity 5 polymer

描述 description	PAP1
分子量 formula_weight	103467.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MSLFFLNPALPSNSIHPIPRRAAGISSIRCSISAPEKKPRRRRKQQQKRENEDSSSFGSSEAVSALERSLRLTFMDELMERARNRDPSGVSEVIYDMIAAGLSPGPRSFHGLVVAHALNGDEQGAMHSLRKELGAGQRPLPETMIALVRLSGSKGNAQRGLELLAAMEKLNYDIRQAWLILVEELVRTNHLEEANKVFLKGARGGMRATDQLYDLMIEEDCKAGDHSNALDISYEMEAAGRFATTFHFNCLLSVQATCGIPEVAYATFENMEYGEDFMKPDTETYNWVIQAYTRADSYDRVQDVAELLGMMVEDYKRVQPNVKTHALLVECFTKYCVVKEAIRHFRALKNFEGGTKVLHNAGNFEDPLSLYLRALCREGRIVELIDALDAMRRDNQPIPPRAMIMSRKYRTLVSSWIEPLQEEAELGYEIDYLARYVEEGGLTGERKRWVPRRGKTPLDPDAAGFIYSNPIETSFKQRCLEDWKVHHRKLLRTLQSEGLPVLGDASESDYMRVMERLRNIIKGPAQNLLKPKAASKMVVSELKEELEAQGLPIDGTRNVLYQRVQKARRINKSRGRPLWVPPIEEEEEEVDEEVDELICRIKLHEGDTEFWKRRFLGEGLIETTAETKETDESSVATGEIENKTEVVAKEADDDEDDEEEEQEGDEDDDENEEEEEAVVVEPENRAEGEDLIKNKAADAKRHLQMIGVQLLKESDEANRTKKRGKRASRMTLEDDADEDWFPEEPFEAFKEMRERKVFDVSDMYTIADVWGWTWEKDFKNKTPRRWSQEWEVELAIVLMAKVIELGGVPTIGDCAVILRAAIRAPMPSSFLKILQTTHSLGYAFGSPLYDEIITLCLDLGELDAAIAIVADMETTGITVPDQTLDKVISARQSNEIPKSEHEEPPSSSESS

Entity 6 polymer

描述 description	PAP2
分子量 formula_weight	96112.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MNLAIPNPNSHHLSFLIQNSTFIGNRRFANSNHLSFLSGGKRPCSVAKINAKTKDLVLGNPSVSVEKGKYSYDVESLINKLSSLPPRGSIARCLDIFKNKLSLNDFALVFKEFAGRGDWQRSLRLFKYMQRQIWCKPNEHIYTIMISLLGREGLLDKCLEVFEEMPSQGVARSVFSYTALINAYGRNGRYETSLELLDRMKSEKISPSILTYNTVINACARGGLDWEGLLGLFAEMRHEGIQPDIVTYNTLLSACAIRGLGDEAEMVFRTMNDGGIVPDLTTYSHLVETFGKLGRLEKVSDLLSEMASGGSLPDITSYNVLLEAYAKSGSIKEAMGVFHQMQAAGCSPNANTYSVLLNLFGQNGRYDDVRQLFLEMKSSNTDPDAATYNILIDVFGEGGYFKEVVTLFHDMVEENIEPDMETYEGIIFACGKGGLHEDARKILQYMTAKDVVPSSKAYTGVIEAFGQAALYEEALVAFNTMHEVGSNPSIETFHSLLYSFARGGLFKESEVILSRLVNSGIPRNRDTFNATIEAYKQGGKFEEAVKTYVDMEKSRCDPDERTLEAVLSVYSCARLVDECREQFEEMKASDILPSIMCYCMMLSVYGKTESWDDVNELLEEMLSNRVSNIHQVIGQMIKGNYDDDSNWQIVEYVLDKLNSEGCGLGIRFYNALLDALWWLGQKERAARVLNEATKRGIFPELFRKNKLVWSVDVHRMSEGGMYTALSVWLNDLSDILVKGQDLPQLAVVVSVRGQLEKSSAARESPITRAAFSFLQDHVSSSFSFTGWNGGRIMCQRSQLKQLLSTQEPTSEESPKSNIVALTNSPIFAAGTRTSTSSDTNHSGGNPSQRKTKMKKELAGSPA

Entity 7 polymer

描述 description	PAP3
分子量 formula_weight	79815.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MQICQATLTTFTFTNPSNPNFCKPKPLFPSFQPPRRVTLPPCRGFSSDEFPVDETFLEKFGPKDKDTEDEARRRNWIERGWAPWEEILTPEADFARKSLNEGEEVPLQSPEAIEAFKMLRPSYRKKKIKEMGITEDEWYAKQFEIRGDKPPPLDTSWAGPLVVRQIPPRDWPPKGWEVDRKELEFIREAHKLMAERVWLEDLDKDLKVGEDATVDKMCLERFKVFLKQYNEWVEANKDRLEEDSYKYDQDFYPGRRIRGKDYKEGMYELPFYYPGMICEGTVTTLHLYQGAFVDIGGVHEGWVPIKGNDWFWIRHFIRVGMHVIVEITAKRDPYRFRFPLELRFVHPNIDHMIFNKFDFPPIFHRDGDTNPDEIRRDCGRPPEPRKDPGSKPEEEGLLSDHPYVDKLWQLHVAEQMILDDYEANPEKYKGKKLSELSDDEGFDERKEIEHGEAYYKKTKLPKVILKTSVKELDLEAALIERKYHNKLMMEAKARGEGYKIEKLRRNIEMDEYDSLHWRRSLEEREALLRDISSRQALGLPLEEPGRYKPGSFFGKDQYDPTSALYQYDYWGEPKNSEISKQERMKDAHNKSIVGKGNVWYDMSYDDAIKQTIERRKAESNVVTQKEEETESKEEEEDDDDEYEFDDFDYSILSDESSIGYSEQQPLVNGTQVFTD

Entity 8 polymer

描述 description	PAP4
分子量 formula_weight	30273.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MASCLVTTSSFYTVSDSSLRLKPSNLVHLSNQQRRRSLGSRGGLKVEAYYGLKTPPYPLDALEPYMSQRTLEVHWGKHHRGYVDNLNKQLGKDDRLYGYTMEELIKATYNNGNPLPEFNNAAQVYNHDFFWESMQPGGGDMPIKGVLEQIEKDFGSFTNFREKFTNAALTQFGSGWVWLVLKREERRLEVVKTSNAINPLVWDDIPIINLDVWEHSYYLDYKNERGKYINTFLNHLVSWNAAMSRMARAEAFVNLGEPTIPIA

Entity 9 polymer

描述 description	PAP5
分子量 formula_weight	60884.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MASISTTSWLYRDKLCTESGKLGTCILQRPVKCGFPVKRLYVGITSKDVLMRDCIKCKKDDDDDDASEGSSKKDGQGYEYVSVERAPYYSYMDSTSGKMEPASGARASIPGEDYWPEGTSSRVRAARAPQPAGESSSFPSYGKNPGSRRKKNRKATEGNAAVETYDEVSDSEDSSEEEESDSSNGFVVYNNEVEGEDEEETGFELDKKLGRPHPFIDPTKKKQIETTLTSDESWWNWRKPEKEQWSRWQRRRPDVETVFLKAMAETGQVKLYGKEPTLTETSLYRARRHLFKEERLQAERERLAKEGPMAFYSEWVKAWKRDTSREAVQKHFEETGEDENTQLIEMFSHQTDREYRIMMGTDVRIKRDPLAMRMKEDQIKQIWGGDPVYPTINYIQAPDAVMDFRGPDFHEPTPNMLSYLKENCKVISREMHETLLAKEKTEQVEVPDIDDAMAQAVDIGENDDEEEDTEEAEKDEKVARNWSVLKSTPELRNSKPKPKKEGRMSLDEAVDDSENLTDFLMDFDEETDP

Entity 10 polymer

描述 description	PAP6
分子量 formula_weight	52435.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MASLHLFPHLHHFDSIIHRREIAAHSRRQFLSPKASINGGVVTNGASAAETAKPSRKGRNKKKQTEETNPDSDPALVDYDDGIDFPYDDPPLVCCFGAVQKEFVPVVRVHDNPMHPDIYSQWKMLQWDPPEFGRAPGGPPSNVAISHVRLGGRAAFMGKVGGDDYGEELVLMMNKERVQTRGVKFDEGASTACTRVKIKFEDGKMKAETVKEPPEDSLLASELNLAVLKEARIFHFNSEVLTSPTMESTLFKAIQWSKKFGGLIFFDLNLPLPLWRSRNETRKLIKKSWDEANIIEVSQQELEFLLDEEYYERRRNYTPQYFAEDFEQTKNRRDYYHYTPEEIKPLWHDDLKLLVVTDGTLRLHYYTPKFDGVVVGTEDVLITPFTCDRTGSGDAVVAGIMRKLTTCPEMFEDQDVLERQLRFAVAAGIISQWTIGAVRGFPTESATQNLKEQVYVPSMW

Entity 11 polymer

描述 description	PAP7
分子量 formula_weight	55675.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MASPVSLHYLINTFISKPQGFCNGTVSSPRPRSSFVRERQNSVKPIKVASLETQPFPLFQSPASEESSSSELESADPDFYKIGYVRRVRAYGVEFKEGPDGFGIYASKDIEPRRRARVIMEIPHELMITIRQKHPWMFFPDIVPIGHPIFDIINSTDPERDWDLRLACLLLFSFDREDHFWRLYGDFLPAADECSSLLLATEEDLAELQDPQLVSTIRQQQKRVLEFWEKNWHSGVPLKIKRLAEDAERFIWAVSIAQTRCISMKTRIGALVQDLNMMIPYADMLNHSFEPNCFLHWRPKDRILEVMSNAGQAIKKGEEMTINYMPGQKNNMLMERYGFSTPVNPWDAIPFSGDSRIHLNSFLSVFNIFGLPEEYYHDSELSGDDSFVDGAVIAAARTLPTWSDIDLPPIPSAERKAVKELQDECRKMLAEYPTTSEQDQKLLDSLSEARTTFATAVKYRMHRKMFIGKIIKALDIYQERLLF

Entity 12 polymer

描述 description	PAP8
分子量 formula_weight	38039.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MASSAASPSLSLLSLTPKPPPSPSTASATSHRLFPSFRTNGCFAPLTLKPRRGRSIIVKVDDGDADGGGQDEYDMDDEEVEEVDNKKDYDVEYDPLAAAMAAASGGGGDGDIAFVQSKSFISTQGWDSEMVVDYRINEDEFHKISLLDCDFFIRKPPDPDNDVYDFREMYVTPPDTDIYSVPRVLAPMPQKYIRCAMSDYGCYDVTEPPIDAPRDPLYKSEREISKVFLTKHYRNRRLNDPEFVLDFEEIYVIDSKTKSITRARVLVTVPGGRKRDRKDDLLVIRDNGNSFKIIHVGERDDPTTVIEREEWTKTREDMEKHLRKLRDFSVSNWF

Entity 13 polymer

描述 description	PAP9
分子量 formula_weight	34008.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MMTSTCSFLSSCSLLPSQEPNQRMQWKRHEKRQFSRKVAVSGVIRAGFELKPPPYPLDALEPHMSRETLDYHWGKHHKTYVENLNKQIVGTDLDGLSLEEVVLLSYNRGNMLPAFNNAAQAWNHEFFWESIQPGGGGKPSGDLLRLIERDFGSFSDFVERFKAAAASNFGSGWTWLAYKANRLDVANAVNPLPKEEDKKLVIVKTPNAVNPLVWDYSPLLTIDTWEHAYYLDFENRRIEYINTFMEKLVSWETVSTRLESAMARAAQREQEGSDTEAEENPDDEEPEVYLDDASEVD

Entity 14 polymer

描述 description	PAP10
分子量 formula_weight	20954.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P

MALVQSRALPRLNVSLSPILSTLHAPPSSLFLRREIRPVVTSPFSSSTTGNLPFSPLTHPRKILCPPPRGKFVREDYLVRKLSAQELQDLVKGERKVPLIVDFYATWCGPCILMAQELEMLAVEYESNAMIVKVDTDDEYEFARDMQVRGLPTLFFISPDPSKDAIRTEGLIPLQMMRDIIDNDM

Entity 15 polymer

描述 description	PAP11
分子量 formula_weight	85121.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MAFTFFSPHPVFLPLGRTTSSFSYKPVYSPFPRNSRNLQLAAGPARRNSYPNPADDDPPEAPEDSMHGVSKFQQIQRQAARARKLEEEDFEKNRNTYLSAIADVEDAPETGRDDVESGGDLFSDIDRAISMKRSEFVKKGLLQPNPPKTTSSKKLDEEEDDVTDVVDELDEEEVVDLDEIDKLTGLTEVSDEEDWVDEEGNPRINKKKETGSDHHFEFDLDDFGGSKARIVEPKFRLSLAELLDESKVVPISVYGDLDVEITGIQHDSRGVSSGDLFVCCENEGDSVLSEADKRGAVAVVASKEIDIEDTLGCRALVIVEDTEAVLAALASSFYRHPSKNMAVIGVTGTNGKTTTTYLIKSLYEAMGVRTGMFSTVSCYVHGDNKMDSPTTTSPDAVLVQSMMAKMLHNGTEALVMEASPQELASGKCDEVDFDIAVFTNLTREDSDFRGTDEEYRDAEAKLFARMVDPERHRKVVNIDDPNAAFFVQQGNPDVPVVTFAMENTKADVHPLKFELSLFETQVLVNTPQGILEISSGLLGRHNIYNILAAVAVGIAVGAPLEDIVRGVEEVDAVPGRCELIDEEQAFGVIVDHANTPDGLSRLLDSVRELKPRRIITVIGCAGENERGKRPVMTKIATEKSDVTMLTSDNPGNEDPLDILDDMLSGIGWTMQEYLKHGEHDYYPPLSNGHRLFLHDVRRVAVRCAVAMGEEGDMVVVAGKGHESYQLEGDKKEFYDDREECREALQYVDELHQAGIDTSEFPWRLPESH

Entity 16 polymer

描述 description	PAP12
分子量 formula_weight	18835.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MFCSSFTSSISRIGDARSGNSRASSFTFQTQVSCGIQRDDNGRRIWRRRTLTKKDDMLRYKLQRVPFVEEQVRKIKEVGKVMTMDIERLLLSEDNRFEFVNSVAAEATEYVEKNRDEYGGTKKAIFHVLSNRVNDLGFDRPEAYAESDPYKPGPGYLKEYYT

Entity 17 polymer

描述 description	FLN2
分子量 formula_weight	68527.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MASLSFTQFLPFPRCSVDVPCLQPHGFVKFRGERWKGKHSFLMVAGRRKLSESAPLDEDDGGNGAVGGKKPTKVPKKSGARTAKKKVVAKDEPLEESSQLLVDSDNVSDNESDTKEPVRRTRKKAAASSDVNEGKTEKKVRRKRTVKKDKEVEDGLVTYDEASDVEEALTVEATDADSEGEEIDLSKHESEDISHTYGWPPLVCCFGSAQHAFVPSGRPANRLLDYERQERMKDAVWAPEKYIRAPGGCAGGVAIALASLGGKAAFMGKLGDDDFGQAMLYYLNVCQVQTRSVKIDSKRVTACSTMKISKRGRLKSTCVKPCAEDSLSKSEINVDVLKEAKMFYFTTHSLLDKKMMSTTLQAIKISKQLGNVIFYDLNLPLPLWQSLEETKSLIQEVWDLADVIEVTKQELEFLCGIEPTEEFDTKNNDSSKFVHYEPETVEPLWHENLKILFVTNGTSKIHYYTKEHNGAVLGMEDVPITPFTRDMSASGDGIVAGLIRMLTVQPDLMNDKGYLERTARYAIECGVVDQWLLAQTRGYPPKDDMEEEEDDDEEEEMESDPNGIRSITEREYRTSKPYDEPDGPYVMKPVEEREYRKLELVGSMGEDDDSS

Entity 18 polymer

描述 description	PTAC18
分子量 formula_weight	16430.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MASLVMATPFSGSLTQCKKKTKNLSVQRAFFKVTCSMQTPLEELYNVKVERKVSQRRLEELGVSRWSVWKTGKCKLPWDWQVDQLVYIEEGEVRVVPEGSKRFMQFLAGDLVRYPKWLEADLFFNAPYSERYCFKAYADD

Entity 19 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 20 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 21 non-polymer

描述 description	S-ADENOSYL-L-HOMOCYSTEINE
分子量 formula_weight	384.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 22 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	255

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.49 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	613537

fit	/app/data/saxs_computation/r5/8r5o/8r5o.fit
pddf	/app/data/pr_computation/r5/8r5o/8r5o.pr.out
profile	/app/data/saxs_computation/r5/8r5o/8r5o.dat
