8rbt

;Emiliania huxleyi virus 201 (EhV-201) capsid proteins predicted by AlphaFold2 fitted into a cryo-EM density map of the EhV-201 virion capsid. ;

Method: ELECTRON MICROSCOPY D_max: 260.5 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

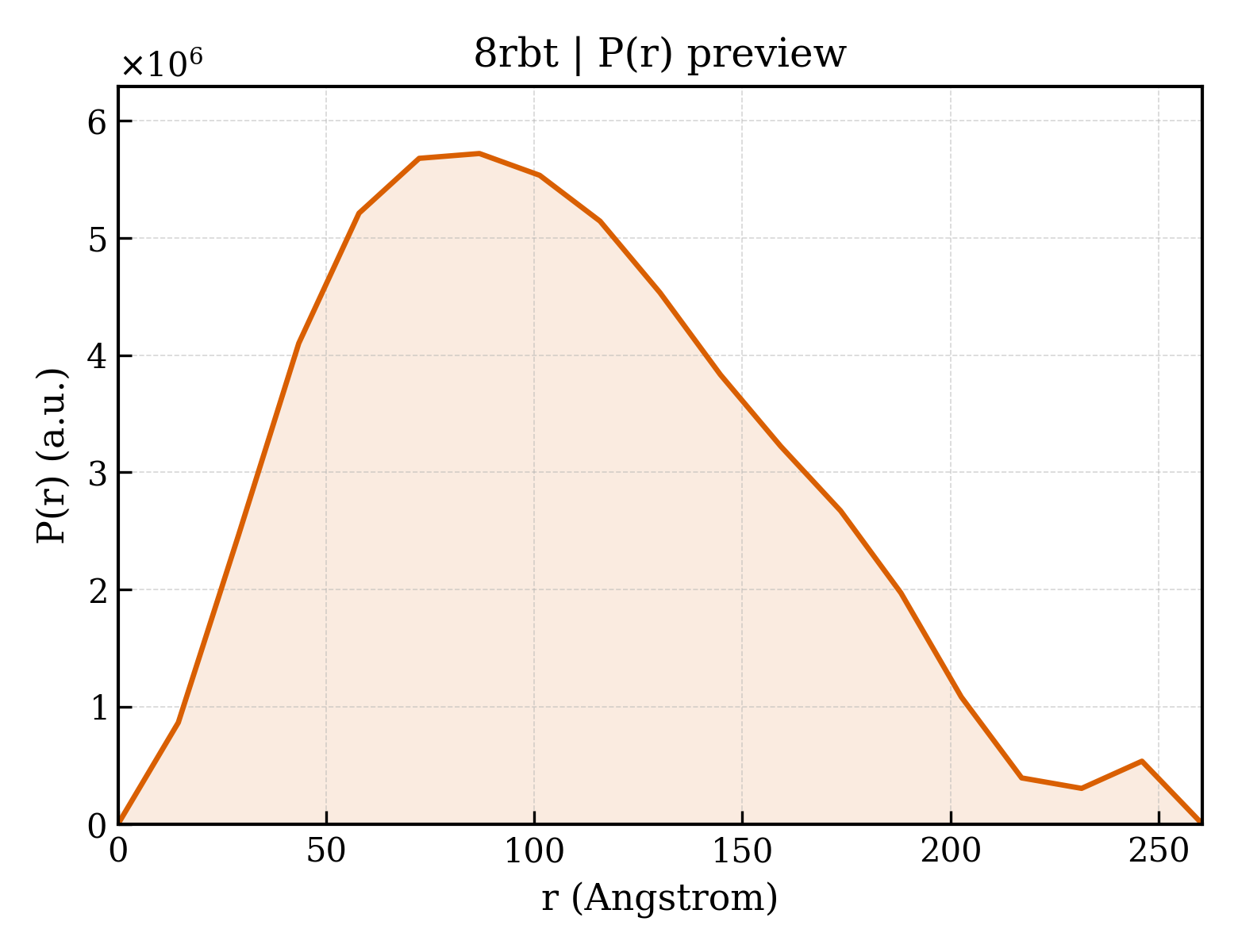

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rbt
沉积日期 deposition_date	2023-12-04
结构标题 title	;Emiliania huxleyi virus 201 (EhV-201) capsid proteins predicted by AlphaFold2 fitted into a cryo-EM density map of the EhV-201 virion capsid. ;
关键词 keywords	cryo-EM, subtomogram averaging, EhV-201, enveloped virus, capsid, major capsid protein, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	87.52 Å
回转半径 Rg (电子) rg_electron	89.03 Å
零角强度 I(0) i0	10049200000.00
分子量 molecular_weight	522460.0 kDa
排除体积 excluded_volume	513000 Å³
包络体积 envelope_volume	1789200 Å³
水化壳体积 shell_volume	179780 Å³
包络直径 envelope_diameter	327.0 Å
壳层 Rg shell_rg	74.54 Å
包络 Rg envelope_rg	91.79 Å
形状 Rg shape_rg	89.02 Å
总 Rg total_rg	88.88 Å
总原子数 total_atoms	37285
残基数 n_residues	9321
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	260.5 Å
Rg (实空间) rg_real	82.59 Å
Rg 误差 (实空间) rg_real_error	1.40 Å
I(0) (实空间) i0_real	9.6840e+09
I(0) 误差 (实空间) i0_real_error	1.9110e+08
Rg (倒空间) rg_reciprocal	83.32 Å
I(0) (倒空间) i0_reciprocal	9926000000.0000
解质量估计 total_estimate	0.9023
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	86.8 Å
偏度 Skewness skewness	0.423
峰度 Kurtosis kurtosis	-0.365
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.6185
最高正则化参数 α highest_alpha	809100000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.927; Stabil: 0.976; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.026

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Major capsid protein
分子量 formula_weight	55145.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R
原子数 atom_count	37285

MSGFGGGSSGAGSLTQLLATGSMDAALTQNATRTFWKSSYQKHSLFALESINQPFTTQVQFGAESHITVNRQGDLLSWMYLKIVLPGLKVQNQADTVQPTQQSFASLDNDVAAQADVSHVLPYIEGAYTEASLNTKEQLIAEAKNSYEAAKYNAAPLPVAAQMQSTEMPDFDYAYWTEAIGFHLIKRAEFKVGGATIDTIWSELLFAMEELMGRAGRRLTETIGRTLRRPTELMKASRQEQILYVPLPWYFTKHPSLAFPLVAATYHNIQLWVQWAQLNSCIIKSRSNLVVLHAERNVPISDDHLRASLECTYVHLEAAERDALTANAGTQLIVQHQAHLQQVSSNNVTARLNFNFPVLEFYYFLRRKANKDAGDHFNFSGIGGRDPVVSAELLFNNTARVTQKPAVWWRAVQALQFHSSAPLTNIYSYSFSLSPEDPITPSGSANFSRLDSVELALTLQDDFGAAHDANSELFVFARSYNILKFTNGLAGLLYSN

Entity 2 polymer

描述 description	Penton protein
分子量 formula_weight	72841.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MPSIAFSGISTKPGELEFHVPSVLSKHNRAGLLKSIDFPYSQRTIESSWNKLHYMESIRITPESRSVSVLLTDKESGDRVEMLAMVPLTTNKIIEISTATTDGTIILVTEEPHGFFAPGCFGKEVRNVISSYKSIFPHGTPPFILIHGSNGSVQVDPALFEYNDEYSVKIKYTAIRTEFKLFGKGDHGWMVTPEFPTISMLCQVITNAMNSAIIFNHDDPAARTRMYPGTCSNTHVIESVSGDSLAKALLGYDGVYAGWEEITIPAGMYCYGELDLSKMIAAKMNRWHIDRESSIIFRGVSGYTWNVTLPSGNYGTPEKLAHCIQHMMNMTAKNRKNPYCVRFTLNEGSSHRGKFVFVAAEPFDLLFGDDESIDPSILGFEPVDHIGRNSYMSENDLGAPLMKPNCNVYDVDEIPGTHQIRIGRRTRLAVDGKIRGYSGGTLRLNTVNRTTGAPKCHGMNKGDVVTLTTVMPAPDGATGTKREGFTFRAKNKIMGVVVADENENPDASSLHVSVPSMSWTLGIGSYITIDSQAAPISVALFDPGKNQFFRDSIGASRLGFSNGVSTGQHGVVVSQCAVNLEPRTVDVSFIEGSMTSASTEMYNQNGKSLITQVPSDRSSGPVPQGMVRFNNALQQFKLEFTNPDGSPYHFNHASLSLLMEFDD

▶

7. 引用文献 (1)

▶

分辨率 resolution	12.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	2880

fit	/app/data/saxs_computation/rb/8rbt/8rbt.fit
pddf	/app/data/pr_computation/rb/8rbt/8rbt.pr.out
profile	/app/data/saxs_computation/rb/8rbt/8rbt.dat
