8rc5

Complex between the RecA-like Sak4 SSAP and the SaPI2 Stl master regulator

Method: ELECTRON MICROSCOPY D_max: 210.1 Å Quality: REASONABLE

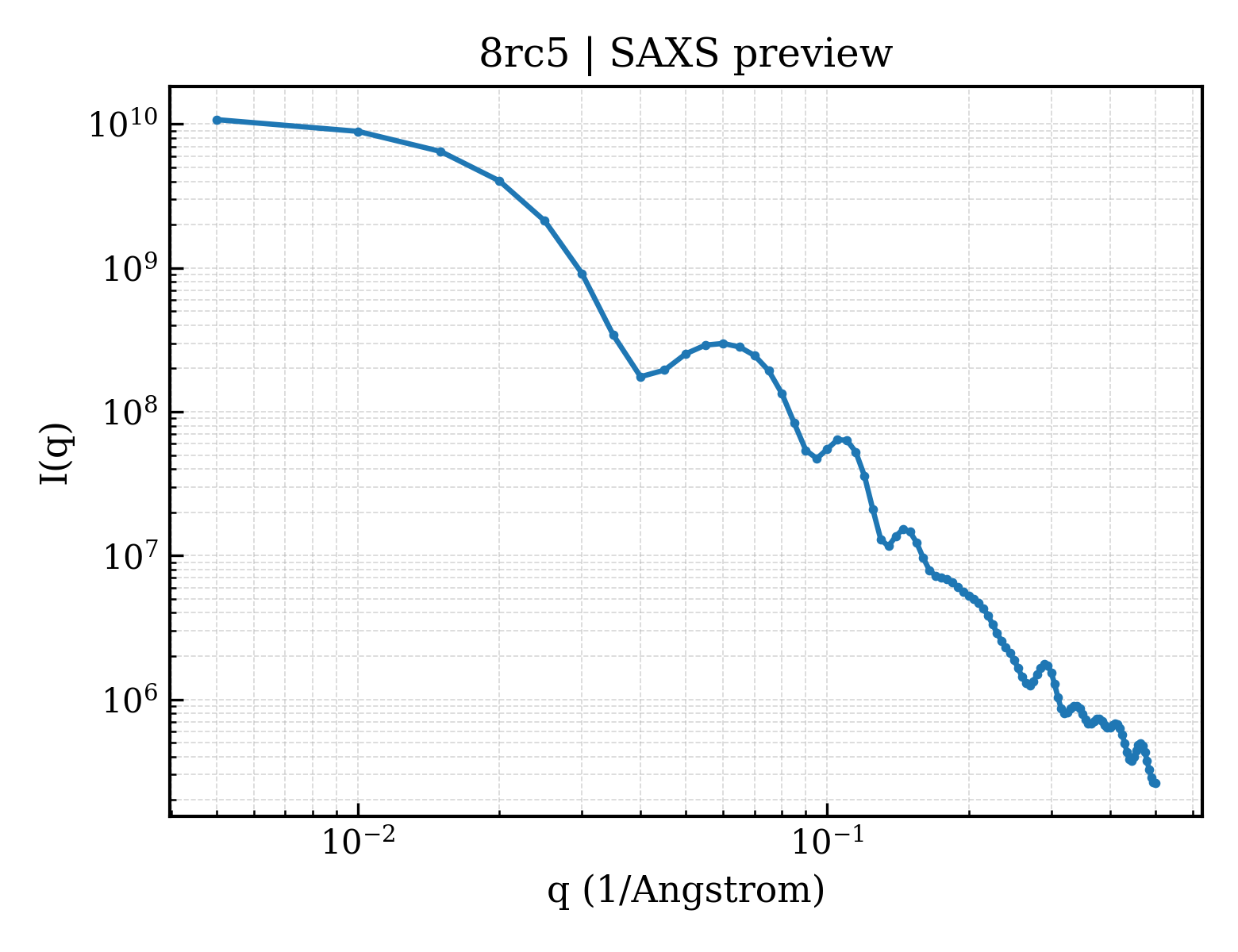

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rc5
沉积日期 deposition_date	2023-12-06
结构标题 title	Complex between the RecA-like Sak4 SSAP and the SaPI2 Stl master regulator
关键词 keywords	;Annealase, SSAP, Single Strand Annealing, Single Strand Binding, Recombineering, Recombination, SaPI, Bacteriophage, Staphylococcal, Complex, SaPI induction, SaPI2, Mobile Genetic Element, MGE, PICI, Phage-Inducible Chromosomal Island, C18, Ring ;; RECOMBINATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	86.50 Å
回转半径 Rg (电子) rg_electron	85.68 Å
零角强度 I(0) i0	11430400000.00
分子量 molecular_weight	914280.0 kDa
排除体积 excluded_volume	1146300 Å³
包络体积 envelope_volume	2500400 Å³
水化壳体积 shell_volume	246640 Å³
包络直径 envelope_diameter	268.3 Å
壳层 Rg shell_rg	92.51 Å
包络 Rg envelope_rg	76.47 Å
形状 Rg shape_rg	85.70 Å
总 Rg total_rg	85.70 Å
总原子数 total_atoms	64360
残基数 n_residues	7866
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

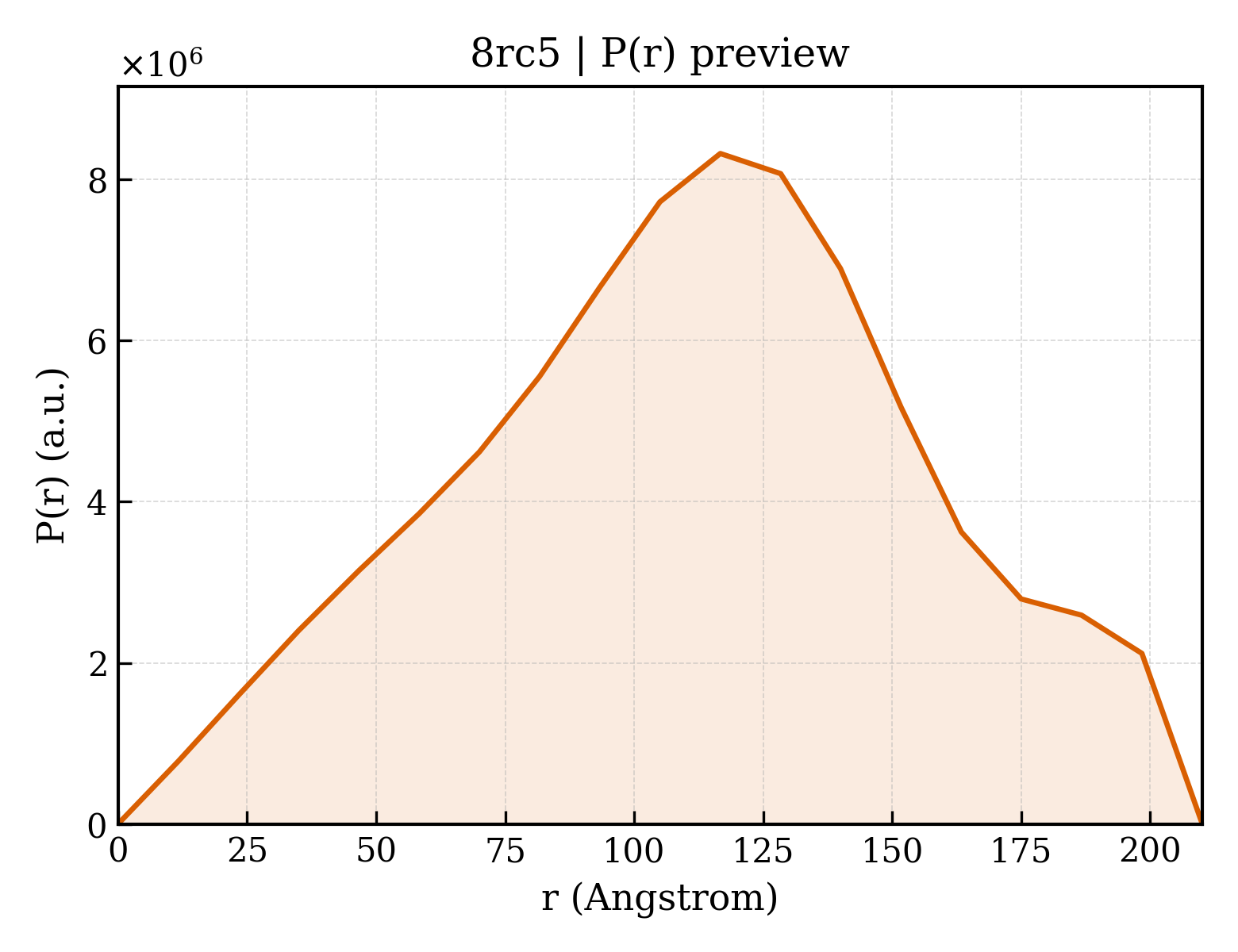

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	210.1 Å
Rg (实空间) rg_real	84.47 Å
Rg 误差 (实空间) rg_real_error	0.36 Å
I(0) (实空间) i0_real	1.1130e+10
I(0) 误差 (实空间) i0_real_error	2.1500e+08
Rg (倒空间) rg_reciprocal	88.35 Å
I(0) (倒空间) i0_reciprocal	11490000000.0000
解质量估计 total_estimate	0.6126
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	116.7 Å
偏度 Skewness skewness	-0.096
峰度 Kurtosis kurtosis	-0.531
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	0.3048
最高正则化参数 α highest_alpha	406200000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.963; Stabil: 0.984; Sysdev: 0.000; Positv: 1.000; Valcen: 0.594; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	ORF016
分子量 formula_weight	31653.7 kDa
来源方法 src_method	man
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1A,4A,1B,4B,1C,4C,1D,4D,1E,4E,1F,4F,1G,4G,1H,4H,1I,4I
原子数 atom_count	64360

MGSSHHHHHHSSGLVPRGSHMTEKTNQDVDILTQLGVKDISKQNANKFYKFAIYGKFGTGKTTFLTKDNNALVLDINEDGTTVTEDGAVVQIKNYKHFSAVIKMLPKIIEQLRENGKQIDVVVIETIQKLRDITMDDIMDGKSKKPTFNDWGECATRIVSIYRYISKLQEHYQFHLAISGHEGINKDKDDEGSTINPTITIEAQDQIKKAVISQSDVLARMTIEEHEQDGEKTYQYVLNAEPSNLFETKIRHSSNIKINNKRFINPSINDVVQAIRNGN

来源 Source

来源生物 organism	Staphylococcus phage 52A
NCBI 分类编号 ncbi_taxonomy_id	2908114
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

描述 description	Helix-turn-helix XRE family protein
分子量 formula_weight	27189.6 kDa
来源方法 src_method	man
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2A,3A,2B,3B,2C,3C,2D,3D,2E,3E,2F,3F,2G,3G,2H,3H,2I,3I

MIRNRLSELLSERGLKISRVAKDVKIARSSLTSMAQNDSEMIRYDAIDKLCSYLHISPSEFFEHNPINFDFTFDEEPNYKINDVFEGFEVTANITHAFSIENFDFEILVDVELDNRQKLNFDLDVSYKETEKITNSQHRFIFTIKNEDENIGLKKYVDSLSAGLKNLLFKKINQKLSGYVSEIIVKNIDDIEELFPNKGEKSTTLHKEILQTDSRLSSDIFKEYLEHHHHHH

来源 Source

来源生物 organism	Staphylococcus aureus
NCBI 分类编号 ncbi_taxonomy_id	1280
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 3 non-polymer

描述 description	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER
分子量 formula_weight	523.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.35 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	141863

fit	/app/data/saxs_computation/rc/8rc5/8rc5.fit
pddf	/app/data/pr_computation/rc/8rc5/8rc5.pr.out
profile	/app/data/saxs_computation/rc/8rc5/8rc5.dat
