SAXSdb — 8rfg

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rfg
沉积日期 deposition_date	2023-12-12
结构标题 title	CgsiGP3 sample in nanodisc
关键词 keywords	cgs, cyclic glucan, ANTIBIOTIC; ANTIBIOTIC
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.50 Å
回转半径 Rg (电子) rg_electron	56.25 Å
零角强度 I(0) i0	1413040000.00
分子量 molecular_weight	309590.0 kDa
排除体积 excluded_volume	385310 Å³
包络体积 envelope_volume	554780 Å³
水化壳体积 shell_volume	84721 Å³
包络直径 envelope_diameter	201.6 Å
壳层 Rg shell_rg	55.38 Å
包络 Rg envelope_rg	55.44 Å
形状 Rg shape_rg	56.25 Å
总 Rg total_rg	56.23 Å
总原子数 total_atoms	21855
残基数 n_residues	2765
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	198.2 Å
Rg (实空间) rg_real	55.89 Å
Rg 误差 (实空间) rg_real_error	2.52 Å
I(0) (实空间) i0_real	1.4130e+09
I(0) 误差 (实空间) i0_real_error	3.2870e+07
Rg (倒空间) rg_reciprocal	55.14 Å
I(0) (倒空间) i0_reciprocal	1411000000.0000
解质量估计 total_estimate	0.8146
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.5 Å
偏度 Skewness skewness	0.499
峰度 Kurtosis kurtosis	-0.442
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	189600000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.673; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.849; Smooth: 0.717

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Cyclic beta 1-2 glucan synthetase
分子量 formula_weight	313358.7 kDa
EC 编号 ec_number	2.4.1.20
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	21879

DHNDSIRASYMTIEELHDAGAALSRDGADSLPGFMEFDFFERHRENEKEILRVYRTTAVDAENGATITPAAEWLLDNHYVIEEAIQEVRRDFPRKFYRQLPTMTVGGVTIPRVMALGWLYVAHTHSTVSRENMTALVDGYQTSQTLQIGELWALPSIIRFVLIENLRRISIRVERSRRMRQKANEVVDEIIRLNDAEASAALLKQVDSLVDDPTFATQFLYRLRNGSQTSGFAVAWLEERLHAAGTDAENVMMSEHNRLASGNVTMGNIVKSLREIDDTEWSVWFEEVSHIDKVLREETDYEILDFGSRNTYRNTIELLARRSPRTEVEVARAAVEMARSDLPAGADENHRVNVGSVLVGQRRFELEKALGYRPLASQHIVRSMRKFNWLAIAAPVLLITAVAMLAVGWFLAKAGMPWYVVTAFLLMFALPASEGATGLFNTLVTFFVKPFRLVGYEFKNGIPEDARTLVAVPCMLTSRDSVDEMMRNIEVHYLANPHGEIYFSLVSDWRDAPYEQSDEDLEILDYAKRELAALNSRYAFDGKTRFYLLHRRRIYNSAEECWMGWERKRGKLHELNMLLRGDKDTTFLGGSNIVPADVKYVMTLDADTRLMRDAVTKLVGKMHHPINRPKIDPVSGRVVEGYGLLQPRVTPSLTTGKDASVFQRVFSINRGIDPYVFTVSDVYQDLTSEGTFTGKGLYDVDAFEAALKGRIEENSILSHDLLEGSFARCALVTDVELVEDFPTRYEVEVSRQHRWARGDWQLLPFIIDRARGVTAIGRWKMVDNLRRSLTPIAWFFASILGWYFMDPLGALIWQILLIFSLFVAPTLSLLSGLVPRSTDIVPQAHFFTIWSEIRATNAQVALRIVFIADAACMMTDAIVRSLYRLLVSHKLMLEWRTAASMQSSAQGSIVDYYRQMWHAPVVAMLGLLFAALPGDNAFLIGIPFTLLWVLSPAVAWYVSQSAETEDRLFVSEHVSFELRKIARRTWRYYEAFVTPQENHLPPDNFQETPEPIVASRTSPTNIGVYLLSVISARQFGWISFADTLERIENTIQTVEKMEKHRGHLYNWYHTDTLQTLGPRYVSAVDSGNLAGHLIAVSSACRDWAEAPSAHLQGNLDGIGDVAGILRETLKALPDNRKTLRPLHRRLEERIIGFSNALASVKREHEFASIRVINLAVLARDIQKLATNVDHEVKSAQSAEVTRWAQLLVESCEAHISDSAIDLTNMEPLRQRLASLRDRSRNLAFSMDFTFLYRKDRRLLSIGYRVESKELDEACYDLLASECRLTSLFAIAKGDLPTEHWYRLGRQVVPIGAQGALVSWSGSMFEYLMPPLVMQERQGGILNQTNNLIVKEQMNHGRRLGTPWGISEAAFNARDHNMNYQYTNFGVPTLGLKRGLGQNAVIAPYASILASQYDPDGALENLDKLRKLGALGQYGFHDAVDFTPTRVPDGKVCAVVYNYYAHHHGMSIAAVANVAFDGVLRELFHSDPVIEAAELLLQEKAPREVPVMSAKYEPETPGKEQADLLRAEVRSIADPAVRDREVVFLSNGHYSTMLTSTGAGYSKWNGQAISRWKADPTDDRWGTFIFLRDTTNGQWWSATAEPRVIEGEKTKTIFTDDKAEFHKTIGDLQSVVECIVATEHDAEGRRITLLNVGSEDRYIEVTSYMEPVIASEDDDNAHPLFSRMFVQTEIGRRGDVIRAWRNRRSQNEPGTVIAHLAADNAGPSRPTEFETDRAKFIGRGRSLREAAAFDAGATLSSSDGFTLDPILSLRRTVRVPAGKKVSVIFWTIAAPSREEVDKAIDRYRHPDAFAHELVHAWTRTQVQMRHVGVTSQQAAAFQHLGRYLTYPDMHLRADSETLKTGLASQRALWPLAISGDFPIFSLRINDDMDMDIAREALSAHEYLRSRGVIFDLVIVNERAASYAQDMQHALDHISETQRRINPADGGRPHVFSVRRDLMDEETWSALLAASRVVLHVRNGKIVDQINRAVSLFAANRGPDGSSDAAQARLPVPAFPVAEPVEDAGDLDFWNGFGGFAKNGQEYVVRLNGGQSTPHPWINVISNENFGFHISAEGAGFSWSRNSRDYQLTPWTNDPVINRPGEAFYVADVETGKLYTPCAALSRDPEAMFETRHGLGYSILTGVADTLEVELTQTVDREKPVKFSQVIVRNKGSKSRRLKVYAYVEWVLGNNGQKSAPFILSRHDAGSNAIFASNPYSIDYSARTSFLTLDSEASGFTTSRREFIGRFGSAQAPQGIVAGAALSGTTEVDGDPCAALMQEIHLKPGEERHMTFILGDADNAEEAEALVKDVRQADFLSVLEESKKFWTGFTGQLQVSTPDAGFNHMVNNWLPYQALACRILARTAFYQSSGAFGFRDQLQDTLAFLLYQPDLARTQILRAAGRQFPEGDVQHWWLPLTGAGVRTTISDDVVWLAYAINQYVSATGDAAILDESIPFLKGPALMPGQHDAFFQPETSERSATLYEHAALALDLAIHRTGENGLPLILGGDWNDGMNRVGVGGKGTSVWLGWFLAGALRDFIEIAEKRGDTDRVGKWASHREKLRHVLETAGWDGSYYRRGYFDDGTPLGSASSEECQIDSLGQSWSVLSGEGEEGRSRQAMDAVMEHLVDEKTGIIRLFTPPFSRASHDPGYIKGYPPGVRENGGQYTHAATWVVLALAKQGRAQEAWNCFKLLNPVNHALDAASSETYRVEPYVVTADVYGEGAYAGRGGWSWYTGSAGWLYRAAVEGILGITRTDGKLHVSPSLPEDWSGFSIRITLDGKARDIAVSRKAGTADVSVSVDG

Entity 2 branched

描述 description	;beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose ;
分子量 formula_weight	1477.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	;beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose ;
分子量 formula_weight	2125.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose-(1-2)-beta-D-glucopyranose
分子量 formula_weight	828.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.35 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	98115

fit	/app/data/saxs_computation/rf/8rfg/8rfg.fit
pddf	/app/data/pr_computation/rf/8rfg/8rfg.pr.out
profile	/app/data/saxs_computation/rf/8rfg/8rfg.dat

CgsiGP3 sample in nanodisc

SAXS 散射曲线 SAXS Profile

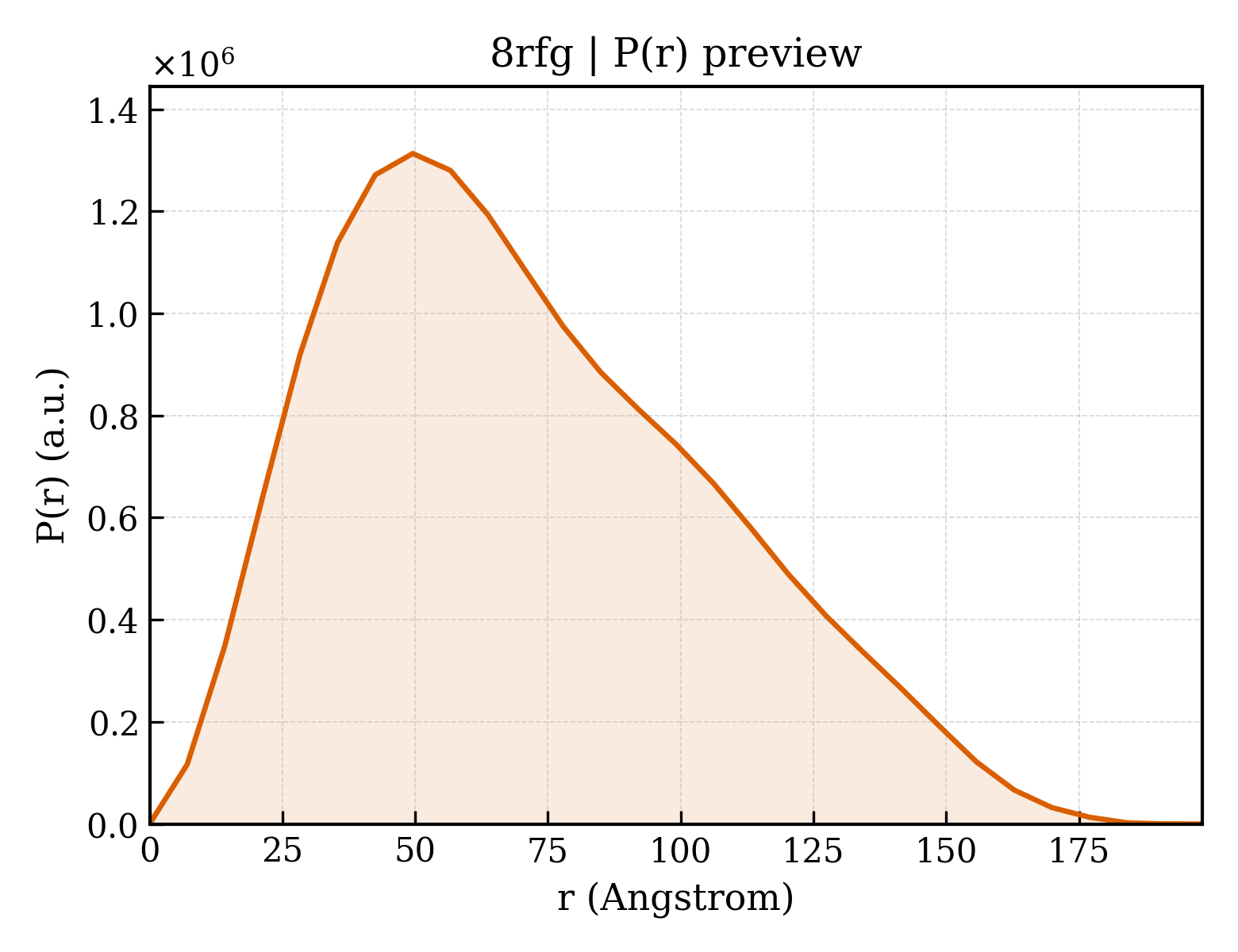

P(r) 距离分布 P(r) Distribution
