SAXSdb — 8rkh

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rkh
沉积日期 deposition_date	2023-12-25
结构标题 title	Crystal structure of the ZP-N2 and ZP-N3 domains of mouse ZP2 (mZP2-N2N3)
关键词 keywords	;Cell adhesion, fertilization, egg-sperm interaction, gamete recognition, sperm receptor, extracellular matrix, egg coat, zona pellucida, glycoprotein, N-glycan, structural protein, ZP-N domain, block to polyspermy, post-fertilization cleavage, ovastacin ;; CELL ADHESION
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.61 Å
回转半径 Rg (电子) rg_electron	32.52 Å
零角强度 I(0) i0	41860800.00
分子量 molecular_weight	51678.0 kDa
排除体积 excluded_volume	65070 Å³
包络体积 envelope_volume	90149 Å³
水化壳体积 shell_volume	26098 Å³
包络直径 envelope_diameter	134.8 Å
壳层 Rg shell_rg	34.49 Å
包络 Rg envelope_rg	33.49 Å
形状 Rg shape_rg	32.52 Å
总 Rg total_rg	32.71 Å
总原子数 total_atoms	7202
残基数 n_residues	438
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	126.8 Å
Rg (实空间) rg_real	33.28 Å
Rg 误差 (实空间) rg_real_error	1.62 Å
I(0) (实空间) i0_real	4.1860e+07
I(0) 误差 (实空间) i0_real_error	6.7760e+05
Rg (倒空间) rg_reciprocal	33.00 Å
I(0) (倒空间) i0_reciprocal	41850000.0000
解质量估计 total_estimate	0.7330
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	25.9 Å
偏度 Skewness skewness	0.710
峰度 Kurtosis kurtosis	0.047
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	7881000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.435; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.269; Smooth: 0.951

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Zona pellucida sperm-binding protein 2
分子量 formula_weight	26692.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	7389

ETGPAIQAETHEISEIVVCRRDLISFSFPQLFSRLADENQNVSEMGWIVKIGNGTRAHILPLKDAIVQGFNLLIDSQKVTLHVPANATGIVHYVQESSYLYTVQLELLFSTTGQKIVFSSHAICAPDLSVACNATHMTLTIPEFPGKLESVDFGQWSIPEDQWHANGIDKEATNGLRLNFRKSLLKTKPSEKCPFYQFYLSSLKLTFYFQGNMLSTVIDPECHCESPVSLEHHHHHH

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	house mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Homo sapiens

Entity 2 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	5

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	187

▶

7. 引用文献 (12)

ZP2 cleavage blocks polyspermy by modulating the architecture of the egg coat.

Cell (2024)

PMID: 38490181 · DOI: 10.1016/j.cell.2024.02.013 PRIMARY

Structure of Zona Pellucida Module Proteins.

Curr Top Dev Biol (2018)

PMID: 29853186 · DOI: 10.1016/bs.ctdb.2018.02.007

Structural Basis of Egg Coat-Sperm Recognition at Fertilization.

Cell (2017)

PMID: 28622512 · DOI: 10.1016/j.cell.2017.05.033

;Gamete recognition in mice depends on the cleavage status of an egg's zona pellucida protein. ;

Science (2010)

PMID: 20616279 · DOI: 10.1126/science.1188178

Crystal structure of the ZP-N domain of ZP3 reveals the core fold of animal egg coats.

Nature (2008)

PMID: 19052627 · DOI: 10.1038/nature07599

Structural characterization of native mouse zona pellucida proteins using mass spectrometry.

J Biol Chem (2003)

PMID: 12799386 · DOI: 10.1074/jbc.M304026200

Fertility and taxon-specific sperm binding persist after replacement of mouse sperm receptors with human homologs.

Dev Cell (2003)

PMID: 12852850 · DOI: 10.1016/s1534-5807(03)00195-3

Defective zonae pellucidae in Zp2-null mice disrupt folliculogenesis, fertility and development.

Development (2001)

PMID: 11245577 · DOI: 10.1242/dev.128.7.1119

Oocyte-specific expression of mouse Zp-2: developmental regulation of the zona pellucida genes.

Mol Cell Biol (1990)

PMID: 1690843 · DOI: 10.1128/mcb.10.4.1507-1515.1990

Biosynthesis of the major zona pellucida glycoprotein secreted by oocytes during mammalian oogenesis.

Cell (1982)

PMID: 6819087 · DOI: 10.1016/0092-8674(82)90329-4

Mammalian sperm-egg interaction: fertilization of mouse eggs triggers modification of the major zona pellucida glycoprotein, ZP2.

Dev Biol (1981)

PMID: 6793422 · DOI: 10.1016/0012-1606(81)90329-8

Synthesis of zona pellucida proteins by denuded and follicle-enclosed mouse oocytes during culture in vitro.

Proc Natl Acad Sci U S A (1980)

PMID: 6928658 · DOI: 10.1073/pnas.77.2.1029

▶

晶胞边长 a length_a	163.010 Å
晶胞边长 b length_b	54.170 Å
晶胞边长 c length_c	68.660 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	107.98 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	8

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	monoclinic

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	43.730 Å
R 因子 r_factor	0.2157
R_work r_work	0.2141
R_free r_free	0.2479

fit	/app/data/saxs_computation/rk/8rkh/8rkh.fit
pddf	/app/data/pr_computation/rk/8rkh/8rkh.pr.out
profile	/app/data/saxs_computation/rk/8rkh/8rkh.dat

Crystal structure of the ZP-N2 and ZP-N3 domains of mouse ZP2 (mZP2-N2N3)

SAXS 散射曲线 SAXS Profile

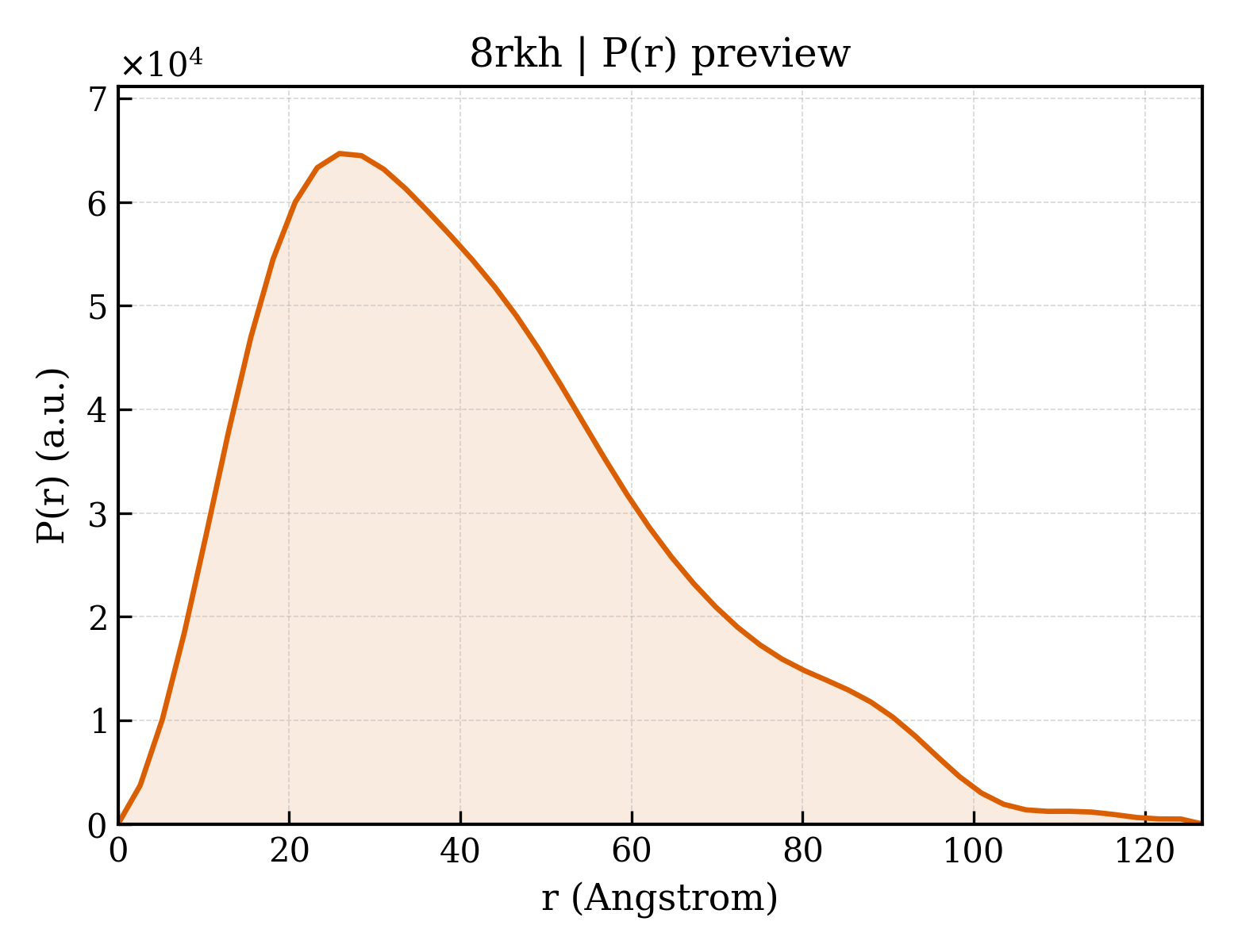

P(r) 距离分布 P(r) Distribution
