1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8roq
沉积日期 deposition_date	2024-01-12
结构标题 title	FAdV-C4 Aviadenovirus structure, strain KR5
关键词 keywords	adenovirus, fowl, highly thermostable, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	79.23 Å
回转半径 Rg (电子) rg_electron	79.20 Å
零角强度 I(0) i0	26924700000.00
分子量 molecular_weight	1382600.0 kDa
排除体积 excluded_volume	1718300 Å³
包络体积 envelope_volume	2359200 Å³
水化壳体积 shell_volume	238680 Å³
包络直径 envelope_diameter	299.9 Å
壳层 Rg shell_rg	83.27 Å
包络 Rg envelope_rg	79.04 Å
形状 Rg shape_rg	79.17 Å
总 Rg total_rg	79.33 Å
总原子数 total_atoms	97638
残基数 n_residues	12237
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	209.9 Å
Rg (实空间) rg_real	75.29 Å
Rg 误差 (实空间) rg_real_error	0.53 Å
I(0) (实空间) i0_real	2.5780e+10
I(0) 误差 (实空间) i0_real_error	4.6290e+08
Rg (倒空间) rg_reciprocal	78.90 Å
I(0) (倒空间) i0_reciprocal	26900000000.0000
解质量估计 total_estimate	0.6847
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	94.4 Å
偏度 Skewness skewness	0.211
峰度 Kurtosis kurtosis	-0.450
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	0.4162
最高正则化参数 α highest_alpha	1766000000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.986; Stabil: 0.986; Sysdev: 0.002; Positv: 1.000; Valcen: 0.969; Smooth: 0.023

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Hexon protein
分子量 formula_weight	106129.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	12

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L
原子数 atom_count	97638

MAALTPDLTTATPRLQYFHIAGPGTREYLSEDLQQFISATGSYFDLKNKFRQTVVAPTRNVTTEKAQRLQIRFYPIQTDDTSTGYRVRYNINVGDGWVLDMGSTYFDIKGILDRGPSFKPYCGTAYNPLAPKESMFNNWSETAPGQNVSASGQLSNVYTNTSTTKDTTAAQVTKISGVFPNPNQGPGINPLRQVENANTGVLGRFAKSQYNYAYGAYVKPVAADGSQSLTQTPYWIMNNAGTEYLGAVAVEDYTNSLSYPDTMIVPPPEDYDDYNIGTTRALRPNYIGFRDNFINLLYHDSGVCSGTLNSERSGMNVVVELPDRNTELSYQYMLADMMSRHHYFALWNQAVDQYDPEVRVFSNDGYEEGAPSYAFNPEAVGAGEGYGPDLSQIKLYTNNTAANDKNTAVTNATTNFYFGTVPSYEIDISATQRRNFIMANIAEYLPDRYKFSISGFDATSVAPTTYEYMNKRVPLTNVVDMFTNVGARWSIDQMDNVNPFNHHRNWGLKYRSQLLGNSRYVNFHIQVPQKFFAIKNLLLLSGSYTYEWVLRKDPNMILQSSLGNDLRADGASIIYNEVNLMANFMPMDHNTSNQLELMLRNATNDQTFVDYLGAKNALYSVPAGSTALTINIPARTWEGMRGWSFTRIKAAETPQLGAQYDVNFKYSGSIAYSDGGFYLSHTFRNMSILFDTSINWPGNDRLLTPNMFEIKRSVALDTEGFTMSQCDITKDWYLIQMATNYNFVYNGYRFWPDRQYFHYDFLRNFDPMTRQGPNFALPGLFDLVSYTPTTDNSGEQPSQEAVRNNSGFIAPRSWPVWSAHQGESWPANWPYPLCGQQAIQPGQVLSYKKFLCDNYLWTIPFSSDFMYMGELTDLGQNPMYTNNSHSMVINFELDPMDDPTYVYMLYGVFDTVRVNQPERNVLAMAYFRTPFATGNAV

Entity 2 polymer

描述 description	Penton protein
分子量 formula_weight	57448.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MWGLQPPTSIPPPPPPTELTPSTYPAMVNGYPPPAASAQSCSSSGGQSELYMPLQRVMAPTGGRNSIKYRDYTPCRNTTKLFYVDNKASDIDTYNKDANHSNFRTTVIHNQDLDADTAATESIQLDNRSCWGGDLKTAVRTNCPNVSSFFQSNSVRVRMMWKRDPPTSTAPPSAVGSGYSVPGAQYKWYDLTVPEGNYALCELIDLLNEGIVQLYLSEGRQNNVQKSDIGVKFDTRNFGLLRDPVTGLVTPGTYVYKGYHPDIVLLPGCAIDFTYSRLSLLLGIGKREPYSKGFVITYEDLQGGDIPALLDLDSVDVNDADGEVIELDNAAPLLHDSAGVSYNVIYDQVTGKPVTAYRSWMLAYNVPNSQANQTTLLTVPDMAGGIGAMYTSLPDTFIAPTGFKEDNTTNLCPVVGMNLFPTYNKIYYQAASTYVQRLENSCQSATAAFNRFPENEILKQAPPMNVSSVCDNQPAVVQQGVLPVKSSLPGLQRVLITDDQRRPIPYVYKSIATVQPTVLSSATLQ

Entity 3 polymer

描述 description	PIIIa
分子量 formula_weight	65326.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MSSTEVFGALAPVGRTEVADALSSHANSKDARSLRYEPYANRLIKLQTAMVPPKVDGTSERVAEVVKGLAEQGAIYPDQMGAIHSDLLNRVYTWNSMGVQESIQALVNDVIHGQNKVLQDELARTREIANASMLTRFFDSLYKTVDRGQRNFEGFKKLLRLFVNNVPNAEVYSSGGSFSLQINMGGQSQNINLTNAFDNLKDIWGARWDAVNNPRIGALLTPNTRALLFFVSTFYDYGSMEPGSYLDNLMRLYKEAIRADTDAEGDAIMELGDAGANLNLKFNQYKDTLNYLLQNKPSVPQTGPLEMSPEQESLFKYLMRQLRRALKDGVNSDIAISTMAQYVDPRLYTSNKVFIDKLQNYLLMASARNPYYYKTIVLDPHWVPPAGLYTDNFVIPEMMPNFSDFASELEYGGPSRDEYFDDSPFRPPPQKKFTEKEQADYDSLINFFDSTLGVQSEAGWIADHRLPQAFDGALNVSERTPYNTPLPDDAPMRSRNASVSSATDALGQLKLSGTGGAGFFDSLKPSVGTRRSTGLAKGLAGTGQPPCPWPASVGYASAGYGPARGIRGSGLARRALAARGLRQGKRLRFY

Entity 4 polymer

描述 description	Pre-hexon-linking protein VIII
分子量 formula_weight	26882.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,P

MNLLNAAPTPYVWKYNPVTGKCAGAQQNYGATIDWVLPGGNSFAYAADEIRRRFPEPAVTRAITARFEAESDQQPYAGPHETNIITADVVRSGPPPSAVYPFDPSGVQRVQLSGGMMGGRTEGRMQLSGGLTEGRMQLAGGAAGKLPTRARPTLRPPRWCGTTLTGNGLPADYPEMTPDAFKYYLRVQGPSQEVDEPGVMSQRQFMTTFLPAMVPHPFDSESPDAFPAYFSSVYKGTNAFEPVFWQG

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	9466

fit	/app/data/saxs_computation/ro/8roq/8roq.fit
pddf	/app/data/pr_computation/ro/8roq/8roq.pr.out
profile	/app/data/saxs_computation/ro/8roq/8roq.dat

FAdV-C4 Aviadenovirus structure, strain KR5

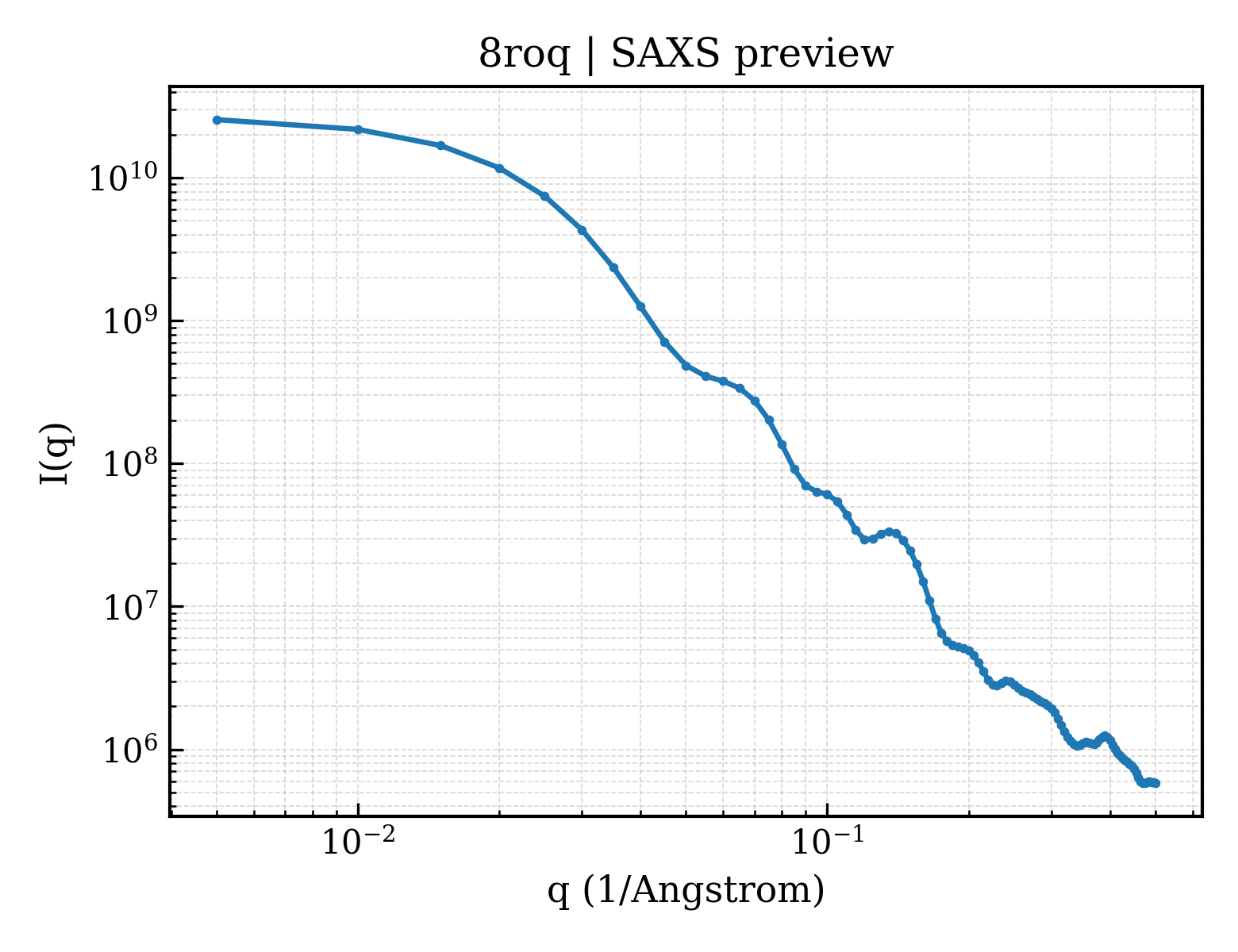

SAXS 散射曲线 SAXS Profile

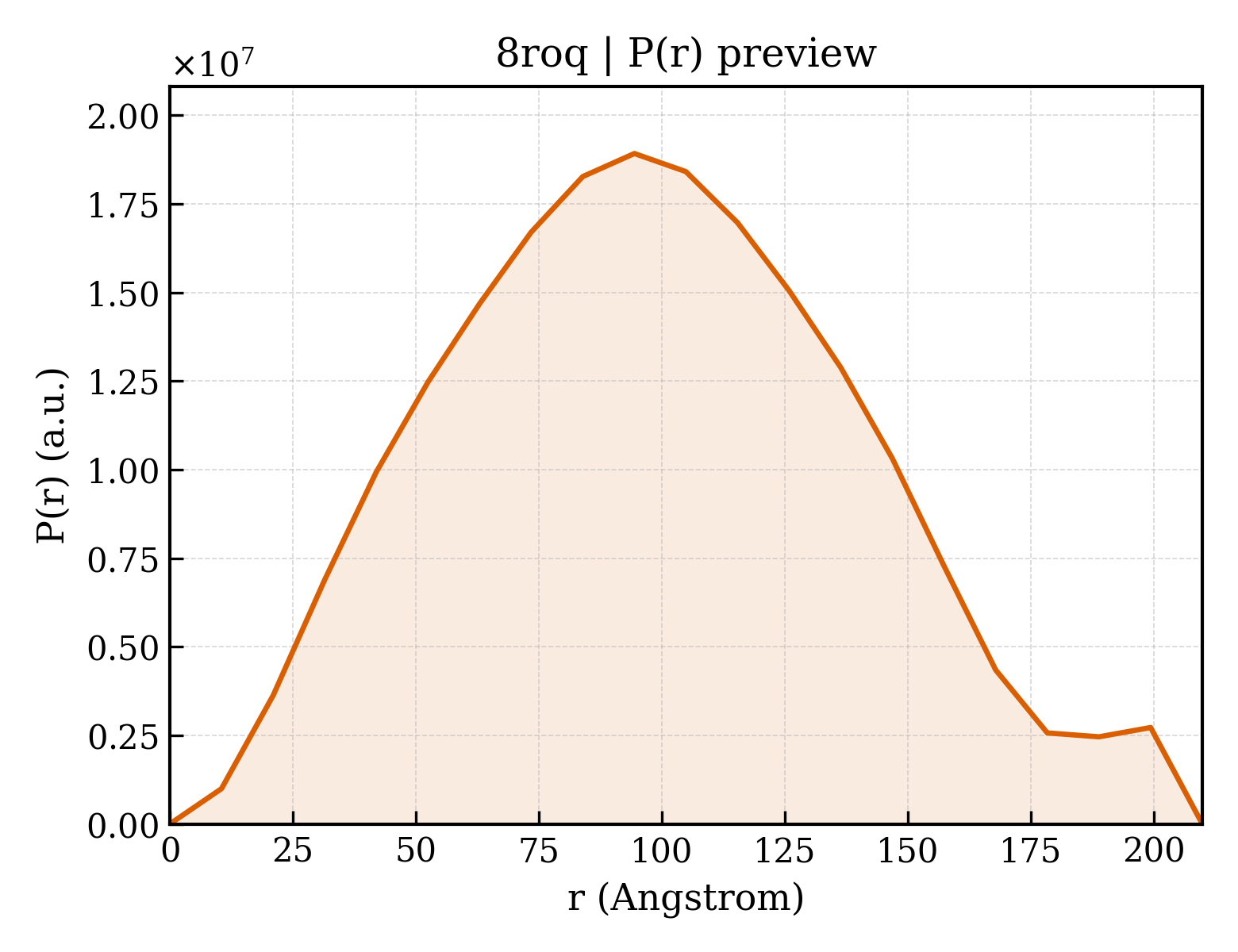

P(r) 距离分布 P(r) Distribution
