8rt5

;I-layer structure (TrwF/VirB9CTD, TrwE/VirB10CTD) of the outer membrane core complex from the fully-assembled R388 type IV secretion system determined by cryo-EM. ;

Method: ELECTRON MICROSCOPY D_max: 166.6 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rt5
沉积日期 deposition_date	2024-01-25
结构标题 title	;I-layer structure (TrwF/VirB9CTD, TrwE/VirB10CTD) of the outer membrane core complex from the fully-assembled R388 type IV secretion system determined by cryo-EM. ;
关键词 keywords	;type IV secretion system type 4 secretion system T4SS I-layer core complex outer membrane complex R388 plasmid conjugation bacterial secretion secretion secretion system protein complex VirB10 VirB9 TrwE TrwF, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	62.20 Å
回转半径 Rg (电子) rg_electron	61.24 Å
零角强度 I(0) i0	913680000.00
分子量 molecular_weight	247630.0 kDa
排除体积 excluded_volume	307310 Å³
包络体积 envelope_volume	568670 Å³
水化壳体积 shell_volume	77114 Å³
包络直径 envelope_diameter	159.2 Å
壳层 Rg shell_rg	70.67 Å
包络 Rg envelope_rg	54.50 Å
形状 Rg shape_rg	61.25 Å
总 Rg total_rg	61.42 Å
总原子数 total_atoms	17456
残基数 n_residues	2129
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

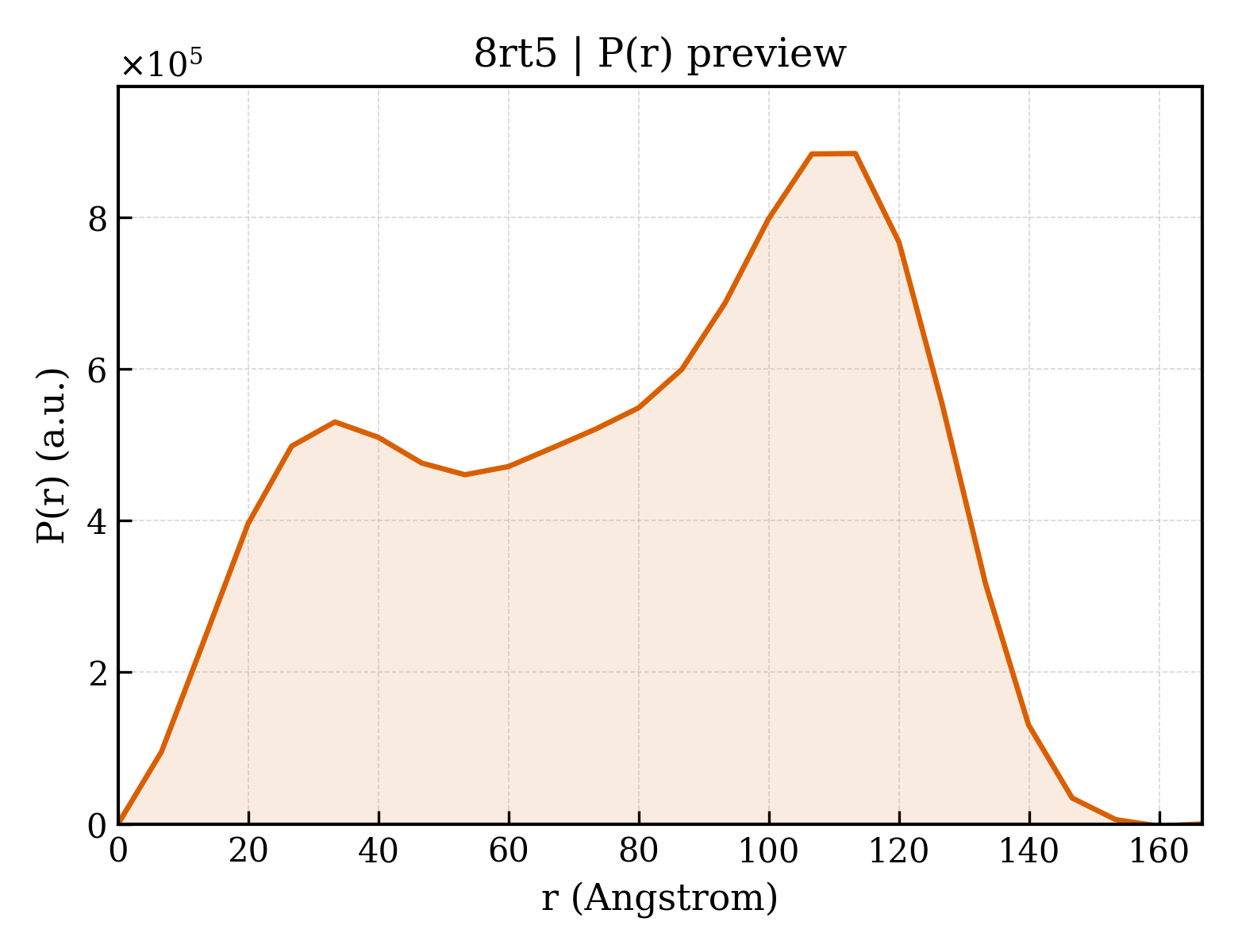

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	166.6 Å
Rg (实空间) rg_real	61.79 Å
Rg 误差 (实空间) rg_real_error	1.14 Å
I(0) (实空间) i0_real	9.1370e+08
I(0) 误差 (实空间) i0_real_error	1.7030e+07
Rg (倒空间) rg_reciprocal	62.48 Å
I(0) (倒空间) i0_reciprocal	914700000.0000
解质量估计 total_estimate	0.7125
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	113.3 Å
偏度 Skewness skewness	-0.285
峰度 Kurtosis kurtosis	-1.076
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16810000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.519; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.703; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	TrwE protein
分子量 formula_weight	42443.8 kDa
来源方法 src_method	man
拷贝数 entity_count	16

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,D,G,J,M,P,S,u,V,Y,b,e,h,k,n,y
原子数 atom_count	17456

MFGRKKGDVIDAGAELERAEQERIEGEYGASELASERRPHTPGARTLLMVLLCVIAVVLVTLSYKAYKVRGVVEDDDAQPQQVVRQVIPGYTPRPIRPEPENVPEPPQPTTSVPAIQPAPVTQPVRPQPTGPREKTPYELARERMLRSGLTAGSGGGEDLPRPQGGDVPAGGLMGGGGGGGELAEKLQPMRLSGSSAGRLGNRDMLITQGTQLDCVLETRLVTTQPGMTTCHLTRDVYSTSGRVVLLDRGSKVVGFYQGGLRQGQARIFVQWSRIETPSGVVINLDSPGTGPLGEAGLGGWIDRHFWERFGGAIMISLIGDLGDWASRQGSRQGDNSIQFSNTANGVESAAAEALRNSINIPPTLYKNQGERVNILVARDLDFSDVYSLESIPTK

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	TrwF protein
分子量 formula_weight	29749.6 kDa
来源方法 src_method	man
拷贝数 entity_count	16

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,E,H,K,N,Q,T,v,W,Z,c,f,i,l,o,z

MKKLAIVALLASLHAVPALALDVPSSSRYDHRIRYVTYNPADVVQVDTVLGVATHIMLEEGEQYLTHAFGDSEAYAFARKGRHIFIKPQAELANTNLIVVTDRRSYKFRLQMRNDRNGAMYELAFRYPDTQARQTREANARAAVEAAFEQRVGAYYNLKYMMSGDKDIAPVNAWDDGRFTYFKFSANADLPSIYFVDAEGNESLVPRTTVGSSNNIIAVHKVNPKWMIRLGNRALAIFNEAYDPNGVPNDTGTASPAVRRVNKGGN

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.69 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	784923
