8rth

Trypanosoma brucei 3-methylcrotonyl-CoA carboxylase

Method: ELECTRON MICROSCOPY D_max: 252.6 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

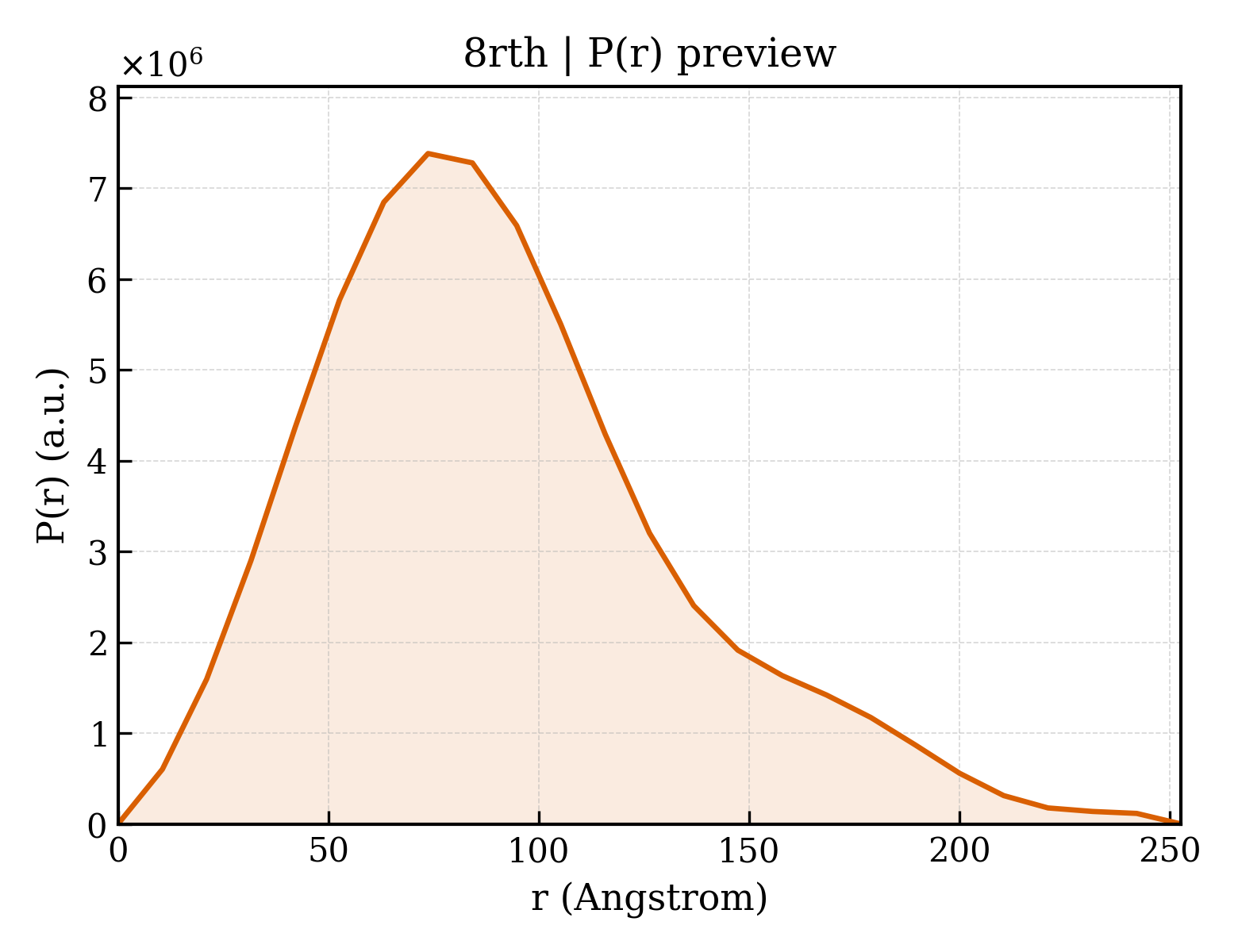

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rth
沉积日期 deposition_date	2024-01-26
结构标题 title	Trypanosoma brucei 3-methylcrotonyl-CoA carboxylase
关键词 keywords	carboxylase, trypanosoma brucei, BIOSYNTHETIC PROTEIN, TRANSFERASE; TRANSFERASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.64 Å
回转半径 Rg (电子) rg_electron	66.79 Å
零角强度 I(0) i0	8787390000.00
分子量 molecular_weight	789080.0 kDa
排除体积 excluded_volume	985920 Å³
包络体积 envelope_volume	1513900 Å³
水化壳体积 shell_volume	184950 Å³
包络直径 envelope_diameter	236.5 Å
壳层 Rg shell_rg	71.09 Å
包络 Rg envelope_rg	66.60 Å
形状 Rg shape_rg	66.80 Å
总 Rg total_rg	66.82 Å
总原子数 total_atoms	55416
残基数 n_residues	7248
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	252.6 Å
Rg (实空间) rg_real	70.70 Å
Rg 误差 (实空间) rg_real_error	1.65 Å
I(0) (实空间) i0_real	8.8650e+09
I(0) 误差 (实空间) i0_real_error	1.7920e+08
Rg (倒空间) rg_reciprocal	66.44 Å
I(0) (倒空间) i0_reciprocal	8781000000.0000
解质量估计 total_estimate	0.8366
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	73.7 Å
偏度 Skewness skewness	0.717
峰度 Kurtosis kurtosis	0.362
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.8863
最高正则化参数 α highest_alpha	973400000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.538; Stabil: 0.858; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.720

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	3-methylcrotonyl-CoA carboxylase, putative
分子量 formula_weight	73987.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G,I,K
原子数 atom_count	55416

MLRYNVFYHGDFKKVLVANRGEIACRVFRTCREMNIRTVAVCCEGEPNAKHVLEADEAFVLGPPPASTSYLRGDRIICAAKKLQADAVHPGYGFLSENAEFASAVLAAGLKFVGPPPAAMLSMGSKSESKRIMEAAGVPIVPGYYGEDQNPDRLLHEAKTIGFPVLIKAVSGGGGKGMKIVMEETEFHLMLESAKREAINFFKDDRVILERYVMHPRHIECQIFFDSFGNGVFFFERDCSVQRRHQKVIEEAPAPGLSVDMRRRIGDVALTAARAVGYVGAGTVEFIFDTEKDEFFFMEMNTRLQVEHPVTEQVCQVRGRPLDLVRLQLQTAMGLPLGFRQEDISMSGASVEARIYAESPRNGFLPVGGRLRYLKEPPQGNRGTVKVRLDTGFRAGDDVLVHYDPMIAKLVVWGDNRATALEGLRTALASYHIVGVETNIDFLQCCLSNPGFVEGGVTTRFIEDNSVNLLQPREIPNNVLALAAVSYLCSQRGTSTLFWPNRQISQGVCFTVGGNPVVVRVTVSTKMCFTCDFDSSSVTVYVESTTNMPDSSTFIRVTVDGETRFGFTSFVTDSEVAVALPQGFYTLALQPLATDFGSTSAQANGSASVLSPMPGKVTKLLVADGTLVQQGQAILILEAMKMEHVVKASCDGEVKFCVHADGIVGGSTLLAHIASAAV

Entity 2 polymer

描述 description	methylcrotonoyl-CoA carboxylase
分子量 formula_weight	66614.0 kDa
EC 编号 ec_number	6.4.1.4
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H,J,L

MKSFCRLGKVCGCSVSVVFSHRVFALGPRRDYSTSEVPLGSSQVPKGDPRKEQKGGNMSEVYLFHPAQYESAPATTRPNVLHYPAESTNPEFKANTERMKALTAELRRRVQVIVDGDSEADKRARDRHISRGKLLVHQRIEKLVDPMSPFLELSQLAGGDLYPGEACHRGGILTGIGVVHGMRVMIVANDATVKGGTYYPITVKKHLRAQRIAEENRLPCIYLVDSGGANLGMQGDVFPDEQHFGRIFFNQANMSAKGIAQIATVMGSCTAGGAYVPAMSDESIIVKGNGTIFLGGPPLVFAATGEEVTPEELGGADVHCRASGVTDYFATDDLHALYLTRRIVANLNRNDCERPCRGREFTPPLYDPSEIGGFIPDMGADVVKGFDVRAVIARLVDGSEFDEFKKLYGDTLVCGFARFEGMLVGIVANNGILYSESALKGAHFVELCSHRNIPLLFLQNITGFMVGKTYEEGGIAKNGAKLVTAVSTTHVPKITIIIGGSYGAGNYGMCGRAFGPRFLFMWPNARISVMGGNQAATVLALTNSKLRENEVQDFKAKVRSKYEYEGSCYYSTARLWDDGVIAPEDTRAVVVQALLSTLSAPCGETKFGVFRM

Entity 3 non-polymer

描述 description	5-(HEXAHYDRO-2-OXO-1H-THIENO[3,4-D]IMIDAZOL-6-YL)PENTANAL
分子量 formula_weight	228.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.37 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	126391

fit	/app/data/saxs_computation/rt/8rth/8rth.fit
pddf	/app/data/pr_computation/rt/8rth/8rth.pr.out
profile	/app/data/saxs_computation/rt/8rth/8rth.dat
