8rx1

CryoEM structure of the gTuRC-CM1dim complex

Method: ELECTRON MICROSCOPY D_max: 435.7 Å Quality: GOOD

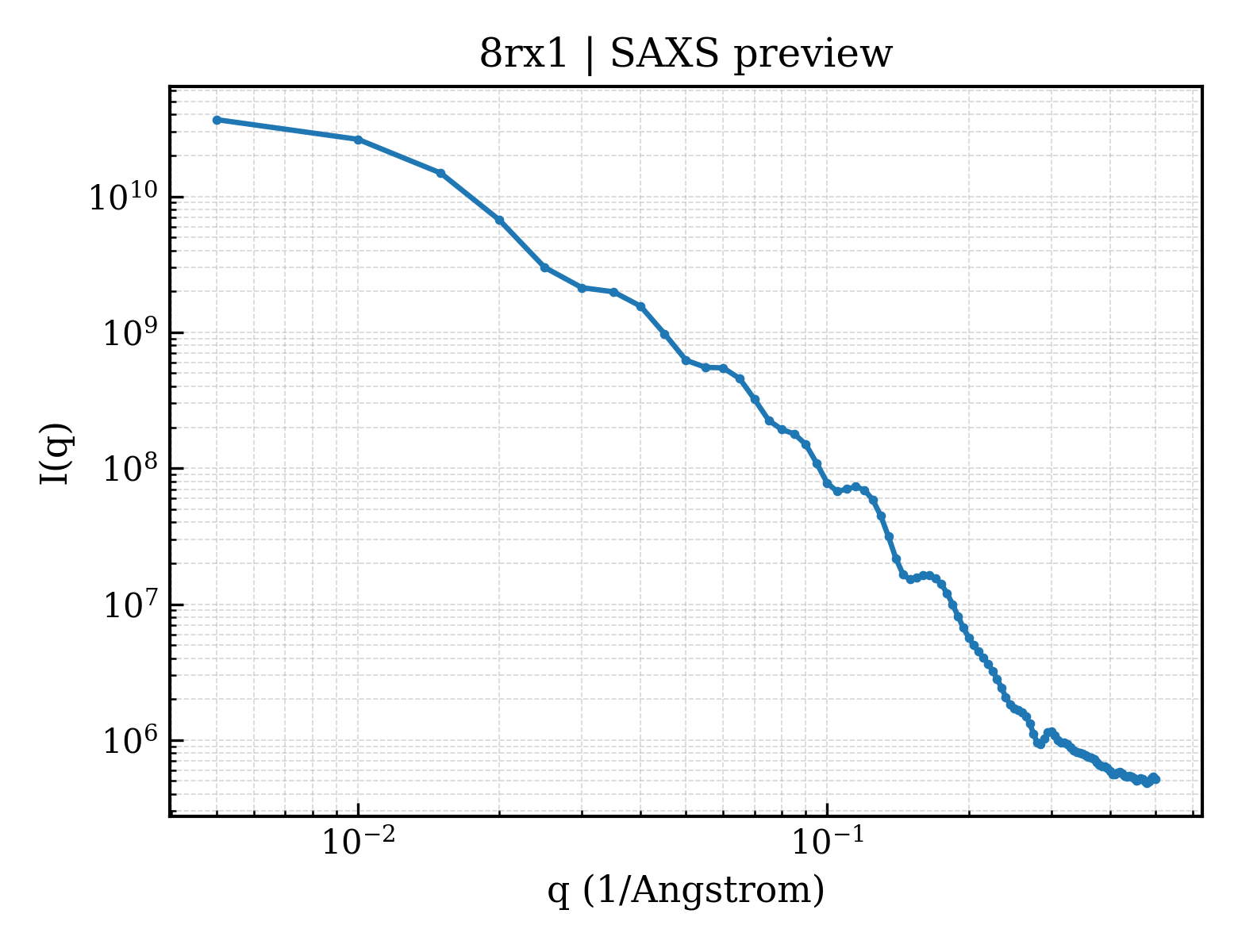

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8rx1
沉积日期 deposition_date	2024-02-06
结构标题 title	CryoEM structure of the gTuRC-CM1dim complex
关键词 keywords	gTuRC, gTuSC, CM1, CDK5RAP2, gamma-tubulin, microtubule, alfa/beta-tubulin nucleation, cytoskeleton, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	113.90 Å
零角强度 I(0) i0	40946400000.00
分子量 molecular_weight	1757800.0 kDa
排除体积 excluded_volume	2209100 Å³
包络体积 envelope_volume	4444100 Å³
水化壳体积 shell_volume	328110 Å³
包络直径 envelope_diameter	336.4 Å
壳层 Rg shell_rg	116.40 Å
包络 Rg envelope_rg	103.00 Å
形状 Rg shape_rg	113.90 Å
总 Rg total_rg	114.00 Å
总原子数 total_atoms	123860
残基数 n_residues	15483
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

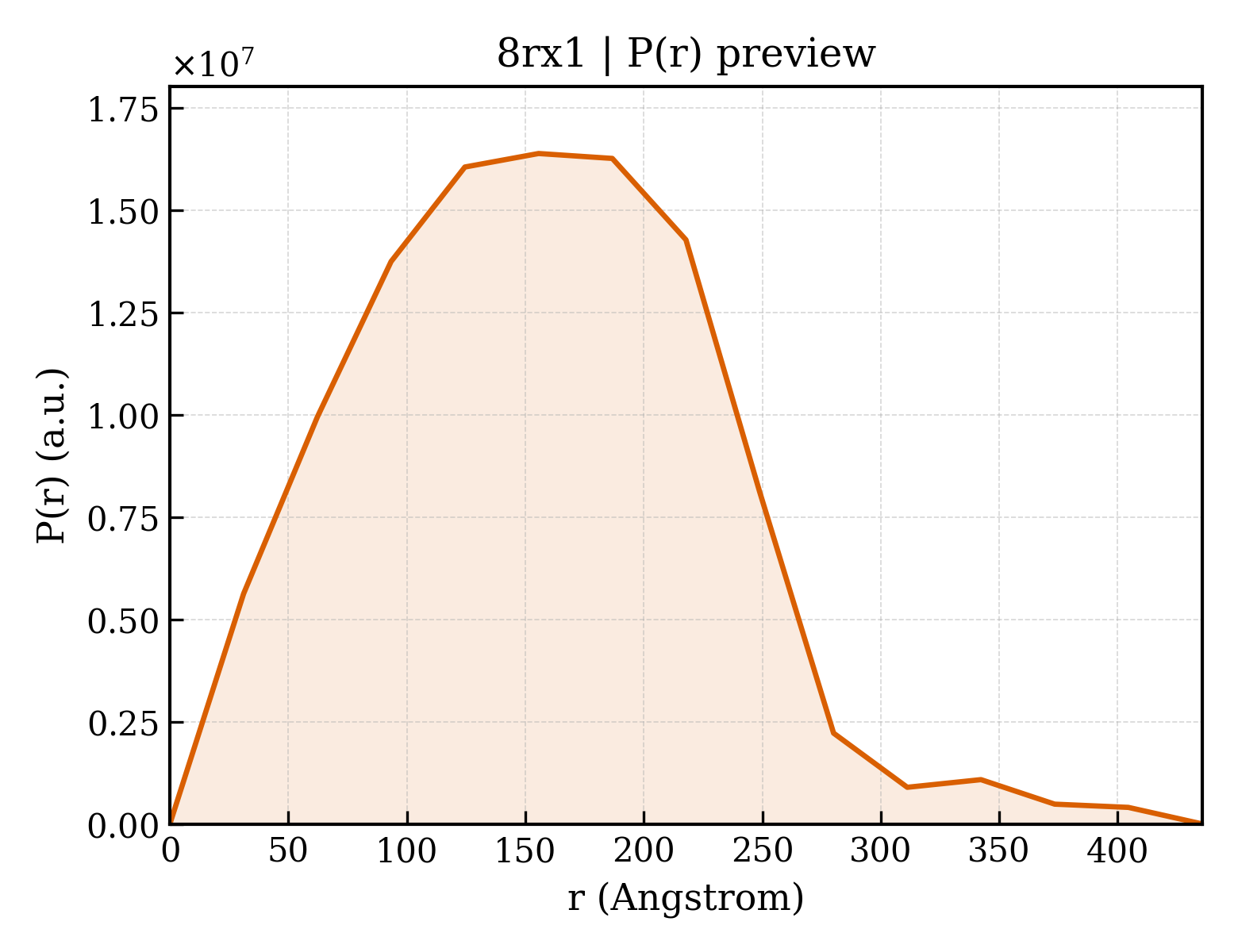

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	435.7 Å
Rg (实空间) rg_real	120.80 Å
Rg 误差 (实空间) rg_real_error	4.42 Å
I(0) (实空间) i0_real	4.1270e+10
I(0) 误差 (实空间) i0_real_error	1.2120e+09
Rg (倒空间) rg_reciprocal	116.50 Å
I(0) (倒空间) i0_reciprocal	41120000000.0000
解质量估计 total_estimate	0.8629
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	155.6 Å
偏度 Skewness skewness	0.373
峰度 Kurtosis kurtosis	0.122
角度范围 angular_range	— – 0.0700 Å⁻¹
当前正则化参数 α current_alpha	0.8192
最高正则化参数 α highest_alpha	856900000.0000
实空间数据点数 n_real_points	15
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.696; Stabil: 0.842; Sysdev: 1.000; Positv: 1.000; Valcen: 0.915; Smooth: 0.718

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Tubulin gamma-1 chain
分子量 formula_weight	51227.8 kDa
来源方法 src_method	man
拷贝数 entity_count	14

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1,2,O,P,Q,R,S,T,U,V,W,X,Y,Z
原子数 atom_count	123860

MPREIITLQLGQCGNQIGFEFWKQLCAEHGISPEGIVEEFATEGTDRKDVFFYQADDEHYIPRAVLLDLEPRVIHSILNSPYAKLYNPENIYLSEHGGGAGNNWASGFSQGEKIHEDIFDIIDREADGSDSLEGFVLCHSIAGGTGSGLGSYLLERLNDRYPKKLVQTYSVFPNQDEMSDVVVQPYNSLLTLKRLTQNADCVVVLDNTALNRIATDRLHIQNPSFSQINQLVSTIMSASTTTLRYPGYMNNDLIGLIASLIPTPRLHFLMTGYTPLTTDQSVASVRKTTVLDVMRRLLQPKNVMVSTGRDRQTNHCYIAILNIIQGEVDPTQVHKSLQRIRERKLANFIPWGPASIQVALSRKSPYLPSAHRVSGLMMANHTSISSLFERTCRQYDKLRKREAFLEQFRKEDMFKDNFDEMDTSREIVQQLIDEYHAATRPDYISWGTQEQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	Actin b
分子量 formula_weight	40697.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

DEEVAALVVDNGSGMCKAGFAGDDAPRAVFPSIVGRPRKDSYVGDEAQSKRGILTLKYPIEHGIVTNWDDMEKIWHHTFYNELRVAPEEHPVLLTEAPLNPKANREKMTQIMFETFNTPAMYVAIQAVLSLYASGRTTGIVLDSGDGVSHTVPIYEGYALPHAILRLDLAGRDLTDYLMKILTERGYSFTTTEEREIVRDIKEKLCYVALDFEQEMATAASSSSLEKSYELKDGQVITIGNERFRCPEALFQPSFLGMEACGIHETTYNSIMKCDVDIRKDLYANTVLSGGTTMYPGIADRMQKEITALAPSTMKIKIIAPPERKYSVWIGGSILASLSTFQQMWISKQEYDESGPSIVHRKCF

Entity 3 polymer

描述 description	Gamma-tubulin complex component 2
分子量 formula_weight	102667.0 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,M,f,k

MSEFRIHHDVNELLSLLRVHGGDGAEVYIDLLQKNRTPYVTTTVSAHSAKVKIAEFSRTPEDFLKKYDELKSKNTRNLDPLVYLLSKLTEDKETLQYLQQNAKERAELAAAAVGSSTTSINVPAAASKISMQELEELRKQLGSVATGSTLQQSLELKRKMLRDKQNKKNSGQHLPIFPAWVYERPALIGDFLIGAGISTDTALPIGTLPLASQESAVVEDLLYVLVGVDGRYVSAQPLAGRQSRTFLVDPNLDLSIRELVHRILPVAASYSAVTRFIEEKSSFEYGQVNHALAAAMRTLVKEHLILVSQLEQLHRQGLLSLQKLWFYIQPAMRTMDILASLATSVDKGECLGGSTLSLLHDRSFSYTGDSQAQELCLYLTKAASAPYFEVLEKWIYRGIIHDPYSEFMVEEHELRKERIQEDYNDKYWDQRYTIVQQQIPSFLQKMADKILSTGKYLNVVRECGHDVTCPVAKEIIYTLKERAYVEQIEKAFNYASKVLLDFLMEEKELVAHLRSIKRYFLMDQGDFFVHFMDLAEEELRKPVEDITPPRLEALLELALRMSTANTDPFKDDLKIDLMPHDLITQLLRVLAIETKQEKAMAHADPTELALSGLEAFSFDYIVKWPLSLIINRKALTRYQMLFRHMFYCKHVERQLCSVWISNKTAKQHSLHSAQWFAGAFTLRQRMLNFVQNIQYYMMFEVMEPTWHILEKNLKSASNIDDVLGHHTGFLDTCLKDCMLTNPELLKVFSKLMSVCVMFTNCMQKFTQSMKLDGELGGQTLEHSTVLGLPAGAEERARKELARKHLAEHADTVQLVSGFEATINKFDKNFSAHLLDLLARLSIYSTSDCEHGMASVISRLDFNGFYTERLERLSAERSQKATPQVPVLRGPPAPAPRVAVTAQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	Gamma-tubulin complex component 3
分子量 formula_weight	103710.1 kDa
来源方法 src_method	man
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,N,b,n

MATPDQKSPNVLLQNLCCRILGRSEADVAQQFQYAVRVIGSNFAPTVERDEFLVAEKIKKELIRQRREADAALFSELHRKLHSQGVLKNKWSILYLLLSLSEDPRRQPSKVSSYATLFAQALPRDAHSTPYYYARPQTLPLSYQDRSAQSAQSSGSVGSSGISSIGLCALSGPAPAPQSLLPGQSNQAPGVGDCLRQQLGSRLAWTLTANQPSSQATTSKGVPSAVSRNMTRSRREGDTGGTMEITEAALVRDILYVFQGIDGKNIKMNNTENCYKVEGKANLSRSLRDTAVRLSELGWLHNKIRRYTDQRSLDRSFGLVGQSFCAALHQELREYYRLLSVLHSQLQLEDDQGVNLGLESSLTLRRLLVWTYDPKIRLKTLAALVDHCQGRKGGELASAVHAYTKTGDPYMRSLVQHILSLVSHPVLSFLYRWIYDGELEDTYHEFFVASDPTVKTDRLWHDKYTLRKSMIPSFMTMDQSRKVLLIGKSINFLHQVCHDQTPTTKMIAVTKSAESPQDAADLFTDLENAFQGKIDAAYFETSKYLLDVLNKKYSLLDHMQAMRRYLLLGQGDFIRHLMDLLKPELVRPATTLYQHNLTGILETAVRATNAQFDSPEILRRLDVRLLEVSPGDTGWDVFSLDYHVDGPIATVFTRECMSHYLRVFNFLWRAKRMEYILTDIRKGHMCNAKLLRNMPEFSGVLHQCHILASEMVHFIHQMQYYITFEVLECSWDELWNKVQQAQDLDHIIAAHEVFLDTIISRCLLDSDSRALLNQLRAVFDQIIELQNAQDAIYRAALEELQRRLQFEEKKKQREIEGQWGVTAAEEEEENKRIGEFKESIPKMCSQLRILTHFYQGIVQQFLVLLTTSSDESLRFLSFRLDFNEHYKAREPRLRVSLGTRGRRSSHT

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 polymer

描述 description	CM1
分子量 formula_weight	26766.0 kDa
来源方法 src_method	man
拷贝数 entity_count	10

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,g,h,i,j,s,t,u,v

MGSSHHHHHHGSDSEVNQEAKPEVKPEVKPETHINLKVSDGSSEIFFKIKKTTPLRRLMEAFAKRQGKEMDSLRFLYDGIRIQADQTPEDLDMEDNDIIEAHREQIGGAWSHPQFEKSATVSPTRARNMKDFENQITELKKENFNLKLRIYFLEERMQQEFHGDDEAAELMQQVNVLKLTVEDLEKERDFYFGKLRNIELICQENEGENDPVLQRIVDILYATDEGFVI

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 6 polymer

描述 description	Gamma-tubulin complex component 4
分子量 formula_weight	76180.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I,K

MIHELLLALSGYPGSIFTWNKRSGLQVSQDFPFLHPSETSVLNRLCRLGTDYIRFTEFIEQYTGHVQQQDHHPSQQGQGGLHGIYLRAFCTGLDSVLQPYRQALLDLEQEFLGDPHLSISHVNYFLDQFQLLFPSVMVVVEQIKSQKIHGCQILETVYKHSCGGLPPVRSALEKILAVCHGVMYKQLSAWMLHGLLLDQHEEFFIKQGPSSGNVSAQPEEDEEDLGIGGLTGKQLRELQDLRLIEEENMLAPSLKQFSLRVEILPSYIPVRVAEKILFVGESVQMFENQNVNLTRKGSILKNQEDTFAAELHRLKQQPLFSLVDFEQVVDRIRSTVAEHLWKLMVEESDLLGQLKIIKDFYLLGRGELFQAFIDTAQHMLKTPPTAVTEHDVNVAFQQSAHKVLLDDDNLLPLLHLTIEYHGKEHKADATQAREGPSRETSPREAPASGWAALGLSYKVQWPLHILFTPAVLEKYNVVFKYLLSVRRVQAELQHCWALQMQRKHLKSNQTDAIKWRLRNHMAFLVDNLQYYLQVDVLESQFSQLLHQINSTRDFESIRLAHDHFLSNLLAQSFILLKPVFHCLNEILDLCHSFCSLVSQNLGPLDERGAAQLSILVKGFSRQSSLLFKILSSVRNHQINSDLAQLLLRLDYNKYYTQAGGTLGSFGM

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 7 polymer

描述 description	Gamma-tubulin complex component 5
分子量 formula_weight	118467.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MARHGPPWSRLDAQQERDVRELVRGVAGLQDEADPNFQLALNFAWSNFRFHRFLDVNSHKIEKTIEGIYEKFVIHSDLSKAASWKRLTEEFLNAPLPSIKEIKTDAHYSILSLLLCLSDSPSNSSYVETPRNKEVEKKDDFDWGKYLMEDEEMDIGPYMDTPNWSEESEEENDQQPLSREDSGIQVDRTPLEEQDQNRKLDPCISWKDEPDDRSWLEHHVVHQYWTARPSQFPHSLHLHSNLAAVWDQHLYSSDPLYVPDDRVLVTETQVIRETLWLLSGVKKLFIFQLIDGKVTVRNNIIVTHLTHSCLRSVLEQIAAYGQVVFRLQEFIDEVMGHSSESMLPGSGSVPKKSTEAPFRTYQAFMWALYKYFISFKEELAEIEKCIINNDTTITLAIVVDKLAPRLSQLKVLHKVFSTGVAEVPPDTRNVVRASHLLNTLYKAILEYDNVGEASEQTVSLLFSLWVETVRPYLQTVDEWIVHGHLWDGAREFIIQRNKNVPVNHRDFWYATYTLYSVSEKTENEEKMSDNASASSGSDQGPSSRQHTMVSFLKPVLKQIIMAGKSMQLLKNLQCAESTTCQAGARDAERKSLYTLFLESVQSRLRHGEDSTPQVLTEQQATKENLMKMQSIAESHLELDDVHDPLLAINFARMYLEQSDFHEKFAGGDVCVDRSSESVTCQTFELTLRSCLYPHIDKQYLDCCGNLMQTLKKDYRLVEYLQAMRNFFLMEGGDTMYDFYTSIFDKIREKETWQNVSFLNVQLQEAVGQRYPEDSSRLSISFENVDTAKKKLPVHILDGLTLSYKVPWPVDIVISLECQKIYNQVFLLLLQIKWAKYSLDVLLFGELVSTAEKPRLKEGLIHEQDTVAQFGPQKEPVRQQIHRMFLLRVKLMHFVNSLHNYIMTRILHSTGLEFQHQVEEAKDLDQLIKIHYRYLSTIHDRCLLREKVSFVKEAIMKVLNLALMFADGWQAGLGTWRMESIEKMESDFKNCHMFLVTILNKAVCRGSFPHLESLALSLMAGMEQS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 8 polymer

描述 description	Gamma-tubulin complex component 6
分子量 formula_weight	200733.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,d

MASITQLFDDLCEALLPAAKTHLGQRSVNRKRAKRSLKKVAYNALFTNLFQDETQQLQPDMSKLPARNKILMLSFDLRVGGLGPKADRLEELVEELEAAPCCPLLEVGSVLDLLVQLAGSGPPQVLPRKRDYFLNNKHVGRNVPYSGYDCDDLSVFEMDVQSLISREECLCHSMIQETLQVMEAAPGTGLPTVGLFSFGDPCGDRFERDTRVSLFGALVHSRTYDMDVRLGLPPVPDNADLSGLAIKVPPSVDQWEDEGFQSASNLTPDSQSEPSVTPDVDLWEAALTYEASKRRCWERVGCPPGHREEPYLTEAGRDAFDKFCRLHQGELQLLAGGVLQAPQPVLVKECELVKDVLNVLIGVVSATFSLCQPAQAFVVKRGVHVSGASPESISSLLSEVAEYGTCYTRLSHFSLQPVLDSLYSKGLVFQAFTSGLRRYLQYYRACVLSTPPTLSLLTIGFLFKKLGRQLRYLAELCGVGAVLPGTCGGGPRAAFPTGVKLLSYLYQEALHNCSNEHYPVLLSLLKTSCEPYTRFIHDWVYSGVFRDAYGEFMIQVNHEYLSFRDKLYWTHGYVLISKEVEDCVPVFLKHIAHDIYVCGKTINLLKLCCPRHYLCWSDVPVPRISVIFSLEELKEIEKDCAVYVGRMERVARHSSVSKEEKELRMEIAKQELIAHAREAASRVLSALSDRQMSERMALDARKREQFQRLKEQFVKDQERRQAARQEELDDDFSYARELRDRERRLKSLEEELERKARQALVDHYSKLSAEAARREQKALWRIQRHRLESARLRFLLEDEKHIQEMLKAVSEAHQPQEPPDVLLSVHPQVTSPGPEHPEGGQGCDSGSAEQHSPAWDGWNRPGLLTPQPLKPLAVGAGGRGLQQAEGARPFSDSLSIGDFLPVGPGAEPSVQTGMVPLLEVALQTINLDLPPSAPGEAPAAASTQPSRPQEYDFSTVLRPAVATSPAPGPLQAAECSLGSSGLQLWEDSCGKMDACGSASRETLLPSHPPRRAALEEGSSQPTERLFGQVSGGGLPTGDYASEIAPTRPRWNTHGHVSDASIRVGENVSDVAPTQPRWNTHGHVSNASISLGESVSDVAPTRPRWNIHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSNASIRVGENVSDVAPTRPRWNTHGHVSDASISLGESVSDMAPARPRWNTHGHVSDASISLGESVSDMAPTRPRWNTHGHVSDTSIRVGENVSDVAPIRSRCNTHGHVSDASISLGEPVSDVVSTRPRWNTHVPIPPPHMVLGALSPEAEPNTPRPQQSPPGHTSQSALSLGAQSTVLDCGPRLPVEVGPSLSSPSSGCGEGSISVGENVSDVAPTQPWWPNTPGDSVSEELGPGRSGDTEDLSPNWPLNSQEDTAAQSSPGRGEEAEASAAEAQGGEQAYLAGLAGQYHLERYPDSYESMSEPPIAHLLRPVLPRAFAFPVDPQVQSAADETAVQLSELLTLPVLMKRSITAPLAAHISLVNKAAVDYFFVELHLEAHYEALRHFLLMEDGEFAQSLSDLLFEKLGAGQTPGELLNPLVLNSVLSKALQCSLHGDTPHASNLSLALKYLPEVFAPNAPDVLSCLELRYKVDWPLNIVITEGCVSKYSGVFSFLLQLKLMMWALKDVCFHLKRTALLSHMAGSVQFRQLQLFKHEMQHFVKVIQGYIANQILHVTWCEFRARLATVGDLEEIQRAHAEYLHKAVFRGLLTEKAAPVMNVIHSIFSLVLKFRSQLISQAWGPPGGPRGAEHPNFALMQQSYNTFKYYSHFLFKVVTKLVNRGYQPHLEDFLLRINFNNYYQDA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 9 polymer

描述 description	Mitotic-spindle organizing protein 1
分子量 formula_weight	8485.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a,c

MASSSGAGAAAAAAAANLNAVRETMDVLLEISRILNTGLDMETLSICVRLCEQGINPEALSSVIKELRKATEALKAAENMTS

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

Entity 10 polymer

描述 description	Mitotic-spindle organizing protein 2A
分子量 formula_weight	16240.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MAAQGVGPGPGSAAPPGLEAARQKLALRRKKVLSTEEMELYELAQAAGGGIDPDVFKILVDLLKLNVAPLAVFQMLKSMCAGQRLASEPQDPAAVSLPTSSVPETRGRDKGSAALGGVLALAERSNHEGSSQRMPRQPSATRLPKGGGPGKSPTQGST

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Spodoptera frugiperda

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.57 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	579078

fit	/app/data/saxs_computation/rx/8rx1/8rx1.fit
pddf	/app/data/pr_computation/rx/8rx1/8rx1.pr.out
profile	/app/data/saxs_computation/rx/8rx1/8rx1.dat
