8sam

Crystal structure of class III lanthipeptide synthetase LP-GS-ThurKC in complex with ATP

Method: X-RAY DIFFRACTION D_max: 158.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8sam
沉积日期 deposition_date	2023-04-01
结构标题 title	Crystal structure of class III lanthipeptide synthetase LP-GS-ThurKC in complex with ATP
关键词 keywords	;lanthipeptide, synthetase, kinase, lyase, cyclase, complex, class III, RIPP, natural product, transferase, bacterial, labionin, BIOSYNTHETIC PROTEIN ;; BIOSYNTHETIC PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	46.03 Å
回转半径 Rg (电子) rg_electron	46.41 Å
零角强度 I(0) i0	544050000.00
分子量 molecular_weight	197520.0 kDa
排除体积 excluded_volume	249420 Å³
包络体积 envelope_volume	337780 Å³
水化壳体积 shell_volume	63200 Å³
包络直径 envelope_diameter	167.8 Å
壳层 Rg shell_rg	47.40 Å
包络 Rg envelope_rg	46.52 Å
形状 Rg shape_rg	46.41 Å
总 Rg total_rg	46.43 Å
总原子数 total_atoms	13924
残基数 n_residues	1717
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

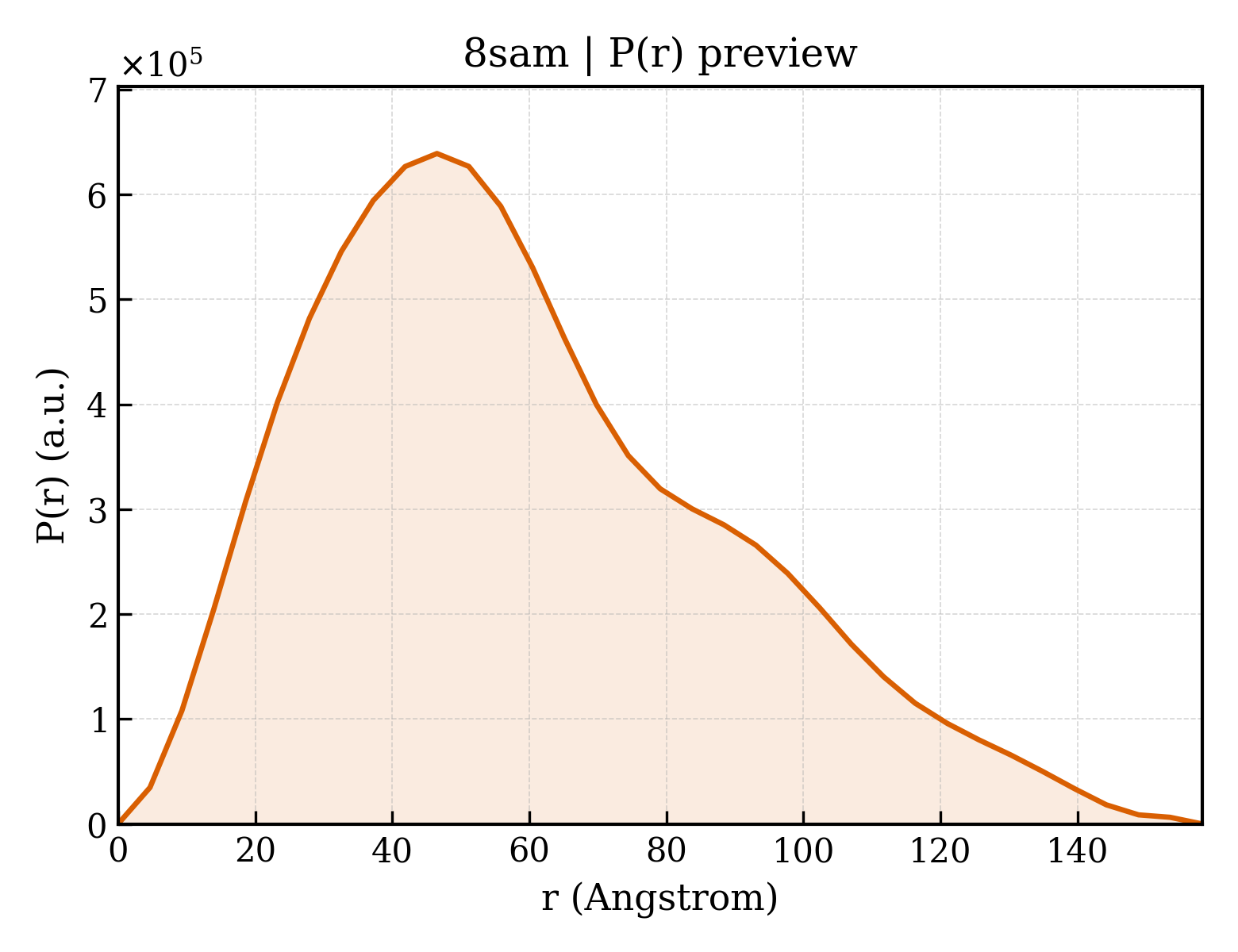

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.2 Å
Rg (实空间) rg_real	46.55 Å
Rg 误差 (实空间) rg_real_error	1.61 Å
I(0) (实空间) i0_real	5.4400e+08
I(0) 误差 (实空间) i0_real_error	1.0550e+07
Rg (倒空间) rg_reciprocal	46.04 Å
I(0) (倒空间) i0_reciprocal	543700000.0000
解质量估计 total_estimate	0.8012
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	46.5 Å
偏度 Skewness skewness	0.602
峰度 Kurtosis kurtosis	-0.197
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	43710000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.697; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.950; Smooth: 0.371

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Class III lanthipeptide, Class III lanthionine synthetase LanKC fusion
分子量 formula_weight	102907.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	14329

SNAMNTVLELQKLAHDTEGKGQAAESGSGSGSMEGNMLYHRYLKPNSEYYKKIEVRGKDNIYELNDIPDTYAVFLDNESVWKHYHVKGSTLPEQGWKIHVTSSLEDSKDVLDKVARLCIDKKIEFKHLKDKDSFMKMNSKNANRASSGKFITIYPTNNEVFVELLEMISLAIQDFKKGPYILNDKRWKNSNVFYRYGGFKGIFNEHGEHCIRDKEGNLIKDQRNPFYQVPDFVKDFDDYLNTINNSGELENKGESRLGKYKIETALSFSNAGGVYLATRKKDNLKVIIKEARPSAGLDGAAQDALARQKIEYDALKKLKDVSGVVNLIEYFQEWEHYFLVEEFIEGRDLRQWIAQEFPFFEDNNGMSNHIKDVKMILLQLLDLIDSMHNQGVAMGDLQPANIMVTEDLTVRIIDFETAMPVNSDDRPAMLTTGFVSHEMKVSGARDWFGFKRLVRYLALPVLTSEDLEGYLQYNHLNWIKENYGYEFYSFIVDLQEKCDKRIKDYQTFIPKEINLNDQTSDFNLTSIINKLIIGVESSLTNDERFINGDIRQFEMNGGKFNFLTGGSGAAFTLTKNKSSIAEVDKWIQSVLLDNLPLIEEDGLFTGKTGILALLYDKGYKEVVLNELKILKDNINQTDISIRSGLSGIGLFVISLYLETENKEYLKLAKDLERMIKLNRAKDKQLKVKDWMAVDIGVIDGLSGVSLFYSALYSVTQNQKYLEEAEVLIKEDLESTKKDDVTGVLQTVDNKNRLLPYLSGGSIGVAISIWFLNHVSGQDLYREEMNSILKLSKTRCTISGGLFDGAGSFLLIPSMVKNDKNREVILNEVLNLLNIFLIEKNSYYVYPGQFSYRLADDVYTGSSGIILALMGVIKGNPLYWLPLVNSDEFLARTKVKDLSVTSGKI

来源 Source

来源生物 organism	Bacillus thuringiensis serovar andalousiensis
NCBI 分类编号 ncbi_taxonomy_id	257985
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 3 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	405

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	54.025 Å
晶胞边长 b length_b	228.659 Å
晶胞边长 c length_c	84.595 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	100.50 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	—

分辨率 resolution	2.150 Å
最低分辨率 resolution_low	49.005 Å
R 因子 r_factor	—
R_work r_work	0.2030
R_free r_free	0.2505
