8sbu

Crystal structure of MBP fusion with HPPK from Methanocaldococcus jannaschii

Method: X-RAY DIFFRACTION D_max: 107.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

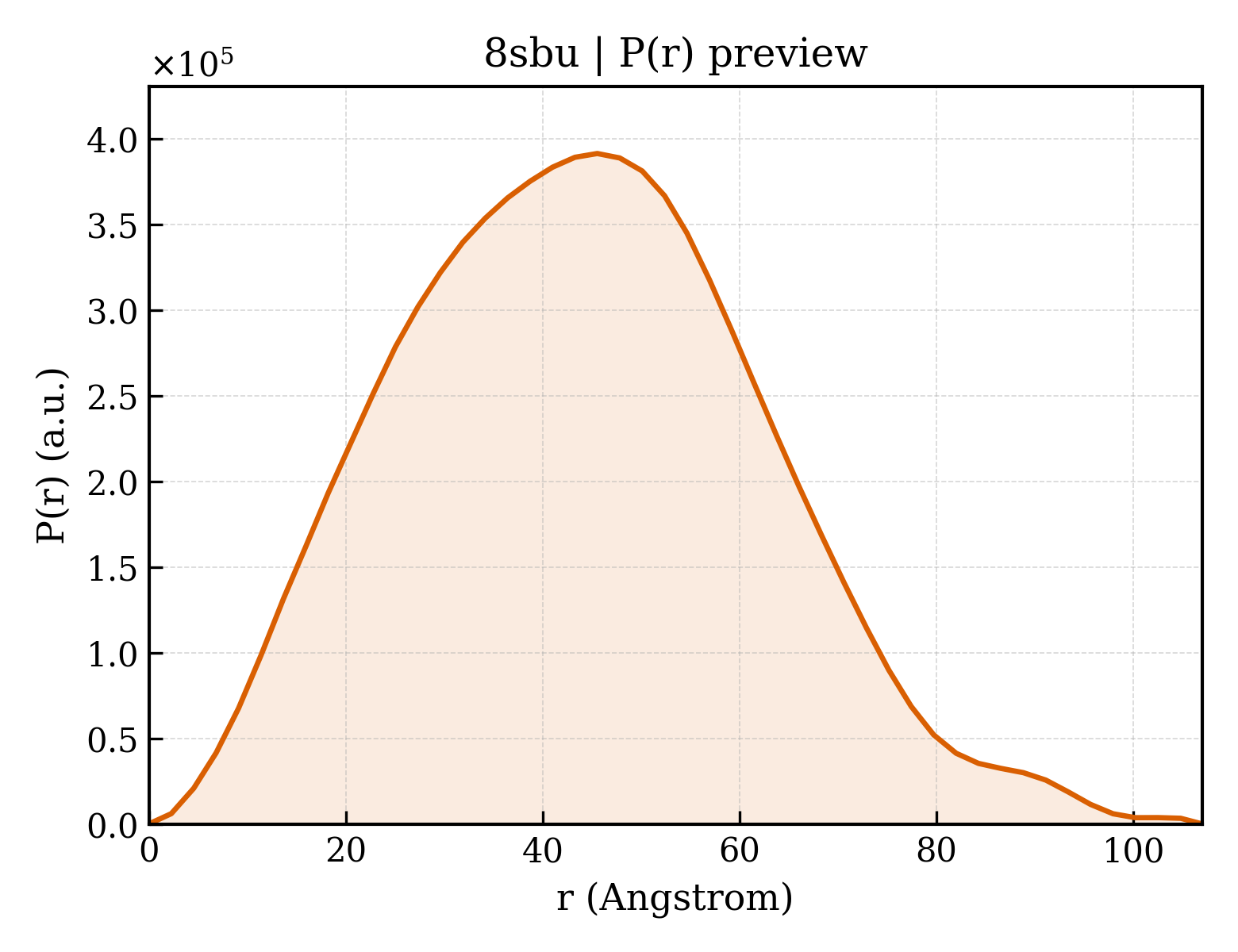

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8sbu
沉积日期 deposition_date	2023-04-04
最后修订 last_revision	2024-07-03
结构标题 title	Crystal structure of MBP fusion with HPPK from Methanocaldococcus jannaschii
关键词 keywords	MBP fusion, HPPK, Methanocaldococcus jannaschii, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	33.68 Å
回转半径 Rg (电子) rg_electron	32.91 Å
零角强度 I(0) i0	237708000.00
分子量 molecular_weight	129640.0 kDa
排除体积 excluded_volume	164610 Å³
包络体积 envelope_volume	200770 Å³
水化壳体积 shell_volume	49857 Å³
包络直径 envelope_diameter	114.7 Å
壳层 Rg shell_rg	40.53 Å
包络 Rg envelope_rg	32.79 Å
形状 Rg shape_rg	32.86 Å
总 Rg total_rg	33.69 Å
总原子数 total_atoms	9153
残基数 n_residues	1168
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	107.0 Å
Rg (实空间) rg_real	33.57 Å
Rg 误差 (实空间) rg_real_error	0.80 Å
I(0) (实空间) i0_real	2.3770e+08
I(0) 误差 (实空间) i0_real_error	4.1380e+06
Rg (倒空间) rg_reciprocal	33.64 Å
I(0) (倒空间) i0_reciprocal	237700000.0000
解质量估计 total_estimate	0.8864
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	45.5 Å
偏度 Skewness skewness	0.240
峰度 Kurtosis kurtosis	-0.278
角度范围 angular_range	— – 0.2350 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	110000000.0000
实空间数据点数 n_real_points	48
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.883; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.873

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Maltose/maltodextrin-binding periplasmic protein,6-hydroxymethyl-7,8-dihydropterin pyrophosphokinase
分子量 formula_weight	68721.6 kDa
EC 编号 ec_number	2.7.6.3
突变 mutation	D89A,K90A,E179A,N180A,K246A,E366A,K369A,D370A,R374N,I375A,T376A,K377A,I376A
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	9492

MKIHHHHHHEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPAAAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYAAGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSAVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELAKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDAALAAAQTNAAAMDMKEWEIFYNKIMEDFGFDKDKDVESAVILNNILENANTIPVDKLKDIIEGREVFIFGAGPSIKKHINILKELREINYKNPIIVADGACKAFLEENIIPDIIVSDLDGDLEALFECNRKGSIIVVHAHGDNIEKIKKYVPKLKNVVGSCQIPNYKELNLRNVINFGGFTDGDRCCFLAYHFKAKKLILGGMDFGIYITKYSRPNIKEDIAIGDEIKIKKLEYAKTLINYLKDKIEIEFLK

来源 Source

来源生物 organism	Methanocaldococcus jannaschii DSM 2661
NCBI 分类编号 ncbi_taxonomy_id	243232
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 branched

描述 description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
分子量 formula_weight	342.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	339

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	58.170 Å
晶胞边长 b length_b	69.827 Å
晶胞边长 c length_c	73.121 Å
晶胞夹角 α angle_alpha	67.44 °
晶胞夹角 β angle_beta	74.63 °
晶胞夹角 γ angle_gamma	78.13 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	29.279 Å
R 因子 r_factor	0.2222
R_work r_work	0.2212
R_free r_free	0.2740
