8sf3

Crystal Structure of Acetyl-coenzyme A synthetase from Leishmania infantum (AMP, Acetate and CoA bound)

Method: X-RAY DIFFRACTION D_max: 78.8 Å Quality: GOOD

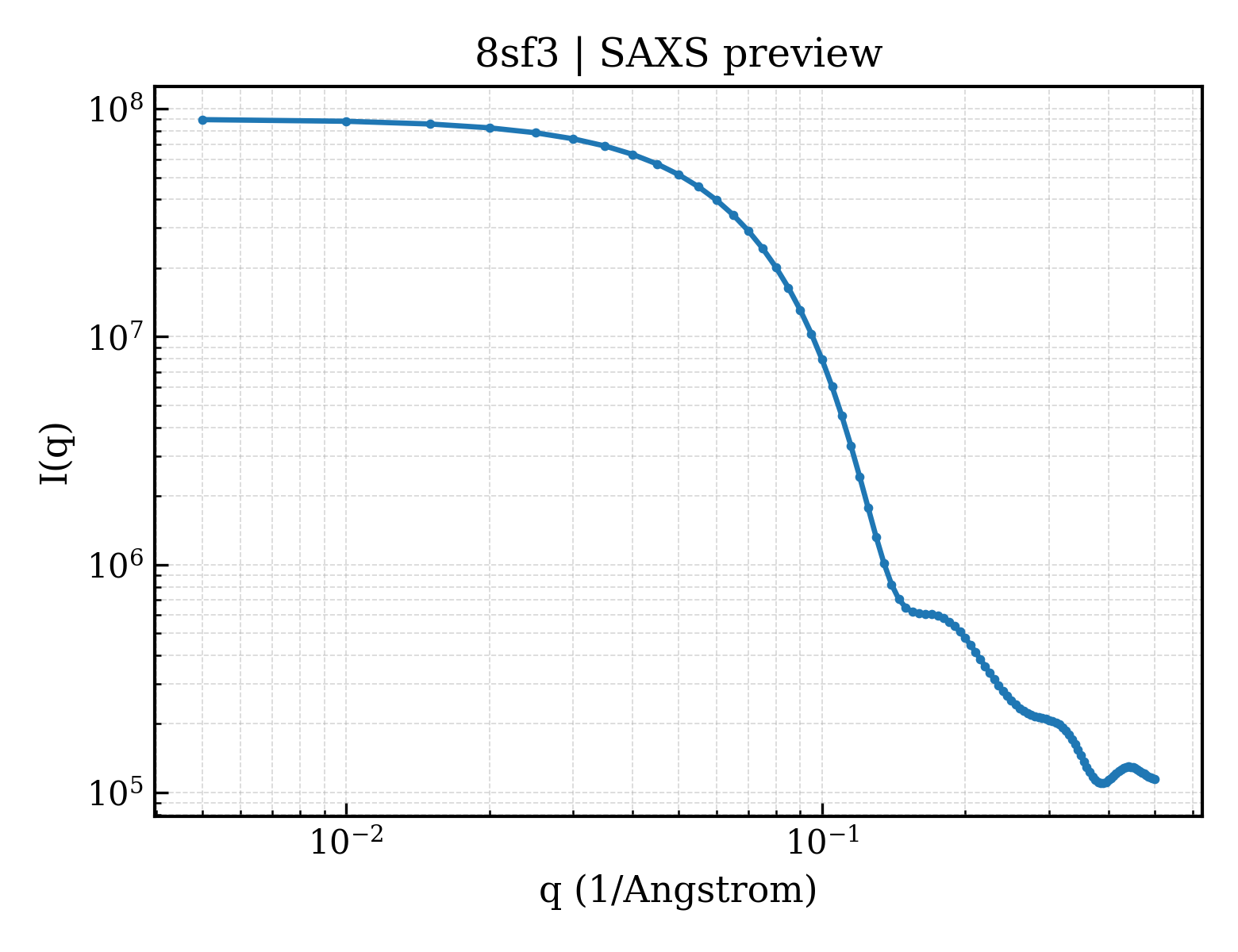

SAXS 散射曲线 SAXS Profile

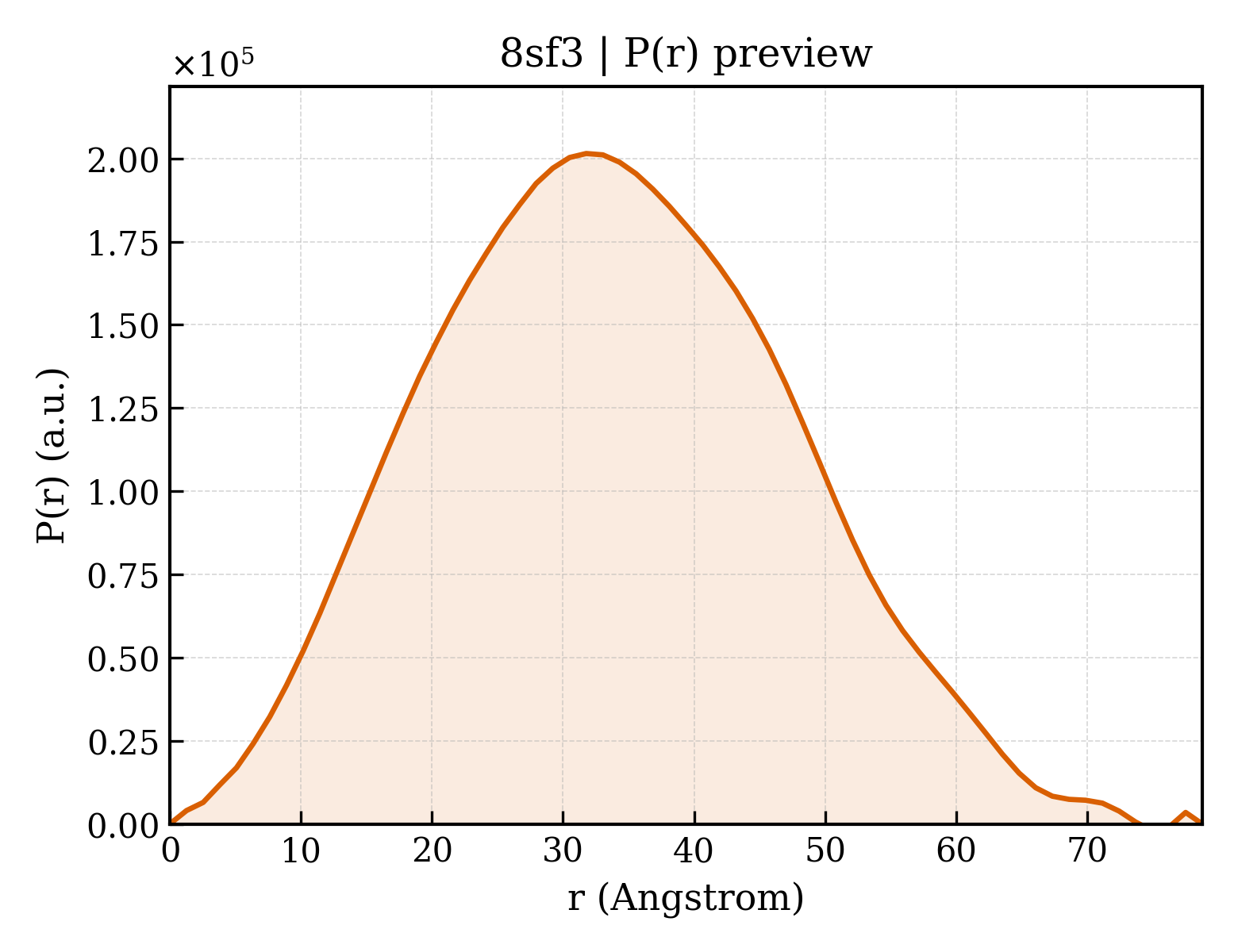

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8sf3
沉积日期 deposition_date	2023-04-10
结构标题 title	Crystal Structure of Acetyl-coenzyme A synthetase from Leishmania infantum (AMP, Acetate and CoA bound)
关键词 keywords	SSGCID, STRUCTURAL GENOMICS, SEATTLE STRUCTURAL GENOMICS CENTER FOR INFECTIOUS DISEASE, LIGASE, Acetyl-coenzyme A synthetase; LIGASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.80 Å
回转半径 Rg (电子) rg_electron	24.71 Å
零角强度 I(0) i0	90121200.00
分子量 molecular_weight	74011.0 kDa
排除体积 excluded_volume	92274 Å³
包络体积 envelope_volume	106750 Å³
水化壳体积 shell_volume	34698 Å³
包络直径 envelope_diameter	83.9 Å
壳层 Rg shell_rg	33.12 Å
包络 Rg envelope_rg	24.96 Å
形状 Rg shape_rg	24.69 Å
总 Rg total_rg	25.59 Å
总原子数 total_atoms	5206
残基数 n_residues	662
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	78.8 Å
Rg (实空间) rg_real	25.65 Å
Rg 误差 (实空间) rg_real_error	0.47 Å
I(0) (实空间) i0_real	9.0120e+07
I(0) 误差 (实空间) i0_real_error	1.2190e+06
Rg (倒空间) rg_reciprocal	25.69 Å
I(0) (倒空间) i0_reciprocal	90120000.0000
解质量估计 total_estimate	0.8245
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	31.8 Å
偏度 Skewness skewness	0.164
峰度 Kurtosis kurtosis	-0.425
角度范围 angular_range	— – 0.3100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16270000.0000
实空间数据点数 n_real_points	63
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.912; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Acetyl-coenzyme A synthetase
分子量 formula_weight	79377.8 kDa
突变 mutation	A2N, A3G
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	5768

MAHHHHHHMSDNPHSLHPLSSDSTSQALHSSTKPPATPHEGEFHSVRDSNVVEPTEANGKKSHVGPHLGSRMRIYEYSIEHNDAFWAEIARRDFYWKTTWPDDQHVKSYNFDKSKGPIFVKWFEGAVTNVCYNALDRHLPAHKDRVCFYFEGNDPSVTEAVTYGSMYTRVVELANVLKYQYGIAKGDRVGLYLPMIPFAAVAMLACARIGAVITVIFGGFSAQALSSRLKDAQTKLLITADASARGTKPIPLKDVADEALKECEEEGMSIACLVAENMNRQSCKMKEGRDTWYGDALARLTPEQHEECPVEWMDAEDVLFLLYTSGSTGKPKAIVHTTAGYMVYASTTFMYSFDYHMDDVYFCTADIGWITGHSYVVYGPMIHCATSVLFEGVPNYPDYSRWWQLVEKYKVSILYTAPTAIRSLMQAGDDYVKVGNRSTLRVLGSVGEPINVEAWKWLRDVGGEGHCDVSDTWWQTETGGHMITPMPGCTPMKPGSATLPFFGVQPVILDPMKLHEKQGPAEGLLAIRAPWPGMARTIYGDHARFEKTYFGVDGYYMTGDGARRDSDGYYWITGRVDDVLNVSGHRIGTSEIEDAVNTHPAVVESAVVGFPHNIKGEGIYVFLTFRQGTEVTPELLAAVKATVRKVIGPLATPDVMQVARVGLPKTRSGKIVRRILRKVSAGQYTELGDTSTLANPDVVEDLIAEHQRLCSQN

来源 Source

来源生物 organism	Leishmania infantum
NCBI 分类编号 ncbi_taxonomy_id	5671
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	ADENOSINE MONOPHOSPHATE
分子量 formula_weight	347.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	ACETATE ION
分子量 formula_weight	59.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	COENZYME A
分子量 formula_weight	767.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	462

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	59.017 Å
晶胞边长 b length_b	69.383 Å
晶胞边长 c length_c	151.619 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	1.700 Å
最低分辨率 resolution_low	44.950 Å
R 因子 r_factor	0.1513
R_work r_work	0.1495
R_free r_free	0.1872
