8sh5

;Crystal structure of 3'cap-independent translation enhancers (CITE) from Pea enation mosaic virus RNA 2 (PEMV2) with Fab BL3-6K170A ;

Method: X-RAY DIFFRACTION D_max: 145.0 Å Quality: REASONABLE

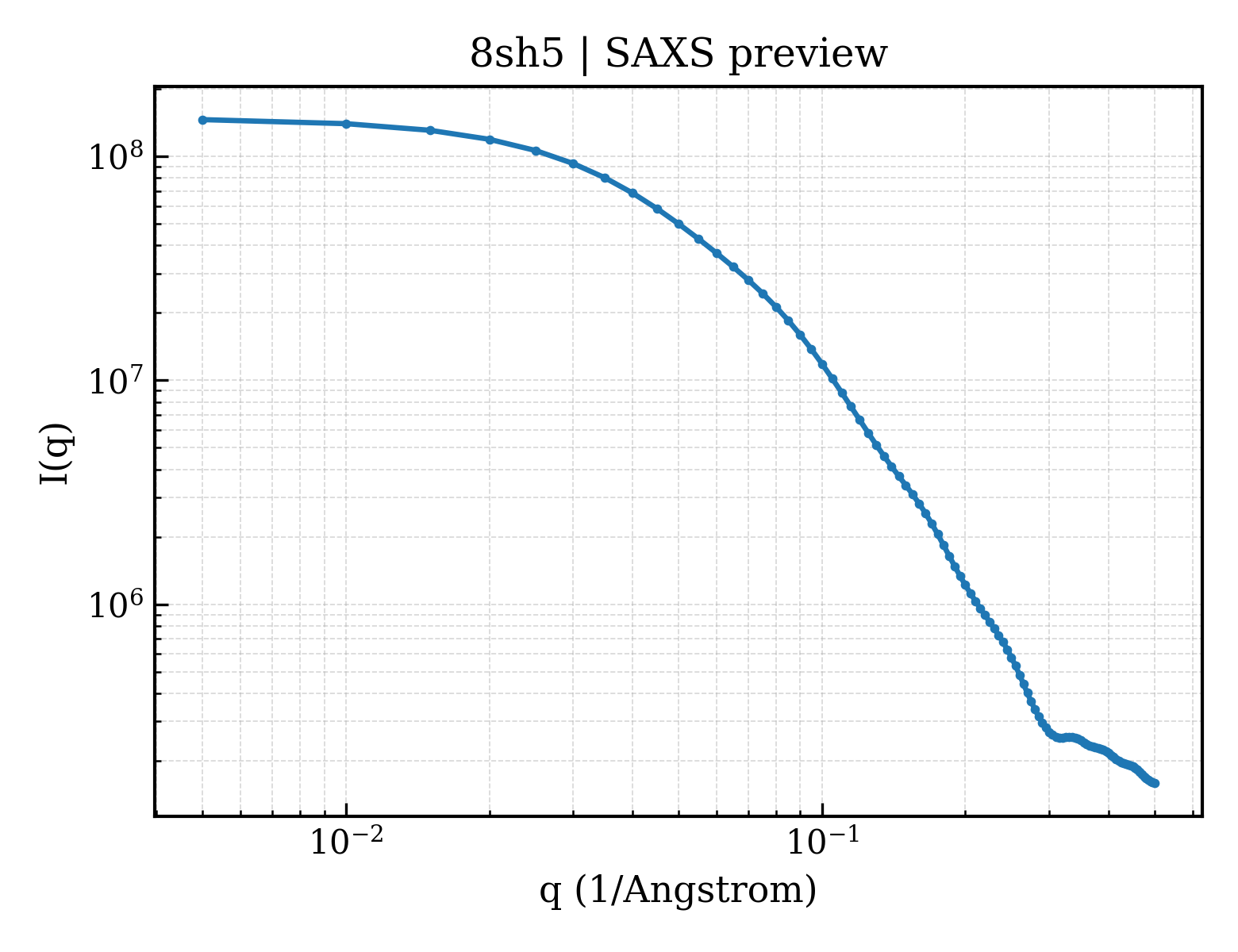

SAXS 散射曲线 SAXS Profile

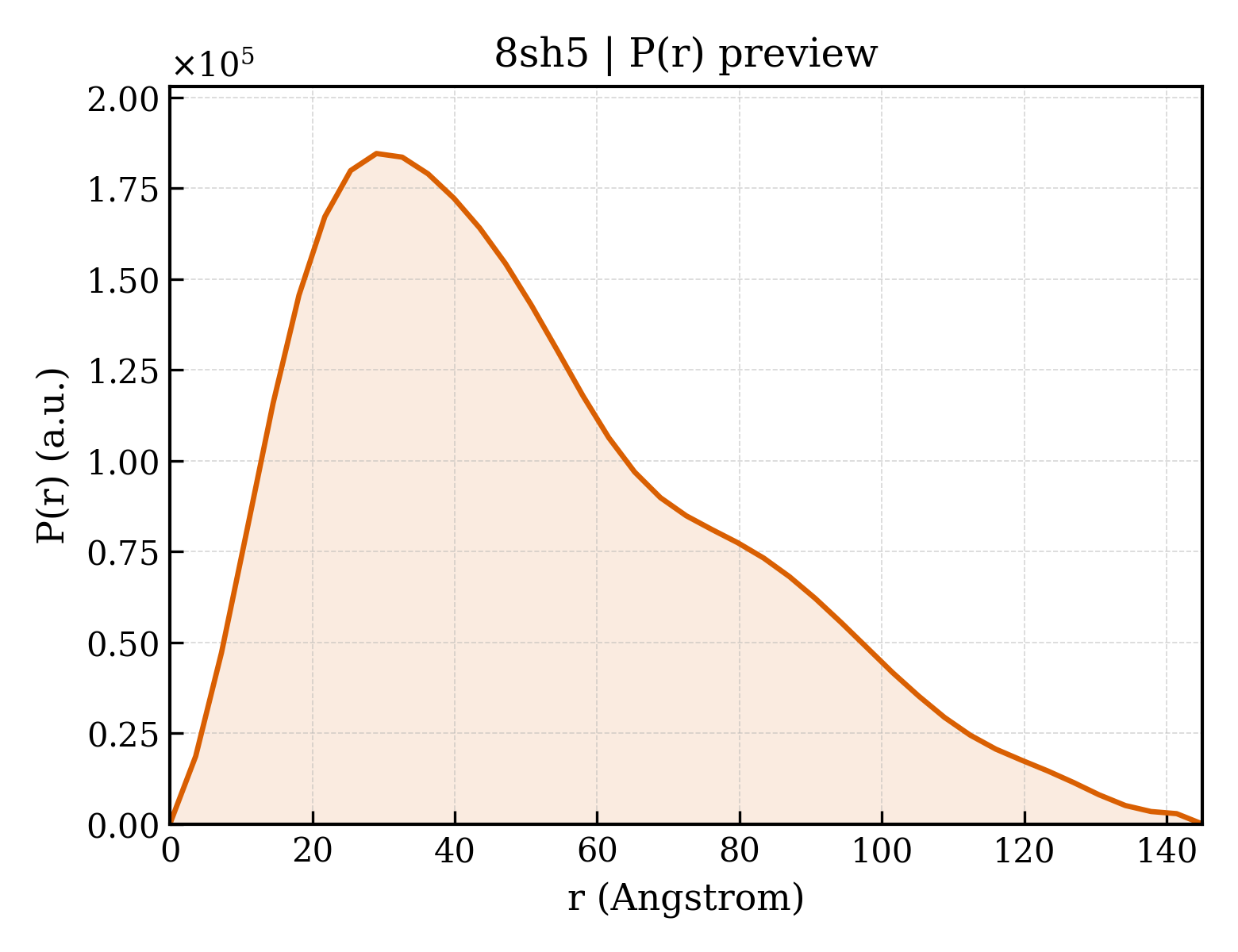

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8sh5
沉积日期 deposition_date	2023-04-13
结构标题 title	;Crystal structure of 3'cap-independent translation enhancers (CITE) from Pea enation mosaic virus RNA 2 (PEMV2) with Fab BL3-6K170A ;
关键词 keywords	CITE, PEMV2, PTE, RNA, RNA-IMMUNE SYSTEM complex; RNA/IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.85 Å
回转半径 Rg (电子) rg_electron	40.12 Å
零角强度 I(0) i0	147688000.00
分子量 molecular_weight	75716.0 kDa
排除体积 excluded_volume	85182 Å³
包络体积 envelope_volume	128990 Å³
水化壳体积 shell_volume	31923 Å³
包络直径 envelope_diameter	151.6 Å
壳层 Rg shell_rg	37.64 Å
包络 Rg envelope_rg	40.57 Å
形状 Rg shape_rg	39.93 Å
总 Rg total_rg	40.44 Å
总原子数 total_atoms	5201
残基数 n_residues	527
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	145.0 Å
Rg (实空间) rg_real	40.90 Å
Rg 误差 (实空间) rg_real_error	1.65 Å
I(0) (实空间) i0_real	1.4770e+08
I(0) 误差 (实空间) i0_real_error	2.6610e+06
Rg (倒空间) rg_reciprocal	40.25 Å
I(0) (倒空间) i0_reciprocal	147600000.0000
解质量估计 total_estimate	0.7156
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	29.0 Å
偏度 Skewness skewness	0.688
峰度 Kurtosis kurtosis	-0.186
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	5155000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.502; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.255; Smooth: 0.538

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Fab BL3-6K170A heavy chain
分子量 formula_weight	24182.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H
原子数 atom_count	5226

EISEVQLVESGGGLVQPGGSLRLSCAASGFYISYSSIHWVRQAPGKGLEWVASISPYSGSTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARQGYRRRSGRGFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	Fab BL3-6K170A light chain
分子量 formula_weight	23336.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQSYSFPSTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSADSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
通用名 common_name	mouse
NCBI 分类编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	RNA (88-MER)
分子量 formula_weight	28444.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	R

GGUAGAACACGUGGGAUAGGGGAUGACCUUGUCGACCGAAACACGGUCCCCUGCUCCUUCGAGCUGGCAAGGCGCUCACAGGUUCUAC

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	25

▼

6. 折叠分类 (SCOP + CATH) 4 domains

CATH v4.4 (4 domains)

结构域编号 domain_id	8sh5H01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sh5H02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sh5L01
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

结构域编号 domain_id	8sh5L02
类 Class class	2 — Mainly Beta
架构 Architecture architecture	60 — Sandwich
拓扑 Topology topology	40 — Immunoglobulin-like
同源超家族 H-superfamily homologous superfamily	10 — Immunoglobulins

▶

7. 引用文献 (2)

▶

晶胞边长 a length_a	63.346 Å
晶胞边长 b length_b	65.460 Å
晶胞边长 c length_c	89.817 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	110.29 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1 21 1
空间群编号 int_tables_number	4
晶系 crystal_system	monoclinic

分辨率 resolution	2.750 Å
最低分辨率 resolution_low	59.420 Å
R 因子 r_factor	0.2554
R_work r_work	0.2514
R_free r_free	0.2966

fit	/app/data/saxs_computation/sh/8sh5/8sh5.fit
pddf	/app/data/pr_computation/sh/8sh5/8sh5.pr.out
profile	/app/data/saxs_computation/sh/8sh5/8sh5.dat
