SAXSdb — 8sod

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8sod
沉积日期 deposition_date	2023-04-28
结构标题 title	Phosphoinositide phosphate 3 kinase gamma bound with ADP and two Gbetagamma subunits in State 1
关键词 keywords	Phosphoinositide 3-Kinase, Chemotaxis, Cancer, SIGNALING PROTEIN; SIGNALING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	55.85 Å
回转半径 Rg (电子) rg_electron	55.57 Å
零角强度 I(0) i0	945690000.00
分子量 molecular_weight	256810.0 kDa
排除体积 excluded_volume	321800 Å³
包络体积 envelope_volume	479400 Å³
水化壳体积 shell_volume	76170 Å³
包络直径 envelope_diameter	189.2 Å
壳层 Rg shell_rg	53.54 Å
包络 Rg envelope_rg	54.47 Å
形状 Rg shape_rg	55.52 Å
总 Rg total_rg	55.67 Å
总原子数 total_atoms	36057
残基数 n_residues	2271
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	188.0 Å
Rg (实空间) rg_real	56.07 Å
Rg 误差 (实空间) rg_real_error	1.90 Å
I(0) (实空间) i0_real	9.4570e+08
I(0) 误差 (实空间) i0_real_error	2.0460e+07
Rg (倒空间) rg_reciprocal	55.65 Å
I(0) (倒空间) i0_reciprocal	945100000.0000
解质量估计 total_estimate	0.8396
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	67.1 Å
偏度 Skewness skewness	0.364
峰度 Kurtosis kurtosis	-0.476
角度范围 angular_range	— – 0.1400 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	56990000.0000
实空间数据点数 n_real_points	29
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.888; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.294

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
分子量 formula_weight	37416.9 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,C
原子数 atom_count	36057

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI 分类编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	phosphatidylinositol-4,5-bisphosphate 3-kinase
分子量 formula_weight	127573.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MHHHHHHELENYEQPVVLREDNRRRRRRMKPRSTAASLSSMELIPIEFVLPTSQRNTKTPETALLHVAGHGNVEQMKAQVWLRALETSVSADFYHRLGPDHFLLLYQKKGQWYEIYDKYQVVQTLDCLRYWKVLHRSPGQIHVVQRHAPSEETLAFQRQLNALIGYDVTDVSNVHDDELEFTRRRLVTPRMAEVAGRDPKLYAMHPWVTSKPLPEYLLKKITNNCVFIVIHRSTTSQTIKVSADDTPGTILQSFFTKMAKKKSLMDIPESQNERDFVLRVCGRDEYLVGETPIKNFQWVRQCLKNGEEIHLVLDTPPDPALDEVRKEEWPLVDDCTGVTGYHEQLTIHGKDHESVFTVSLWDCDRKFRVKIRGIDIPVLPRTADLTVFVEANIQYGQQVLCQRRTSPKPFTEEVLWNVWLEFSIKIKDLPKGALLNLQIYCGKAPALSGKTSAEMPSPESKGKAQLLYYVNLLLIDHRFLLRHGEYVLHMWQLSGKGEDQGSFNADKLTSATNPDKENSMSISILLDNYCHPIALPKHRPTPDPEGDRVRAEMPNQLRKQLEAIIATDPLNPLTAEDKELLWHFRYESLKDPKAYPKLFSSVKWGQQEIVAKTYQLLAKREVWDQSALDVGLTMQLLDCNFSDENVRAIAVQKLESLEDDDVLHYLLQLVQAVKFEPYHDSALARFLLKRGLRNKRIGHFLFWFLRSEIAQSRHYQQRFAVILEAYLRGCGTAMLHDFTQQVQVIDMLQKVTIDIKSLSAEKYDVSSQVISQLKQKLENLQNLNLPQSFRVPYDPGLKAGALVIEKCKVMASKKKPLWLEFKCADPTALSNETIGIIFKHGDDLRQDMLILQILRIMESIWETESLDLCLLPYGCISTGDKIGMIEIVKDATTIAKIQQSTVGNTGAFKDEVLSHWLKEKCPIEEKFQAAVERFVYSCAGYCVATFVLGIGDRHNDNIMISETGNLFHIDFGHILGNYKSFLGINKERVPFVLTPDFLFVMGTSGKKTSLHFQKFQDVCVKAYLALRHHTNLLIILFSMMLMTGMPQLTSKEDIEYIRDALTVGKSEEDAKKYFLDQIEVCRDKGWTVQFNWFLHLVLGIKQGEKHSA

来源 Source

来源生物 organism	Sus scrofa
通用名 common_name	pig
NCBI 分类编号 ncbi_taxonomy_id	9823
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	Phosphoinositide 3-kinase regulatory subunit 5
分子量 formula_weight	98497.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MQPGATTCTEDRIQHALERCLHGLSLSRRSTSWSAGLCLNCWSLQELVSRDPGHFLILLEQILQKTREVQEKGTYDLLAPLALLFYSTVLCTPHFPPDSDLLLKAARTYHRFLTWPVPYCSICQELLTFIDAELKAPGISYQRLVRAEQGLSTRSHRSSTVTVLLLNPVEVQAEFLDVADKLSTPGPSPHSAYITLLLHAFQATFGAHCDLSGLHRRLQSKTLAELEAIFTETAEAQELASGIGDAAEARQWLRTKLQAVGEKAGFPGVLDTAKPGKLRTIPIPVARCYTYSWNQDSFDILQEILLKEQELLQPEILDDEEDEDEEDEEEDLDADGHCAERDSVLSTGSAASHASTLSLASSQASGPTLSRQLLTSFVSGLSDGVDSGYMEDIEESAYERPRRPGGHERRGHRRPGQKFNRIYKLFKSTSQMVLRRDSRSLEGSPDSGPPLRRAGSLCSPLDSPTLPPSRAQRSRSLPQPKLSPQLPGWLLAPASRHQRRRPFLSGDEDPKASTLRVVVFGSDRISGKVARAYSNLRRLENNRPLLTRFFKLQFFYVPVKRSRGTGTPTSPAPRSQTPPLPTDAPRHPGPAELGAAPWEESTNDISHYLGMLDPWYERNVLGLMHLPPEVLCQSLKAEPRPLEGSPAQLPILADMLLYYCRFAARPVLLQVYQTELTFITGEKTTEIFIHSLELGHSAATRAIKASGPGSKRLGIDGDREAVPLTLQIIYSKGAISGRSRWSNMEKLCTSVNLSKACRQQEELDSSTEALTLNLTEVVKRQTPKSKKGFNQISTSQIKVDKVQIIGSNSCPFAVCLDQDERKILQSVIRCEVSPCYKPEKSSLCPPPQRPSYPPAPATPDLCSLLCLPIMTFSGALPGGGGSDYKDDDDK

来源 Source

来源生物 organism	Sus scrofa
通用名 common_name	pig
NCBI 分类编号 ncbi_taxonomy_id	9823
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
分子量 formula_weight	8674.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,D

HHHHHHMASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFSAIL

来源 Source

来源生物 organism	Bos taurus
通用名 common_name	cattle
NCBI 分类编号 ncbi_taxonomy_id	9913
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 non-polymer

描述 description	ADENOSINE-5'-DIPHOSPHATE
分子量 formula_weight	427.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	167954

fit	/app/data/saxs_computation/so/8sod/8sod.fit
pddf	/app/data/pr_computation/so/8sod/8sod.pr.out
profile	/app/data/saxs_computation/so/8sod/8sod.dat

Phosphoinositide phosphate 3 kinase gamma bound with ADP and two Gbetagamma subunits in State 1

SAXS 散射曲线 SAXS Profile

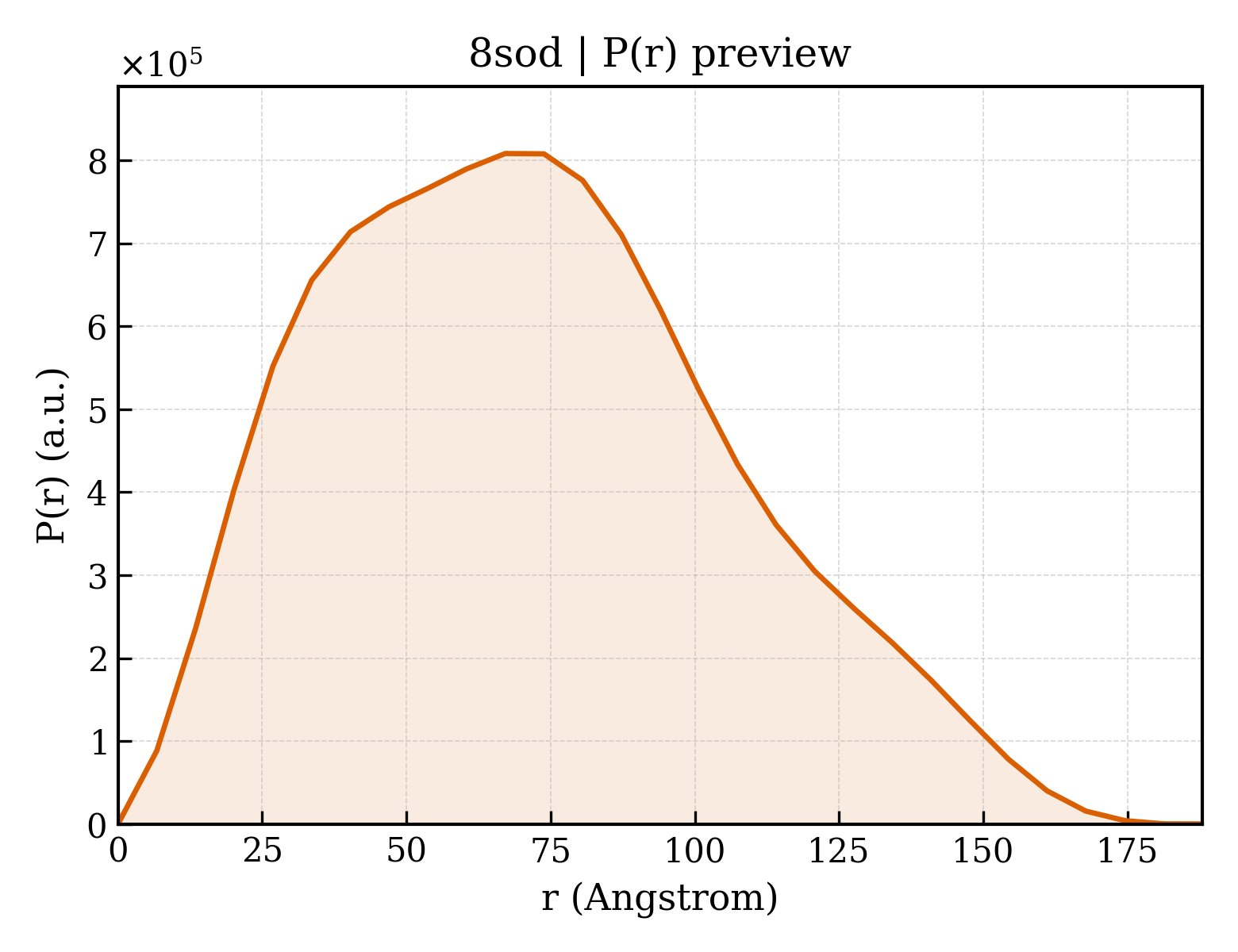

P(r) 距离分布 P(r) Distribution
