8t1h

Cryo-EM structure of a full-length, native Drp1 dimer

Method: ELECTRON MICROSCOPY D_max: 174.9 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

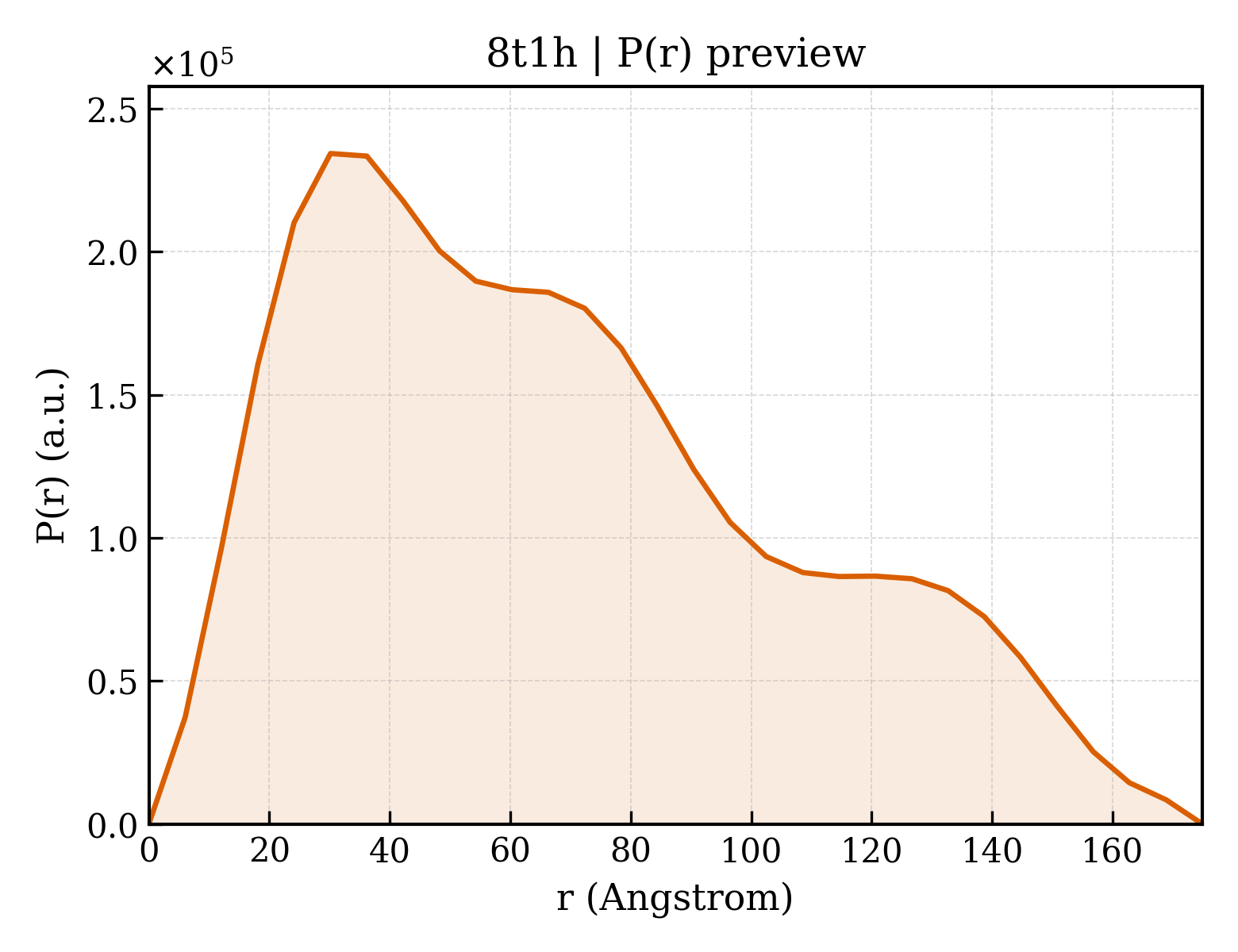

P(r) distribution for 8t1h

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8t1h
沉积日期 deposition_date	2023-06-02
结构标题 title	Cryo-EM structure of a full-length, native Drp1 dimer
关键词 keywords	Dynamin-related protein 1, Drp1, mitochondrial fission, GTPase, Cytosolic Protein; CYTOSOLIC PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.19 Å
回转半径 Rg (电子) rg_electron	54.94 Å
零角强度 I(0) i0	258887000.00
分子量 molecular_weight	134020.0 kDa
排除体积 excluded_volume	168860 Å³
包络体积 envelope_volume	262360 Å³
水化壳体积 shell_volume	45864 Å³
包络直径 envelope_diameter	182.0 Å
壳层 Rg shell_rg	46.40 Å
包络 Rg envelope_rg	53.85 Å
形状 Rg shape_rg	54.94 Å
总 Rg total_rg	54.59 Å
总原子数 total_atoms	19112
残基数 n_residues	1190
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	174.9 Å
Rg (实空间) rg_real	54.96 Å
Rg 误差 (实空间) rg_real_error	1.51 Å
I(0) (实空间) i0_real	2.5890e+08
I(0) 误差 (实空间) i0_real_error	5.5070e+06
Rg (倒空间) rg_reciprocal	53.51 Å
I(0) (倒空间) i0_reciprocal	258300000.0000
解质量估计 total_estimate	0.7039
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	30.2 Å
偏度 Skewness skewness	0.547
峰度 Kurtosis kurtosis	-0.609
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	11950000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.570; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.434; Smooth: 0.001

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (1)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
