8t1l

Atomic model of the mammalian mouse Mediator complex with CKM module

Method: ELECTRON MICROSCOPY D_max: 262.0 Å Quality: EXCELLENT

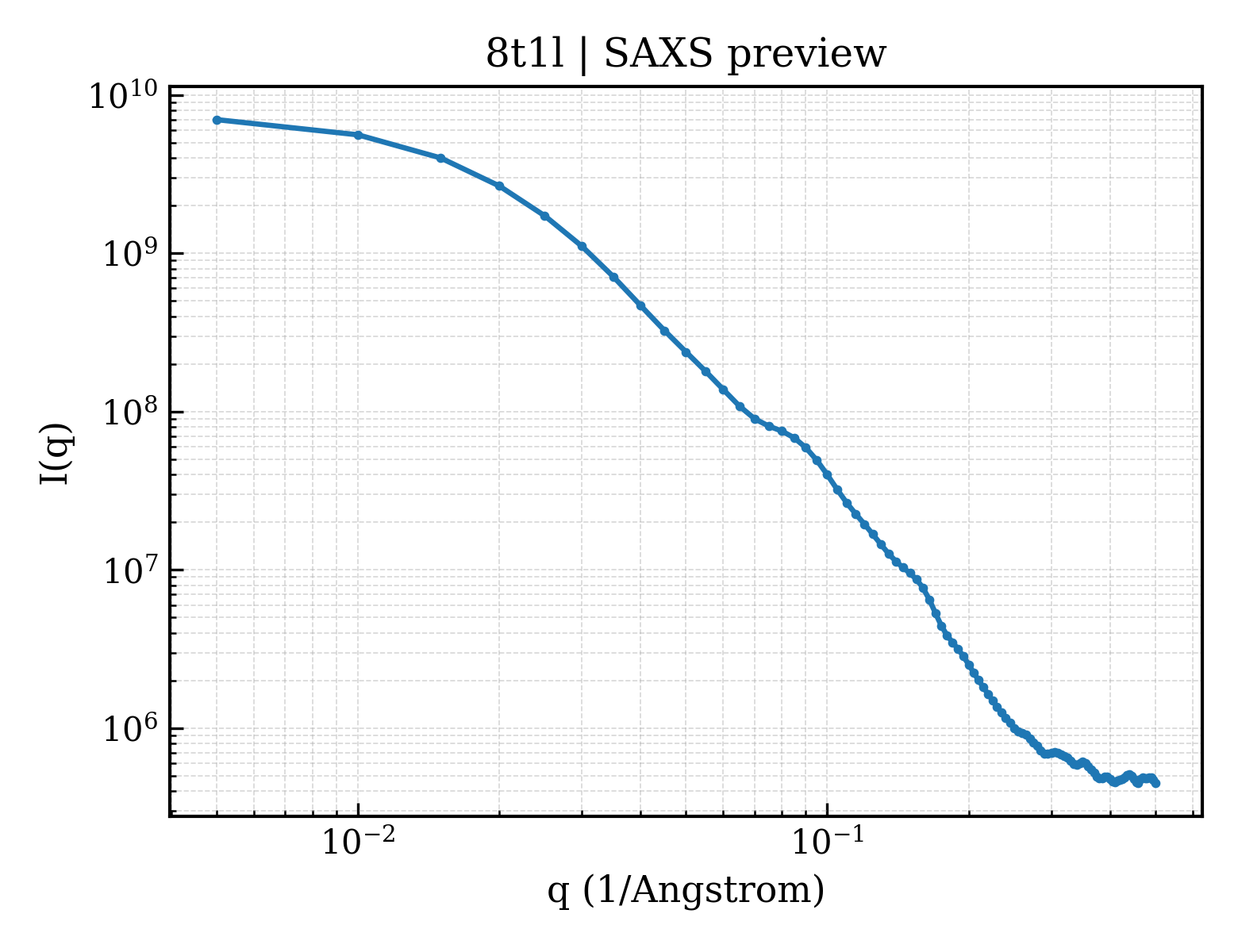

SAXS 散射曲线 SAXS Profile

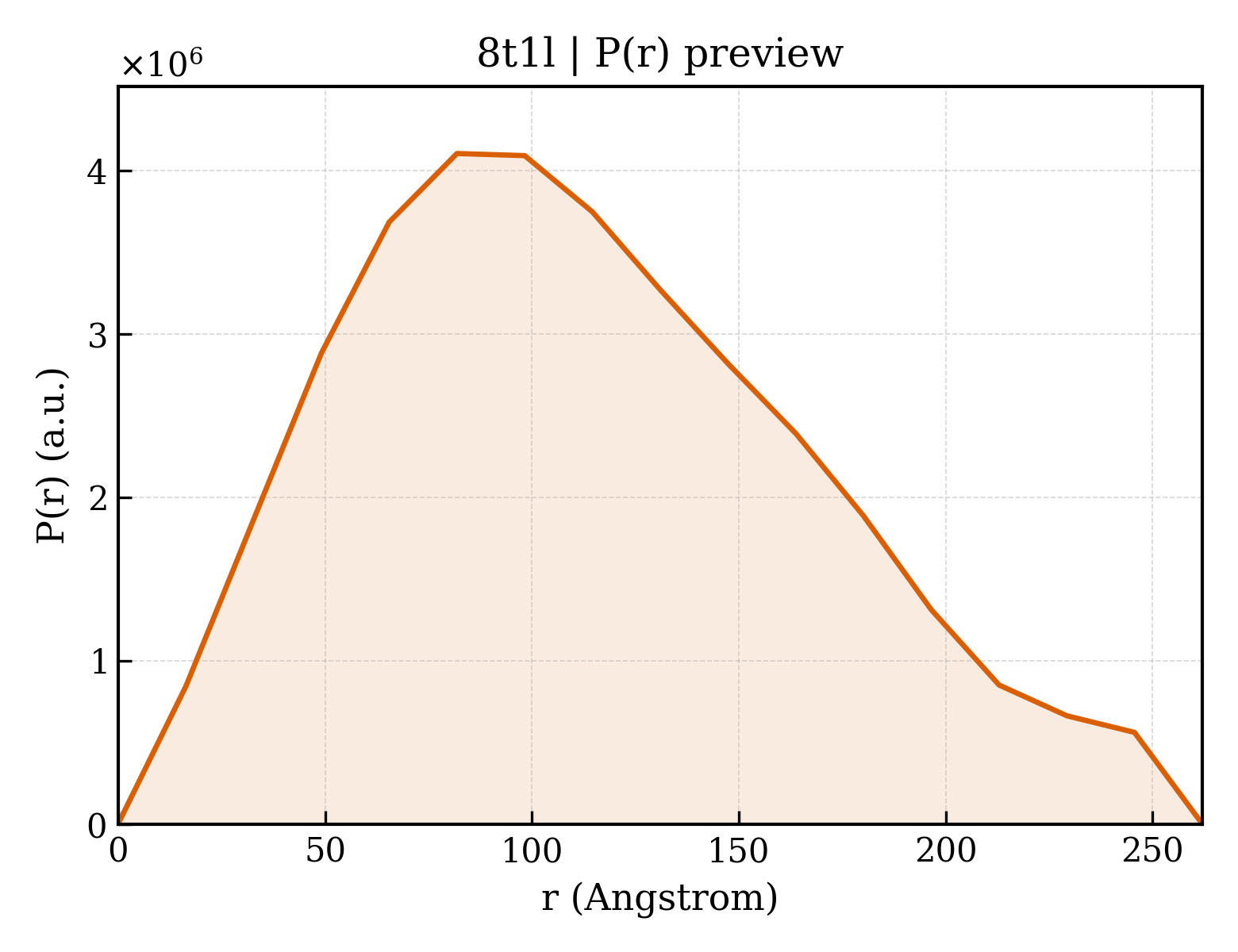

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8t1l
沉积日期 deposition_date	2023-06-02
结构标题 title	Atomic model of the mammalian mouse Mediator complex with CKM module
关键词 keywords	mouse mediator, GENE REGULATION, CKM module; GENE REGULATION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	94.46 Å
回转半径 Rg (电子) rg_electron	94.87 Å
零角强度 I(0) i0	7540390000.00
分子量 molecular_weight	696160.0 kDa
排除体积 excluded_volume	851050 Å³
包络体积 envelope_volume	1866300 Å³
水化壳体积 shell_volume	176220 Å³
包络直径 envelope_diameter	382.9 Å
壳层 Rg shell_rg	76.22 Å
包络 Rg envelope_rg	97.69 Å
形状 Rg shape_rg	95.02 Å
总 Rg total_rg	94.15 Å
总原子数 total_atoms	49460
残基数 n_residues	7843
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	262.0 Å
Rg (实空间) rg_real	88.01 Å
Rg 误差 (实空间) rg_real_error	1.47 Å
I(0) (实空间) i0_real	7.1970e+09
I(0) 误差 (实空间) i0_real_error	1.6620e+08
Rg (倒空间) rg_reciprocal	88.41 Å
I(0) (倒空间) i0_reciprocal	7399000000.0000
解质量估计 total_estimate	0.9155
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	81.9 Å
偏度 Skewness skewness	0.403
峰度 Kurtosis kurtosis	-0.469
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	0.7276
最高正则化参数 α highest_alpha	355800000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.020; Oscil: 0.988; Stabil: 0.981; Sysdev: 1.000; Positv: 1.000; Valcen: 0.986; Smooth: 0.010

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (26)

Entity 1 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 8
分子量 formula_weight	29232.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E
原子数 atom_count	49460

MQREEKQLEASLDALLNQVADLKNSLGSFIYKLENEYDRLTWPSVLDSFALLSGQLNTLNKVLKHEKTPLFRNQVIIPLVLSPDRDEDLMRQTEGRVPVFSHEVVPDHLRTKPDPEVEEQEKQLTTDAARIGADAAQKQIQSLNKMCSNLLEKISKEERESESGGLRPNKQTFNPGDTNALVAAVAFGKGLSNWRPSGSSGPGQPGQPGAGTILAGASGLPQVQMPGAPNQQQPMLSGVQMAQAGQPGKMPSGIKTNIKSASMHPYQR

Entity 2 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 1
分子量 formula_weight	167354.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MKAQGETEDSERLSKMSSLLERLHAKFNQNRPWSETIKLVRQVMEKRVVMSSGGHQHLVSCLETLQKALKVTSLPAMTDRLESIARQNGLGSHLSASGTECYITSDMFYVEVQLDPAGQLCDVKVAHHGENPVSCPELVQQLREKNFEEFSKHLKGLVNLYNLPGDNKLKTKMYLALQSLEQDLSKMAIMYWKATNAAPLDKILHGSVGYLTPRSGGHLMNMKYYASPSDLLDDKTASPIILHEKNVPRSLGMNASVTIEGTSAMYKLPIAPLIMGSHPADNKWTPSFSAVTSANSVDLPACFFLKFPQPIPVSKAFVQKLQNCTGIPLFETPPTYLPLYELITQFELSKDPDPLPLNHNMRFYAALPGQQHCYFLNKDAPLPDGQSLQGTLVSKITFQHPGRVPLILNMIRHQVAYNTLIGSCVKRTILKEDSPGLLQFEVCPLSESRFSVSFQHPVNDSLVCVVMDVQDSTHVSCKLYKGLSDALICTDDFIAKVVQRCMSIPVTMRAIRRKAETIQADTPALSLIAETVEDMVKKNLPPASSPGYGMTTGNNPMSGTTTPTNTFPGGPITTLFNMSMSIKDRHESVGHGEDFSKVSQNPILTSLLQITGNGGSTIGSSPTPPHHTPPPVSSMAGNTKNHPMLMNLLKDNPAQDFSTLYGSSPLERQNSSSGSPRMEMCSGSNKAKKKKSSRVPPDKPKHQTEDDFQRELFSMDVDSQNPMFDVSMTADALDTPHITPAPSQCSTPPATYPQPVSHPQPSIQRMVRLSSSDSIGPDVTDILSDIAEEASKLPSTSDDCPPIGTPVRDSSSSGHSQSALFDSDVFQTNNNENPYTDPADLIADAAGSPNSDSPTNHFFPDGVDFNPDLLNSQSQSGFGEEYFDESSQSGDNDDFKGFASQALNTLGMPMLGGDNGEPKFKGSSQADTVDFSIISVAGKALGAADLMEHHSGSQSPLLTTGELGKEKTQKRVKEGNGTGASSGSGPGSDSKPGKRSRTPSNDGKSKDKPPKRKKADTEGKSPSHSSSNRPFTPPTSTGGSKSPGSSGRSQTPPGVATPPIPKITIQIPKGTVMVGKPSSHSQYTSSGSVSSSGSKSHHSHSSSSSSLASASTSGKVKSSKSEGSSSSKLSGSMYASQGSSGSSQSKNSSQTGGKPGSSPITKHGLSSGSSSTKMKPQGKPSSLMNPSISKPNISPSHSRPPGGSDKLASPMKPVPGTPPSSKAKSPISSGSSGSHVSGTSSSSGMKSSSGSASSGSVSQKTPPASNSCTPSSSSFSSSGSSMSSSQNQHGSSKGKSPSRNKKPSLTAVIDKLKHGVVTSGPGGEDPIDSQMGASTNSSNHPMSSKHNTSGGEFQSKREKSDKDKSKVSASGGSVDSSKKTSESKNVGSTGVAKIIISKHDGGSPSIKAKVTLQKPGESGGDGLRPQIASSKNYGSPLISGSTPKHERGSPSHSKSPAYTPQNVDSESESGSSIAERSYQNSPSSEDGIRPLPEYSTEKHKKHKKEKKKVRDKDRDKKKSHSMKPENWSKSPISSDPTASVTNNPILSADRPSRLSPDFMIGEEDDDLMDVALIGN

Entity 3 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 4
分子量 formula_weight	29817.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAASSSGEKEKERMGGVSGMAGLGSTRERLLSALEDLEVLSRELIEMLAISRNQKLLQLEEENQVLELLIHRDGDFQELMKLALNQGKVHHEMQALEKEVEKRDSDIQQLQKQLKEAEQILATAVYQAKEKLKSIEKARKGAISSEEIIKYAHRISASNAVCAPLTWVPGDPRRPYPTDLEMRSGLLGQMNNPSTSGVNGHLPGDALAAGRLPDVLAPQYPWQSNDMSVNMLPPNHSSDFLLEPPGHNKENEDDVEVMSTDSSSSSSDSD

Entity 4 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 6
分子量 formula_weight	28473.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAAVDIRDNLLGISWVDSSWIPILNSGSVLDYFSERSNPFYDRTCNNEVVKMQRLTLEHLNQMVGIEYILLHAQEPILFIIRKQQRQSPAQVIPLADYYIIAGVIYQAPDLGSVINSRVLTAVHGIQSAFDEAMSYCRYHPSKGYWWHFKDHEEQEKVKPKAKRKEEPSSIFQRQRVDALLIDLRQKFPPRFVQQKSGEKPVPVDQAKKEAEPLPETVKSEEKESTKNIQQTVSTKGPPEKRMRLQ

Entity 5 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 7
分子量 formula_weight	27244.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MGEPQQVSALPPPPMQYIKEYTDENIQEGLAPKPPPPIKDSYMMFGNQFQCDDLIIRPLESQGIERLHPMQFDHKKELRKLNMSILINFLDLLDILIRSPGSIKREEKLEDLKLLFVHVHHLINEYRPHQARETLRVMMEVQKRQRLETAERFQKHLERVIEMIQNCLASLPDDLPHSEAGMRVKAEPMDTDDNSNCPGQNEQQRESSGHRRDQIIEKDAALCVLIDEMNERP

Entity 6 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 9
分子量 formula_weight	15729.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MASSGVAGGRQAEDTLQPPPELLPESKPPPPPQPLPVAALPPPAAPRPQSPAGAKEENYSFLPLVHNVIKCMDKDSPDLHQDLNALKTKFQELRKLIGTMPGIHVSPEQQQQQLHSLREQVRTKNELLQKYKSLCMFEIPKD

Entity 7 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 10
分子量 formula_weight	15683.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MAEKFDHLEEHLEKFVENIRQLGIIVSDFQPSSQAGLSQKLNFIVTGLQDIDKCRQQLHDITVPLEVFEYIDQGRNPQLYTKECLERALAKNEQVKGKIDTMKKFKSLLIQELSKVFPEDMAKYRSIRGEDHPPS

Entity 8 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 11
分子量 formula_weight	13147.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MATYSLANERLRALEDIEREIGAILQNAGTAILELSKEKTNERLLDRQAAAFTTSVQHVEAELSAQIRYLTQVATGQPHEGSSYSSRKDCQMALKRVDYARLKISDVARTCEQMLEN

Entity 9 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 14
分子量 formula_weight	161144.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MAPVQLDNHQLIPPGGGGGSSGGGGSSSGSASAPAPPPPAAAVAAAAAAAASPGYRLSTLIEFLLHRAYSELMVLTDLLPRKSDVERKIEIVQFASRTRQLFVRLLALVKWANDAGKVEKCAMISSFLDQQAILFVDTADRLASLARDALVHARLPSFAIPYAIDVLTTGSYPRLPTCIRDKIIPPDPITKIEKQATLHQLNQILRHRLVTTDLPPQLANLTVANGRVKFRVEGEFEATLTVMGDDPEVPWRLLKLEILVEDKETGDGRALVHSMQIDFIHQLVQSRLFADEKPLQDMYNCLHCFCLSLQLEVLHSQTLMLIRERWGDLVQVERYHAGKSLSLSVWNQQVLGRKTGTASVHKVTIKIDENDVSKPLQIFHDPPLPASDSKLVERAMKIDHLSIEKLLIDSVHARAHQRLQELKAILRSFNANESSSIETALPALIVPILEPCGNSECLHIFVDLHSGMFQLMLYGLDPATLEDMEKSLNDDMKRIIPWIQQLKFWLGQQRCKQSIKHLPTITTETLQLANYSTHPIGSLSKNKLFIKLTRLPQYYIVVEMLEVPNKPTQLSYNYYFMSVSTADREDSPVMALLLQQFKDNIQDLMSYTKTGKQTRTGTKHKLSDDPCPIDSKKAKRSGEMCAFNKVLAHFVAMCDTNMPFVGLRLELSNLEIPHQGVQVEGDGFNHAIRLLKIPPCKGISEETQKALDRSLLDCTFRLQGRNNRTWVAELVFANCPLNGTSTREQGPSRHVYLTYENLLSEPVGGRKVVEMFLNDWSSIARLYECVLEFARSLPEIPAHLNIFSEVRVYNYRKLILCYGTTKGSSISIQWNSIHQKFHIALGTVGPNSGCSNCHNTILHQLQEMFNKTPNVVQLLQVLFDTQAPLNAINKLPTVPMLGLTQRTNTAYQCFSILPQSSTHIRLAFRNMYCIDIYCRSRGVVAIRDGAYSLFDNSKLVEGFYPAPGLKTFLNMFVDSNQDARRRSVNEDDNPPSPIGGDMMDSLISQLQPPQQQPFPKQPGTSGAYPLTSPPTSYHSTVNQSPSMMHTQSPGNLHAASSPSGALRAPSPASFVPTPPPSSHGISIGPGASFASPHGTLDPSSPYTMVSPSGRAGNWPGSPQVSGPSPATRLPGMSPANPSLHSPVPDVSHSPRAGTSSQTMPTNMPPPRKLPQRSWAASIPTILTHSALNILLLPSPTPGLVPGLAGSYLCSPLERFLGSVIMRRHLQRIIQQETLQLINSNEPGVIMFKTDALKCRVALSPKTNQTLQLKVTPENAGQWKPDELQVLEKFFETRVAGPPFKANTLIAFTKLLGAPTHILRDCVHIMKLELFPDQATQLKWNVQFCLTIPPSAPPIAPPGTPAVVLKSKMLFFLQLTQKTSVPPQEPVSIIVPIIYDMASGTTQQADIPRQQNSSVAAPMMVSNILKRFAEMNPPRQGECTIFAAVRDLMANLTLPPGGRP

Entity 10 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 15
分子量 formula_weight	86682.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MDVSGQETDWRSAAFRQKLVSQIEDAMRKAGVAHSKSSKDMESHVFLKAKTRDEYLSLVARLIIHFRDIHNKKSQASVSDPMNALQSLTGGPTPGAAGIGMPPRGPGQSLGGMGGLGAMGQPLPLSGQPPPGTSGMAPHGMAVVSTATPQTQLQLQQVALQQQQQQQQQQQFQQQQAALQQQQQQQQQQQQQQQFQAQQNAMQQQFQAVVQQQQLQQQQQQQHLIKLHHQSQQQQIQQQQLQRMAQLQLQQQQQQQQQQALQAQPPMQQPSMQQPQPPPSQALPQQLSQLHHPQHHQPPPQAQQSPIAQNQPPQIPPQSQSQPLVSQAQALPGPMLYAAQQQLKFVRAPMVVQQPQVQPQVQQVQPQVQPQAAVQAAQSAQMVAPGVQMIAEALAQGGMHVRARFPPTSTMSAGPSSSISLGGQPTTQVSQSSLTMLSSPSPGQQVQTPQSMPPPPQPSPQPGSQPNSNVSSGPAPSPSSFLPSPSPQPSQSPVTARTPQNFSVPSPGPLNTPVNPSSVMSPAGSSQAEEQQYLDKLKQLSKYIEPLRRMINKIDKNEDRKKDLSKMKSLLDILTDPSKRCPLKTLQKCEIALEKLKNDMAVPTPPPPPVLPTKQQDLCQPLLDAVLANIRSPVFNHSLYRTFVPAMMAIHGPPIVSPVVCSRKRRFEEDERQSIPNVLQGEVARLDPKFLVNLDPSHCSNNGTVHLICKLDDKDLPSVPPLELSVPADYPAQSPMWIDRQWQYDANPFLQSVHRCMTSRLLQLPDKHSVTALLNTWAQSIHQACLSAA

Entity 11 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 16
分子量 formula_weight	91890.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MDLAYVCEWEKWAKSTYCPSLPLACAWSCRNLIAFTTDLRNDDQDLTHMIHILDTEHPWEVHSVSSGHSEAITCLEWDQSGSRLLSADADGQIKCWSMADHLANSWESSVGSQVEGDPIVALSWLHNGVKLALHVEKSGASSFGEKFSRVKFSPSLTLFGGKPMEGWIAVTVSGLVTVSLLKPSGQVLTSTESLCRLRGRVALADIAFTGGGNIVVAAADGSSASPVKFYKVCVSVVSEKCRIDTEILPSLFMRCTTDPNRKDRFPAITHLKFLARDMSEQVLLCASSQTSSLVECWSLRKEGLPVNNIFQQISPVVGDKQPMILKWRILSATNDLDRVSAVALPKLPISLTNTDLKVASDTQFYPGLGLALAFQDGSVHMVHRLSLQTMAVFYSSAPRSLDEPALKRPRTTCPAVHFKAMQLSWTSLALVGIDNHGKLSMLRISPSLGHPLEPKLALQHLLFLLEYCMVTGYDWWDILLHVQPGMVQSLVERLHEEYTRQKPALQQVLSTRILAMKASLCKLSPCTVARVCDYHTKLFLMAITSTLKSLLRPHFLNTPDKSPGDRLAEICAKITDVDIDKVMINLKTEEFVLDMNTLQALQQLLQWVGDFVLYLLVSLPNQGSPLRPGHSFLRDGTSLGMLRELMVVIRIWGLLKPSCLPVYTATSDTQDSMSLLFRLLTKLWICCRDEGAASEPDEGLVDECCLLPSQLLVPNLDWLPASDGLVSRLQPKQPLRLRFGRAPTLPSSTSTLQLDGLTRAPGQPKIDHLRRLHLGAYPTEECKACTRCGCVTMLKSPNKTTAVTQWEQRWIKNCLCGGLWRRVPLSCS

Entity 12 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 17
分子量 formula_weight	72555.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MSGVRAVRISIESACEKQVQEVGLDGTETYLQPLSMSQNLARLAQRIDFSQGSGSEEEEAAGPDGDAPDWGGAGADQDDEEGLVKFQPSLWPWDSVRNNLRSALTEMCVLYDVLSIVRDKKFMTLDPVSQDALPPKQSPQTLQLISKKKSLAGAAQILLKGAERLTKSVAENQENKLQRDFNSELLRLRQHWKLRKVGDKILGDLSYRSAGSLFPHHGTFEVIKNTDIDLDKKIPEDYCPLDVQIPSDLEGSAYIKVSIQKQAPDIGDLGTVNLFKRPLPKSKPGSPHWQTKLEAAQNVLLCKEIFAQLSREAVQIKSQIPHIVVKNQIISQPFPSLQLSISLCHSSDDKKSQKCAAEKPGQEDHLYVLEHNLHLLIREFHKQTLSSIVMPHPASAPFGHKRMRLSGPQAFDKNEINSIQSTEGLLEKIIKQAKHIFLRSRTAATIDSLASRIEDPQIQAHWSNINDVYESSVKVLITSQGYEQICKSIQLQLNIGVEQVRVVHRDGRVIMLSHQEQELQDFLLSQMSQHQVHAVQQLAKVMGWQVLSFSNHVGLGPIESIGNASAITVASPSGDYAISVRNGPESGSKIMVQFPRNQCKDLPKSDVLQDSKWSHLRGPFKEVQWNKMEGRNFVYKMELLMSALSPCLL

Entity 13 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 18
分子量 formula_weight	23675.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MEAPPVTMMPVTGGTINMMEYLLQGSVLDHSLESLIHRLRGLCDNMEPETFLDHEMVFLLKGQQASPFVLRARRSMDRAGAPWHLRYLGQPEMGDKNRHALVRNCVDIATSENLTDFLMEMGFRMDHEFVAKGHLFRKGIMKVVVYKIFRILVPGNTDSTEALSLSYLVELSVVAPAGQDMVSDDMRNFAEQLKPLVHLEKIDPKRLM

Entity 14 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 20
分子量 formula_weight	23213.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MGVTCVSQMPVAEGKSLQQTVELLTKKLEMLGAEKQGTFCVDCETYHTAASTLGSQGQAGKLMYVMHNSEYPLSCFALFENGPCLIADTNFDVLMVKLKGFFQSAKASKIETRGTRYQYCDFLVKVGTVTMGPSARGISVEVEYGPCVVASDCWSLLLEFLQSFLGSHAPGAPTVFGNRHDAVYGPADTMIQYMELFNKIRKQQQVPVAGIR

Entity 15 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 21
分子量 formula_weight	15600.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MADRLTQLQDAVNSLADQFCNAIGVLQQCGPPASFSNIQTAINKDQPANPTEEYAQLFAALIARTAKDIDVLIDSLPSEESTAALQAASLYKLEEENHEAATCLEDVVYRGDMLLEKIQSALADIAQSQLKTRSVTHSHSLPDS

Entity 16 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 22
分子量 formula_weight	22304.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MAQQRALPQSKETLLQSYNKRLKDDIKSIMDNFTEIIKTAKIEDETQVSRATQGEQDNYEMHVRAANIVRAGESLMKLVSDLKQFLILNDFPSVNEAIDQRNQQLRALQEECDRKLITLRDEVSIDLYELEEEYYSSSSSLCEANDLPLCEAYWRLDLDADSADGLSAPLLASPETGAGPLQSAAPVHSHGGGPGPTEHT

Entity 17 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 23
分子量 formula_weight	156265.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

METQLQSIFEEVVKTEIIEEAFPGMFMDTPEDEKTKLISCLAAFRQFWSGLSQESHEQCVQWIVKFIHGQHSPKRISFLYDCLAMAVETGLLPPRMVCESLINSDSLEWERTQLWALTFKLVRKIIGGVDYKGVRDLLKAILEKILTIPNTVSSAVVQQLLAAREVIAYILERNACLLPAYFAVTEIRKLYPEGKLPHWLLGNLVSDFVDTFRPTARINSICGRCSLLPVVNNSGAICNSWKLDPATLRFPLKGLLPYDKDLFEPQTALLRYVLEQPYSRDMVCNMLGLNKQHKQRCPVLEDQLVDLVVYAMERSETEEKFDDGGTSQLLWQHLSSQLIFFVLFQFASFPHMVLSLHQKLAGRGLIKGRDHLMWVLLQFISGSIQKNALADFLPVMKLFDLLYPEKECIPVPDINKPQSTHAFAMTCIWIHLNRKAQNGDSTLQIPIPHSLKLHHEFLQQSLRNKSLQMNDYKIALLCNAYSTNSECFTLPMGALVETIYGNGIMRVPLPGTSCLASASVTPLPMNLLDSLTVHAKMSLIHSIATRVIKLAHTKSSVALAPALVETYSRLLVYMEIESLGIKGFISQLLPTVFKSHAWGILHTLLEMFSHRMHHIQPHYRVQLLSHLHTLAAVAQTNQNQLHLCVESTALRLITALGSSEVQPQFTRFLNDPKTVLSAESEELNRALILTLARATHVTDFFTGSDSIQGTWCKDILQTIMNFTPHNWASHTLSCFPAPLQAFFKQNNVPQESRFNLKKNVEEEYRKWKSMTDENEIITQFSVQGFPPLFLCLLWKMLLETDHISQIGYKVLERIGARALVAHVRTFADFLVYEFSTSAGGQQLNKCIEILNDMVWKYNIVTLDRLILCLAMRSHEGNEAQVCYFIIQLLLLKPNDFRNRVSDFVKENSPEHWLQSDWHTKHMSYHKKYPEKLYFEGLAEQVDPPVPIQSPYLPIYFGNVCLRFLPVFDIVIHRFLELLPVSKSLETLLDHLGGLYKFHDRPVTYLYNTLHYYEMCLRNRDHLKRKLVHAIIGSLKDNRPQGWCLSDTYLKHAMNAREDNPWVPEDSYYCKLIGRLVDTMAGKSPGPFPNCDWRFNEFPNPAAHALHVTCVELMALAVPGKDVGNALLNVVLKSQPLVPRENITAWMNAIGLIITALPEPYWIVLHDRIVNVISSSSLTSETEWVGYPFRLFDFTACHQSYSEMSCSYTLALAHAVWHHSSIGQLSLIPKFLTEALLPVVKTEFQLLYVYHLVGPFLQRFQQERTRCMIEIGVAFYDMLLNVDQCSTHLNYMDPICDFLYHMKYMFTGDSVKEQVEKIICNLKPALKLRLRFITHISKMEPAVPPQALNSGSPAPQSNQVPASLPVTQ

Entity 18 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 24
分子量 formula_weight	110106.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MKVVNLKQAILQAWKERWSDYQWAINMKKFFPKGATWDILNLAEALLEQAMIGPSPNPLILSYLKYAISSQMVSCSSVLTAISKFDDFSRDLCVQALLDIMDMFCDRLSCHGKAEECIGLCRALLSALHWLLRCTAASAERLQEGLEAGTPAPGEKQLALCLQCLEKTLSSTKNRALLHIAKLEEASSWTAIEHSLLKLGEILANLSNPQLRSQAERCGTLIRSIPSMLSVHSEQLHKTGFPTIHALILLEGTMNLTGEMQPLVEQLMMVKRMQHIPTPLFVLEIWKACFVGLIESPEGTQELKWTAFTYLKIPQVLVKLKKYFHGEKDFTEDVNCAFEFLLKLTPLLDKADQRCNCDCTNFLLQECNKQGLLSEVNFASLVGKRTADRDPQLKSSENANIQPNPGLILRAEPTVTNILKTMDADHSKSPEGLLGVLGHMLSGKSLDLLLAAAAATGKLKSFARKFINLNEFTTHGSGESTKTASVRALLFDISFLMLCHVAQTYGSEVILSESSSGEEVPFFETWMQTCMPEEGKILNPDHPCFRPDSTKVESLVALLNNSSEMKLVQMKWHEACLSISAAILEILNAWENGVLAFESIQKITDNIKGKVCSLAVCAVAWLVAHVRMLGLDEREKSLQMIRQLAGPLYSENTLQFYNERVVIMNSILEHMCADVLQQTATQIKFPSTGVDTMPYWNLLPPKRPIKEVLTDIFAKVLEKGWVDSRSIHILDTLLHMGGVYWFCNNLIKELLKETRKEHTLRAVQLLYSIFCLDMQQVTLVLLGHILPGLLTDSSKWHSLMDPPGTALAKLAVWCALSSYSSHKGQASSRQKKRHREDIEDYVSLFPVEDMQPSKLMRLLSSSDDDANILSSPTDRSMNSSLSASQLHTVNMRDPLNRVLANLFLLISSILGSRTAGPHTQFVQWFMEECVGCLEQDSRGSILQFMPFTTVSELVKVSAMSSPKVVLAITDLSLPLGRQVAAKAIAAL

Entity 19 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 25
分子量 formula_weight	78173.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MVPGSEGPARAGGLVADVVFVIEGTANLGPYFEELRKHYLLPAIEYFNGGPPAETDFGGDYGGTQYSLVVFNTVDCAPESYVQCHAPTSSAYEFVTWLDGIKFMGGGGESCSLIAEGLSTALQLFDDFKKMREQIGQTHRVCLLICNSPPYLLPAVESTTYSGCTTESLVQKIGERGIHFSIVSPRKLPALRLLFEKAAPPALLEPLQQPADVSQDPRHMVLVRGLVLPVGGSSTSGSLQTKQAVPLPPAPASAATLSAAPPQALPPVPPQYQVPGNLSAAQVAAQNAVEAAKSQKAGLGPRFSPINPLQQAAPGVGPPFSQAPAPPLAPVPPGAPKPPPASQPSLVSTVAPGPVLAAPAQPGAPSLAGTVTPGGVNGPSAAQLGGPALGGQQSVSNKLLAWSGVLEWQEKPKPASVDANTKLTRSLPCQVYVNHGENLKTEQWPQKLIMQLIPQQLLTTLGPLFRNSRMVQFHFTNKDLESLKGLYRIMGNGFAGCVHFPHTAPCEVRVLMLLYSSKKKIFMGLIPYDQSGFVNGIRQVITNHKQVQQQKLEQQRGMGAQQAPPVLGPILEEQARPPQNLLQLRAPQPQPQGAVGASAATGQPQPQGATQAPTGAPQGPPGAAPGPPPSGPILRPQNPGANPQLRSLLLNPAPPQTGVPPPQASLHHLQPPGAPTLLPPHQSMGQPQLGPQLLHPPPAQSWPTQLPQRAPLPGQMLLSGGPRGPVPQPGLQPSVMEDDILMDLI

Entity 20 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 27
分子量 formula_weight	35343.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MADVLSVGVNLEAFSQAISAIQALRSSVSRVFDCLKDGMRNKETLEGREKAFIANFQDNLHSVNRDLNELERLSNLVGKPSENHPLHNSGLLSLDPVQDKTPLYSQLLQAYKWSNKLQYHAGLASGLLNQQSLKRSANQMGVSAKRRPKAQPTTLVLPPQYVDDVISRIDRMFPEMSIHLSRPNGTSAMLLVTLGKVLKVIVVMRSLFIDRTIVKGYNESVYTEDGKLDIWSKSSYQVFQKVTDHATTALLHYQLPQMPDVVVRSFMTWLRSYIKLFQAPCQRCGKFLQDGLPPTWRDFRTLEAFHDTCRQ

Entity 21 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 28
分子量 formula_weight	19558.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MAASLGGMFTGQPPGPPPPPPGLPGQASLLQAAPGAPRPSNSTLVDELESSFEACFASLVSQDYVNGTDQEEIRTGVDQCIQKFLDIARQTECFFLQKRLQLSVQKPDQVIKEDVSELRSELQRKDALVQKHLTKLRHWQQVLEDINVQHKKPADMPQGSLAFLEQASANIPAPLKQT

Entity 22 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 29
分子量 formula_weight	21027.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MAAPQPQAAAVSSASGVSGPGSAGGPGPQQQPQPTQLVGSAQSGLLQQQQQDFDPVQRYKMLIPQLKESLQTLMKVAAQNLIQNTNIDNGQKSSDAPLQRFDKCLEEFYALCDQLELCLRLAHECLSQSCDSAKHSPTLVPTATKPDAVQPDSLPYPQYLAVIKAQITCAKDIHTALLDCANKVTGKTTAPSTGPGGSL

Entity 23 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 30
分子量 formula_weight	20383.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y

MSTPPLAPTGMASGPFGGPQAQQAAREVNTATLCRIGQETVQDIVYRTMEIFQLLRNMQLPNGVTYHTGTYQDRLTKLQDHLRQLSILFRKLRLVYDKCNENCGGMDPIPVEQLIPYVDEDGSKNDDRAGPPRFASEERREIVEVNKKLKQKNQQLKQIMDQLRNLIWDINAMLAMRN

Entity 24 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 31
分子量 formula_weight	15792.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAAAVAMETDDAGNRLRFQLELEFVQCLANPNYLNFLAQRGYFKDKAFVNYLKYLLYWKEPEYAKYLKYPQCLHMLELLQYEHFRKELVNAQCAKFIDEQQILHWQHYSRKRVRLQQALAEQQQQNNTAGK

Entity 25 polymer

描述 description	Unknown
分子量 formula_weight	1720.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	a

XXXXXXXXXXXXXXXXXXXX

Entity 26 polymer

描述 description	Mediator of RNA polymerase II transcription subunit 13
分子量 formula_weight	238831.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	9

MSSSFVSNGASLEDCHCNLFCLADLTGIKWKRYVWQGPTSAPILFPVTEEDPILSSFSRCLKADVLGVWRRDQRPGRRELWIFWWGKDPNFADLIHHDLSEEEDGVWENGLSYECRTLLFKAVHNLLERCLMNRNFVRIGKWFVKPYEKDEKPINKSEHLSCSFTFFLHGDSNVCTSVEINQHQPVYLLSEEHVTLAQQSNSPFQVILSPFGLNGTLTGQAFKMSDSATKKLIGEWKQFYPISCGLKEMSEEKQDDMDWEDDSLAAVEVLVAGVRMIYPACFVLVPQSDIPAPSSVGASHCSASCLGIHQVPASTRDPAMSSVTLTPPTSPEEVQTVDPQSAQKWVKFSSVSDGFSTDSTSHHGGKIPRKLANHVVDRVWQECNMNRLQNKRKYSATSSGLCEEETADKIGCWDFVEATQRTSCSCLRHKSLKTRNTGQQGQAPSLGQQQQVLPKHKTNEKQDKSEKPQKRPLTPFHHRVSVSDEIGMDTDSASQRLVISAADSQVRFSNIRTNDVAKTPQMHGTELANSPQPPPLSPHPCDVVDEGVTKTPSTPQSQHFYQMPTPDPLVPTKPMEDRIDSLSQSFPPPFQEAVEPTVYVGTAVSLEEDEANVAWKYYKVPKKKDVEFLPPQLPNDKFKDDPVGPFGQESVTSVTELMVQCKKPLKVSDEIVQQYQIKNQYLSAIASDTEQEPKIDPYAFVEGDEEFIFTDKKDRQNSEREAGKKHKVEDGTSAVTVLSHEEDAMSLFSPSKQDAPRPTNHARPPSTSLIYDSDLAVSYTDLDNLFNSDEDELTPGSKKSASGSDDKASSKESKTGNLDPLSCISTADLHKMYPTPPSLEQHIMGFSPMNMNNKEYGSVDTAPGGTVLEGNSSSVGTQFRIEVEEGFCSPKPSEIKDFSYVYKPENCQVLVGCSMFAPLKTLPSHCLPPIKLPEECVYRQSWTVGKLDLLPSGPSMPFIKEGDGSNLDQDYGPAYTPQTHASFGMPPSSAPPSNGGAGILPSPSTPRFPTPRTPRTPRTPRGAGGPASAQGSVKYENSDLYSPASTPSTCRPLNSVEPATVPSIPEAHSLYVNLILSESVMNLFKDCNFDSCCICVCNMNIKGADVGVYIPDPTQEAQYRCTCGFSAVMNRKFGNNSGLFLEDELDIIGRNTDCGKEAEKRFEALRASSVENVNGGLKESEKVPDELILLLQDQCTNLFSPFGAADQDPFPKVGISSNWVRVEERDCCSDCCLALEHGRQFMDNMSGGKVDEALVRSSCLHPWAKQNDASVQCSQDILRMLLSLQPVLQDAIQKKRTVRPWGVQGPLTWQQFHKMAGRGSYGTDESPEPLPIPTFLLGYDYDFLVLSPFALPYWEKLMLEPYGSQRDIAYVVLCPENEALLNGARSFFRDLTAIYESCRLGQHRPISRLLTDGIMKVGATASKKLSEKFVTEWFSQAADGNNEAFSKLKLYAQVCRYDLGPYLASQPLDSSLLSQPNLVAPPNQSLVTAPQMTNTGNANAPSATLASAASSTMTMTSGVPISTSVATANSTLTTTSSSSSSSLSSGVSSNKLPSFPPFGSMNTSGTGSMSAQASTVQSGQLGGQQSSSLQAAGISGESASLPTQPHPDVSESTMDRDKVGIPTDGDSHAITYPPAIVVYIIDPFTYENKDESTNSSNVWTLGLLRCFLEMVQTLPPHIKSTVSVQIVPCQYLLQPVKHDDRQIYSQHLKSLAFSVFTQCRRPLPTSTNVKTLTGFGPGLAMETALKSPDRPECIRLYTPPFILAPVKDKQTELGETFGEAGQKYNVLFVGYCLSHDQRWILASCTDLYGELLETCIINIDVPNRARRKKGSARRFGLQKLWEWCLGLVQMSSLPWRVVIGRLGRIGHGELKDWSCLLSRRNLQSLSKRLKDMCRMCGISAADSPSILSACLVAMEPQGSFVIMPDSVSTGSVFGRSTTLNMQTPQLNTPQDTSCTHILVFPTSASVQVASATYTTENLDLAFNPNNDGADGMGIFDLLDTGDDLDPDIINILPASPTASPVHSPGSHYPHGGDAGKGQGTDRLLSTESHDEVTNILQQPLALGYFVSTAKAGPLPDWFWSACPQAQYQCPLFLKASLHLHVPSVQSDELLHSKHSHPLDSNQTSDVLRFVLEQYNALSWLTCDPAVQDRRSCLPVHFVVLNQLYNFIMNML

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.83 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	111331

fit	/app/data/saxs_computation/t1/8t1l/8t1l.fit
pddf	/app/data/pr_computation/t1/8t1l/8t1l.pr.out
profile	/app/data/saxs_computation/t1/8t1l/8t1l.dat

Atomic model of the mammalian mouse Mediator complex with CKM module

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

晶胞参数 Unit Cell

对称性 Symmetry

冷冻电镜 EM 3D

5. 实体与聚合体信息 (26)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

7. 引用文献 (1)

8. 文件与曲线 (10)

Files (7)

Curves (3)
