8t1t

Structure of the alpha-N-methyltransferase (SonM) and RiPP precursor (SonA with QSY deletion) heteromeric complex (bound to SAM)

Method: X-RAY DIFFRACTION D_max: 75.7 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8t1t
沉积日期 deposition_date	2023-06-03
最后修订 last_revision	2023-11-22
结构标题 title	Structure of the alpha-N-methyltransferase (SonM) and RiPP precursor (SonA with QSY deletion) heteromeric complex (bound to SAM)
关键词 keywords	alpha-N-methyltransferase, borosin, natural products, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	25.85 Å
回转半径 Rg (电子) rg_electron	24.61 Å
零角强度 I(0) i0	82323200.00
分子量 molecular_weight	70907.0 kDa
排除体积 excluded_volume	88734 Å³
包络体积 envelope_volume	105830 Å³
水化壳体积 shell_volume	34437 Å³
包络直径 envelope_diameter	76.5 Å
壳层 Rg shell_rg	33.03 Å
包络 Rg envelope_rg	24.67 Å
形状 Rg shape_rg	24.62 Å
总 Rg total_rg	25.50 Å
总原子数 total_atoms	4985
残基数 n_residues	635
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

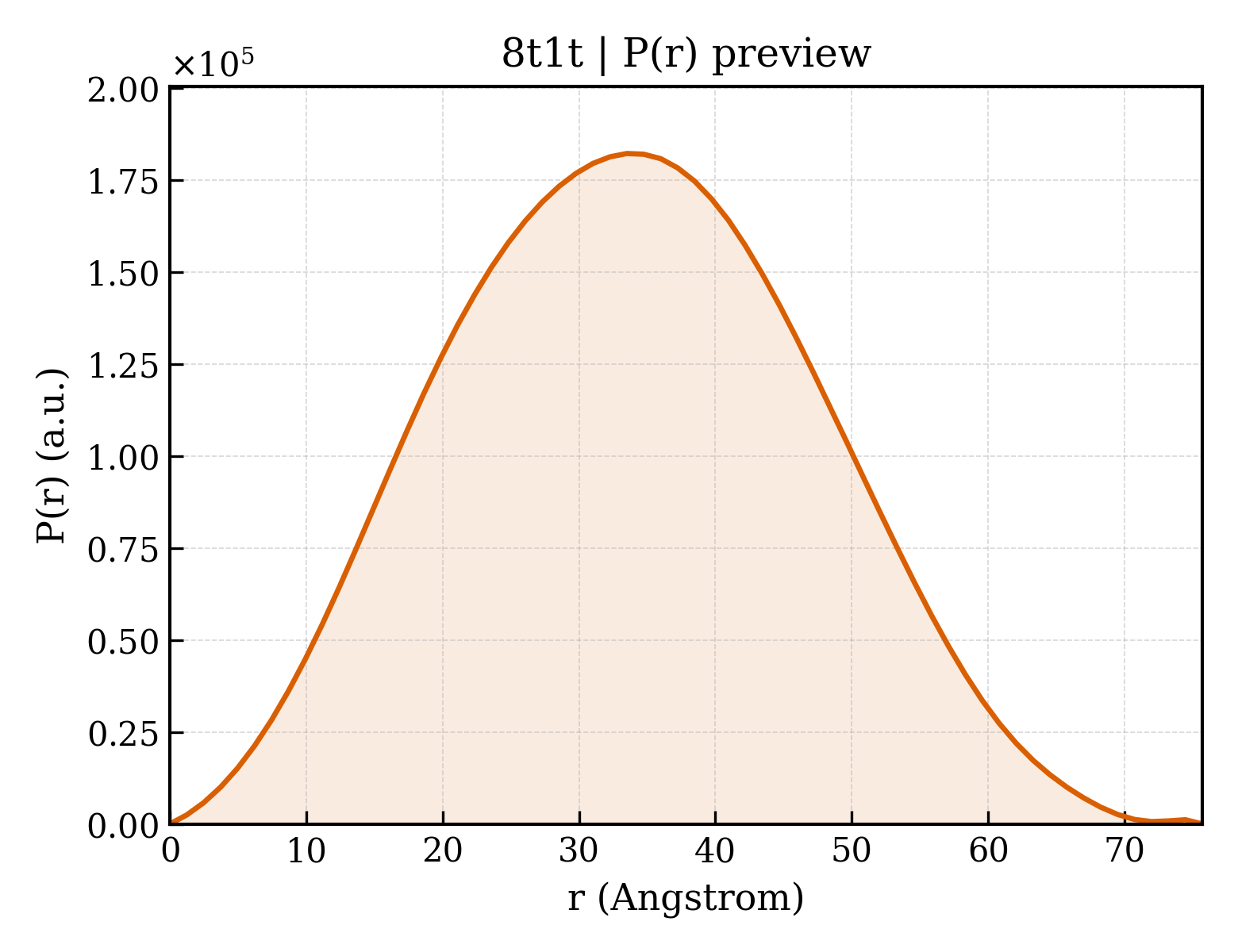

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	75.7 Å
Rg (实空间) rg_real	25.66 Å
Rg 误差 (实空间) rg_real_error	0.28 Å
I(0) (实空间) i0_real	8.2320e+07
I(0) 误差 (实空间) i0_real_error	1.0230e+06
Rg (倒空间) rg_reciprocal	25.72 Å
I(0) (倒空间) i0_reciprocal	82330000.0000
解质量估计 total_estimate	0.9101
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	33.5 Å
偏度 Skewness skewness	0.085
峰度 Kurtosis kurtosis	-0.520
角度范围 angular_range	— – 0.3050 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	19190000.0000
实空间数据点数 n_real_points	62
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.961; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.976; Smooth: 0.968

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Alpha-N-methyltransferase (SonM)
分子量 formula_weight	29068.3 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	5608

MGSLVCVGTGLQLAGQISVLSRSYIEHADIVFSLLPDGFSQRWLTKLNPNVINLQQFYAQNGEVKNRRDTYEQMVNAILDAVRAGKKTVCALYGHPGVFACVSHMAITRAKAEGFSAKMEPGISAEACLWADLGIDPGNSGHQSFEASQFMFFNHVPDPTTHLLLWQIAIAGEHTLTQFHTSSDRLQILVEQLNQWYPLDHEVVIYEAANLPIQAPRIERLPLANLPQAHLMPISTLLIPPAKKLEYNYAILAKLGIGPEDLG

来源 Source

来源生物 organism	Shewanella oneidensis
NCBI 分类编号 ncbi_taxonomy_id	211586
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	RiPP precursor (SonA)
分子量 formula_weight	8404.3 kDa
突变 mutation	Deletion of sequence QSY
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MHHHHHHMSGLSDFFTQLGQDAQLMEDYKQNPEAVMRAHGLTDEQINAVMTGDMEKLKTLSGDSSYLVISHGNGD

来源 Source

来源生物 organism	Shewanella oneidensis
NCBI 分类编号 ncbi_taxonomy_id	211586
宿主生物 host_organism	Escherichia coli

Entity 3 non-polymer

描述 description	S-ADENOSYLMETHIONINE
分子量 formula_weight	398.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	488

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	52.500 Å
晶胞边长 b length_b	59.300 Å
晶胞边长 c length_c	60.100 Å
晶胞夹角 α angle_alpha	95.90 °
晶胞夹角 β angle_beta	96.50 °
晶胞夹角 γ angle_gamma	112.60 °
晶胞分子数 Z z_pdb	2

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	1.550 Å
最低分辨率 resolution_low	46.130 Å
R 因子 r_factor	0.1749
R_work r_work	0.1731
R_free r_free	0.2087

fit	/app/data/saxs_computation/t1/8t1t/8t1t.fit
pddf	/app/data/pr_computation/t1/8t1t/8t1t.pr.out
profile	/app/data/saxs_computation/t1/8t1t/8t1t.dat
