8tek

Baseplate of Nexin-dynein regulatory complex from Tetrahymena thermophila

Method: ELECTRON MICROSCOPY D_max: 237.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

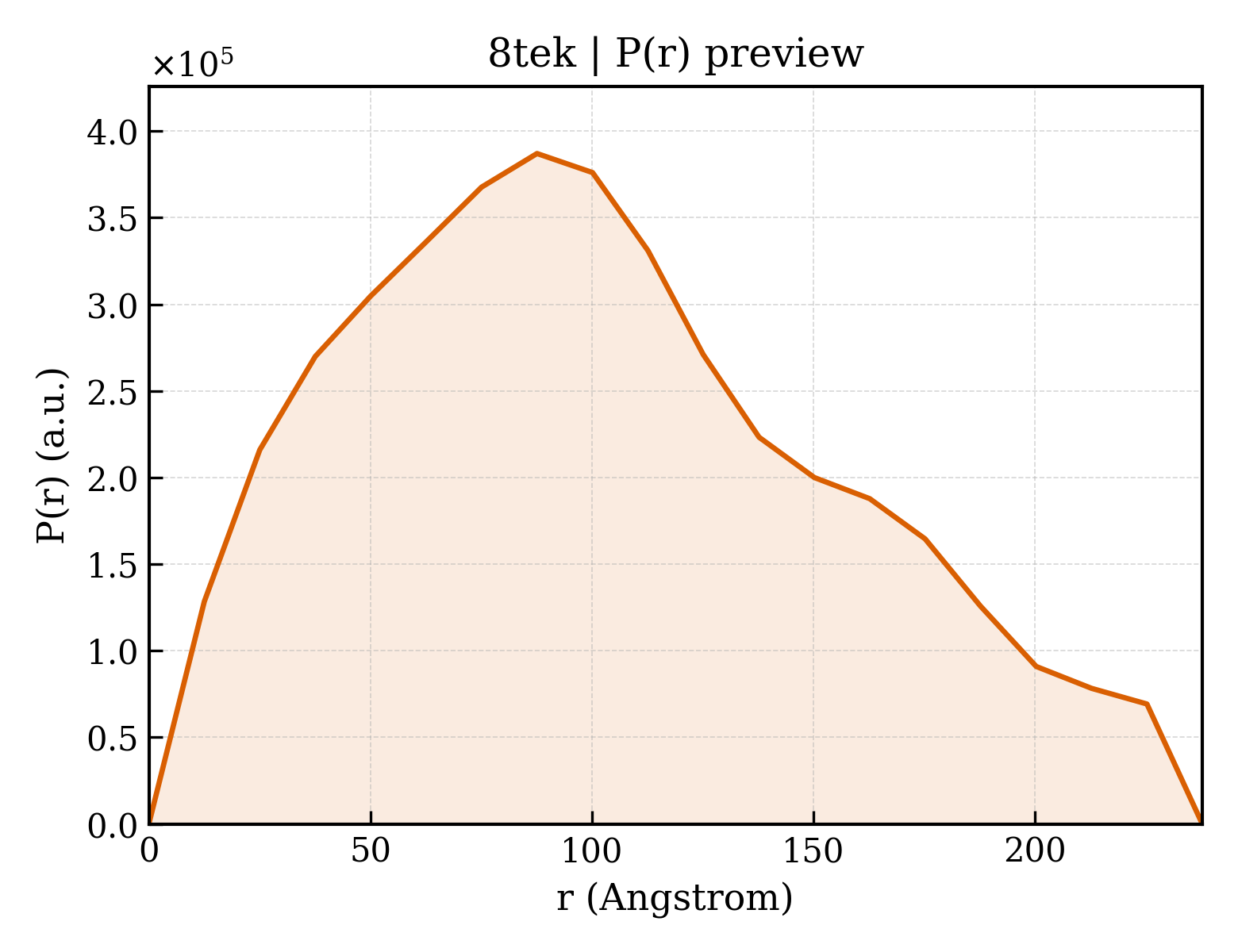

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tek
沉积日期 deposition_date	2023-07-06
结构标题 title	Baseplate of Nexin-dynein regulatory complex from Tetrahymena thermophila
关键词 keywords	complex, Cilia, axoneme, nexin-dynein regulatory complex, PROTEIN BINDING; PROTEIN BINDING
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	82.76 Å
回转半径 Rg (电子) rg_electron	84.62 Å
零角强度 I(0) i0	658884000.00
分子量 molecular_weight	216810.0 kDa
排除体积 excluded_volume	273270 Å³
包络体积 envelope_volume	575520 Å³
水化壳体积 shell_volume	69752 Å³
包络直径 envelope_diameter	340.1 Å
壳层 Rg shell_rg	57.18 Å
包络 Rg envelope_rg	83.80 Å
形状 Rg shape_rg	84.56 Å
总 Rg total_rg	84.11 Å
总原子数 total_atoms	15250
残基数 n_residues	1817
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	237.9 Å
Rg (实空间) rg_real	80.76 Å
Rg 误差 (实空间) rg_real_error	1.49 Å
I(0) (实空间) i0_real	6.4960e+08
I(0) 误差 (实空间) i0_real_error	1.0500e+07
Rg (倒空间) rg_reciprocal	78.88 Å
I(0) (倒空间) i0_reciprocal	651800000.0000
解质量估计 total_estimate	0.8361
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	87.7 Å
偏度 Skewness skewness	0.390
峰度 Kurtosis kurtosis	-0.596
角度范围 angular_range	— – 0.0950 Å⁻¹
当前正则化参数 α current_alpha	0.0603
最高正则化参数 α highest_alpha	33320000.0000
实空间数据点数 n_real_points	20
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.949; Stabil: 0.989; Sysdev: 1.000; Positv: 1.000; Valcen: 0.947; Smooth: 0.022

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (10)

Entity 1 polymer

描述 description	Dynein regulatory complex protein 1/2 N-terminal domain-containing protein
分子量 formula_weight	98840.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	15250

MNPSQTQKGKIQIQVSRGSIDLLVRTMYEDINNIKLKNERFQKKKRAEDERRRRERYAEIQQEAIASGKKNAALEMKWAELKELDECEELNREMQDQQQTFQQIIEGKENLRKEFEEELKRKDDEYVKMLKEQSNDIKDMISKMRSQFYKIRDANMQELEDIERHFEQERSNLLNEFKAKIQATFKKHLDLEEQYVKEHAKTEEEQTKNIEDLRIKGAKHYAELKITMETEIQDLEKCFEDMKALYQLITEKLDYSLKVLQEKFHENNSMCDELKRKENNFKNRLKQLTKDYKQYDKKFKLENKNLTQEYKRIIRQFKELQKKFKHFEKADLDKYSEIQKMNEAEVKELKDKIIKCNITIHIQQLGMQWIPPQSEEEILAQQKLQLEQGGKAEEEEEREFEFCISEIKIGEICNIILEEADFLIDDKLREELEGSAEPEQIFQRLDCIKKCLYIDSEDEMNLFFRELITKCRVKSAEEIEEEARKQLLLLGLIKEAEENENPEGEEVQQQEGAQQKKKEEGNKKDDPKGKEGAKDSKENANPQGQNKSNQDERKKKKDGQDDHAGQGQGQYDSNQGGMGENQEEGENAEGQENLEGEIEKEIDLENTQINLNEVVKFLQNWQANKDKRKEKLEKESSKKAVKQETEREKKERIAREGKKYWEKLTQVLPERTFRIWNVNFFKFSFEKQILLNQINKLRFWTDLCPNIMNFFWTDKNQSKKPVNCITKMKNQRIFQINTYKLIMNLLSALQDSLIQIKDKDDFIQTKISTNLFTFHNFQILLQIFIVNQSFLFIRLCQSYSKKIILLIKNINQKLFNLSNFKNQFSF

Entity 2 polymer

描述 description	Coiled-coil protein, putative
分子量 formula_weight	60596.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MALLGKTLKGRSTRPGGIPQKRNIKWRQLAKNQEEFDQLKQLAKMKREGLKARIKDEQKVVTFNKKKLITYWRKIMRIAKTEQLKNEIDIYSQNNQRELDSKEAFIQMLDKNLDEAEDQFQIALRNHLIHIENLMQLQEARMRGLAEEFNRDVNILETEFDLEREEMVKTHKTQLKELEDMIETVKEEDKKKTEEAQNEFSQFKEETKNKNLEETNVMKIILETKQTKYYTELEQMNSKFQSDTSNKVKDHQFYHAHNKNRKQEIDRYLRTISSKKAKIDLMKLKILQHCKEFNARNSALKKEKENISRNYHELKLKMQKFREEESRRLKELSNNSRNAVLKLREYCALGEKILKTAELCRRLETEKEKVLPFYESSVDEDQIPEQLKNEFEHLKKEDAEEYAYLNNFYKRYNKVLLDKLAIEKQKENLQRDNQLLKSLLKQYLDGISLNDDVLKNENNPLLVVNHKFNLGKMPVEKIENKTVIEGVFEVRNTSHQLQGQRAPPFQ

Entity 3 polymer

描述 description	Growth-arrest-specific microtubule-binding protein
分子量 formula_weight	56190.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MSKAAKAKKNVPVVSKLEADARKAAEGVNDNESEEFKKAMRKEARALVEQFNEEKKLLAFYQQERQKINYNWIIAKKELEDKKSELINKEREIQDLQENHFMTLNVYKQKIKHLLFQNQDQQSELKKDVEVTLKQLEDQHRIKSRELKTDVRSLKVTKKEQEISQQDYLFALKSEHDKQMTLMRQDYERQVNDIKRKYDLKMQNLTKEMEEARAAMIKQLEDNKNQKIAEIIKEHTQKYNDIKNYYSEITATNLDYRKTLKNEIKELQTKDEEYKKTLQQTEKGYKELNEPLQALGIEIIQLKKQDEEQEAIIKEKEELKQKIDNQERLFRKLEYEYEVKLQQFQYLERERNALYAKFNQTVFEIHQKSGLENLILEKKVTNLREDLEIKDLQIHQVLTAANIDPNSVGSINKSLEEVESLKNELISELQAQLKQIRKAHSHMVKAYEGKLSEFVIPVEELGFDPLVPTNTD

Entity 4 polymer

描述 description	Growth-arrest-specific microtubule-binding protein
分子量 formula_weight	55393.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MPPKKAKGKKKKEEEPDDEYKSMTGADLTQTLEKLKERVNEMRTNRNYIQMDRDMVENFYHNTLKEISEVKTKISNKETEAEEKESKHRIDVKVFLQKVKHLEYEQEKSNLNIEDDGKKAKEKEDAYFEDITKNMKQLKTQLKSEYLEKEKANIQQVQEEKKDHQSLLKIQQKKFDELINNLIIKYEERLAKLKEDLELKLKVEIHELEERKNLHINELMNNHEKAFAELKKYYNDITAENLNLIKAHKEKIAQIYANIQLNTKNVADNQAKNEQLKEPLAKHREIRNKLKEDLKQFAKHKMSLQNLKSKAITLKDKITKLERDGKDLDEKYEKVVREKQELEKKFEDITQEVKKNADLNNNVLSNRLQILLKEYNNKEEELRTIIDNAGLDHNLHEQLKQRVQQSIEAKNTLIKNLKYSIHHATKAYNDAIRVYEAKLVEFGIPIEELGFQPLETITSSMPAGLVSS

Entity 5 polymer

描述 description	Cilia- and flagella-associated protein 91
分子量 formula_weight	76154.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MATTTNILHDVVRDQSMVNYVSNRDRPLYFKRPLVPQMTDIPLHISRPPVDQQVDYQTMQMQQNATIVEAPTKDAFVQTDYRESETQTDPYTPKCFVRDGDHPEVMELKDYKYGKGLPASIEELEQIELNREKVWFENSLPPISDEASFNLRRKLMEEQELREWSKKENEIKKFQNEKLYLLQQALIEREKEVEDKSQERIEEIRQQKTEHKNRQIAKIQRKKIKIDRKMTKSRKMQGKETLKRDIIEDYANFASRVYAGITHEGLSLDKIANKYEVQPLALGNYEMLQALHEGIRPREFETRVNLKKEIKEIEKNYTRLENYHRGELKKAQDEINGVHEQSKAQQKQEGNNFSYRNFENKIRPATPTWKYDTDFNISPSLITEIQEYRGPNGVQLMQAADKREEAVLLLQRLLRGRTTQNIMYEGKKKRTALIEELLTVAQIENLEEDKAEEVLMQQHEEKVKNAVLESIQGEVIAETMDELSKELLRIKQERKIQQMVEIAEKDRRIREIEEAGKRQAEEILRDREDVLHNQLIRVHQGTVDTYLDWLMSNALEQSSARQATIMTNLRKAKFNLPLEDFERKYNNNQTLIKDLVHSFLIPNVQRSKLKKQIQLEEKRFSEAAKRSLQQTITRASNKHANVQN

Entity 6 polymer

描述 description	Flagella associated protein
分子量 formula_weight	114163.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MDQGEFIQDDNDQDYDQQEGDDENNDYMEDPQQDNNYNQNGDNLDDQGQDDDGGQNNLQQPSVPPEDDEDDDDDFPEYANEQNKRLNEIIKKKRKLIKDISAKIEEKSDRTKVLQEHLKNVEQELLHTQALIDAKNKEIETEDHMKQIAERQSGRIQSELKILEKRSIEQQEKLNDVQNQIFRGNEKMDQYKLEMNWNQEELEQWALAARQKEEDNLTLEKYKRADEVKIKELNLAIEKLTAEVGRKQNELEKEITETQAAQIELDKTAEEFKRQHEERHKLFLQWQEVTEIISKRDLAIREEGENFARIKIEIKSNKDALEERKRILKEAKEENKRIQMANELMERQNIQQISDNKHIEEQLAEKKADVEILKNQVSAFASDLSSKKNRIAILSQELLAKKQRLNAAQKKYQAHQVKLKNEEIMAKQYENDRSYAEEKYRKNEKEKKELEKEIRTQKENLFKHTQELFKHREREANLYGEIQGNMAACRNLQSHITKLNQEFQRQQELLYNAEYQIQLMERRVARAKGERTLEEKKDLENEIMNAERELGGVTGQNKELIESLKNLDDEIRTVKKKLAYVEEENTKYSSLIEELILENDMTYQDLNKIIKQKEEVLVQHDTMKLEIKKINESLNGATEKVFNLENQIYQLEMSMQEREKEIEVHKDVLMTEHKAAEEERHKIAVELAERKNKVKNLKIKYESLVQKNKASNGEVESVHEHSQAYYVIKAAQEREELQRKGDELNAKILKNEKELKALDNTLNHLKNRNSNYRDKFLNKGVTTQHREEAEGLEEQCRAASQNLFKKRDELQKLQKEQEEDTRRYTEIKNKLERLYEQHQSLDQEISKYQKDIDQQGDKLQRAQNSLQRNYQLAVNKNQNFINPKNPHMIQVKLDNQNNLYKTLLQGLYSLQQDIPELSSVVDEILKEQRIQNNKAPSSIDINSKRSSQSGRSQRSQRSNISNQ

Entity 7 polymer

描述 description	Coiled-coil protein, putative
分子量 formula_weight	105196.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSNQQGPEDNNLEDDMAYLPADHPLLAKLQIDLTKQLTDEHERVDQKLIEIDANLKKLEKTKEDIGVRLYSVQQQLAENQMNFEQAHENYNWVQKLRIEAEQKLKTESEVYDAKKKELEELRKKYLKAQDELSKLTRTLYQINEFNQQMKGQIINTKTNTYRAEENVVNLEAQKKKQDLLIDTMNEEIKRQTEQKTILTAQLISQKEETEQAKQILKEAHLEMQKIIASKKNLLERWQKSLMTMQRMDNALQAIKEALKGQQELNLQIGTELNGVNAEIRKETEIQESLEGKNKKFDYEKDYLQKKYNELQEEKSKLEAQINLLTQSLRQTETEAGRAEIDKRNIEDQMNLIETNIMKLHTETKKLWEDLVHQKSEHTTIEKTATNLNKQANQISIEIEDKSVELENLLNEIARVKIDQLNTLSQIEVLENKRREVIKEREEKEITVATYEVQIRQGHDLNEKKQHEVGRLNREHDKLSSVQSDMSRGPLEAKRNNLIRKTQELGKENDLMQREWIKKQTLLVTQNNRLNKIEEDVSQLKTKQTILEQKKLRLNNNYRIYEKDIREIQNALKNLRNEMNKLNDAIYRNKEKQQKLDNENFNIKSEFVEKLKELEKESVKLEVEIDRLKEEKADLLAEIVESERQILLWERKIQLEKEMQDALDPTVGQTEIQELKREIHRMELRLDDLRKKQEAIIAEMERAVYKRETIQLKYMNKDKTFSNSNSMSQKSSSISAASDNSAQITKKIAQLKTTLNQTTRNAEQMEKAIKNKKIELDDLNAQIEGNNDNLQKLESDCYNKNIELTKHKLERSTNILSISCMQNKAKKLEDLVAGKARLSVPEATLMTKYEELRDKNQEIKEALQKLCDDAPQYVEVLNYLIDLNVGDDDEDQEQ

Entity 8 polymer

描述 description	DUF4201 domain-containing protein
分子量 formula_weight	94540.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MASEDGEMPSQFEGIDPEQLTESQMQQYMMEMQRQGLLDSNMEGGQYEEGYEEGQEGEGYGEEYGDQDYDGNQNEYDSQQDSQQQGHDQVNEMHQDRYDRRVNSEISGNYEADDETLRKIRRDLLDNINLERRHRDLQPVYIDLTTNNISQYYSEYLVNNEHNQDFYENAKVRYNNLGECELCHITAKFEPDADITKEYIYDYFMEIGYLFLESEEEKRIILNPANNHIGIGVFFDEIQIVVVLILSEKVLCIQKISQPEQNKIEIRGKMLDENFGIYAIRIMNVDDQKKDIKGVGPEFIEYTRSTQEWMASFELELYNQDRMAIEYYTRVSPDSIPYKKKQSKNEKLTYKHLQLRLRTPFQIYPDPKYAAEDEKERIRKEQEILAHEEQERKEREENDAKRLKQSRKDYGDGQYDDDEHGQDDFNSQSDISDKDKHHDSMHAEQEQNQQAAQQQQDTISNKEIRQELEMAITEAQRQHDEFMLQNHKLQEEIKLLKNKNDGFVDRSNETAMNEHKYLNTLAHVHQIRLDLKQTQTRYNQMSQELQKKLEQKQKKCNEIKYAFLELKREVAKKAANSRTDKPIPEQQINEWEKAELQKSKELQELRLQILRLRNAYVKNQKILKKKEELAEGLHLIDFEQLKIENQTLNEKIEERNEELHKLKKKNTTTIQILTHTREKLGFVQGENGELNSQNVRKDQELDDMRKQLTQQKKTKDKLRSVNLTLKQQTGIVNSEELGQDYRDLRTRVSKLEEEKKRLEQKLRSMHEAIKTANQISTQNMQSQNNSLKKPYQPY

Entity 9 polymer

描述 description	Flagellar associated protein
分子量 formula_weight	42931.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MNQDKHPEITDEEQELITVEELSQKLELLYKDMEQIRRENLLFEAYLARNRKEIAKEDEVSEDKKGKGKKKDKNVDKKSLLLTNEEKFEIAQQEQDALKKQIDDGRIKSDQILETLRAILEETDMAITEIRKDAFDFQREILVGGENSRTGKIEAEKIIKFFEEKERQKDALIAKYSSKRTNLERQILKTNNQIQKKEEMGDDLKFIDFYQLQIENKKYVKEIDDKNKKLLALKISTNRISQTLKDEKQNLKQELDKGKEYASQMSERKKKISKIDAQIKSVKKVTSKLEKDRKIYDKQKEIFVQDNQDDVPQIMKYVQYKSKEQQLLYAIQNLERKIEIAELAYKKANRILQSSQQFQQK

Entity 10 polymer

描述 description	CFAP20
分子量 formula_weight	22976.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MFKNTFQSGFLSILYSIGSKPLQIWDKSIRNGHIKRITDQDILSSVLEIMGTNVSTNYITAPADPKETLGIKLPFLVMIIKNLKKYYTFEVQVLDDKNVRRRFRASNYQSTTRVKPFICTMPMRLDEGWNQIQFNLSDFTRRAYATNYIETLRVQIHANCRIRRIYFSDRLYSEEELPPEFKLFLPIQGQNKTNV

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	211502

fit	/app/data/saxs_computation/te/8tek/8tek.fit
pddf	/app/data/pr_computation/te/8tek/8tek.pr.out
profile	/app/data/saxs_computation/te/8tek/8tek.dat
