8tel

;Cryo-EM structure of Arabidopsis thaliana Bor1 mutant (R637E/E641R/R643E) in the occluded conformation in lauryl maltose neopentyl glycol (LMNG) ;

Method: ELECTRON MICROSCOPY D_max: 117.1 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

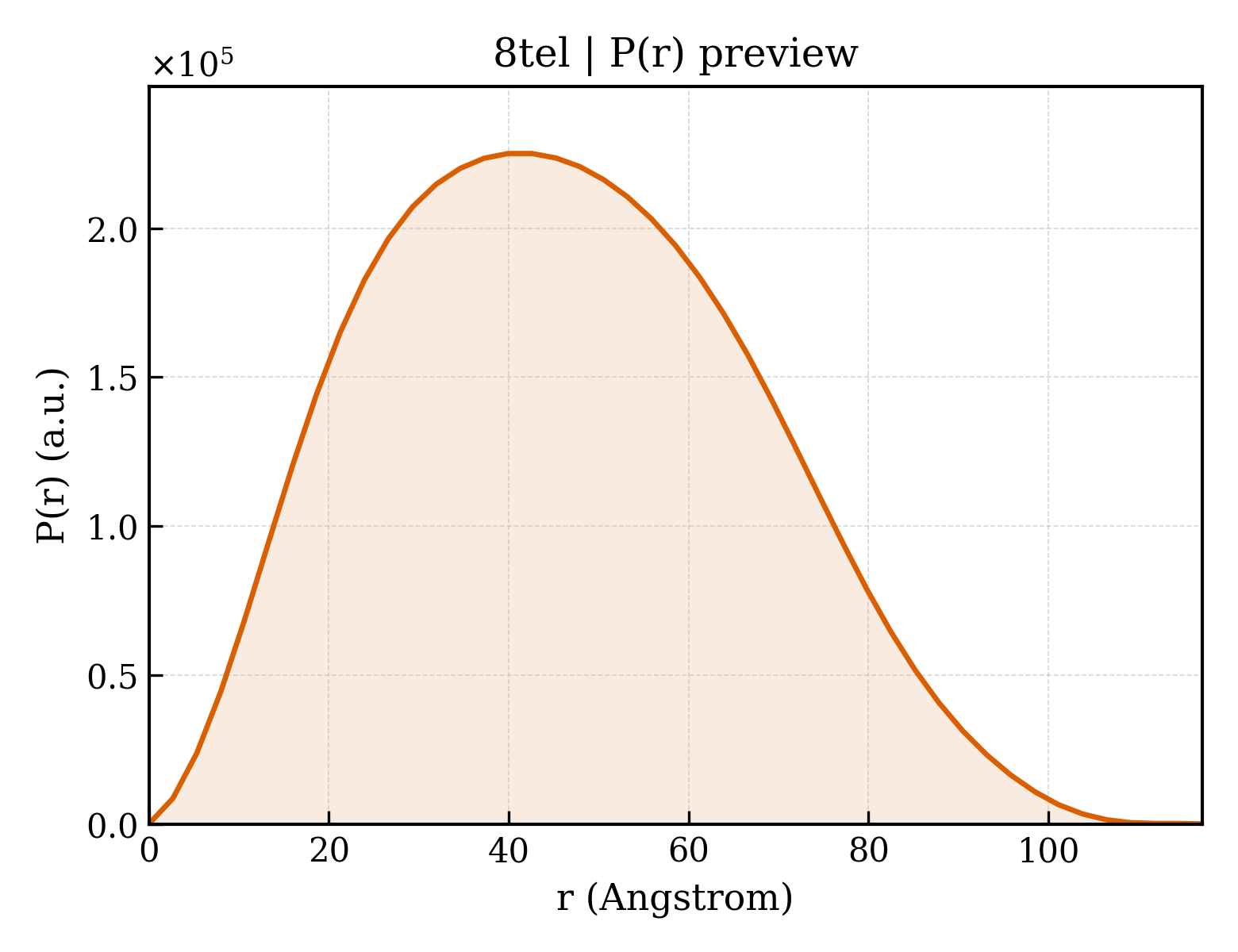

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8tel

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tel
沉积日期 deposition_date	2023-07-06
结构标题 title	;Cryo-EM structure of Arabidopsis thaliana Bor1 mutant (R637E/E641R/R643E) in the occluded conformation in lauryl maltose neopentyl glycol (LMNG) ;
关键词 keywords	Borate transporter, Bor1, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	35.77 Å
回转半径 Rg (电子) rg_electron	35.54 Å
零角强度 I(0) i0	165490000.00
分子量 molecular_weight	110880.0 kDa
排除体积 excluded_volume	142000 Å³
包络体积 envelope_volume	186880 Å³
水化壳体积 shell_volume	44465 Å³
包络直径 envelope_diameter	119.0 Å
壳层 Rg shell_rg	41.41 Å
包络 Rg envelope_rg	34.82 Å
形状 Rg shape_rg	35.53 Å
总 Rg total_rg	36.05 Å
总原子数 total_atoms	7806
残基数 n_residues	986
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	117.1 Å
Rg (实空间) rg_real	35.74 Å
Rg 误差 (实空间) rg_real_error	0.75 Å
I(0) (实空间) i0_real	1.6550e+08
I(0) 误差 (实空间) i0_real_error	2.2170e+06
Rg (倒空间) rg_reciprocal	35.76 Å
I(0) (倒空间) i0_reciprocal	165500000.0000
解质量估计 total_estimate	0.9014
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	0
主峰位置 r_peak_primary	— Å
偏度 Skewness skewness	0.228
峰度 Kurtosis kurtosis	-0.599
角度范围 angular_range	— – 0.2200 Å⁻¹
当前正则化参数 α current_alpha	0.0002
最高正则化参数 α highest_alpha	20070000.0000
实空间数据点数 n_real_points	45
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.941

▶
