8tep

Human cytomegalovirus portal vertex, virion configuration 1 (VC1)

Method: ELECTRON MICROSCOPY D_max: 247.5 Å Quality: EXCELLENT

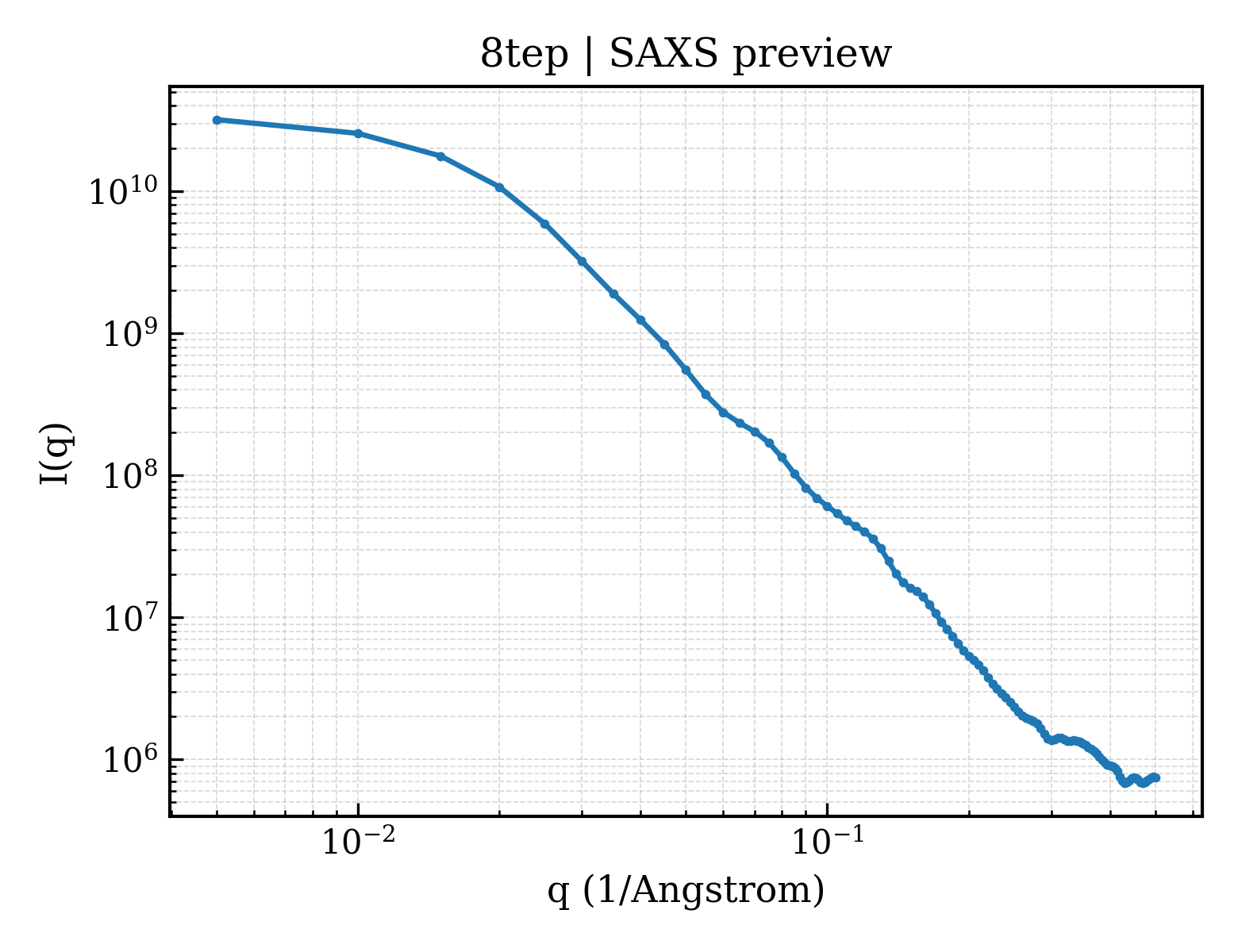

SAXS 散射曲线 SAXS Profile

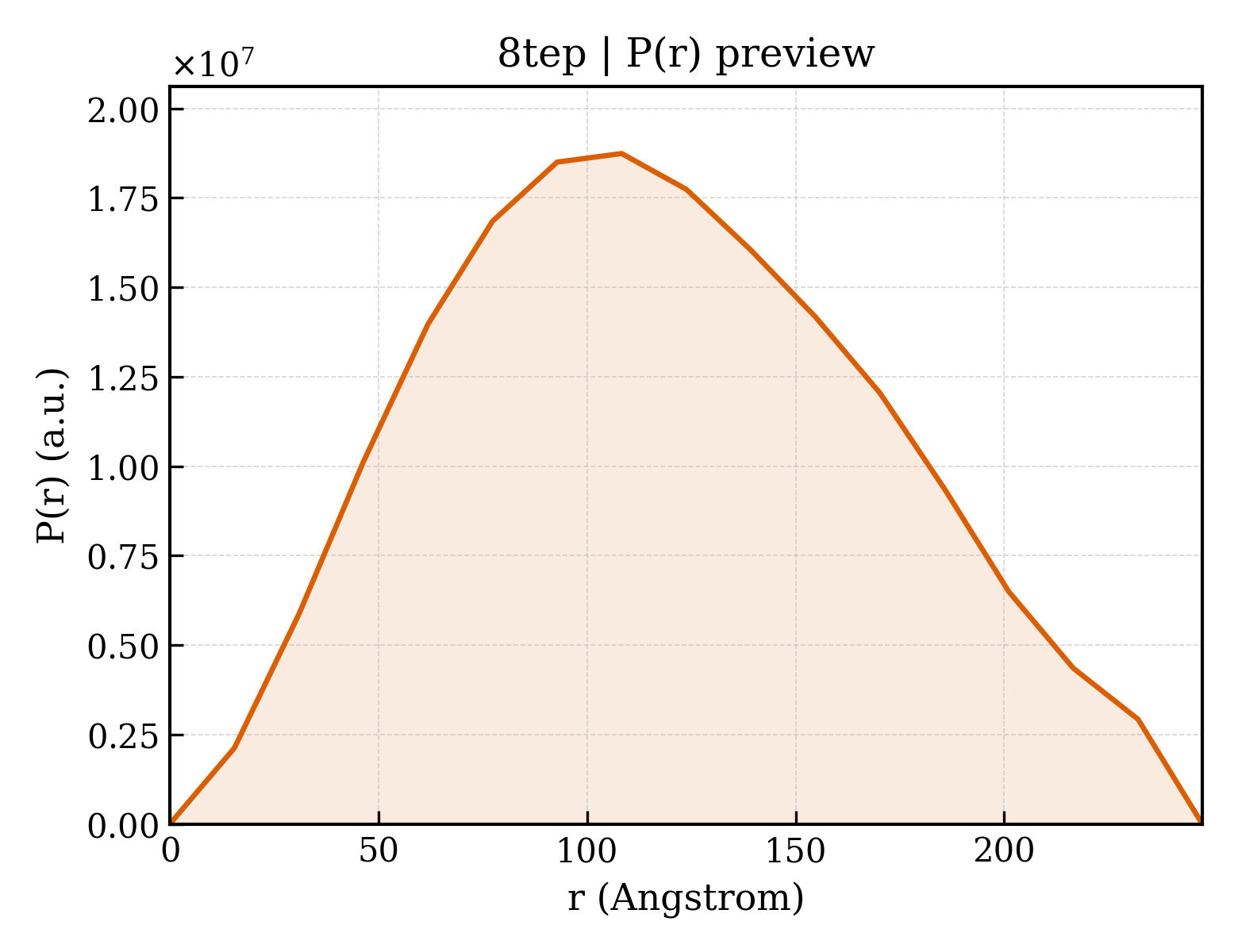

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tep
沉积日期 deposition_date	2023-07-06
结构标题 title	Human cytomegalovirus portal vertex, virion configuration 1 (VC1)
关键词 keywords	tegument, portal, DNA packaging, intracellular transport, VIRUS; VIRUS
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	94.30 Å
回转半径 Rg (电子) rg_electron	94.40 Å
零角强度 I(0) i0	34386700000.00
分子量 molecular_weight	1604700.0 kDa
排除体积 excluded_volume	2017200 Å³
包络体积 envelope_volume	3362800 Å³
水化壳体积 shell_volume	293410 Å³
包络直径 envelope_diameter	338.0 Å
壳层 Rg shell_rg	91.71 Å
包络 Rg envelope_rg	93.20 Å
形状 Rg shape_rg	94.44 Å
总 Rg total_rg	94.26 Å
总原子数 total_atoms	112987
残基数 n_residues	14141
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	247.5 Å
Rg (实空间) rg_real	90.60 Å
Rg 误差 (实空间) rg_real_error	0.69 Å
I(0) (实空间) i0_real	3.2920e+10
I(0) 误差 (实空间) i0_real_error	6.1360e+08
Rg (倒空间) rg_reciprocal	93.46 Å
I(0) (倒空间) i0_reciprocal	34290000000.0000
解质量估计 total_estimate	0.9162
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	108.3 Å
偏度 Skewness skewness	0.194
峰度 Kurtosis kurtosis	-0.671
角度范围 angular_range	— – 0.0800 Å⁻¹
当前正则化参数 α current_alpha	0.8474
最高正则化参数 α highest_alpha	1605000000.0000
实空间数据点数 n_real_points	17
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.997; Stabil: 0.975; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (9)

Entity 1 polymer

描述 description	Large tegument protein deneddylase
分子量 formula_weight	253541.1 kDa
EC 编号 ec_number	3.4.19.12,3.4.22.-
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C
原子数 atom_count	112987

MKVTQASCHQGDIARFGARAGNQCVCNGIMFLHALHLGGTSAVLQTEALDAIMEEGARLDARLERELQKKLPAGGRLPVYRLGDEVPRRLESRFGRTVHALSRPFNGTTETCDLDGYMCPGIFDFLRYAHAKPRPTYVLVTVNSLARAVVFTEDHMLVFDPHSSAECHNAAVYHCEGLHQVLMVLTGFGVQLSPAFYYEALFLYMLDVATVPEAEIAARLVSTYRDRDIDLTGVVRESADTAATTTTAAPSLPPLPDPIVDPGCPPGVAPSIPVYDPSSSPKKTPEKRRKDLSGSKHGGKKKPPSTTSKTLATASSSPSAIAAASSSSAVPPSYSCGEGALPALGRYQQLVDEVEQELKALTLPPLPANTSAWTLHAAGTESGANAATATAPSFDEAFLTDRLQQLIIHAVNQRSCLRRPCGPQSAAQQAVRAYLGLSKKLDAFLLNWLHHGLDLQRMHDYLSHKTTKGTYSTLDRALLEKMQVVFDPYGRQHGPALIAWVEEMLRYVESKPTNELSQRLQRFVTKRPMPVSDSFVCLRPVDFQRLTQVIEQRRRVLQRQREEYHGVYEHLAGLITSIDIHDLDASDLNRREILKALQPLDDNAKQELFRLGNAKMLELQMDLDRLSTQLLTRVHNHILNGFLPVEDLKQMERVVEQVLRLFYDLRDLKLCDGSYEEGFVVIREQLSYLMTGTVRDNVPLLQEILQLRHAYQQATQQNEGRLTQIHDLLHVIETLVRDPGSRGSALTLALVQEQLAQLEALGGLQLPEVQQRLQNAQLALSRLYEEEEETQRFLDGLSYDDPPNEQTIKRHPQLREMLRRDEQTRLRLINAVLSMFHTLVMRLARDESPRPTFFDAVSLLLQQLPPDSHEREDLRAANATYAQMVKKLEQIEKAGTGASEKRFQALRELVYFFRNHEYFFQHMVGRLGVGPQVTELYERYQHEMEEQHLERLEREWQEEAGKLTVTSVEDVQRVLARAPSHRVMHQMQQTLTTKMQDFLDKEKRKQEEQQRQLLDGYQKKVQQDLQRVVDAVKGEMLSTIPHQPLEATLELLLGLDQRAQPLLDKFNQDLLSALQQLSKKLDGRINECLHGVLTGDVERRCHPHREAAMQTQASLNHLDQILGPQLLIHETQQALQHAVHQAQFIEKCQQGDPTTAITGSEFEGDFARYRSSQQKMEEQLQETRQQMTETSERLDRSLRQDPGSSSVTRVPEKPFKGQELAGRITPPPADFQQPVFKTLLDQQADAARKALSDEADLLNQKVQTQLRQRDEQLSTAQNLWTDLVTRHKMSGGLDVTTPDAKALMEKPLETLRELLGKATQQLPYLSAERTVRWMLAFLEEALAQITADPTHPHHGSRTHYRNLQQQAVESAVTLAHQIEQNAACENFIAQHQEATANGASTPRVDMVQAVEAVWQRLEPGRVAGGAARHQKVQELLQRLGQTLGDLELQETLATEYFALLHGIQTFSYGLDFRSQLEKIRDLRTRFAELAKRRGTRLSNEGVLPNPRKPQATTSLGAFTRGLNALERHVQLGHQYLLNKLNGSSLVYRLEDIPSVLPATHETDPALIMRDRLRRLCFARHHDTFLEVVDVFGMRQIVTQAGEPIHLVTDYGNVAFKYLALRDDGRPLAWRRRCSGGGLKNVVTTRYKAITVAVAVCQTLRTFWPQISQYDLRPYLTQHQSHTHPAETHTLHNLKLFCYLVSTAWHQRIDTQQELTAADRVGSGEGGDVGEQRPGRGTVLRLSLQEFCVLIAALYPEYIYTVLKYPVQMSLPSLTAHLHQDVIHAVVNNTHKMPPDHLPEQVKAFCITPTQWPAMQLNKLFWENKLVQQLCQVGPQKSTPPLGKLWLYAMATLVFPQDMLQCLWLELKPQYAETYASVSELVQTLFQIFTQQCEMVTEGYTQPQLPTGEPVLQMIRVPRQDTTTTDTNTTTEPGLLDVFIQTETALDYALGSWLFGIPVCLGVHVADLLKGQRILVARHLEYTSRDRDFLRIQRSRDLNLSQLLQDTWTETPLEHCWLQAQIRRLRDYLRFPTRLEFIPLVIYNAQDHTVVRVLRPPSTFEQDHSRLVLDEAFPTFPLYDQDDNSSADNIAASGAAPTPPVPFNRVPVNIQFLRENPPPIARVQQPPRRHRHRAAAAADDDGQIDHVQDDTSRTADSALVSTAFGGSVFQENRLGETPLCRDELVAVAPGAASTSFASPPITVLTQNVLSALEILRLVRLDLRQLAQSVQDTIQHMRFLYLL

Entity 2 polymer

描述 description	Inner tegument protein
分子量 formula_weight	110229.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D

MMARRTVDFKKLIEQLRARATDKAEALNTVSQLEIGAVDAQDVTASAVRAFVGALPSSGYHFGFVRQNVVFYLLSHATVQTARDPLYAAEQLHEQLDRFLRHQHDGGGDEDRLPFYHNGATLTAFQKLLQTLREIQTVIAEQSGGTAAAADLIASNNASTERRGKKGGSSSGGQQPLVRRVITQLETAATEARPYVNCRAVAELLDLTYQRLIYWACTLMPYVLFRRDTDTELDTVLLMHFFYTHYRSVNGDLAVEFQNYVKNSVRHMSSFVSSDIDGDQKPGAEHMRDVSYKLFVGNLQARDASGLMFPIISTRISTVNLYLSPERMFFHPGLISRLLSEEVSPRANLDAYARVCDRVLEDHLHTPRRVQRLLDLTQMVMRLVELGFNHDTCAAYAQMALIQPASQKSSLFVSEIREKLIQIIYNFYTFFMCLYVYSPTFLFDHRRRLILEQHRSTLIGSKEELQHVWSNVTLNVNTHFAVQYTEEDFEAHTKGATEAEREYLYRDLHSKWGVHLFTLRPSRGAAGAASPLPPLDGVTRSDILRECALVNLNEGRVNYASLLAFSHHPEFPSIFAQLVVVTEFSEIFGIPQGLFQAVGSPRLFALIQLCRVLLPEQVTLYQNLVSIYNLTTFVKHIDAAVFKTVRDCVFDIATTLEHLSGVPVTPNVDLLAELMARSVAHNLYTTVNPLIEDVMRSSAGSLRNYLRHTRLCFGLARGRARLSEDGVTVYVEVQGQYGLRVPTTRFVEQLRELVRRDRLLAENLRGLNERLLSVRVRVRQISSDTEEVSRHAKGHRTVAQMSKALKKTASKIKVLETRVTLALEQAQRSNGAVVTAVQRALAVFDVLSRENLERRGAQLCLTEATSLLHRHRALAPMTWPAGTGVAAAAEADRALREFLEAPWESAPQPPRLRMTPDTDHEESTAGATSVPEVLGARYEPAHLAASDLLNWYIVPVSQAQQDILSSIDPPAGSTSVSLPPASP

Entity 3 polymer

描述 description	Capsid vertex component 2
分子量 formula_weight	71269.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E,F

MSLLHTFWRLPVAVFFEPHEENVLRCPERVLRRLLEDAAVTMRGGGWREDVLMDRVRKRYLRQELRDLGHRVQTYCEDLEGRVSEAEALLNQQCELDEGPSPRTLLQPPCRPRSSSPGTGVAGASAVPHGLYSRHDAITGPAAAPSDVVAPSDAVAASAAAGASSTWLAQCAERPLPGNVPSYFGITQNDPFIRFHTDFRGEVVNTMFENASTWTFSFGIWYYRLKRGLYTQPRWKRVYHLAQMDNFSISQELLLGVVNALENVTVYPTYDCVLSDLEAAACLLAAYGHALWEGRDPPDSVATVLGELPQLLPRLADDVSREIAAWEGPVAAGNNYYAYRDSPDLRYYMPLSGGRHYHPGTFDRHVLVRLFHKRGVIQHLPGYGTITEELVQERLSGQVRDDVLSLWSRRLLVGKLGRDVPVFVHEQQYLRSGLTCLAGLLLLWKVTNADSVFAPRTGKFTLADLLGSDAVAGGGLPGGRAGGEEEGYGGRHGRVRNFEFLVRYYIGPWYARDPAVTLSQLFPGLALLAVTESVRSGWDPSRREDSAGGGDGGGAVLMQLSKSNPVADYMFAQSSKQYGDLRRLEVHDALLFHYEHGLGRLLSVTLPRHRVSTLGSSLFNVNDIYELLYFLVLGFLPSVAVL

Entity 4 polymer

描述 description	Capsid vertex component 1
分子量 formula_weight	68567.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

METHLYSDLAFEARFADDEQLPLHLVLDQEVLSNEEAETLRYVYYRNVDSAGRSTGRAPGGDEDDAPASDDAEDAVGGDRAFDRERRTWQRACFRVLPRPLELLDYLRQSGLTVTLEKEQRVRMFYAVFTTLGLRCPDNRLSGAQTLHLRLVWPDGSYRDWEFLARDLLREEMEANKRDRQHQLATTTNHRRRGGLRNNLDNGSDRRLPEAAVASLETAVSTPFFEIPNGAGTSSANGDGRFSNLEQRVARLLRGDEEFIYHAGPLEPPSKIRGHELVQLRLDVNPDLMYATDPHDRDEVARTDEWKGAGVSRLREVWDVQHRVRLRVLWYVNSFWRSRELSYDDHEVELYRALDAYRARIAVEYVLIRAVRDEIYAVLRRDGGALPQRFACHVSRNMSWRVVWELCRHALALWMDWADVRSCIIKALTPRLSRGAAAAAQRARRQRERSAPKPQELLFGPRNESGPPAEQTWYADVVRCVRAQVDLGVEVRAARCPRTGLWIVRDRRGRLRRWLSQPEVCVLYVTPDLDFYWVLPGGFAVSSRVTLHGLAQRALRDRFQNFEAVLARGMHVEAGRQEPETPRVSGRRLPFDDL

Entity 5 polymer

描述 description	Major capsid protein
分子量 formula_weight	154048.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,I,J,K,L,M

MENWSALELLPKVGIPTDFLTHVKTSAGEEMFEALRIYYGDDPERYNIHFEAIFGTFCNRLEWVYFLTSGLAAAAHAIKFHDLNKLTTGKMLFHVQVPRVASGAGLPTSRQTTIMVTKYSEKSPITIPFELSAACLTYLRETFEGTILDKILNVEAMHTVLRALKNTADAMERGLIHSFLQTLLRKAPPYFVVQTLVENATLARQALNRIQRSNILQSFKAKMLATLFLLNRTRDRDYVLKFLTRLAEAATDSILDNPTTYTTSSGAKISGVMVSTANVMQIIMSLLSSHITKETVSAPATYGNFVLSPENAVTAISYHSILADFNSYKAHLTSGQPHLPNDSLSQAGAHSLTPLSMDVIRLGEKTVIMENLRRVYKNTDTKDPLERNVDLTFFFPVGLYLPEDRGYTTVESKVKLNDTVRNALPTTAYLLNRDRAVQKIDFVDALKTLCHPVLHEPAPCLQTFTERGPPSEPAMQRLLECRFQQEPMGGAARRIPHFYRVRREVPRTVNEMKQDFVVTDFYKVGNITLYTELHPFFDFTHCQENSETVALCTPRIVIGNLPDGLAPGPFHELRTWEIMEHMRLRPPPDYEETLRLFKTTVTSPNYPELCYLVDVLVHGNVDAFLLIRTFVARCIVNMFHTRQLLVFAHSYALVTLIAEHLADGALPPQLLFHYRNLVAVLRLVTRISALPGLNNGQLAEEPLSAYVNALHDHRLWPPFVTHLPRNMEGVQVVADRQPLNPANIEARHHGVSDVPRLGAMDADEPLFVDDYRATDDEWTLQKVFYLCLMPAMTNNRACGLGLNLKTLLVDLFYRPAFLLMPAATAVSTSGTTSKESTSGVTPEDSIAAQRQAVGEMLTELVEDVATDAHTPLLQACRELFLAVQFVGEHVKVLEVRAPLDHAQRQGLPDFISRQHVLYNGCCVVTAPKTLIEYSLPVPFHRFYSNPTICAALSDDIKRYVTEFPHYHRHDGGFPLPTAFAHEYHNWLRSPFSRYSATCPNVLHSVMTLAAMLYKISPVSLVLQTKAHIHPGFALTAVRTDTFEVDMLLYSGKSCTSVIINNPIVTKEERDISTTYHVTQNINTVDMGLGYTSNTCVAYVNRVRTDMGVRVQDLFRVFPMNVYRHDEVDRWIRHAAGVERPQLLDTETISMLTFGSMSERNAAATVHGQKAACELILTPVTMDVNYFKIPNNPRGRASCMLAVDPYDTEAATKAIYDHREADAQTFAATHNPWASQAGCLSDVLYNTRHRERLGYNSKFYSPCAQYFNTEEIIAANKTLFKTIDEYLLRAKDCIRGDTDTQYVCVEGTEQLIENPCRLTQEALPILSTTTLALMETKLKGGAGAFATSETHFGNYVVGEIIPLQQSMLFNS

Entity 6 polymer

描述 description	Small capsomere-interacting protein
分子量 formula_weight	8495.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N,O,P,Q,R,S

MSNTAPGPTVANKRDEKHRHVVNVVLELPTEISEATHPVLATMLSKYTRMSSLFNDKCAFKLDLLRMVAVSRTRR

Entity 7 polymer

描述 description	Triplex capsid protein 1
分子量 formula_weight	33071.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T,W

MDARAVAKRPRDPADEDNELVTALKAKREVNTISVRYLYHADHQALTARFFVPEGLVEFEAQPGALLIRMETGCDSPRHLYISLYLLGIRASNVSASTRCLLESVYTASAARAALQWLDLGPHLLHRRLETLGCVKTVSLGITSLLTCVMRGYLYNTLKTEVFALMIPKDMYLTWEETRGRLQYVYLIIVYDYDGPETRPGIYVLTSSIAHWQTLVDVARGKFARERCSFVNRRITRPRQIPLCTGVIQKLGWCLADDIHTSFLVHKELKLSVVRLDNFSVELGDFREFV

Entity 8 polymer

描述 description	Triplex capsid protein 2
分子量 formula_weight	34635.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U,V,X,Y

MAAMEANIFCTFDHKLSIADVGKLTKLVAAVVPIPQRLHLIKHYQLGLHQFVDHTRGYVRLRGLLRNMTLTLMRRVEGNQILLHVPTHGLLYTVLNTGPVTWEKGDALCVLPPLFHGPLARENLLTLGQWELVLPWIVPMPLALEINQRLLIMGLFSLDRSYEEVKAAVQQLQTITFRDATFTIPDPVIDQHLLIDMKTACLSMSMVANLASELTMTYVRKLALEDSSMLLVKCQELLMRLDRERSVGEPRTPARPQHVSPDDEIARLSALFVMLRQLDDLIREQVVFTVCDVSPDNKSATCIFKG

Entity 9 polymer

描述 description	Large structural phosphoprotein
分子量 formula_weight	112829.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MSLQFIGLQRRDVVALVNFLRHLTQKPDVDLEAHPKILKKCGEKRLHRRTVLFNELMLWLGYYRELRFHNPDLSSVLEEFEVRCVAVARRGYTYPFGDRGKARDHLAVLDRTEFDTDVRHDAEIVERALVSAVILAKMSVRETLVTAIGQTEPIAFVHLKDTEVQRIEENLEGVRRNMFCVKPLDLNLDRHANTALVNAVNKLVYTGRLIMNVRRSWEELERKCLARIQERCKLLVKELRMCLSFDSNYCRNILKHAVENGDSADTLLELLIEDFDIYVDSFPQSAHTFLGARSPSLEFDDDANLLSLGGGSAFSSVPKKHVPTQPLDGWSWIASPWKGHKPFRFEAHGSLAPAAEAHAARSAAVGYYDEEEKRRERQKRVDDEVVQREKQQLKAWEERQQNLQQRQQQPPPPARKPSASRRLFGSSADEDDDDDDDEKNIFTPIKKPGTSGKGAASGGGVSSIFSGLLSSGSQKPTSGPLNIPQQQQRHAAFSLVSPQVTKASPGRVRRDSAWDVRPLTETRGDLFSGDEDSDSSDGYPPNRQDPRFTDTLVDITDTETSAKPPVTTAYKFEQPTLTFGAGVNVPAGAGAAILTPTPVNPSTAPAPAPTPTFAGTQTPVNGNSPWAPTAPLPGDMNPANWPRERAWALKNPHLAYNPFRMPTTSTASQNTVSTTPRRPSTPRAAVTQTASRDAADEVWALRDQTAESPVEDSEEEDDDSSDTGSVVSLGHTTPSSDYNNDVISPPSQTPEQSTPSRIRKAKLSSPMTTTSTSQKPVLGKRVATPHASARAQTVTSTPVQGRLEKQVSGTPSTVPATLLQPQPASSKTTSSRNVTSGAGTSSASSARQPSASASVLSPTEDDVVSPATSPLSMLSSASPSPAKSAPPSPVKGRGSRVGVPSLKPTLGGKAVVGRPPSVPVSGSAPGRLSGSSRAASTTPTYPAVTTVYPPSSTAKSSVSNAPPVASPSILKPGASAALQSRRSTGTAAVGSPVKSTTGMKTVAFDLSSPQKSGTGPQPGSAGMGGAKTPSDAVQNILQKIEKIKNTEE

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	35055

fit	/app/data/saxs_computation/te/8tep/8tep.fit
pddf	/app/data/pr_computation/te/8tep/8tep.pr.out
profile	/app/data/saxs_computation/te/8tep/8tep.dat
