8tf5

Crystal structure of orphan G protein-coupled receptor 6, pseudoapo form

Method: X-RAY DIFFRACTION Dmax: 100.5 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

SAXS profile for 8tf5

P(r) 距离分布 P(r) Distribution

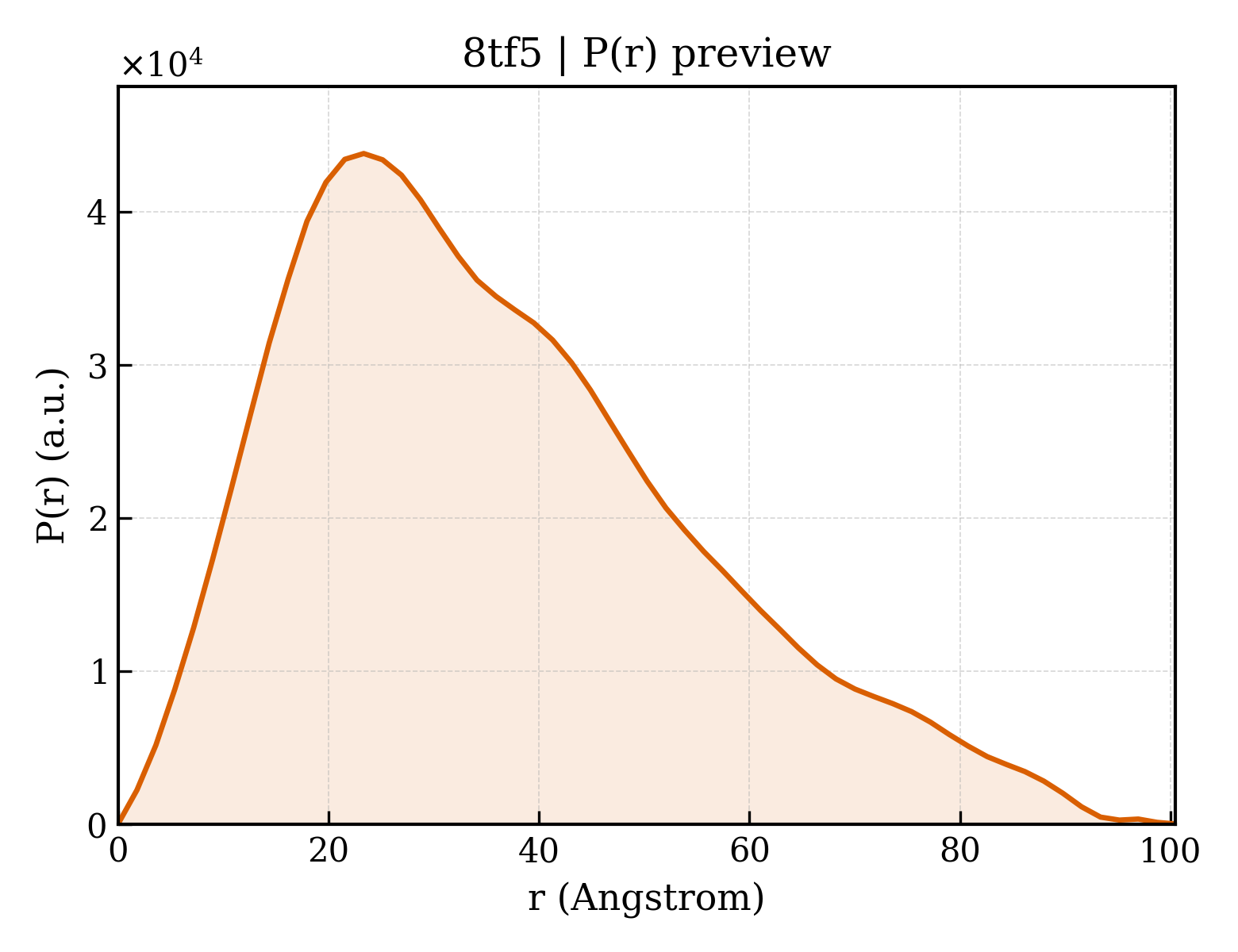

P(r) distribution for 8tf5
下载 Download
▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id8tf5
沉积日期 deposition_date2023-07-07
结构标题 titleCrystal structure of orphan G protein-coupled receptor 6, pseudoapo form
关键词 keywords;Orphan GPCR, GPR6, pseudoapo form, BRIL, LCP, membrane protein, Parkinson's disease, active-like conformation ;; MEMBRANE PROTEIN
实验方法 methodX-RAY DIFFRACTION
▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier28.15 Å
回转半径 Rg (电子) rg_electron27.51 Å
零角强度 I(0) i023653300.00
分子量 molecular_weight44881.0 kDa
排除体积 excluded_volume59554 ų
包络体积 envelope_volume70752 ų
水化壳体积 shell_volume24026 ų
包络直径 envelope_diameter100.9 Å
壳层 Rg shell_rg31.34 Å
包络 Rg envelope_rg27.81 Å
形状 Rg shape_rg27.50 Å
总 Rg total_rg28.07 Å
总原子数 total_atoms3164
残基数 n_residues363
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 Å−1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3
▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax100.5 Å
Rg (实空间) rg_real28.66 Å
Rg 误差 (实空间) rg_real_error1.46 Å
I(0) (实空间) i0_real2.3650e+07
I(0) 误差 (实空间) i0_real_error4.4190e+05
Rg (倒空间) rg_reciprocal28.51 Å
I(0) (倒空间) i0_reciprocal23650000.0000
解质量估计 total_estimate0.7723
解质量评级 solution_quality GOOD a GOOD solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary23.3 Å
偏度 Skewness skewness0.652
峰度 Kurtosis kurtosis-0.132
角度范围 angular_range— – 0.2800 Å−1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha3771000.0000
实空间数据点数 n_real_points57
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.611; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.403; Smooth: 0.809
▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

▶

7. 引用文献 (1)

▶

8. 文件与曲线 (10)
