8tgs

;The crystal structure of the post-reactive state of UDP-sugar pyrophosphorylase from Leishmania major in complex with product UDP-Glucose and by-product analog VO4 (orthovanadate) ;

Method: X-RAY DIFFRACTION D_max: 93.1 Å Quality: GOOD

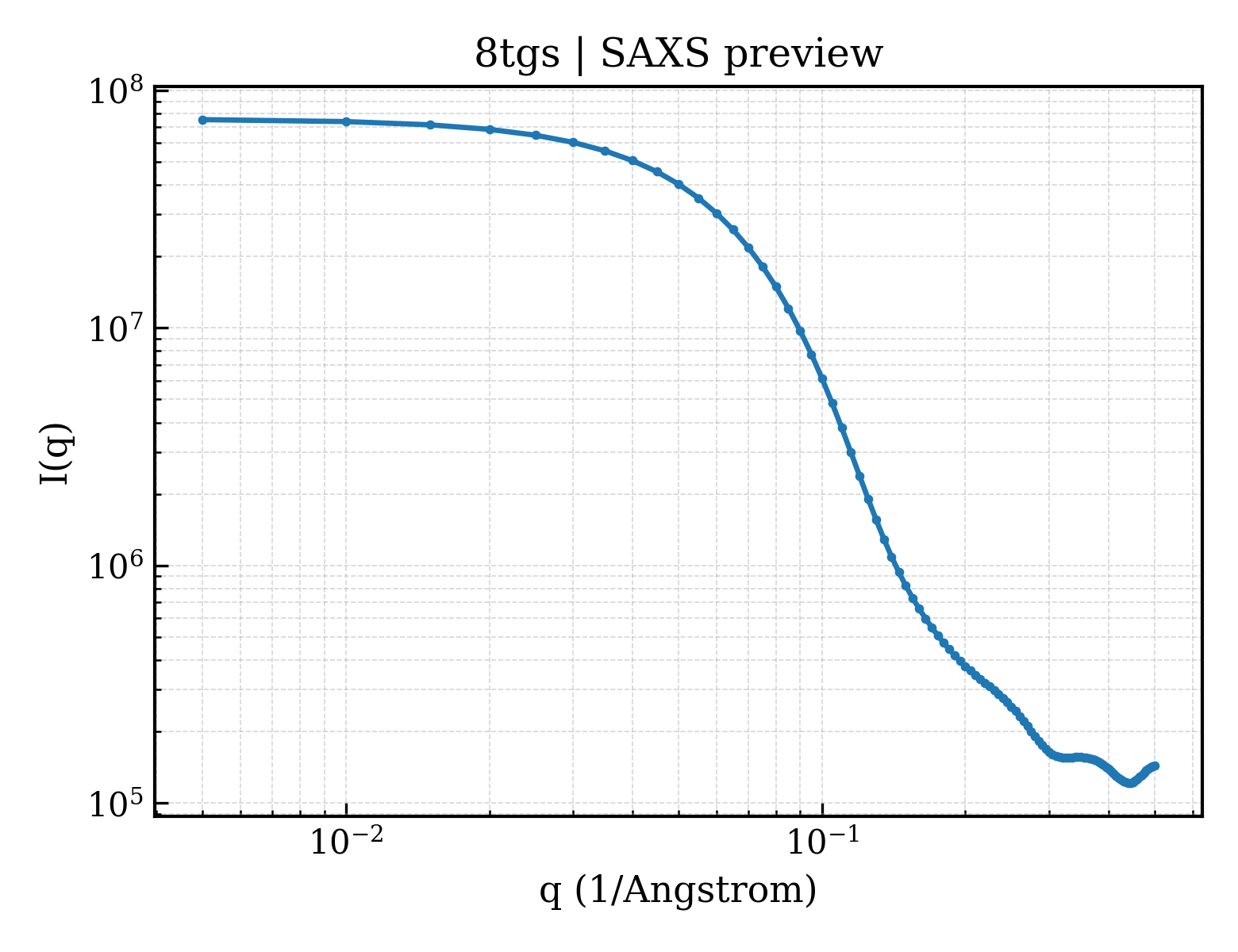

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tgs
沉积日期 deposition_date	2023-07-13
最后修订 last_revision	2025-01-22
结构标题 title	;The crystal structure of the post-reactive state of UDP-sugar pyrophosphorylase from Leishmania major in complex with product UDP-Glucose and by-product analog VO4 (orthovanadate) ;
关键词 keywords	carbohydrate biosynthesis, nucleotidyltransferase, catalysis, molecular mechanism, SUGAR BINDING PROTEIN; SUGAR BINDING PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	27.49 Å
回转半径 Rg (电子) rg_electron	26.36 Å
零角强度 I(0) i0	75769400.00
分子量 molecular_weight	67534.0 kDa
排除体积 excluded_volume	84287 Å³
包络体积 envelope_volume	106420 Å³
水化壳体积 shell_volume	33641 Å³
包络直径 envelope_diameter	96.9 Å
壳层 Rg shell_rg	33.85 Å
包络 Rg envelope_rg	26.54 Å
形状 Rg shape_rg	26.36 Å
总 Rg total_rg	27.14 Å
总原子数 total_atoms	4748
残基数 n_residues	608
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	93.1 Å
Rg (实空间) rg_real	27.43 Å
Rg 误差 (实空间) rg_real_error	0.81 Å
I(0) (实空间) i0_real	7.5770e+07
I(0) 误差 (实空间) i0_real_error	1.2140e+06
Rg (倒空间) rg_reciprocal	27.45 Å
I(0) (倒空间) i0_reciprocal	75770000.0000
解质量估计 total_estimate	0.7996
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	32.1 Å
偏度 Skewness skewness	0.326
峰度 Kurtosis kurtosis	-0.261
角度范围 angular_range	— – 0.2900 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	16050000.0000
实空间数据点数 n_real_points	59
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.799; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 1.000; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	UTP-monosaccharide-1-phosphate uridylyltransferase
分子量 formula_weight	66935.9 kDa
EC 编号 ec_number	2.7.7.64
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	4992

NPSNSNLQALREELCTPGLDQGHLFEGWPETVDECNERQIALLTDLYMFSNMYPGGVAQYIRNGHELLARESEEVDFAALEMPPLIFEAPSLHRRTAERTALENAGTAMLCKTVFVLVAGGLGERLGYSSIKVSLPVETATNTTYLAYYLRWAQRVGGKEVPFVIMTSDDTHDRTLQLLRELQLEVPNLHVLKQGQVFCFADSAAHLALDETGKLLRKPHGHGDVHSLIYNATVKRDVVPDSGDGTATAQPLVNDWLAAGYESIVFIQDTNAGATITIPISLALSAEHSLDMNFTCIPRVPKEPIGLLCRTKKNSGDPWLVANVEYNVFAEVSRALNKDGGDEVSDPTGFSPFPGSVNTLVFKLSSYVDRLRESHGIVPEFINPKYSDETRRSFKKPARIESLMQDIALLFSEDDYRVGGTVFERFSYQPVKNSLEEAAGLVAQGNGAYCAATGEAAFYELQRRRLKAIGLPLFYSSQPEVTVAKDAFGVRLFPIIVLDTVCASSGSLDDLARVFPTPEKVHIDQHSTLIVEGRVIIESLELYGALTIRGPTDSMALPHVVRNAVVRNAGWSVHAILSLCAGRDSRLSEVDRIRGFVLKKTAMAVMDC

来源 Source

来源生物 organism	Leishmania major
NCBI 分类编号 ncbi_taxonomy_id	5664
宿主生物 host_organism	Escherichia coli

Entity 2 non-polymer

描述 description	URIDINE-5'-DIPHOSPHATE-GLUCOSE
分子量 formula_weight	566.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	VANADATE ION
分子量 formula_weight	114.9 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	244

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	108.080 Å
晶胞边长 b length_b	122.420 Å
晶胞边长 c length_c	61.240 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	105.55 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	C 1 2 1
空间群编号 int_tables_number	5
晶系 crystal_system	—

分辨率 resolution	2.200 Å
最低分辨率 resolution_low	59.070 Å
R 因子 r_factor	0.2127
R_work r_work	0.2111
R_free r_free	0.2422
