8tj4

;CRYSTAL STRUCTURE OF THE A/Bangkok/1/1979(H3N2) INFLUENZA VIRUS HEMAGGLUTININ WITH HUMAN RECEPTOR ANALOG 6'-SLNLN ;

Method: X-RAY DIFFRACTION D_max: 221.7 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8tj4
沉积日期 deposition_date	2023-07-20
结构标题 title	;CRYSTAL STRUCTURE OF THE A/Bangkok/1/1979(H3N2) INFLUENZA VIRUS HEMAGGLUTININ WITH HUMAN RECEPTOR ANALOG 6'-SLNLN ;
关键词 keywords	INFLUENZA, HEMAGGLUTININ, RECEPTOR, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	69.74 Å
回转半径 Rg (电子) rg_electron	71.00 Å
零角强度 I(0) i0	843005000.00
分子量 molecular_weight	233980.0 kDa
排除体积 excluded_volume	289510 Å³
包络体积 envelope_volume	455350 Å³
水化壳体积 shell_volume	65018 Å³
包络直径 envelope_diameter	271.5 Å
壳层 Rg shell_rg	51.11 Å
包络 Rg envelope_rg	70.34 Å
形状 Rg shape_rg	71.01 Å
总 Rg total_rg	70.42 Å
总原子数 total_atoms	16433
残基数 n_residues	1956
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

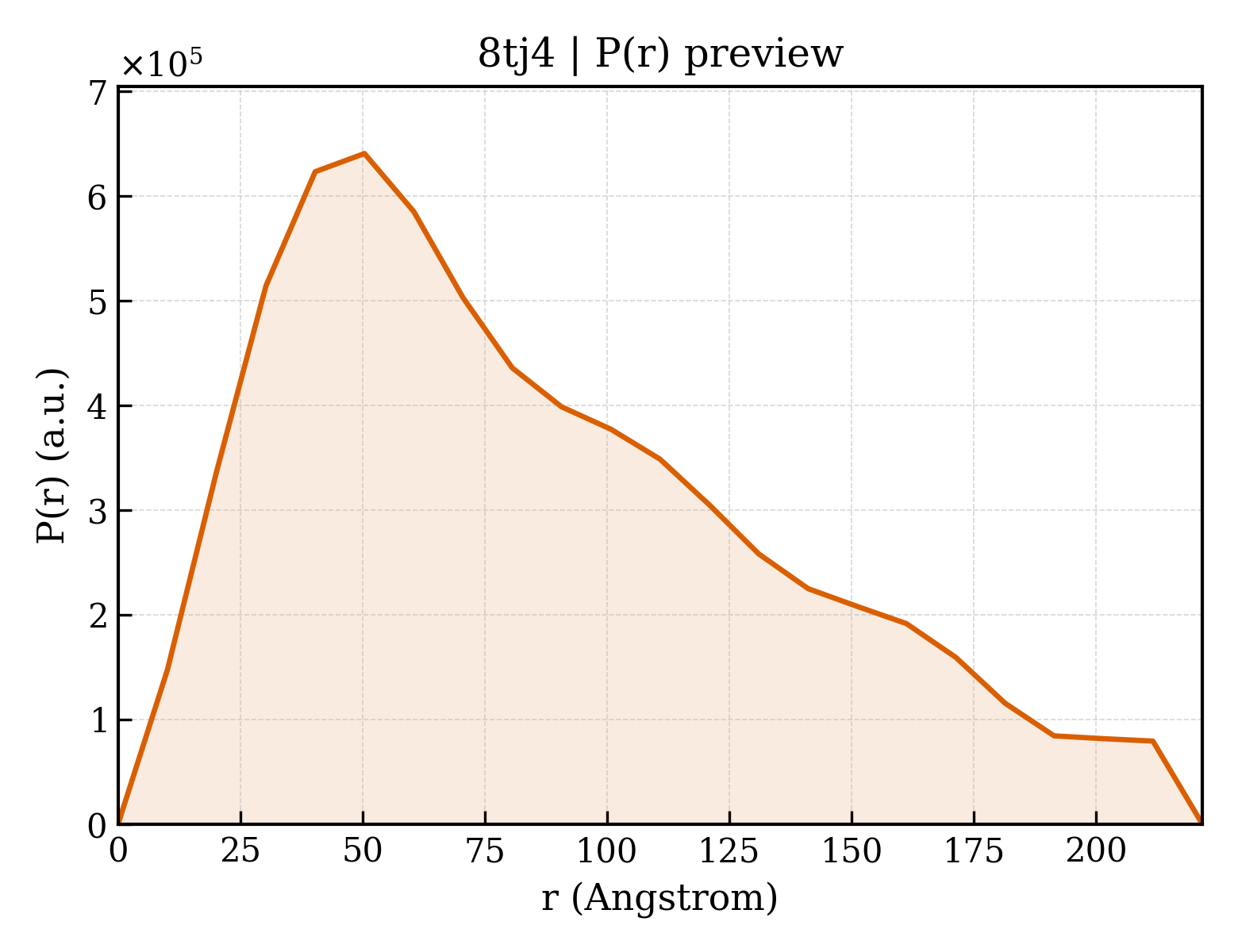

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	221.7 Å
Rg (实空间) rg_real	69.33 Å
Rg 误差 (实空间) rg_real_error	1.96 Å
I(0) (实空间) i0_real	8.3800e+08
I(0) 误差 (实空间) i0_real_error	1.9700e+07
Rg (倒空间) rg_reciprocal	66.37 Å
I(0) (倒空间) i0_reciprocal	836400000.0000
解质量估计 total_estimate	0.7575
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.4 Å
偏度 Skewness skewness	0.644
峰度 Kurtosis kurtosis	-0.410
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0269
最高正则化参数 α highest_alpha	39750000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.575; Stabil: 0.994; Sysdev: 1.000; Positv: 1.000; Valcen: 0.823; Smooth: 0.292

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (14)

Entity 1 polymer

描述 description	Hemagglutinin HA1 chain
分子量 formula_weight	35722.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,C,E,G
原子数 atom_count	18202

ADPGATLCLGHHAVPNGTLVKTITNDQIEVTNATELVQSSSTGRICDSPHRILDGKNCTLIDALLGDPHCDGFQNEKWDLFVERSKAFSNCYPYDVPDYASLRSLVASSGTLEFINEGFNWTGVTQSGGSYACKRGSDNSFFSRLNWLYESESKYPVLNVTMPNNGNFDKLYIWGVHHPSTDKEQTNLYVRASGRVTVSTKRSQQTIIPNIGSRPWVRGLSSRISIYWTIVKPGDILLINSNGNLIAPRGYFKIRTGKSSIMRSDAPIGTCSSECITPNGSIPNDKPFQNVNKITYGACPKYVKQNTLKLATGMRNVPEKQTR

来源 Source

来源生物 organism	Influenza A virus
NCBI 分类编号 ncbi_taxonomy_id	385630
宿主生物 host_organism	Trichoplusia ni

Entity 2 polymer

描述 description	Hemagglutinin HA2 chain
分子量 formula_weight	20055.2 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,D,F,H

GIFGAIAGFIENGWEGMVDGWYGFRHQNSEGTGQAADLKSTQAAIDQINGKLNRVIEKTNEKFHQIEKEFSEVEGRIQDLEKYVEDTKIDLWSYNAELLVALENQHTIDLTDSEMNKLFEKTRRQLRENAEDMGNGCFKIYHKCDNACIGSIRNGTYDHDVYRDEALNNRFQIK

来源 Source

来源生物 organism	Influenza A virus
NCBI 分类编号 ncbi_taxonomy_id	385630
宿主生物 host_organism	Trichoplusia ni

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	9

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 6 branched

描述 description	;alpha-L-fucopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	716.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 7 branched

描述 description	;alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 8 branched

描述 description	N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	674.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 9 branched

描述 description	N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose
分子量 formula_weight	471.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 10 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	7

Entity 11 non-polymer

描述 description	TETRAETHYLENE GLYCOL
分子量 formula_weight	194.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 12 non-polymer

描述 description	2-(2-METHOXYETHOXY)ETHANOL
分子量 formula_weight	120.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 13 non-polymer

描述 description	DI(HYDROXYETHYL)ETHER
分子量 formula_weight	106.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 14 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1769

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	100.655 Å
晶胞边长 b length_b	100.655 Å
晶胞边长 c length_c	687.903 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	36

空间群 space_group	H 3
空间群编号 int_tables_number	146
晶系 crystal_system	—

分辨率 resolution	1.950 Å
最低分辨率 resolution_low	45.230 Å
R 因子 r_factor	0.1907
R_work r_work	0.1890
R_free r_free	0.2227
