SAXSdb — 8trz

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8trz
沉积日期 deposition_date	2023-08-10
结构标题 title	Cryo-EM structure of N-glycosylated Pomacea canaliculata hemocyanin
关键词 keywords	Glycoprotein, Respiratory Pigment, Cooper Protein, Carbohydrates, OXYGEN TRANSPORT; OXYGEN TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	166.70 Å
零角强度 I(0) i0	826544000000.00
分子量 molecular_weight	7775300.0 kDa
排除体积 excluded_volume	9694500 Å³
包络体积 envelope_volume	23693000 Å³
水化壳体积 shell_volume	1174400 Å³
包络直径 envelope_diameter	458.6 Å
壳层 Rg shell_rg	182.40 Å
包络 Rg envelope_rg	146.40 Å
形状 Rg shape_rg	166.70 Å
总 Rg total_rg	166.80 Å
总原子数 total_atoms	549912
残基数 n_residues	67750
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	470.6 Å
Rg (实空间) rg_real	166.60 Å
Rg 误差 (实空间) rg_real_error	1.29 Å
I(0) (实空间) i0_real	8.0080e+11
I(0) 误差 (实空间) i0_real_error	1.7590e+10
Rg (倒空间) rg_reciprocal	202.40 Å
I(0) (倒空间) i0_reciprocal	988200000000.0000
解质量估计 total_estimate	0.8718
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	261.5 Å
偏度 Skewness skewness	-0.239
峰度 Kurtosis kurtosis	-0.541
角度范围 angular_range	— – 0.0450 Å⁻¹
当前正则化参数 α current_alpha	2.0060
最高正则化参数 α highest_alpha	59640000000.0000
实空间数据点数 n_real_points	10
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.876; Stabil: 0.932; Sysdev: 1.000; Positv: 1.000; Valcen: 0.918; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Hemocyanin
分子量 formula_weight	388727.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	20

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T
原子数 atom_count	549912

SLVRKNVDLLTDQEVLSLESYLRELEDDKTVNGYQNLAAFHGEPSMCTKDDGKRVACCVHGMATFPQWHRLYVVQLEQKLGKKGLADIGVPYWDWTKPITALPRLVQEPIFKDPKGGLGQKNSWFSGEINVDSMDVHTSTARAVDDRLFQSVAPGENTQLFEMVLDALEEDDYCHFEVQFEVAHNHIHYLVGGRHDHSLSTLEWSAYDPLFFLHHSNVDRIFVIWQELQKKRGKTYDHADCSVELFRKKLEPFDRDTNPIELTRTYSTAKSLFSYRQLGYVYDDLSLNGLNIEQLYNLLEQRRARERALASFTLHGLGFSANVRIKVCDHDDDDDQSHSHCEFAGDIFILGGANEMPWEFNLPYHFDISKAVEHLGKKLNGDYVVTAELYSVNGTSLNPNLLPRPVGVYRPAKGFTDPKPSESDVQSANVVIRKDVDTLTDEEVYELRQALSRFQNDTSVNGYQSVAEFHGLPARCPRPDARVRYACCVHGMATFPHWHRLFVVQVEDALKSRGLHFGIPYWDWTRPGTTVPAIASKETYVDPNSGSSVHNPFFNAPVAFLGETTSRQVQPELSTKPEYGDHTALFDGMLLALEQRDFCDFEVQFEVVHNLPHFLVGGFASYSLSTLHYSAFDPIFILHHSNVDRLWAIWQALQIKRGLPYKAHCAHTMTHELLKPFGFAPPLNSNEKTYSHARPTNIYDYEHELEYAYDNLQFGGMTIDQLDHYIDERRTKDRTFVGLHLQNIGTSALVILSIKPKDGDSYEVAKLAVLGGEKEMPWNFDRLVKVEITDALNKKGLKYDDEYDVVLSIKDVSGKDWPENTFSHTTIIHEEGTTHEETGEHQELHVRSDVSSLTREQVQSLREALQSLEDDTSINGFEHIAAFHGQPNWCPSPDAEKKFACCAHGMAVFPHWHRLLTVQAENALRAKGFQDGLPYWDWTLPMTALPEIVAGETYVNPETNLPEPNPFHHGLVEGKKTTRSVRDELFEKPKFGRLTKIAEMVLLAFEQTDFCTFEVQYEIAHNYIHALVGGNESYSMASLRYTAYDPIFFLHHSNTDRIWAIWQALQHYRGLPYNSANCAIASLRKPLQPFAQTSTINPDHITRDHSVPFEVFDYERSFQYHYDDLEFNGFSIPQLQREILHRQHDERVFAGFMLHGIRKSALVTLEVCEPSGPCHPEGEFYILGDEYEIPWQYDRLFQYEITDILAKYKLEANDRYSVKYSVIDLDGKKISSEVFGKVTVVVRPGSETKKGEIDKNIVASSHIRRNLQDLSEGEVESLKSALRRMQDDGTFGKIASFHGFPSLCTHEGRKVACCVHGSAVFPHWHRLYVDQVENALLARGSAVSVPYWDWTQPIRQLPALINEASYFDSRSQTEESNPFFQVKILDTGKVTTRDPQPELFNSDYLLNNVLLALEQTSFCDFEIQFEIVHNALHSLVGGRGLYSLSSLDYSAFDPLFFLHHANVDRIWAIWQALQQYRGLPDDKSDCALNIMRQPLKPFNDKGQNEFDLTNRYSRPIDVFDYSNHFDYHYDTLNFNSWTIPQLEEVLKRQRAQDRLFAGFLLHNIGTSADVQLFICVATGNGERNCNHPAGSFSVLGGETEMPFIFDRLYKYDISDPVRKLGLKLDSAGDIDLEIKIRAYNGSYLESSVLRRPSLIFVPGEDNSQDQTGKTERRLIRKSVTSLTIGERRSLVLALQSLEEDSSATGFQALASFHAVPPLCPYPEANQRYACCVHGMATFPQWHRLYTVQFEDALRRRGALVGIPYWDTVNPQNSLPAFFNEPIYRDPVLDVDIPNPWAGADIAFENTTVERDFKRNRLSDDGEHGYDNWLWKQFLFALEQENYCDFEVQFEIAHNAIHAWVGGSKEHSMAHLHYASYDPIFLLHHSSTDRIYALWQELQRLRGHDPNEANCALELMREPLKPFSFGAPYNLDPITKEYSKPEDVFDYKSHFNYEYDTLELAGINAELLLSLINKQKEKSRAFAGFLLGGIKTSAHVDIKVCTPEDVCKDAGDFDVLGGTAEMPWSFDRLYRYEITEVLEKKGLSVDDAFTVKVELRALNGSILSSSLIPTPSVLYEPKSRVTSIQELPPNRVRHEISHLDARATMSLKAALRDLQKDGTKSGWQALAAFHGVPALCPSPEAPKYACCLHGVPTFPHWHRLYTLQVEQALLKHGSTVALPYWDWTLPISQLPSLFTEQTFYDAWKDEVLENPFARGYIKESKGYTVRDPQPELFKLSADGKHSVLFDEVLLVLEQTDYCDFEVQFEVTHNAIHYLVGGHQSYSLSSLHYSSYDPIFFTHHTFVDKIWAVWQELQKRRGLPYDRADCAVNYMSDAMQPFNSVVLNENAFTRTHALPKEVFNYQDLNFRYDDMKLGGLNLDELEEEIRQHQSKARVFAGFLLHGIGTSAEVRFSVCQENGKCTRAGAIFVLGGSLEMPWAFDRLYKYDITDTLNELHIRPEDVFNADAPFSLRYEIIAVNGTALPPSSLSKPTIIFKPAVGARTEEASYSVSGIGVRKNINTLTVAETESLKKALRAVQQQSGPRGYQEIAAAHGYPGLCKDNGHTVACCHHGSASFPQWHRLFVVTLERALTLQGARVGIPYWDWTESFTSLPTLLTDKDDNPFEHGEIASLNEKTTRSPRPQLFSDPERGEESFFYRQILLAFEQRDYCNFEVQYEVTHNAIHSWIGGTSPYGMSTLEYSAYDPIFFIHHSNVDRQFAIWQALQRYRGLDYNSANCNIQELRQPLEPFNWDSNPNDFIRENARAVDAFDYDQFNYQYDDLNFHGLTIPQLEEAIEKRRSEDRVFANFMLQGFKASADVTFDLCDADNHCSFAGTFAVLGGPLEMDWHFDRLFQYDVTSVFNQMHLRPDSVYHFDVHITAINGTQLASSLLESPSVSFVPGKGKTGSRAVAKEDPQPTKTKDVVRYEVSALSLEQVSNLRNALYKLQNDDGPNGYEAIASFHGAPKLCPENATDRYACCTHGMPVFPHWHRLLTVQFEMALRDKGALLGIPYWDWTRPSKALPSLLTSTDNNPFSTYQIKFAQHQVTRDVQPGLYNRRKQSGLDSLFYQTLETLEETNYCDFEVQFEMLHNTIHALVGGQGTYSMSTLEYSAFDPFFMIHHSSIDRIWQIWQTLQKLRHRSFNYARCALRNLYRPLEPFNYESKNPNPVTRANSRPVQIFDASKFHYNFDNLNLNGHSVSEINTIIENLRDHDRVYAGFVLSGIGVSATANVKLVPQGGDPVDVGSFYILGGDGEMPWAYERVYKYDVTDALEKLGLNAYSNFGFQVTLTKYNGEQLDASLATPVVISRPANADYDVLILPLLEENKLPPKVIVSRGTRVRFHSPVSSLNANVKEVGSYTSLSLCSIPPGDANSYDPDVNYSLEPGDYFFVSSNKARCEQGTRVQISIDDE

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	40

Entity 3 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	60

Entity 4 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	20

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	4.40 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	29935

fit	/app/data/saxs_computation/tr/8trz/8trz.fit
pddf	/app/data/pr_computation/tr/8trz/8trz.pr.out
profile	/app/data/saxs_computation/tr/8trz/8trz.dat

Cryo-EM structure of N-glycosylated Pomacea canaliculata hemocyanin

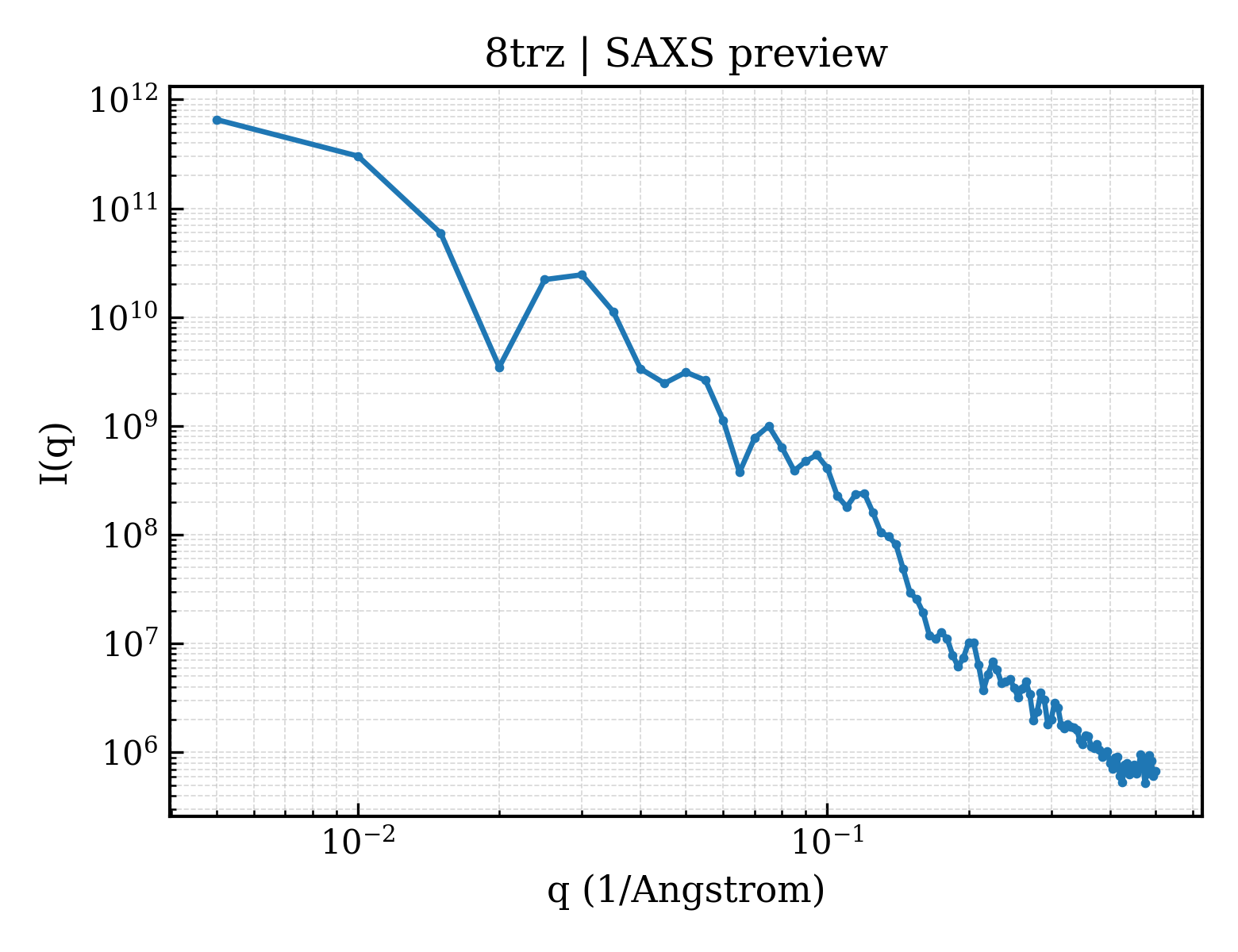

SAXS 散射曲线 SAXS Profile

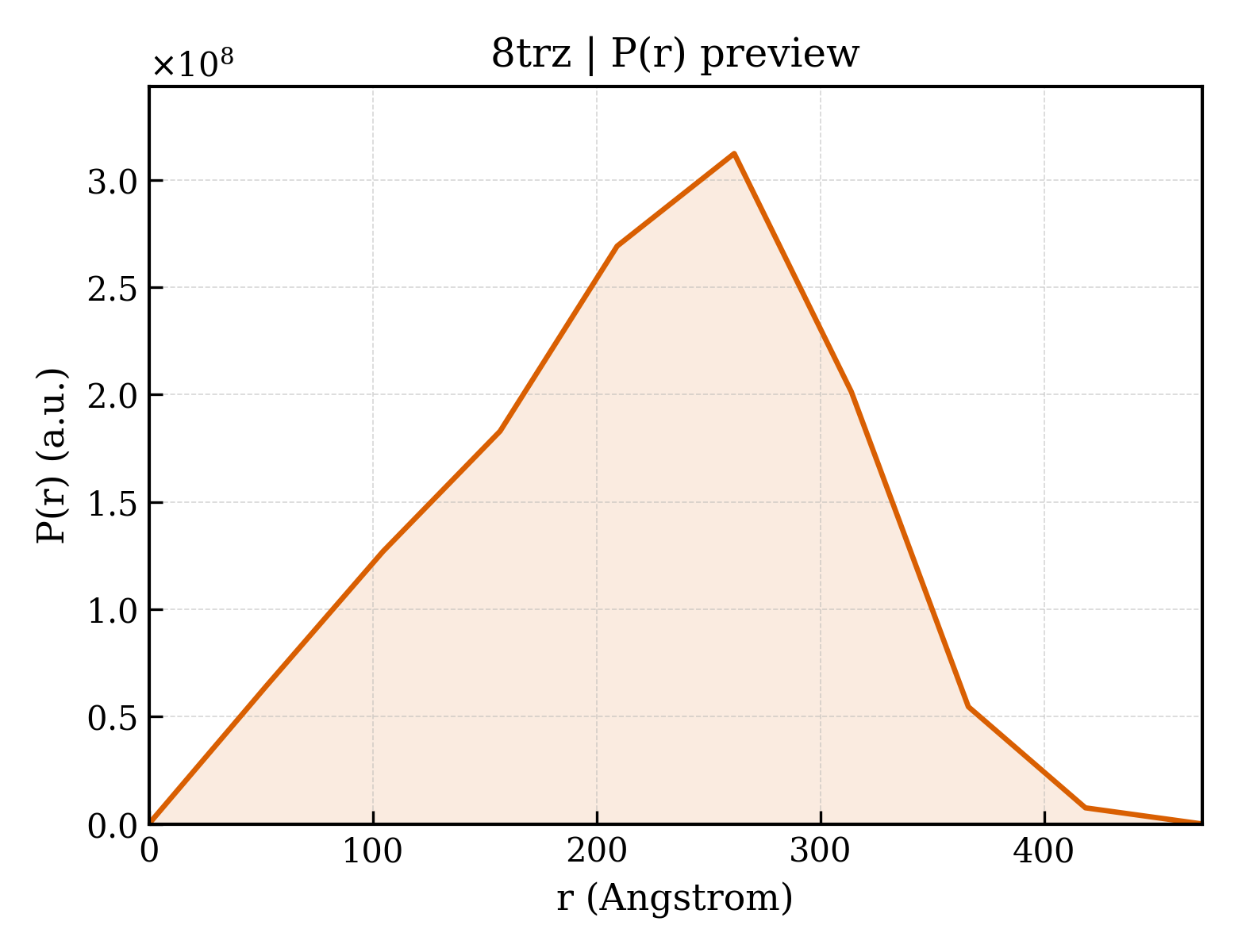

P(r) 距离分布 P(r) Distribution
