8u5k
Structure of Mango II aptamer bound to T01-6A

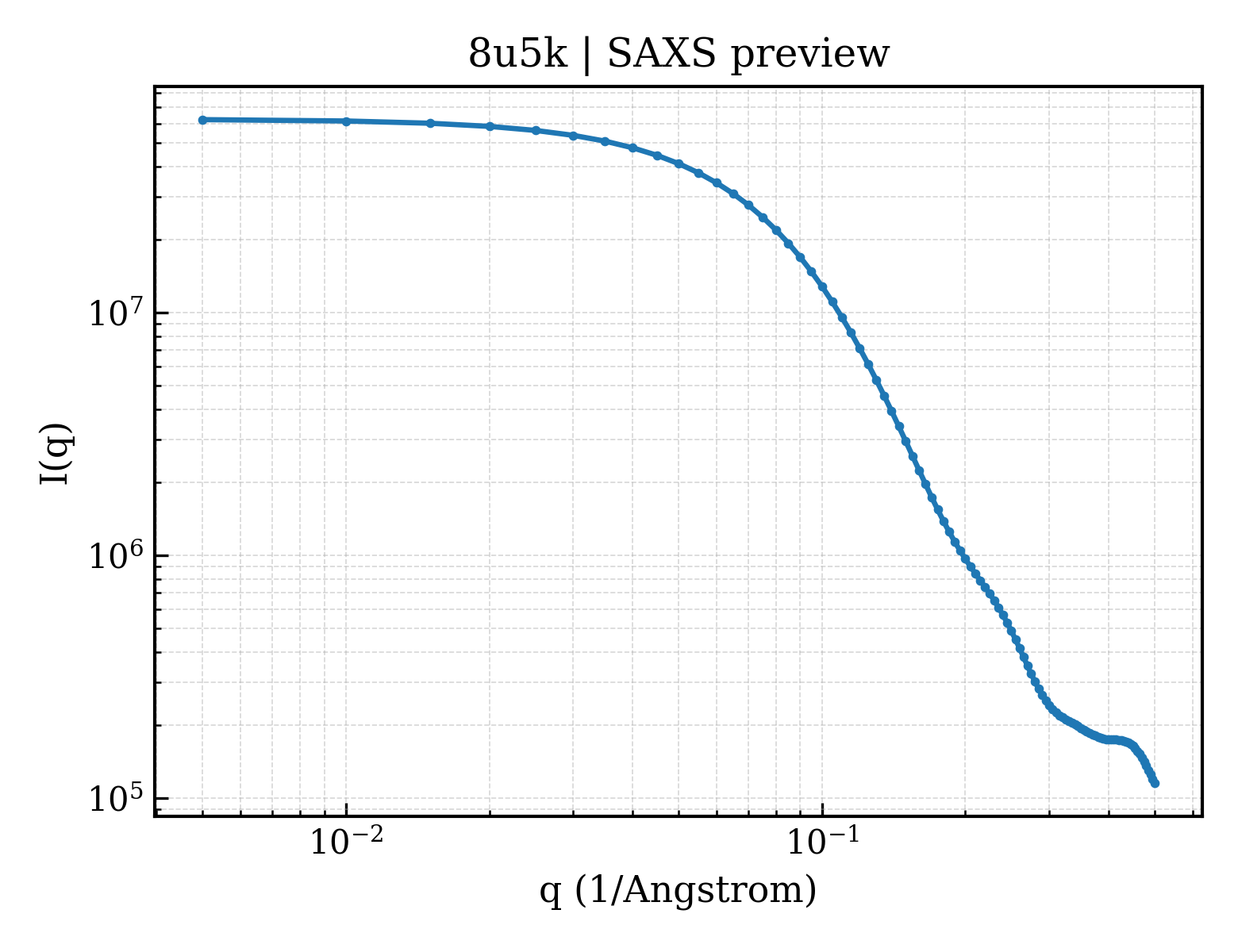

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
1. 结构基本信息 1. Structure Basics
| 条目编号 entry_id | 8u5k |
| 沉积日期 deposition_date | 2023-09-12 |
| 结构标题 title | Structure of Mango II aptamer bound to T01-6A |
| 关键词 keywords | RNA, aptamer, fluorescence, turn-on, fluorogenic, fluorophore, G-quartet, G-quadruplex; RNA |
| 实验方法 method | X-RAY DIFFRACTION |
2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)
| 回转半径 Rg (Guinier) rg_guinier | 22.55 Å |
| 回转半径 Rg (电子) rg_electron | 22.22 Å |
| 零角强度 I(0) i0 | 62490600.00 |
| 分子量 molecular_weight | 36794.0 kDa |
| 排除体积 excluded_volume | 34948 ų |
| 包络体积 envelope_volume | 49979 ų |
| 水化壳体积 shell_volume | 20036 ų |
| 包络直径 envelope_diameter | 84.2 Å |
| 壳层 Rg shell_rg | 27.55 Å |
| 包络 Rg envelope_rg | 22.38 Å |
| 形状 Rg shape_rg | 22.16 Å |
| 总 Rg total_rg | 22.71 Å |
| 总原子数 total_atoms | 2434 |
| 残基数 n_residues | 108 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)
| 最大尺寸 Dmax dmax | 81.2 Å |
| Rg (实空间) rg_real | 22.64 Å |
| Rg 误差 (实空间) rg_real_error | 0.79 Å |
| I(0) (实空间) i0_real | 6.2490e+07 |
| I(0) 误差 (实空间) i0_real_error | 8.0230e+05 |
| Rg (倒空间) rg_reciprocal | 22.61 Å |
| I(0) (倒空间) i0_reciprocal | 62490000.0000 |
| 解质量估计 total_estimate | 0.8459 |
| 解质量评级 solution_quality | GOOD a GOOD solution |
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 25.8 Å |
| 偏度 Skewness skewness | 0.495 |
| 峰度 Kurtosis kurtosis | -0.075 |
| 角度范围 angular_range | — – 0.3500 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 4728000.0000 |
| 实空间数据点数 n_real_points | 67 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria | AN1: 0.000; Oscil: 0.712; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.877; Smooth: 0.980 |
