8ugp

In-situ structure of typeA supercomplex in respiratory chain ( local refined map focused on CI iron-sulfur cluster regions )

Method: ELECTRON MICROSCOPY D_max: 69.5 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

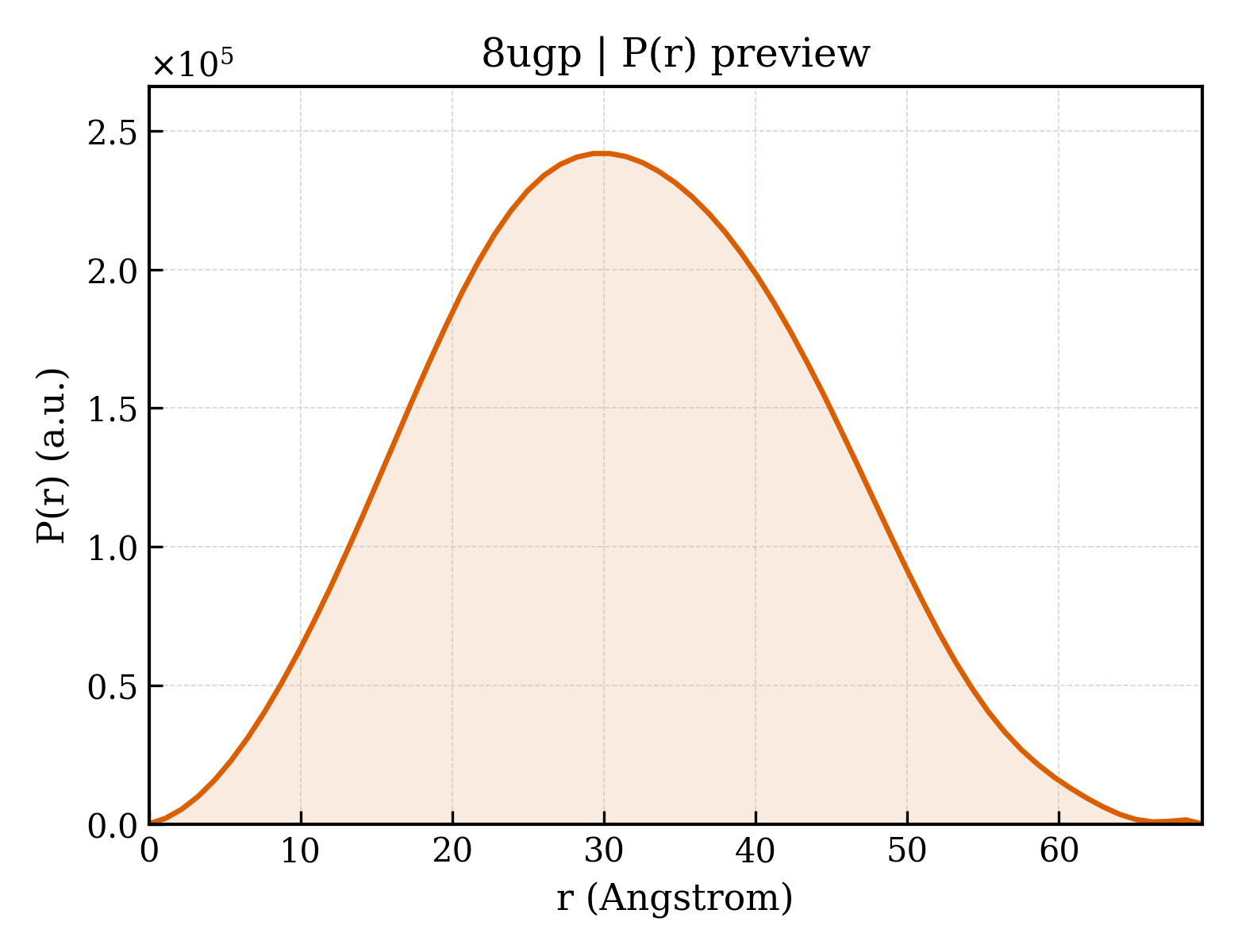

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8ugp
沉积日期 deposition_date	2023-10-05
结构标题 title	In-situ structure of typeA supercomplex in respiratory chain ( local refined map focused on CI iron-sulfur cluster regions )
关键词 keywords	in-situ cryo-EM structure, mammalian, mitochondria, respiratory supercomplex, proton pumping, membrane protein, electron transport; ELECTRON TRANSPORT
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	23.96 Å
回转半径 Rg (电子) rg_electron	23.06 Å
零角强度 I(0) i0	100011000.00
分子量 molecular_weight	76665.0 kDa
排除体积 excluded_volume	94483 Å³
包络体积 envelope_volume	104920 Å³
水化壳体积 shell_volume	35396 Å³
包络直径 envelope_diameter	68.5 Å
壳层 Rg shell_rg	31.86 Å
包络 Rg envelope_rg	23.12 Å
形状 Rg shape_rg	22.87 Å
总 Rg total_rg	24.40 Å
总原子数 total_atoms	5129
残基数 n_residues	706
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	69.5 Å
Rg (实空间) rg_real	23.75 Å
Rg 误差 (实空间) rg_real_error	0.24 Å
I(0) (实空间) i0_real	1.0000e+08
I(0) 误差 (实空间) i0_real_error	1.1680e+06
Rg (倒空间) rg_reciprocal	23.80 Å
I(0) (倒空间) i0_reciprocal	100000000.0000
解质量估计 total_estimate	0.9069
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	68.4 Å
偏度 Skewness skewness	0.092
峰度 Kurtosis kurtosis	-0.517
角度范围 angular_range	— – 0.3300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	50240000.0000
实空间数据点数 n_real_points	65
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.968; Smooth: 0.952

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (14)

Entity 1 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 3
分子量 formula_weight	12998.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1A
原子数 atom_count	5152

MNIMLTLLTNVTLASLLVLIAFWLPQLNAYSEKTSPYECGFDPMGSARLPFSMKFFLVAITFLLFDLEIALLLPLPWASQTNNLKTMLTMALFLLILLAASLAYEWTQKGLEWAE

Entity 2 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 7, mitochondrial
分子量 formula_weight	28500.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1B

MRNVSTQVPVSAHRPSRFGQRPRIPGALQRTDRRGCLKAEAEMAALAASGLLRPILALRSSMGAAVQVRFVHPSAATDSPSSSQPAVSQAGAVVSKPTTLPSSRGEYVVAKLDDLVNWARRSSLWPMTFGLACCAVEMMHMAAPRYDMDRFGVVFRASPRQSDVMIVAGTLTNKMAPALRKVYDQMPEPRYVVSMGSCANGGGYYHYSYSVVRGCDRIVPVDIYVPGCPPTAEALLYGILQLQRKIKREKRLRIWYRR

Entity 3 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 3, mitochondrial
分子量 formula_weight	30154.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1C

MAAAAAARGCWRGLVGPAAVARVSGRPSVLLLPVRKESAAADTRPTIRPRNDVVHKQLSAFGQYVAEILPKYVQQVQVSCFNELEIFIHPDGVIPVLTFLRDHTNAQFKSLADLTAVDVPTRQNRFEIVYNLLSLRFNSQIRVKTYTDELTPIESSVTVYKAANWYEREIWDMFGVFFANHPDLRRILTGYGFEGHPFRKDFPLSGYVELRYDDEVKRVVAEPVELAQEFRKFDLNSPWEAFPAYRQPPEDLKLEAGDKKPETK

Entity 4 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 2, mitochondrial
分子量 formula_weight	54168.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1D

MAALRALCSLRGVAAQVLRPGAGARLPIQPSRGARQWQPDVEWAEQFGGAVMYPTKETAHWKPPPWNGNYYWPNYFPLLSDVDPPKDTLVSNLTLNFGPQHPAAHGVLRLVMELSGEMVRKCDPHIGLLHRGTEKLIEYKTYLQALPYFDRLDYVSMMCNEQAYSLAVEKLLNIQPPPRAQWIRVLFGEITRLLNHIMAVTTHALDIGAMTPFFWMFEEREKMFEFYERVSGARMHAAYIRPGGVHQDLPLGLLDDIYEFSKNFSFRIDELEEMLTNNRIWRNRTVDIGVVTAEDALNYGFSGVMLRGSGIQWDLRKTQPYDVYDQVEFDVPIGSRGDCYDRYLCRVEEMRQSLRIISQCLNKMPPGEIKVDDAKVSPPKRAEMKTSMESLIHHFKLYTEGYQVPPGATYTAIEAPKGEFGVYLVSDGSSRPYRCKIKAPGFAHLAGLDKMSKGHMLADVVAIIGTQDIVFGEVDR

Entity 5 polymer

描述 description	NADH-ubiquinone oxidoreductase 75 kDa subunit, mitochondrial
分子量 formula_weight	79627.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1G

MLRIPVTRALIGLSKSPKGCVRTTATAASNLIEVFVDGQSVMVEPGTTVLQACEKVGMQIPRFCYHERLSVAGNCRMCLVEIEKAPKVVAACAMPVMKGWNILTNSEKSKKAREGVMEFLLANHPLDCPICDQGGECDLQDQSMMFGSDRSRFLEGKRAVEDKNIGPLVKTIMTRCIQCTRCIRFASEIAGVDDLGTTGRGNDMQVGTYIEKMFMSELSGNIIDICPVGALTSKPYAFTARPWETRKTESIDVMDAVGSNIVVSTRTGEVMRILPRMHEDINEEWISDKTRFAYDGLKRQRLTQPMIRNEKGLLTYTTWEDALSRVAGMLQSFQGNDVAAIAGGLVDAEALVALKDLLNRVDSDSLCTEEVFPTAGAGTDLRSNYLLNTTIAGVEEADVILLVGTNPRFEAPLFNARIRKSWLHNDLKVALIGSPVDLTYRYDHLGDSPKILQDIASGNHPFSQILKEAKKPMVVLGSSALQRSDGTAILAAVSNIAQNIRLSSGVTGDWKVMNILHRIASQVAALDLGYKPGVEAIRKNPPKVLFLLGADGGCITRQDLPKDCFIIYQGHHGDVGAPMADVILPGAAYTEKSATYVNTEGRAQQTKVAVTPPGLAREDWKIIRALSEIAGMTLPYDTLDQVRSRLEEVSPNLVRYDDVEGANYFQQANELSKLVNQQLLADPLVPPQLTIKDFYMTDSISRASQTMAKCVKAVTEGIQAVEEPSIC

Entity 6 polymer

描述 description	NADH-ubiquinone oxidoreductase chain 1
分子量 formula_weight	35591.4 kDa
EC 编号 ec_number	7.1.1.2
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1H

MFMINILSLIIPILLAVAFLTLVERKVLGYMQLRKGPNVVGPYGLLQPIADALKLVTKEPLRPGTSSISMFIIAPILGLSLALTMWVPLPMPYPLINMNLGVLFMLAMSSLAVYSILWSGWASNSKYALIGALRAVAQTISYEVTLAIILLSVLLMNGSYTLSTLITTQEHIWMIFTSWPLAMMWFISTLAETNRAPFDLTEGESELVSGFNVEYAAGPFAMFFMAEYANIIMMNAFTAILFLGASHDPHTPELYTINFVLKTLALTITFLWIRASYPRFRYDQLMHLLWKSFLPLTLALCMWHISLPIMTASIPPQS

Entity 7 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 8, mitochondrial
分子量 formula_weight	27135.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1I

MEASQECRLRLSVDRPPPHGKERQRFKMRCLSTPMLLRALAQAQAAHAGHPSARTLHSSAVAATYKFVNMREPSMDMKSVTDRAAQTLLWTELVRGLGMTLSYLFREPATINYPFEKGPLSPRFRGEHALRRYPSGEERCIACKLCEAVCPAQAITIEAEPRADGSRRTTRYDIDMTKCIYCGFCQEACPVDAIVEGPNFEFSTETHEELLYNKEKLLNNGDKWEAEIAANIQADYLYR

Entity 8 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 9, mitochondrial
分子量 formula_weight	42606.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1P

MAAAVHPRVVRAVPMSRSCLAAVATSVSYGPPQRQLHHALIPHGKGGRSSVSGIVATVFGATGFLGRYVVNHLGRMGSQVIVPYRCEPYDTMHLRPMGDLGQIIFMEWNGKDKDSIRKVVEHSNVVINLVGREWETKNFDFEDVFVKIPHAIAQVSKEAGVEKLIHISHLNADIKSPSRYLRSKAVGEKEVRAAFPEATIIKPSDIFGREDRFLNYFASMRWFGGVPLISLGKETVKQPVYIVDVSKGIINAIKDPDAKGKTFAFVGPNRYLLFDLVQYIFAVAYRPFLPYPLPHFAYRWVGRLFEVSPFEPWTTRDKVERVHMSDMTLPHLPGLEDLGIQATPLELKAIEVLRRHRTYRWLTSEMEDVKPAKTVNI

Entity 9 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 4, mitochondrial
分子量 formula_weight	19746.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1Q

MAAVSMSVALKQALWGRRAAAVGAVSVSKVPTRLLSTSTWRLAQDQTQDTQLIAVDEKLDITTLTGVPEEHIKTRKVRIFVPARNNMQSGVNNTKKWKMEFDTRERWENPLMGWSSTADPLSNLVLTFSTKEDAVAFAEKNGWSFDVEERKVPKPKSKSYGANFSWNKRTRVSTK

Entity 10 polymer

描述 description	NADH dehydrogenase [ubiquinone] iron-sulfur protein 6, mitochondrial
分子量 formula_weight	13349.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1R

MAAVTFLRLLGRSGAGARNLLGGSRCFGVRTSPTGEKVTHTGQAYDDGDYRRVRFSDRQKEVNENFAIDLIAEQPVSEVGSRVISCDGGGGALGHPRVYINLDKETKTGTCGYCGLQFRQPHH

Entity 11 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 6
分子量 formula_weight	14953.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1W

MAASGLPRAAAAAGTSVKPIFSRDMNEAKRRVRELYRAWYREVPNTVHLFQLDISVKQGRDKVREMFMKNAHVTDPRVVDLLVIKGKMELEETINVWKQRTHIMRFFHETEAPRPTDFLSKFYVGHDP

Entity 12 polymer

描述 description	NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 12
分子量 formula_weight	17162.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1q

MELVQVLRRGLQQVSGHGGLRGYLRVLFRANDVRVGTLVGEDKYGNKYYEDNKQFFGRHRWVIYTTEMNGRDTFWDVDGSMVPPEWHRWLHCMTDDPPTTKPPTARKYIWTNHKFNVSGTPQQYVPYSTTRKKIQEWVPPSTPYK

Entity 13 non-polymer

描述 description	IRON/SULFUR CLUSTER
分子量 formula_weight	351.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 14 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	60000
