8umd

Cryo-EM structure of a single subunit of a Counterclockwise-locked form of the Salmonella enterica Typhimurium flagellar C-ring.

Method: ELECTRON MICROSCOPY D_max: 159.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

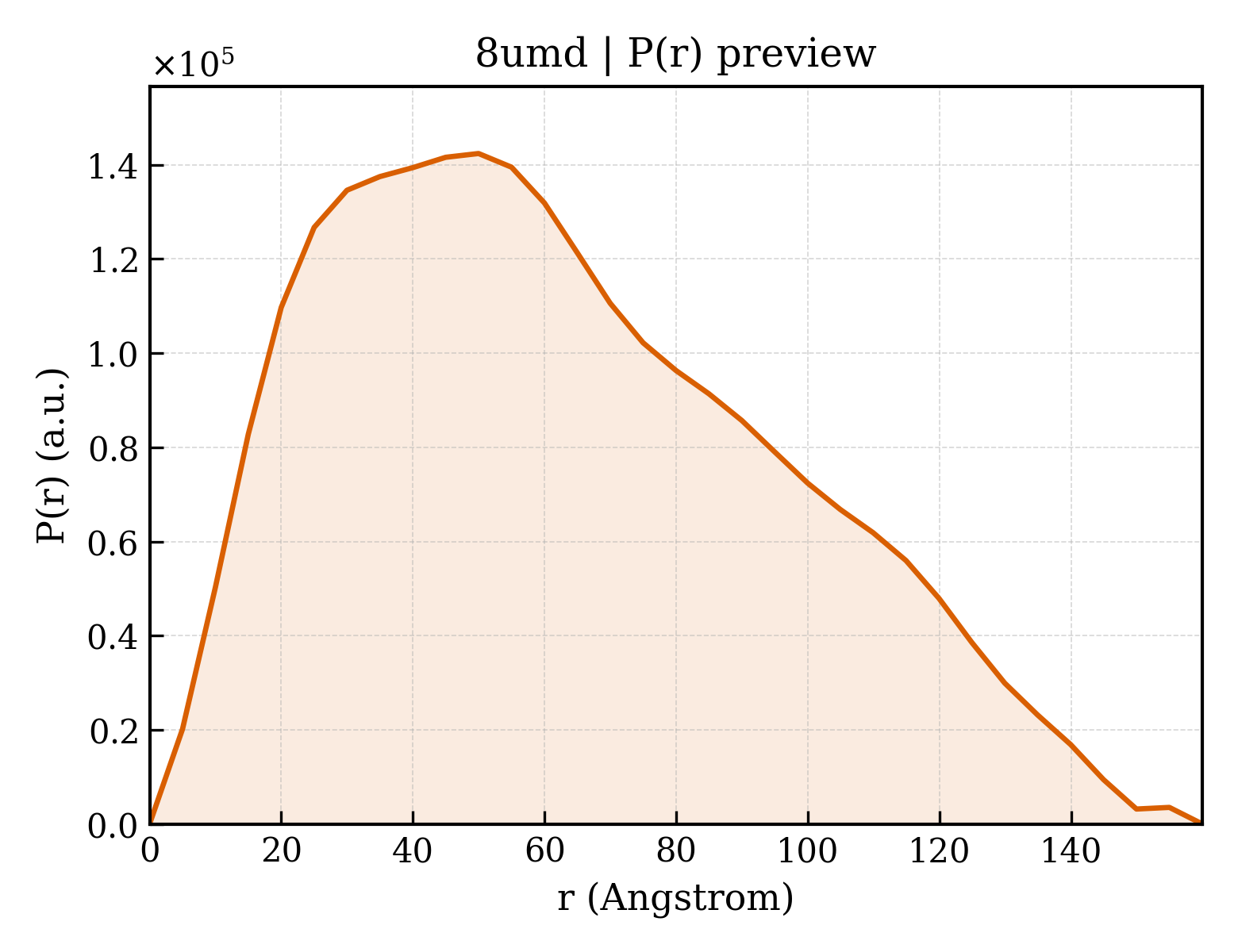

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8umd
沉积日期 deposition_date	2023-10-17
结构标题 title	Cryo-EM structure of a single subunit of a Counterclockwise-locked form of the Salmonella enterica Typhimurium flagellar C-ring.
关键词 keywords	Flagella, C-ring, Salmonella, motor, rotation, MOTOR PROTEIN; MOTOR PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	49.28 Å
回转半径 Rg (电子) rg_electron	49.93 Å
零角强度 I(0) i0	155269000.00
分子量 molecular_weight	102520.0 kDa
排除体积 excluded_volume	128990 Å³
包络体积 envelope_volume	215560 Å³
水化壳体积 shell_volume	40028 Å³
包络直径 envelope_diameter	166.0 Å
壳层 Rg shell_rg	46.23 Å
包络 Rg envelope_rg	49.05 Å
形状 Rg shape_rg	49.89 Å
总 Rg total_rg	49.92 Å
总原子数 total_atoms	7201
残基数 n_residues	911
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	159.9 Å
Rg (实空间) rg_real	49.98 Å
Rg 误差 (实空间) rg_real_error	2.23 Å
I(0) (实空间) i0_real	1.5530e+08
I(0) 误差 (实空间) i0_real_error	3.3380e+06
Rg (倒空间) rg_reciprocal	49.28 Å
I(0) (倒空间) i0_reciprocal	155100000.0000
解质量估计 total_estimate	0.7895
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	50.0 Å
偏度 Skewness skewness	0.439
峰度 Kurtosis kurtosis	-0.625
角度范围 angular_range	— – 0.1600 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	6782000.0000
实空间数据点数 n_real_points	33
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.856; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.675; Smooth: 0.020

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	Flagellar M-ring protein
分子量 formula_weight	61295.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	7201

MSATASTATQPKPLEWLNRLRANPRIPLIVAGSAAVAIVVAMVLWAKTPDYRTLFSNLSDQDGGAIVAQLTQMNIPYRFANGSGAIEVPADKVHELRLRLAQQGLPKGGAVGFELLDQEKFGISQFSEQVNYQRALEGELARTIETLGPVKSARVHLAMPKPSLFVREQKSPSASVTVTLEPGRALDEGQISAVVHLVSSAVAGLPPGNVTLVDQSGHLLTQSNTSGRDLNDAQLKFANDVESRIQRRIEAILSPIVGNGNVHAQVTAQLDFANKEQTEEHYSPNGDASKATLRSRQLNISEQVGAGYPGGVPGALSNQPAPPNEAPIATPPTNQQNAQNTPQTSTSTNSNSAGPRSTQRNETSNYEVDRTIRHTKMNVGDIERLSVAVVVNYKTLADGKPLPLTADQMKQIEDLTREAMGFSDKRGDTLNVVNSPFSAVDNTGGELPFWQQQSFIDQLLAAGRWLLVLVVAWILWRKAVRPQLTRRVEEAKAAQEQAQVRQETEEAVEVRLSKDEQLQQRRANQRLGAEVMSQRIREMSDNDPRVVALVIRQWMSNDHE

Entity 2 polymer

描述 description	Flagellar motor switch protein FliG
分子量 formula_weight	36891.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSNLSGTDKSVILLMTIGEDRAAEVFKHLSTREVQALSTAMANVRQISNKQLTDVLSEFEQEAEQFAALNINANEYLRSVLVKALGEERASSLLEDILETRDTTSGIETLNFMEPQSAADLIRDEHPQIIATILVHLKRSQAADILALFDERLRHDVMLRIATFGGVQPAALAELTEVLNGLLDGQNLKRSKMGGVRTAAEIINLMKTQQEEAVITAVREFDGELAQKIIDEMFLFENLVDVDDRSIQRLLQEVDSESLLIALKGAEPPLREKFLRNMSQRAADILRDDLANRGPVRLSQVENEQKAILLIVRRLAETGEMVIGSGEDTYV

Entity 3 polymer

描述 description	Flagellar motor switch protein FliM
分子量 formula_weight	37901.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MGDSILSQAEIDALLNGDSDTKDEPTPGIASDSDIRPYDPNTQRRVVRERLQALEIINERFARQFRMGLFNLLRRSPDITVGAIRIQPYHEFARNLPVPTNLNLIHLKPLRGTGLVVFSPSLVFIAVDNLFGGDGRFPTKVEGREFTHTEQRVINRMLKLALEGYSDAWKAINPLEVEYVRSEMQVKFTNITTSPNDIVVNTPFHVEIGNLTGEFNICLPFSMIEPLRELLVNPPLENSRHEDQNWRDNLVRQVQHSELELVANFADIPLRLSQILKLKPGDVLPIEKPDRIIAHVDGVPVLTSQYGTVNGQYALRVEHLINPILNSLNEEQPK

Entity 4 polymer

描述 description	Flagellar motor switch protein FliN
分子量 formula_weight	14801.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,E,F

MSDMNNPSDENTGALDDLWADALNEQKATTTKSAADAVFQQLGGGDVSGAMQDIDLIMDIPVKLTVELGRTRMTIKELLRLTQGSVVALDGLAGEPLDILINGYLIAQGEVVVVADKYGVRITDIITPSERMRRLSR

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.60 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	15952
