SAXSdb — 8v17

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Spacer peptide 1

Human immunodeficiency virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 6	N-(1,3-benzothiazol-5-yl)-3,5-difluoro-Nalpha-[(5-hydroxy-1H-indol-3-yl)acetyl]-N-methyl-L-phenylalaninamide × 6 GLYCEROL × 18 water × 6	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GAG_HV1N5
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–229； UniProt 133–361

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8v17
Deposition date deposition_date	2023-11-19
Last revision last_revision	2024-12-11
Structure title title	HIV-CA Disulfide linked Hexamer with inhibitor bound - exploration of a benzothiazole
Keywords keywords	;HIV-1, Human Immunodeficiency Virus, Capsid, HIV-CA, Capsid Inhibitor, HIV Restriction, VIRAL PROTEIN, VIRAL PROTEIN-INHIBITOR complex ;; VIRAL PROTEIN/INHIBITOR
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8v17__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8v17__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

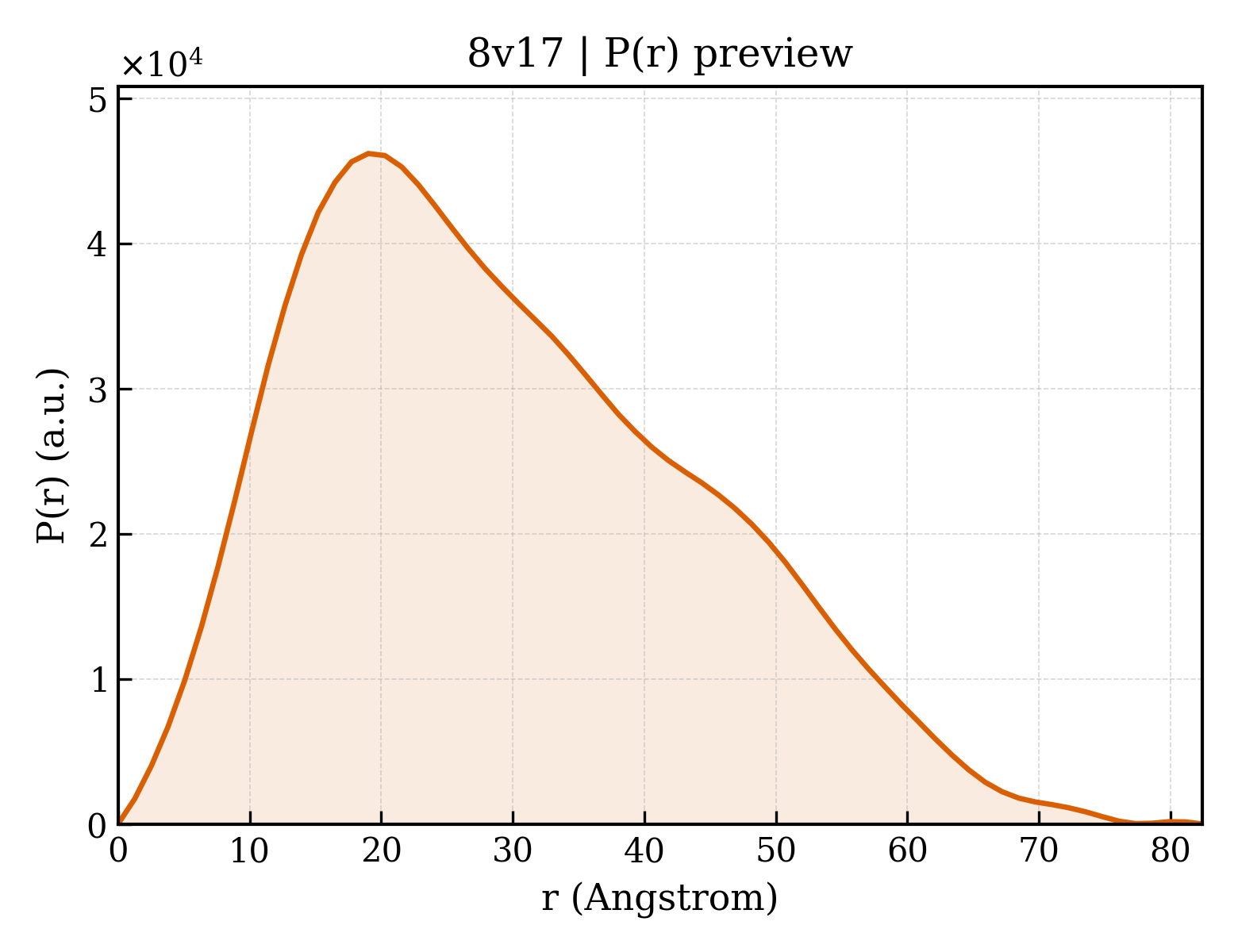

8v17__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	35.99 Å
Rg (electron density)	35.17 Å
Total Rg	35.65 Å
Atom count	10386
Residues	1314
Excluded volume	184350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8v17__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Spacer peptide 1
Molecular weight formula_weight	25249.0 kDa
Mutation mutation	A14C, E45C, W184A, M185A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1921

PIVQNLQGQMVHQCISPRTLNAWVKVVEEKAFSPEVIPMFSALSCGATPQDLNTMLNTVGGHQAAMQMLKETINEEAAEWDRLHPVHAGPIAPGQMREPRGSDIAGTTSTLQEQIGWMTHNPPIPVGEIYKRWIILGLNKIVRMYSPTSILDIRQGPKEPFRDYVDRFYKTLRAEQASQEVKNAATETLLVQNANPDCKTILKALGPGATLEEMMTACQGVGGPGHKAR

Source Source

Source organism organism	Human immunodeficiency virus 1
NCBI taxonomy ID ncbi_taxonomy_id	11676
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	N-(1,3-benzothiazol-5-yl)-3,5-difluoro-Nalpha-[(5-hydroxy-1H-indol-3-yl)acetyl]-N-methyl-L-phenylalaninamide
Molecular weight formula_weight	520.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	131

▶

Unit-cell length a length_a	90.902 Å
Unit-cell length b length_b	90.902 Å
Unit-cell length c length_c	56.468 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 6
Space-group number int_tables_number	168
Crystal system crystal_system	—

Resolution resolution	1.500 Å
Low-resolution limit resolution_low	45.927 Å
R factor r_factor	—
R_work r_work	0.1420
R_free r_free	0.1714
