SAXS 散射曲线 SAXS Profile

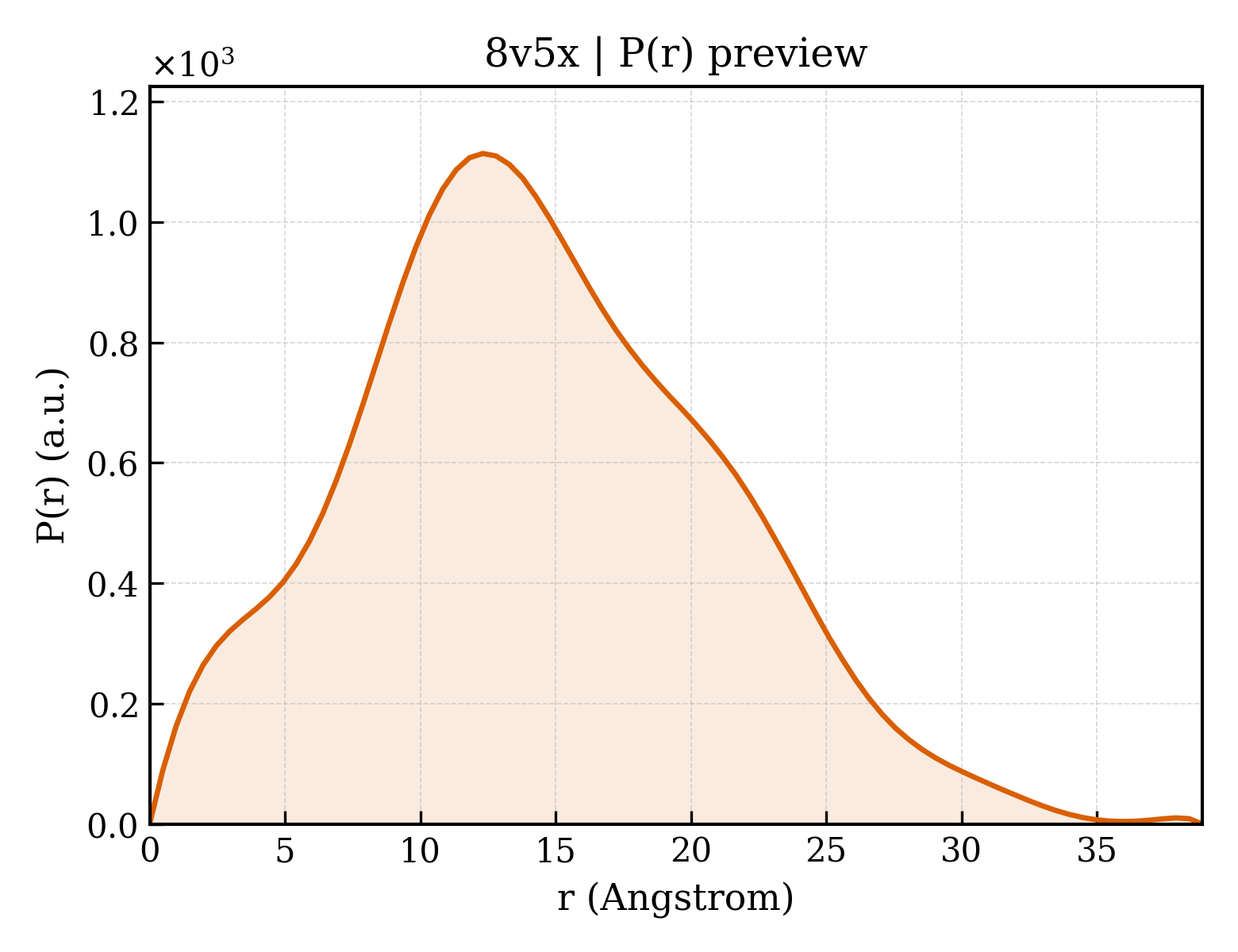

P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 8v5x |
| 沉积日期 deposition_date | 2023-12-01 |
| 结构标题 title | UIC-1 mutant - UIC-1-L6A |
| 关键词 keywords | synthetic construct, DE NOVO PROTEIN; DE NOVO PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 11.19 Å |
| 回转半径 Rg (电子) rg_electron | 10.02 Å |
| 零角强度 I(0) i0 | 222730.00 |
| 分子量 molecular_weight | 2789.0 kDa |
| 排除体积 excluded_volume | 3577 ų |
| 包络体积 envelope_volume | 4810 ų |
| 水化壳体积 shell_volume | 4673 ų |
| 包络直径 envelope_diameter | 36.6 Å |
| 壳层 Rg shell_rg | 14.22 Å |
| 包络 Rg envelope_rg | 10.63 Å |
| 形状 Rg shape_rg | 10.04 Å |
| 总 Rg total_rg | 11.72 Å |
| 总原子数 total_atoms | 384 |
| 残基数 n_residues | 10 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 38.9 Å |
| Rg (实空间) rg_real | 11.21 Å |
| Rg 误差 (实空间) rg_real_error | 0.36 Å |
| I(0) (实空间) i0_real | 2.2270e+05 |
| I(0) 误差 (实空间) i0_real_error | 2.3100e+03 |
| Rg (倒空间) rg_reciprocal | 11.21 Å |
| I(0) (倒空间) i0_reciprocal | 222700.0000 |
| 解质量估计 total_estimate | 0.8409 |
| 解质量评级 solution_quality |
GOOD
a GOOD solution
|
| P(r) 峰数 n_peaks | 2 |
| 主峰位置 r_peak_primary | 12.3 Å |
| 偏度 Skewness skewness | 0.296 |
| 峰度 Kurtosis kurtosis | -0.224 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 28750.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.670;
Stabil: 0.998;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.946;
Smooth: 0.979
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 50.801 Å |
| 晶胞边长 b length_b | 16.792 Å |
| 晶胞边长 c length_c | 20.200 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 103.99 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 8 |
对称性 Symmetry
| 空间群 space_group | C 1 2 1 |
| 空间群编号 int_tables_number | 5 |
| 晶系 crystal_system | monoclinic |
精修参数 Refinement
| 分辨率 resolution | 1.120 Å |
| 最低分辨率 resolution_low | 17.550 Å |
| R 因子 r_factor | 0.1718 |
| R_work r_work | 0.1668 |
| R_free r_free | 0.2170 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | UIC-1-L6A |
| 分子量 formula_weight | 1332.5 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A,B |
| 原子数 atom_count | 477 |
XLAAAAAQALX
Entity 2
non-polymer
| 描述 description | ACETONITRILE |
| 分子量 formula_weight | 41.1 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 6 |
Pore Restructuring of Peptide Frameworks by Mutations at Distal Packing Residues.
Biomacromolecules (2024)
