8vbx

C6 nozzle and fibre complex of the mature bacteriophage PhiM1 particle

Method: ELECTRON MICROSCOPY D_max: 242.3 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8vbx
沉积日期 deposition_date	2023-12-12
最后修订 last_revision	2024-10-23
结构标题 title	C6 nozzle and fibre complex of the mature bacteriophage PhiM1 particle
关键词 keywords	Tail, fiber, fibre, complex, podophage, nozzle, protein, autographiviridae, assembly, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	71.20 Å
回转半径 Rg (电子) rg_electron	70.89 Å
零角强度 I(0) i0	7020170000.00
分子量 molecular_weight	707670.0 kDa
排除体积 excluded_volume	883580 Å³
包络体积 envelope_volume	1459500 Å³
水化壳体积 shell_volume	169960 Å³
包络直径 envelope_diameter	237.0 Å
壳层 Rg shell_rg	72.03 Å
包络 Rg envelope_rg	69.51 Å
形状 Rg shape_rg	70.90 Å
总 Rg total_rg	70.88 Å
总原子数 total_atoms	50010
残基数 n_residues	6510
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

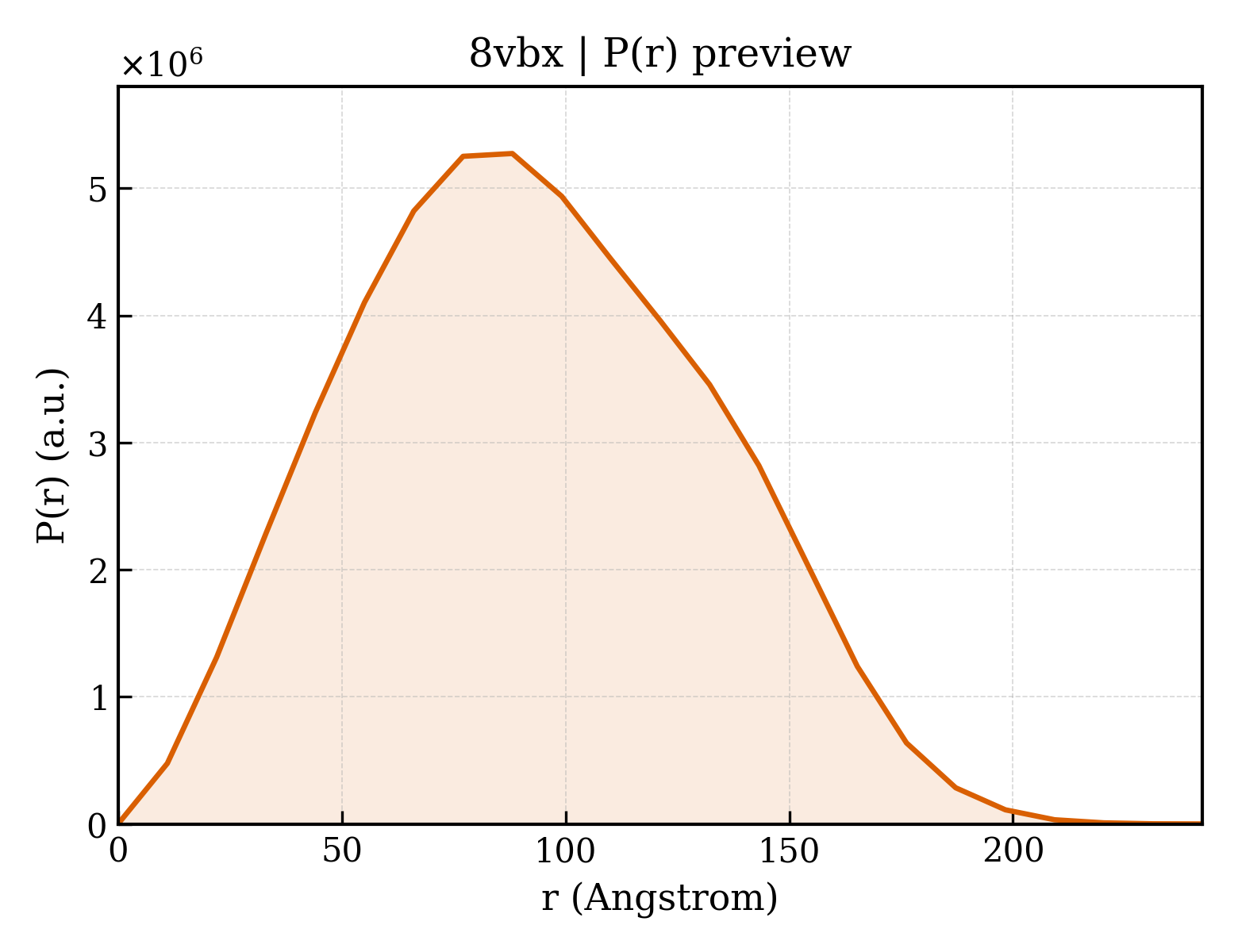

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	242.3 Å
Rg (实空间) rg_real	71.05 Å
Rg 误差 (实空间) rg_real_error	2.47 Å
I(0) (实空间) i0_real	7.0200e+09
I(0) 误差 (实空间) i0_real_error	1.6100e+08
Rg (倒空间) rg_reciprocal	71.58 Å
I(0) (倒空间) i0_reciprocal	7027000000.0000
解质量估计 total_estimate	0.8714
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	88.1 Å
偏度 Skewness skewness	0.185
峰度 Kurtosis kurtosis	-0.561
角度范围 angular_range	— – 0.1100 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	496400000.0000
实空间数据点数 n_real_points	23
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.856; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.952; Smooth: 0.806

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Tail nozzle (gp51)
分子量 formula_weight	84475.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	50010

MAFDGSIKSLLQGVSQQVPRERLDGQVSVQLNRLSDVVNGNRRRPGARYLADVPTTSQYDDHVFASYVDVQDTANHVIINTETGQLLVISEDFSTTLHNSTQQYLVASAASAIQTATLRGDLYIANTEKAPTKVFGSTTQQDPTKAGFYFVRTPALQKDYDITLSNSTGTYTYTYRTPTGTGTGDADLAKPSYIISDLLAKINAQTGTHGITATAYDAYMFLSSNTVSLSVTTNAGSTYATGSNQSRVSVVSDLPARLPAVGNGASVAVGTTERNFVWYQYDSATSVWKEAGAYGSPTGFSNMPIRISLDGVYTVETPAYEGRLAGSDETNEDPGFIDNGVTGFGAYQGRLVILAGPEVCMSAAGNPLRWYRSTVTALLTDDPINIFSGAATSTNFRHCVQFNKDLLLFARSCQAVVPSSNAAITPQTAQIVITSGYTTDTLAQPGVVGRSVLYSMPRTEHFAGVLEIIPSNTTDSQYTSNDITAHIPRYLPGRIRSIVSSTTSNSSAFICTGDSRSLFIQDYLWSGDEKVQSAWHQWTLPYPIVCTWFVRDRVYIGMRDGTTILVVTIEPQAGNTIDSYVRPFSDVYLRVTITDRQFALPTRLRAAVGSGEGLFITFADTSMGGMWVGYESIDPTTYVVTTVRNVPDGEYFVGLRYTSVLSPTPPLVRDANGIVIGTYQSLLVRYELTLKDSGEFHAIITDSSRTLTDGNYSSLVYSSTELLPNNPTDASLGRTIIPVRAQAQDTVATFEANADTDLCILDIEYVLQYRARRKRI

Entity 2 polymer

描述 description	Tail fiber (gp47)
分子量 formula_weight	55852.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	18

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R,Q,P,O,N,M,X,W,V,U,T,S,L,K,J,I,H,G

MYSVQIAVSDGTLTRIALSIEYFEKDDITLYRNLELTPLVLGTDWQWDGDTHINLLTGIPVPVGSYITVRRNTDIDRAFNIYDGGAAFNRETLDENFKQMIYLAQEFTEGNGLTGLYFPLDMHGFQIKNLGEPTDPGDAVTKQYVDTANTAQNANFNASQQAQDQAVAASQAVQDNRLASLENTFVQATSSYPWYTVSTSTTDTFTPGFNFTKAAVYINGVCQTPDYSYIVVANQILLADPVPLGTMVFARLGEDIQNDDDFATTAQLSAVQANLQDEIDVTNTEVSNKASKGANSDISSLSGLTTPLSAAQGGTGNNTGNAATATVLATPRTIQTNLASTSAASFNGSANITPGVTGNLPVTNGGTGAGSAPSARANLGAAMNGINNDISNLAALTGGITGLTTGTAAASGIVGEVASAASSSATNLVSGSVINIISLSLPAGDWELESAFQIINTGNVTALAFGVSTTTGVLPTPWYDVYSITTTIGSGTSNRQGMARRVLLSTTTTVYLVAQATFTGTATANGYVRARRVR

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.23 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	17132

fit	/app/data/saxs_computation/vb/8vbx/8vbx.fit
pddf	/app/data/pr_computation/vb/8vbx/8vbx.pr.out
profile	/app/data/saxs_computation/vb/8vbx/8vbx.dat
