SAXSdb — 8vpn

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8vpn
沉积日期 deposition_date	2024-01-16
结构标题 title	Phosphorylated human NCC in complex with indapamide
关键词 keywords	Phosphorylation, a thiazide-like drug, Indapamide, Outward-open, TRANSPORT PROTEIN; TRANSPORT PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.40 Å
回转半径 Rg (电子) rg_electron	44.63 Å
零角强度 I(0) i0	465276000.00
分子量 molecular_weight	173480.0 kDa
排除体积 excluded_volume	215300 Å³
包络体积 envelope_volume	326180 Å³
水化壳体积 shell_volume	61756 Å³
包络直径 envelope_diameter	163.8 Å
壳层 Rg shell_rg	48.29 Å
包络 Rg envelope_rg	44.31 Å
形状 Rg shape_rg	44.67 Å
总 Rg total_rg	44.69 Å
总原子数 total_atoms	12290
残基数 n_residues	1734
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

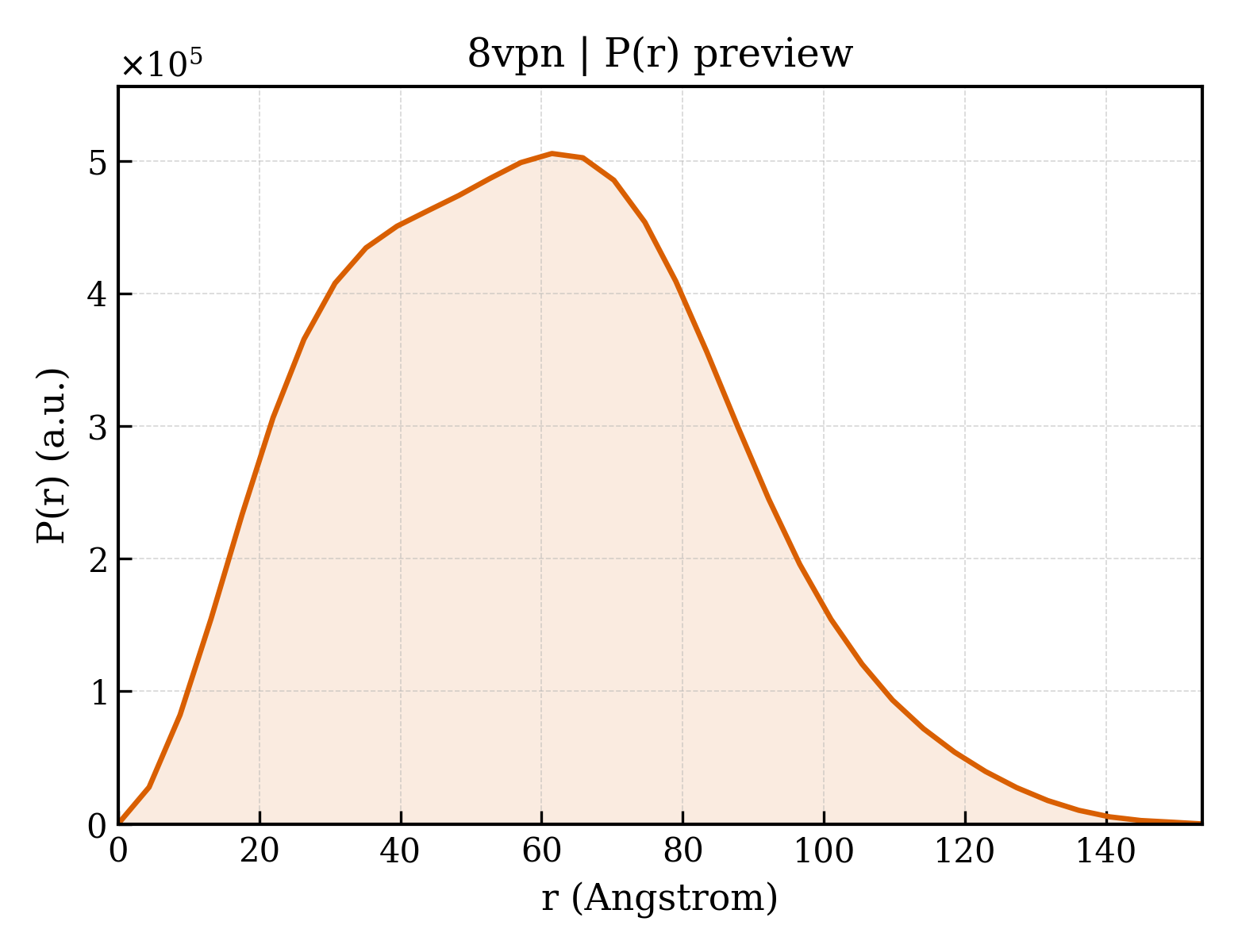

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	153.6 Å
Rg (实空间) rg_real	45.43 Å
Rg 误差 (实空间) rg_real_error	1.36 Å
I(0) (实空间) i0_real	4.6530e+08
I(0) 误差 (实空间) i0_real_error	8.7580e+06
Rg (倒空间) rg_reciprocal	45.40 Å
I(0) (倒空间) i0_reciprocal	465300000.0000
解质量估计 total_estimate	0.6440
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	61.5 Å
偏度 Skewness skewness	0.285
峰度 Kurtosis kurtosis	-0.406
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0001
最高正则化参数 α highest_alpha	94500000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.860; Stabil: 1.000; Sysdev: 0.010; Positv: 1.000; Valcen: 0.951; Smooth: 0.805

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Solute carrier family 12 member 3
分子量 formula_weight	113364.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	12295

MAELPTTETPGDATLCSGRFTISTLLSSDEPSPPAAYDSSHPSHLTHSSTFCMRTFGYNTIDVVPTYEHYANSTQPGEPRKVRPTLADLHSFLKEGRHLHALAFDSRPSHEMTDGLVEGEAGTSSEKNPEEPVRFGWVKGVMIRCMLNIWGVILYLRLPWITAQAGIVLTWIIILLSVTVTSITGLSISAISTNGKVKSGGTYFLISRSLGPELGGSIGLIFAFANAVGVAMHTVGFAETVRDLLQEYGAPIVDPINDIRIIAVVSVTVLLAISLAGMEWESKAQVLFFLVIMVSFANYLVGTLIPPSEDKASKGFFSYRADIFVQNLVPDWRGPDGTFFGMFSIFFPSATGILAGANISGDLKDPAIAIPKGTLMAIFWTTISYLAISATIGSCVVRDASGVLNDTVTPGWGACEGLACSYGWNFTECTQQHSCHYGLINYYQTMSMVSGFAPLITAGIFGATLSSALACLVSAAKVFQCLCEDQLYPLIGFFGKGYGKNKEPVRGYLLAYAIAVAFIIIAELNTIAPIISNFFLCSYALINFSCFHASITNSPGWRPSFQYYNKWAALFGAIISVVIMFLLTWWAALIAIGVVLFLLLYVIYKKPEVNWGSSVQAGSYNLALSYSVGLNEVEDHIKNYRPQCLVLTGPPNFRPALVDFVGTFTRNLSLMICGHVLIGPHKQRMPELQLIANGHTKWLNKRKIKAFYSDVIAEDLRRGVQILMQAAGLGRMKPNILVVGFKKNWQSAHPATVEDYIGILHDAFDFNYGVCVMRMREGLNVSKMMQAHINPVFDPAEDGKEASARVDPKALVKEEQATTIFQSEQGKKTIDIYWLFDDGGLTLLIPYLLGRKRRWSKCKIRVFVGGQINRMDQERKAIISLLSKFRLGFHEVHILPDINQNPRAEHTKRFEDMIAPFRLNDGFKDEATVNEMRRDCPWKISDEEITKNRVKSLRQVRLNEIVLDYSRDAALIVITLPIGRKGKCPSSLYMAWLETLSQDLRPPVILIRGNQENVLTFYCQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector BsrGI-MCS-pcDNA3.1

Entity 2 polymer

描述 description	Solute carrier family 12 member 3
分子量 formula_weight	113124.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MAELPTTETPGDATLCSGRFTISTLLSSDEPSPPAAYDSSHPSHLTHSSTFCMRTFGYNTIDVVPTYEHYANSTQPGEPRKVRPTLADLHSFLKEGRHLHALAFDSRPSHEMTDGLVEGEAGTSSEKNPEEPVRFGWVKGVMIRCMLNIWGVILYLRLPWITAQAGIVLTWIIILLSVTVTSITGLSISAISTNGKVKSGGTYFLISRSLGPELGGSIGLIFAFANAVGVAMHTVGFAETVRDLLQEYGAPIVDPINDIRIIAVVSVTVLLAISLAGMEWESKAQVLFFLVIMVSFANYLVGTLIPPSEDKASKGFFSYRADIFVQNLVPDWRGPDGTFFGMFSIFFPSATGILAGANISGDLKDPAIAIPKGTLMAIFWTTISYLAISATIGSCVVRDASGVLNDTVTPGWGACEGLACSYGWNFTECTQQHSCHYGLINYYQTMSMVSGFAPLITAGIFGATLSSALACLVSAAKVFQCLCEDQLYPLIGFFGKGYGKNKEPVRGYLLAYAIAVAFIIIAELNTIAPIISNFFLCSYALINFSCFHASITNSPGWRPSFQYYNKWAALFGAIISVVIMFLLTWWAALIAIGVVLFLLLYVIYKKPEVNWGSSVQAGSYNLALSYSVGLNEVEDHIKNYRPQCLVLTGPPNFRPALVDFVGTFTRNLSLMICGHVLIGPHKQRMPELQLIANGHTKWLNKRKIKAFYSDVIAEDLRRGVQILMQAAGLGRMKPNILVVGFKKNWQSAHPATVEDYIGILHDAFDFNYGVCVMRMREGLNVSKMMQAHINPVFDPAEDGKEASARVDPKALVKEEQATTIFQSEQGKKTIDIYWLFDDGGLTLLIPYLLGRKRRWSKCKIRVFVGGQINRMDQERKAIISLLSKFRLGFHEVHILPDINQNPRAEHTKRFEDMIAPFRLNDGFKDEATVNEMRRDCPWKISDEEITKNRVKSLRQVRLNEIVLDYSRDAALIVITLPIGRKGKCPSSLYMAWLETLSQDLRPPVILIRGNQENVLTFYCQ

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Mammalian expression vector BsrGI-MCS-pcDNA3.1

Entity 3 non-polymer

描述 description	4-chloro-N-[(2S)-2-methyl-2,3-dihydro-1H-indol-1-yl]-3-sulfamoylbenzamide
分子量 formula_weight	365.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	5

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.70 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	2148162

fit	/app/data/saxs_computation/vp/8vpn/8vpn.fit
pddf	/app/data/pr_computation/vp/8vpn/8vpn.pr.out
profile	/app/data/saxs_computation/vp/8vpn/8vpn.dat
