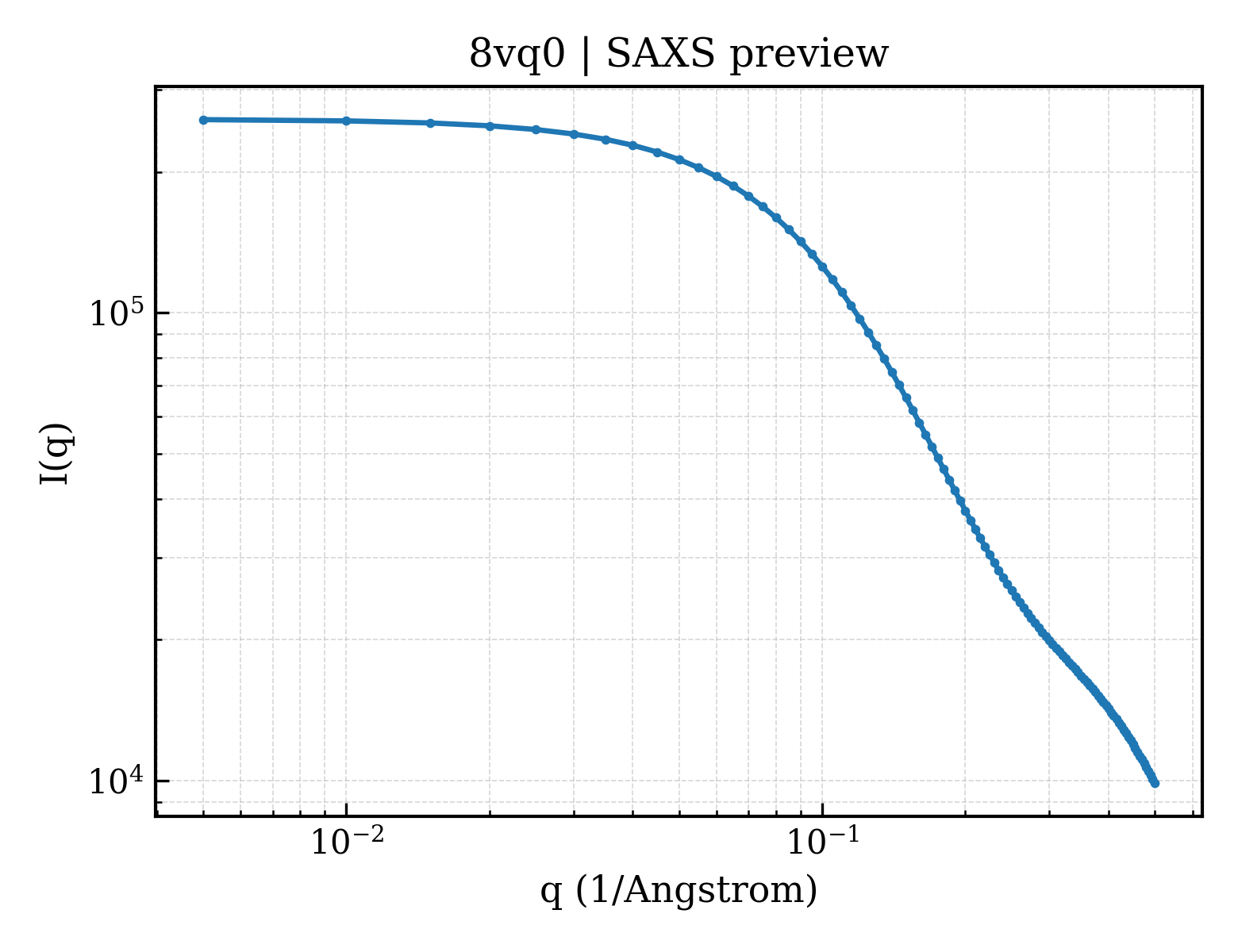

SAXS 散射曲线 SAXS Profile
P(r) 距离分布 P(r) Distribution
下载 Download
| 条目编号 entry_id | 8vq0 |
| 沉积日期 deposition_date | 2024-01-17 |
| 结构标题 title | UIC-13-MER extension of UIC-1 |
| 关键词 keywords | synthetic construct, DE NOVO PROTEIN; DE NOVO PROTEIN |
| 实验方法 method | X-RAY DIFFRACTION |
| 回转半径 Rg (Guinier) rg_guinier | 15.27 Å |
| 回转半径 Rg (电子) rg_electron | 14.27 Å |
| 零角强度 I(0) i0 | 259090.00 |
| 分子量 molecular_weight | 3448.0 kDa |
| 排除体积 excluded_volume | 4549 ų |
| 包络体积 envelope_volume | 6111 ų |
| 水化壳体积 shell_volume | 4672 ų |
| 包络直径 envelope_diameter | 59.6 Å |
| 壳层 Rg shell_rg | 16.67 Å |
| 包络 Rg envelope_rg | 15.36 Å |
| 形状 Rg shape_rg | 14.44 Å |
| 总 Rg total_rg | 14.65 Å |
| 总原子数 total_atoms | 494 |
| 残基数 n_residues | 14 |
| 球谐函数阶数 n_harmonics | 20 |
| q 范围 q_range | — – 0.5000 Å−1 |
| 数据点数 n_points | 101 |
| 壳层类型 shell_type | directional |
| 溶剂电子密度 solvent_density | 0.3340 e/ų |
| 壳层衬度 contrast_shell | 0.0300 e/ų |
| CRYSOL 版本 crysol_version | 4.1.3 |
| 最大尺寸 Dmax dmax | 62.1 Å |
| Rg (实空间) rg_real | 15.63 Å |
| Rg 误差 (实空间) rg_real_error | 0.80 Å |
| I(0) (实空间) i0_real | 2.5910e+05 |
| I(0) 误差 (实空间) i0_real_error | 3.5930e+03 |
| Rg (倒空间) rg_reciprocal | 15.59 Å |
| I(0) (倒空间) i0_reciprocal | 259100.0000 |
| 解质量估计 total_estimate | 0.6820 |
| 解质量评级 solution_quality |
REASONABLE
a REASONABLE solution
|
| P(r) 峰数 n_peaks | 3 |
| 主峰位置 r_peak_primary | 17.3 Å |
| 偏度 Skewness skewness | 0.596 |
| 峰度 Kurtosis kurtosis | 0.069 |
| 角度范围 angular_range | — – 0.5000 Å−1 |
| 当前正则化参数 α current_alpha | 0.0000 |
| 最高正则化参数 α highest_alpha | 18310.0000 |
| 实空间数据点数 n_real_points | 80 |
| GNOM 版本 gnom_version | 4.1.3 |
| 质量判据 quality_criteria |
AN1: 0.000;
Oscil: 0.244;
Stabil: 1.000;
Sysdev: 1.000;
Positv: 1.000;
Valcen: 0.158;
Smooth: 0.974
|
晶胞参数 Unit Cell
| 晶胞边长 a length_a | 58.356 Å |
| 晶胞边长 b length_b | 8.780 Å |
| 晶胞边长 c length_c | 44.935 Å |
| 晶胞夹角 α angle_alpha | 90.00 ° |
| 晶胞夹角 β angle_beta | 107.77 ° |
| 晶胞夹角 γ angle_gamma | 90.00 ° |
| 晶胞分子数 Z z_pdb | 8 |
对称性 Symmetry
| 空间群 space_group | C 1 2 1 |
| 空间群编号 int_tables_number | 5 |
| 晶系 crystal_system | monoclinic |
精修参数 Refinement
| 分辨率 resolution | 1.310 Å |
| 最低分辨率 resolution_low | 14.900 Å |
| R 因子 r_factor | 0.1722 |
| R_work r_work | 0.1665 |
| R_free r_free | 0.2124 |
衍射实验 Diffraction
Entity 1
polymer
| 描述 description | UIC-13-MER |
| 分子量 formula_weight | 1700.0 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 2 |
聚合体 Polymer
| 聚合体类型 type | polypeptide(L) |
| 链编号 strand_id | A,B |
| 原子数 atom_count | 503 |
XAAAALAAALAQALX
Entity 2
non-polymer
| 描述 description | METHANOL |
| 分子量 formula_weight | 32.0 kDa |
| 来源方法 src_method | syn |
| 拷贝数 entity_count | 1 |
Entity 3
water
| 描述 description | water |
| 分子量 formula_weight | 18.0 kDa |
| 来源方法 src_method | nat |
| 拷贝数 entity_count | 9 |
Diverse Proteomimetic Frameworks via Rational Design of pi-Stacking Peptide Tectons.
J.Am.Chem.Soc. (2024)
Files (7)
- pr_distribution /app/data/pr_computation/vq/8vq0/pr_distribution.json
- pr_output /app/data/pr_computation/vq/8vq0/8vq0.pr.out
- pr_plot /app/data/visualization/pr_computation/vq/8vq0/8vq0_pr_distribution.png
- saxs_curve_dat /app/data/saxs_computation/vq/8vq0/8vq0.dat
- saxs_fit /app/data/saxs_computation/vq/8vq0/8vq0.fit
- saxs_log /app/data/saxs_computation/vq/8vq0/8vq0.log
- saxs_plot /app/data/visualization/saxs_computation/vq/8vq0/8vq0_saxs_profile.png
Curves (3)
| fit |
/app/data/saxs_computation/vq/8vq0/8vq0.fit |
| pddf |
/app/data/pr_computation/vq/8vq0/8vq0.pr.out |
| profile |
/app/data/saxs_computation/vq/8vq0/8vq0.dat |
