8vr6

crystal structure of the Pcryo_0619 N-acetryltransferase from Psychrobacter cryohalolentis K5 in the presence of CoA-disulfide

Method: X-RAY DIFFRACTION D_max: 72.1 Å Quality: GOOD

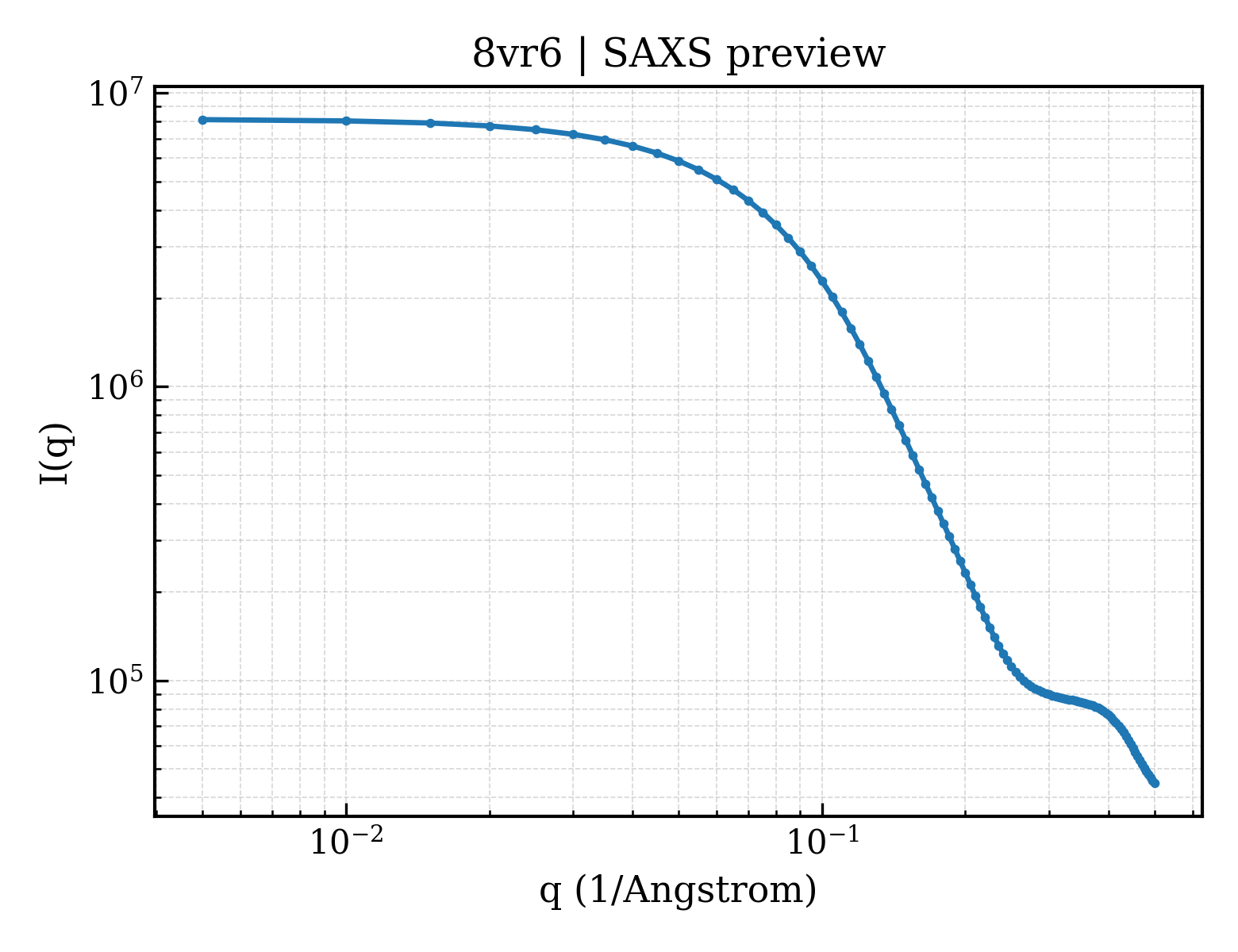

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8vr6
沉积日期 deposition_date	2024-01-20
最后修订 last_revision	2024-01-31
结构标题 title	crystal structure of the Pcryo_0619 N-acetryltransferase from Psychrobacter cryohalolentis K5 in the presence of CoA-disulfide
关键词 keywords	psychrobacter, n-acetyltransferase, 2, 3, 4-triacetoamido-2, 4-trideoxy-l-arabinose, TRANSFERASE; TRANSFERASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	19.82 Å
回转半径 Rg (电子) rg_electron	19.24 Å
零角强度 I(0) i0	8140150.00
分子量 molecular_weight	20565.0 kDa
排除体积 excluded_volume	25614 Å³
包络体积 envelope_volume	31870 Å³
水化壳体积 shell_volume	14887 Å³
包络直径 envelope_diameter	68.1 Å
壳层 Rg shell_rg	24.30 Å
包络 Rg envelope_rg	19.84 Å
形状 Rg shape_rg	19.19 Å
总 Rg total_rg	20.19 Å
总原子数 total_atoms	1435
残基数 n_residues	177
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	72.1 Å
Rg (实空间) rg_real	19.87 Å
Rg 误差 (实空间) rg_real_error	0.58 Å
I(0) (实空间) i0_real	8.1400e+06
I(0) 误差 (实空间) i0_real_error	1.0330e+05
Rg (倒空间) rg_reciprocal	19.86 Å
I(0) (倒空间) i0_reciprocal	8140000.0000
解质量估计 total_estimate	0.7683
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	21.3 Å
偏度 Skewness skewness	0.363
峰度 Kurtosis kurtosis	-0.333
角度范围 angular_range	— – 0.4000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	676900.0000
实空间数据点数 n_real_points	72
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.727; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.803; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Acetyltransferase, putative
分子量 formula_weight	19598.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	1497

GGGHMILLKELKELFFLRTTYYLKKYNRSLPFGDMIVDRWDKAKLLGFGEGTSIYDSSIVLGEVKVGKDTWIGPNTILDGSGGGLIIGSNCSISAGVQIYTHDTVRKSLSGGKADIDKASTRIGSDCYLGPNTIIVKGVKIGDRVVVGANSLVLKDIPSDCKVFGSPAVIITDSLNYQRNNI

来源 Source

来源生物 organism	Psychrobacter cryohalolentis K5
NCBI 分类编号 ncbi_taxonomy_id	335284
宿主生物 host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

描述 description	;[[(2~{S},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-3-phosphonooxy-oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [(3~{R})-4-[[3-[2-[2-[3-[[(2~{R})-4-[[[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-4-oxidanyl-3-phosphonooxy-oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl]oxy-3,3-dimethyl-2-oxidanyl-butanoyl]amino]propanoylamino]ethyldisulfanyl]ethylamino]-3-oxidanylidene-propyl]amino]-2,2-dimethyl-3-oxidanyl-4-oxidanylidene-butyl] hydrogen phosphate ;
分子量 formula_weight	1533.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 3 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	62

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	114.903 Å
晶胞边长 b length_b	114.903 Å
晶胞边长 c length_c	114.903 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	24

空间群 space_group	I 21 3
空间群编号 int_tables_number	199
晶系 crystal_system	—

分辨率 resolution	1.900 Å
最低分辨率 resolution_low	40.620 Å
R 因子 r_factor	0.2046
R_work r_work	0.2024
R_free r_free	0.2421
