8w0v

Crystal structure of broadly neutralizing antibody hcab55 in complex with Hepatitis C virus envelope glycoprotein E2 ectodomain

Method: X-RAY DIFFRACTION D_max: 118.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8w0v
沉积日期 deposition_date	2024-02-14
结构标题 title	Crystal structure of broadly neutralizing antibody hcab55 in complex with Hepatitis C virus envelope glycoprotein E2 ectodomain
关键词 keywords	HCV glycoprotein, broadly neutralizing antibodies, IMMUNE SYSTEM, IMMUNE SYSTEM-VIRAL PROTEIN complex; IMMUNE SYSTEM/VIRAL PROTEIN
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	34.11 Å
回转半径 Rg (电子) rg_electron	34.06 Å
零角强度 I(0) i0	89409100.00
分子量 molecular_weight	74019.0 kDa
排除体积 excluded_volume	91992 Å³
包络体积 envelope_volume	124020 Å³
水化壳体积 shell_volume	32715 Å³
包络直径 envelope_diameter	120.9 Å
壳层 Rg shell_rg	37.74 Å
包络 Rg envelope_rg	33.66 Å
形状 Rg shape_rg	34.04 Å
总 Rg total_rg	34.39 Å
总原子数 total_atoms	5203
残基数 n_residues	643
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

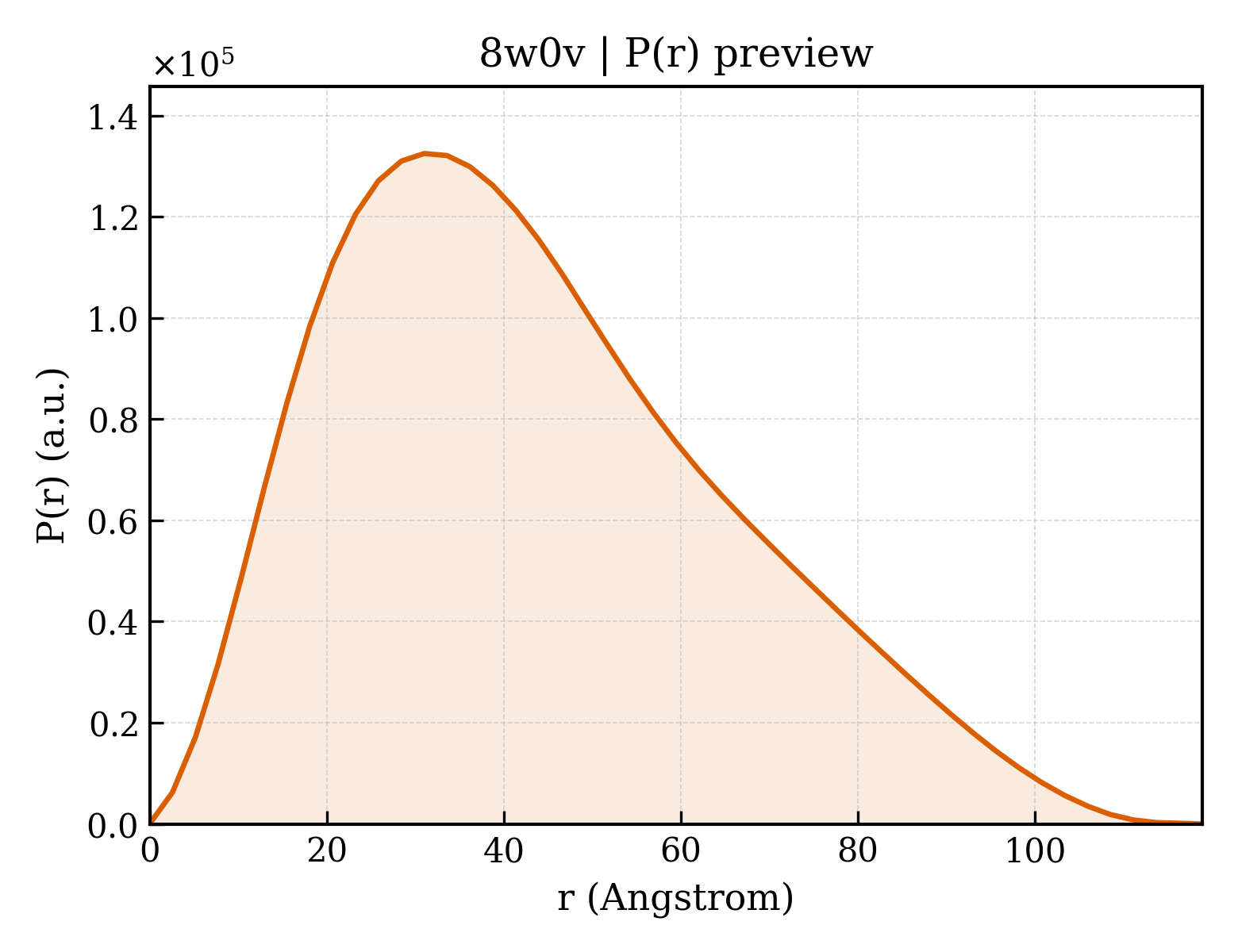

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	118.9 Å
Rg (实空间) rg_real	34.40 Å
Rg 误差 (实空间) rg_real_error	1.21 Å
I(0) (实空间) i0_real	8.9410e+07
I(0) 误差 (实空间) i0_real_error	1.5800e+06
Rg (倒空间) rg_reciprocal	34.22 Å
I(0) (倒空间) i0_reciprocal	89390000.0000
解质量估计 total_estimate	0.8331
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	31.0 Å
偏度 Skewness skewness	0.533
峰度 Kurtosis kurtosis	-0.349
角度范围 angular_range	— – 0.2300 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9410000.0000
实空间数据点数 n_real_points	47
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.752; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.775; Smooth: 0.795

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Envelope glycoprotein E2
分子量 formula_weight	28946.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C
原子数 atom_count	5203

STHVTGGTASHTTRHFASLFSSGASQRVQLINTNGSWHINRTALNCNDSLHTGFLAALFYTHKFNASGCPERMAHCRPIDEFAQGWGPITYAEGHGSDQRPYCWHYAPRQCGTIPASQVCGPVYCFTPSPVVVGTTDRFGAPTYTWGENETDVLILNNTRPPQGNWFGCTWMNSTGFTKTCGGPPCNIGGVGNNTLTCPTDCFRKHPEATYTKCGSGPWLTPRCLVDYPYRLWHYPCTVNFTIFKVRMYVGGVEHRLNAACN

来源 Source

来源生物 organism	Hepacivirus hominis
NCBI 分类编号 ncbi_taxonomy_id	3052230
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	hcab55 Fab Heavy Chain
分子量 formula_weight	25447.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

QVQLVQSGAEIKKPGASVKVSCKASGYTFISNYFHWVRQAPGQGLEWMGIINPSSGSTTYGQKFQGRVTLTSDTSASIVYLELSRLRSEDTAVYYCVSPRIAHCRGGRCYETLDWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKRVEPKSCDKTHHHHHH

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	hcab55 Fab Light Chain
分子量 formula_weight	23528.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

EIVLTQSPVSLSLSPGERATLSCRASQSVSSNYLAWYQLKPGRAPRLLIYGASSRAPGIPDRFSGSGSGTDFTLTISRLEPEDFAVYYCQQYGISSWTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	2

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 7 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	67.019 Å
晶胞边长 b length_b	88.840 Å
晶胞边长 c length_c	175.400 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.590 Å
最低分辨率 resolution_low	45.670 Å
R 因子 r_factor	0.2049
R_work r_work	0.2023
R_free r_free	0.2574

fit	/app/data/saxs_computation/w0/8w0v/8w0v.fit
pddf	/app/data/pr_computation/w0/8w0v/8w0v.pr.out
profile	/app/data/saxs_computation/w0/8w0v/8w0v.dat
