1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8w22
沉积日期 deposition_date	2024-02-19
结构标题 title	Umb1 umbrella toxin particle (local refinement of UmbB1 bound ALF of UmbC1 and UmbA1)
关键词 keywords	;Streptomyces, Umbrella toxin particles, Alanine leucine phenylalanine-rich (ALF) repeat proteins, Seattle structural genomics center for infectious disease, SSGCID, TOXIN ;; TOXIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.42 Å
回转半径 Rg (电子) rg_electron	38.12 Å
零角强度 I(0) i0	52994600.00
分子量 molecular_weight	52833.0 kDa
排除体积 excluded_volume	63922 Å³
包络体积 envelope_volume	106360 Å³
水化壳体积 shell_volume	27588 Å³
包络直径 envelope_diameter	140.0 Å
壳层 Rg shell_rg	36.09 Å
包络 Rg envelope_rg	39.27 Å
形状 Rg shape_rg	38.14 Å
总 Rg total_rg	37.89 Å
总原子数 total_atoms	3750
残基数 n_residues	629
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	142.3 Å
Rg (实空间) rg_real	38.31 Å
Rg 误差 (实空间) rg_real_error	2.13 Å
I(0) (实空间) i0_real	5.2990e+07
I(0) 误差 (实空间) i0_real_error	1.0260e+06
Rg (倒空间) rg_reciprocal	37.76 Å
I(0) (倒空间) i0_reciprocal	52970000.0000
解质量估计 total_estimate	0.6106
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	23.7 Å
偏度 Skewness skewness	0.701
峰度 Kurtosis kurtosis	-0.191
角度范围 angular_range	— – 0.2100 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	9217000.0000
实空间数据点数 n_real_points	43
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.257; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.162; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Intein C-terminal splicing domain-containing protein
分子量 formula_weight	142716.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	3750

MRRRIPSRTPGSGAKQKSWFPRRSLQVLLSAGMLSGLLGTPAALAAEPAPLPANVRADIVGYWETGGAGLKAAAEQALLGGDEAIRKFLADAPSIQHDDNRIDAARMAMTGGSGLRQAAKDAIRLSPAELEKFLLYGYEEPLDDDHKVEIARLINLGGPGVREAGKAALQGTAEERELFLNSGQYTAQQDDNRVDVARLATTGGPNVQAAAKVALRGTPEDMVEFLEVGQFTARNRDQEHATIAELIKQAELAGKQADDARKTAEESSKKAVDASQLAKEAAQKAAEETEAAKDDSQKAAVKAKQAADAARAAADAAQEAIGSANAANRAARRAALAAAQTASAATAAAEAANKAYKAAIAAAGDEGKADEAKEAAKQARAAADAATKSGLAAENAGLASAAAATASTAAKSASSNARAAAGAAEEANQHADAAGVHSNEAALAAAEARRHADAADRAADRSSALAQRAATAAYGARDAANSAAEHANKAADYADESAAHAGDSAAYAATAKRNAQAAQEAAKTATAAVTKANEIFKLARETETANLETRTDAAIERARSMKSASETSITASATTQVEALALNDTATELAKEASRPDIDVQATAAKGRQLAMQAMKLLGPWHQEAAARALSGTDQDVLDYLRTRWKEANHNDIRQQIVDLSTQSPYASVRTAAAEALNGTPEQIEAFHTTGQYTAGSDDMKVDVARLANTGGPGVSQAAKTALADGTGKTLATFLQIGQYGERLSDEKVVTARLAETGSPEVQAAAKIALAGPPELLHEFVTTGQYMAKRKDDLADVHVNQVERLLAEGSLIAAEANEDAWRATEAAATAEGAAADAATAAEKAEASAAQAKQHAADADASADAATRSAADAAASAATARDAADRAAQDATAAENSAAEAAFSAAYARDSASKADDAADRARASALAAGKSADEAEAEAKEAWKTTRALAEKEAEEARRKAAEERKRQQEQAGEPKRVCIPHPTRETMIPIMPCAASPDDSMIMPGPVDPTIRAVVWELAGLNDIKACIDKPLSGNCVMAVVGVTPWGKFKLVSKLGNGLDAVKDARGARRTVACLTGAAHSFPAGTRVLMADGTRRSIEQIEAGDLVTATDPTTGETGARTVTRTIHTPDDRNFTDVALADGSTLTSTTHHPYWSQNDQTWKNAGDLEAGDTLRTPQNTAVVIAATHDWPGLQDAYDLTVDGFHSYYVSTGTTDVLVHNNDNPCPDWVSKAWKKLPKRKSGDPTSGYVFEADGTLVWDSVLTSGRSPLSEDISAFLKGSPDFPNFPGYADVAHHAEAKIAWEMRTKMGKGKKLHIVINTNYVCPKVSSPNSMGCKQAVPAILYEDQTLYVHYPGASDALELKGTAKR

Entity 2 polymer

描述 description	Secreted protein
分子量 formula_weight	17186.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MANTSRTRQALMAIAVSVLAAGVTTLGVAHADNGDAVAAAAEMPQAVEDFSYPGAAKIQAETGAILKRGNGHMLMTSCDGSEDIQVMSRTGQKDFCFNVMAKPAYLTLEVPQAYGIWTSADPVKTTIKDTDGTATVINAPANDFTGYGEAGSTGEPTTLIELRVAG

Entity 3 polymer

描述 description	Secreted esterase
分子量 formula_weight	54437.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MFRMPRPIRATALSAAVLAGALASTPAQATVGDPTTDAKLDFTARLTIGTDYRSCSGALVDTQWVLTAASCFADDPNQPDTVAAGKPAQLTRATVGRADSNIANGYVREVVELVPHPERDMVLARLDKAIPDIAPVRLASDAPTAGTPLTAVGFGRTKDEWVPIQRHQGAFTVTSVTAGAVNVTGQGGDAICAGDTGGPLLQDKNGTLHLVGVNNRSMQGGCYGSETTSTDAIAAMSDADFVTQTVNRDLGTGNLSDLVASADFNSDGRTDVAAVLEDGSLHAFYAKPDGTLEYGRELWNDNTWSPMVQIIGGDFNSDGNGDIAAVRSDGTLNLYTGTATGILNKSKPMWHDTSWKTIKQVTRFKFNGRDGLVAQWGDGNLYGYYTGTDGTLTGTKVKMWPDATWGKTRLTGTADINADGRDDLTAVRDDGSLNWYAGNTKGGLDAARKLWPDNTWTPMKRIIGGDFNGDNKGDIAAVGGQSTLLLYTGTGTGTLNKGIAMRPASGSHHHHHHHH

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	386275

fit	/app/data/saxs_computation/w2/8w22/8w22.fit
pddf	/app/data/pr_computation/w2/8w22/8w22.pr.out
profile	/app/data/saxs_computation/w2/8w22/8w22.dat

Umb1 umbrella toxin particle (local refinement of UmbB1 bound ALF of UmbC1 and UmbA1)

SAXS 散射曲线 SAXS Profile

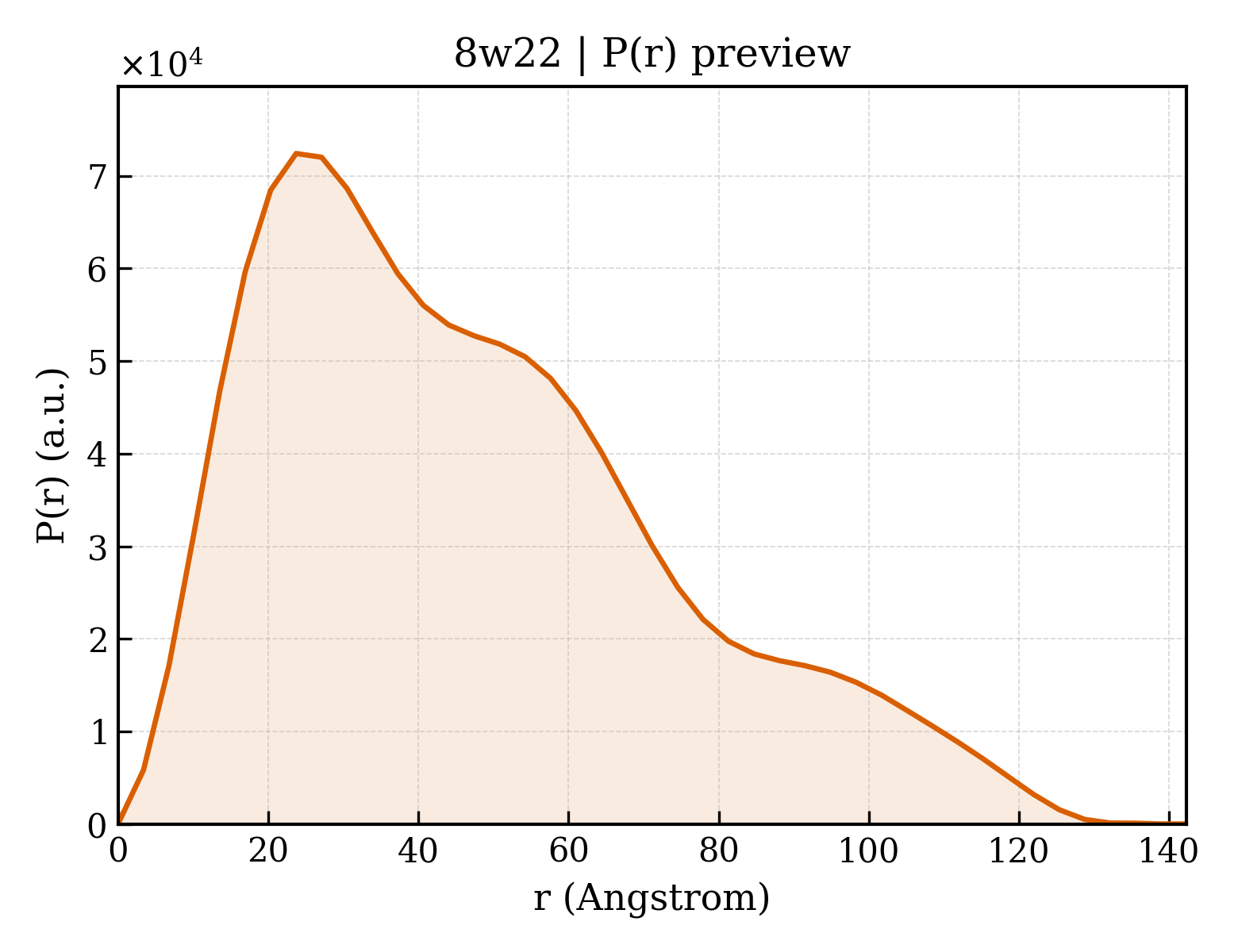

P(r) 距离分布 P(r) Distribution
