8w9z

The cryo-EM structure of the Nicotiana tabacum PEP-PAP

Method: ELECTRON MICROSCOPY D_max: 266.8 Å Quality: GOOD

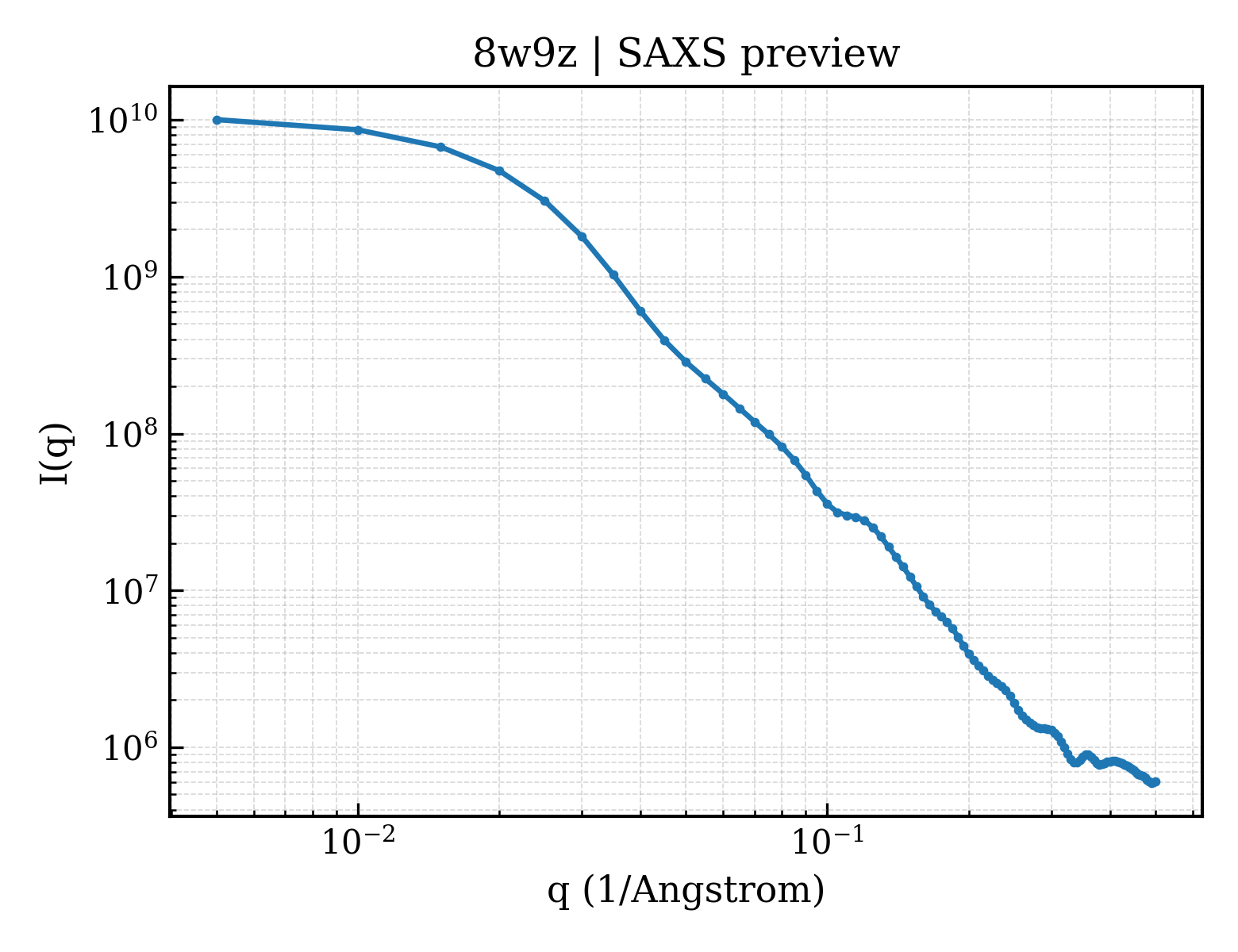

SAXS 散射曲线 SAXS Profile

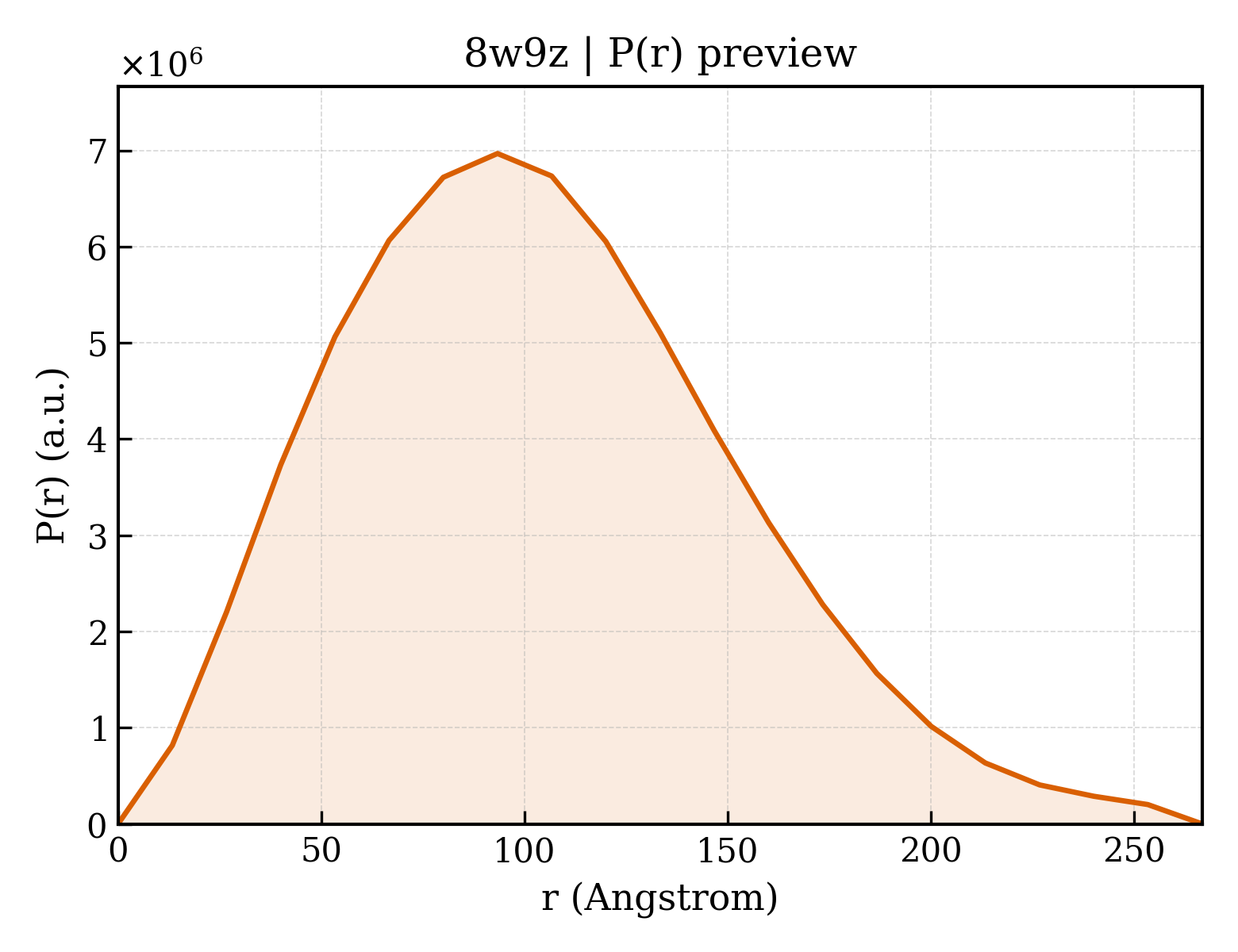

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8w9z
沉积日期 deposition_date	2023-09-06
结构标题 title	The cryo-EM structure of the Nicotiana tabacum PEP-PAP
关键词 keywords	TRANSCRIPTION, PEP, PAP; TRANSCRIPTION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	77.40 Å
回转半径 Rg (电子) rg_electron	76.72 Å
零角强度 I(0) i0	10570700000.00
分子量 molecular_weight	856930.0 kDa
排除体积 excluded_volume	1064100 Å³
包络体积 envelope_volume	1856000 Å³
水化壳体积 shell_volume	198580 Å³
包络直径 envelope_diameter	270.8 Å
壳层 Rg shell_rg	77.21 Å
包络 Rg envelope_rg	75.62 Å
形状 Rg shape_rg	76.82 Å
总 Rg total_rg	76.39 Å
总原子数 total_atoms	60525
残基数 n_residues	8235
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	266.8 Å
Rg (实空间) rg_real	80.57 Å
Rg 误差 (实空间) rg_real_error	1.41 Å
I(0) (实空间) i0_real	1.0570e+10
I(0) 误差 (实空间) i0_real_error	2.1210e+08
Rg (倒空间) rg_reciprocal	77.42 Å
I(0) (倒空间) i0_reciprocal	10570000000.0000
解质量估计 total_estimate	0.8993
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	93.4 Å
偏度 Skewness skewness	0.452
峰度 Kurtosis kurtosis	-0.102
角度范围 angular_range	— – 0.1000 Å⁻¹
当前正则化参数 α current_alpha	1.1970
最高正则化参数 α highest_alpha	740400000.0000
实空间数据点数 n_real_points	21
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.893; Stabil: 0.880; Sysdev: 1.000; Positv: 1.000; Valcen: 0.982; Smooth: 0.411

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (21)

Entity 1 polymer

描述 description	DNA-directed RNA polymerase subunit alpha
分子量 formula_weight	38663.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,a
原子数 atom_count	60525

MVREKVTVSTRTLQWKCVESRTDSKRLYYGRFILSPLMKGQADTIGIAMRRALLGEIEGTCITRVKSEKVPHEYSTITGIQESVHEILMNLKEIILRSNLYGTSDASICVKGPGSVTAQDIILPPYVEIVDNTQHIASLTEPIDFCIGLQIERNRGYLIKTPHNFQDGSYPIDAVFMPVRNANHSIHSYGNGNEKQEILFLEIWTNGSLTPKEALHEASRNLIDLFIPFLHMEEDNLYLQDNQHTVPLSPFTFHDKLAKLIKNKKKIALKSIFIDQSELPSRIYNCLKMSNIYTLLDLLNNSQEDLMKIEHFRSEDVKRILGILEKYFVIDLAKNKF

Entity 2 polymer

描述 description	DNA-directed RNA polymerase subunit beta
分子量 formula_weight	120698.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MLGDGNEGISTIPGFNQIQFEGFCRFIDQGLTEELYKFPKIEDTDQEIEFQLFVETYQLVEPLIKERDAVYESLTYSSELYVSAGLIWKNSRDMQEQTIFIGNIPLMNSLGTSIVNGIYRIVINQILQSPGIYYRSELDHNGISVYTGTIISDWGGRSELEIDRKARIWARVSRKQKISILVLSSAMGLNLREILENVCYPEIFLSFLSDKERKKIGSKENAILEFYQQFACVGGDPVFSESLCKELQKKFFQQRCELGRIGRRNMNRRLNLDIPQNNTFLLPRDILAAADHLIGLKFGMGALDDMNHLKNKRIRSVADLLQDQFGLALVRLENVVRGTICGAIRHKLIPTPQNLVTSTPLTTTYESFFGLHPLSQVLDRTNPLTQIVHGRKLSYLGPGGLTGRTASFRIRDIHPSHYGRICPIDTSEGINVGLIGSLAIHARIGHWGSLESPFYEISERSTGVRMLYLSPGRDEYYMVAAGNSLALNQDIQEEQVVPARYRQEFLTIAWEQVHLRSIFPFQYFSIGASLIPFIEHNDANRALMSSNMQRQAVPLSRSEKCIVGTGLERQAALDSGALAIAEREGRVVYTNTDKILLAGNGDILSIPLVIYQRSNKNTCMHQKLQVPRGKCIKKGQILADGAATVGGELALGKNVLVAYMPWEGYNSEDAVLISERLVYEDIYTSFHIRKYEIQTHVTSQGPEKVTNEIPHLEAHLLRNLDKNGIVMLGSWVETGDILVGKLTPQVVKESSYAPEDRLLRAILGIQVSTSKETCLKLPIGGRGRVIDVRWIQKRGGSSYNPETIRVYILQKREIKVGDKVAGRHGNKGIISKILPRQDMPYLQDGRSVDMVFNPLGVPSRMNVGQIFECSLGLAGSLLDRHYRIAPFDERYEQEASRKLVFSELYEASKQTANPWVFEPEYPGKSRIFDGRTGNPFEQPVIIGKPYILKLIHQVDDKIHGRSSGHYALVTQQPLRGRAKQGGQRVGEMEVWALEGFGVAHILQEMLTYKSDHIRARQEVLGTTIIGGTIPNPEDAPESFRLLVRELRSLALELNHFLVSEKNFQINRKEA

Entity 3 polymer

描述 description	DNA-directed RNA polymerase subunit gamma
分子量 formula_weight	79367.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MNNNFSSMIDRYKHQQLRIGSVSPQQISAWATKILPNGEIVGEVTKPYTFHYKTNKPEKDGLFCERIFGPIKSGICACGNYRVIGDEKEDPKFCEQCGVEFVDSRIRRYQMGYIKLACPVTHVWYLKRLPSYIANLLDKPLKELEGLVYCDFSFARPITKKPTFLRLRGLFEYEIQSWKYSIPLFFTTQGFDTFRNREISTGAGAIREQLADLDLRIIIENSLVEWEELGEEGHTGNEWEDRKVGRRKDFLVRRVELAKHFIRTNIEPEWMVLCLLPVLPPELRPIIQIDGGKLMSSDINELYRRVIYRNNTLTDLLTTSRSTPGELVMCQEKLVQEAVDTLLDNGIRGQPMRDGHNKVYKSFSDVIEGKEGRFRETLLGKRVDYSGRSVIVVGPSLSLHRCGLPREIAIELFQTFVIRGLIRQHLASNIGVAKSKIREKEPIVWEILQEVMQGHPVLLNRAPTLHRLGIQAFQPVLVEGRAICLHPLVCKGFNADFDGDQMAVHVPLSLEAQVEARLLMFSHMNLLSPAIGDPISVPTQDMLIGLYVLTSGNHRGICVNRYNPCNRRNYQNQKRSDNSHYKYTKEPFFSNSYDAIGAYRQKRINLDSPLWLRWRLDQRVIASRETPIEVHYESLGTFYEIYGHYLIVRSLKKQILFIYIRTTVGHIALYREIEEAIQGFSRAYSSGT

Entity 4 polymer

描述 description	;DNA-directed RNA polymerase subunit beta'' ;
分子量 formula_weight	157057.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	c

MAERANLVFHNKAINGTAMKRLISRLIDHFGMAYTSHILDQVKTLGFQQATATSISLGIDDLLTIPSKGWLVQDAEQQSLILEKHHHYGNVHAVEKLRQSIEIWYATSEYLRQEMNPNFRMTDPFNPVHIMSFSGARGNASQVHQLVGMRGLMSDPQGQMIDLPIQSNLREGLSLTEYIISCYGARKGVVDTAVRTSDAGYLTRRLVEVVQHIVVRRTDCGTARGISVSPRNGMMPERIFIQTLIGRVLADDIYMGPRCIATRNQDIGIGLVNRFITFRAQPISIRTPFTCRSTSWICRLCYGRSPTHGDLVELGEAVGIIAGQSIGEPGTQLTLRTFHTGGVFTGGTAEHVRAPSNGKIKFNEDLVHPTRTRHGHPAFLCSIDLYVTIESEDILHNVNIPPKSLLLVQNDQYVESEQVIAEIRAGISTLNFKEKVRKHIYSDSDGEMHWSTDVYHAPEFTYGNVHLLPKTSHLWILLGRPCRSSLVYLSIHKDQDQMNAHFLSGKRRYTSNLSVTNDQARQKLFSSDFSGKKEDRIPDYSDLNRIICAGQYNLVYSPILHENSDLLSKRRRNKFIIPLHSIQELENELMPCSGISIEIPVNGIFRRNSILAYFDDPRYRRKSSGIIKYGTVETHSVIKKEDLLEYRGVKEFRPKYQMKVDRFFFIPEEVHILPGSSSIMVRNNSIVGVDTQITLNLRSRVGGLVRVERKKKRIELKIFSGDIHFPGETDKISRHTGVLIPPGTGKRNSKESKKVKNWIYVQRITPSKKKFFVLVRPVVTYEITDGINLATLFPPDPLQERDNVQLRIVNYILYGNGKPIRGISDTSIQLVRTCLVLNWNQDKKSSSCEEARASFVEIRTNGLIRHFLRINLVKSPISYIGKRNDPSGSGLLSDNGSDCTNINPFSSIYSYSKAKIQQSINQPQGTIHTLLNRNKECQSLIILSAANCSRMGPFKDVKYHSVIKKSIKKDPLIPIRNSLGPLGTSLPIENFYSSYHLITHNQILVTNYLQLDNLKQTFQVIKFKYYLMDENGKIFNPDPCRNIILNPFNLNWYFLHHNYCEETSKIISLGQFICENVCIAKNGPPLKSGQVILVQVDSIVIRSAKPYLATPGATVHGHYGETLYEGDTLVTFIYEKSRSGDITQGLPKVEQVLEVRSVDSISMNLEKRIEGWNKCITRILGIPWGFLIGAELTIAQSRISLVNKIQQVYRSQGVQIHNRHLEIIVRQITSKVLVSEDGMSNVFSPGELIGLLRAERMGRALEEAICYRVVLLGITRASLNTQSFISEASFQETARVLAKAALRGRIDWLKGLKENVVLGGVIPVGTGFKGLVHPSKQHNNIPLETKKKNLFEGEMRDILFHHKKLFDSCLSKNFHDIPEQSFIGFNDS

Entity 5 polymer

描述 description	PAP1(pTAC3)
分子量 formula_weight	101413.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MAGISIHYLPFNSKFTLPIPRPSISRSIKASVSSQPRKTRRRKQTQQQQHQLKTAEDDGSMASGTEKVLRLVFMEELMERARNADSKGVSQVIYDMIAAGLSPGPRSFHGFVVSHVLNRDNDGAMHALRRELSEGLRPLHETFLALVRLFGAKGLATRGLEILAAMEKLKYDIRQAWLVLVEELVRSNHLEDANKVFLKGAEGGLRATDEIYDLLIEQDCKVGDHSNALTIAYEMEAAGRMATTFHFNCLLSVQATCGIPEIAFATFENMEYGEDHMKPDTETYNWVIQAYTRAESYDRVQDVAELLGMMVEDHKRVQPNVRTYALLVECFTKYCVVREAIRHFRGLKNFEGGTQVLYNDGKYGDPLSLYLRALCREGRIVELLEALEAMAKDNQPIPPRAMILSRKYRTLVSSWIEPLQEEAELGYEIDYIARYVAEGGLTGDRKRWVPRRGKTPLDPDAEGFIYSNPRETSFKQRCLEEWRLHHRKLLKTLHNEGPSILGKISESDYIRLVERLRKIIKGPEQNALKPKAASKMIVSELKEELEAQGLPTDGTRNVLYQRVQKARRINRSRGRPLWVPPVEEEEEEVDEELDELISRIKLHEGNTEFWKRRFLGEGLNENHVQQSEIIDLEPTDVVDDTDDAVDDISKEAEDDEAEDDEAQDEEEEVEQAESQPEVGDRKDKEVEAAKPLQMIGVQLLKDSDQTASSSRKSRRRLSRVAAVDDDDDDWFPLDIQEAFVEMRKRNIFDVSDMYTITDAWGWTWEKEIKNKAPQRWSQEWEVELGIKVMTKVIELGGTPTIGDCAVILRAAVRAPMPSAFLNILQTTHSLGYVFGSPLYDEIITLCLDLGELDAAIAIVADLETSGIKVPDETLDRVISARQSSDTPVNGSQ

Entity 6 polymer

描述 description	Pentatricopeptide repeat-containing protein At1g74850, chloroplastic-like
分子量 formula_weight	96666.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MSLSCNSFSPVFTPVPPSHRFLFPAKIPNYGKLSPVHRRLLLTVAVRAKPKELILGNPTVTVEKGKYSYDVETLINKLSSLPPRGSIARCLDTFKNKLSLTDFSHVFKEFAARGDWQRSLRLFKYMQRQIWCKPNEHIYTLMIGILGREGLLDKAFEIFDEMPSHSVARTVFSYTAIINAYGRNGQYGTSLQLLEKMKQEKIIPSILTYNTVINSCARGGHEWEGLLSLFAEMRHEGIQPDLVTYNTLLSACSSRGLGDEAEMVFRTMNEAGILPDVTTYSYLVDTFGKLGKLEKVSELLMEMEAGGTSPEVTSYNVLLEAYAHSGSMKEAMDVFRQMQTAGCVANAETYSVLLNLYGKNGRYDQVRDLFLEMKMSNTEPDADTYNILIQVFGEGGYFKEVVTLFHDMVEEKVEPNMETYEGLIYACGKGGLHDDAKRILLHMNGQGLVPSSKVYTGVIEAYGQAALYEEAVVAFNTMNEVGSRPMVETFNSLIHAFAKGGLYKESEAIWFRMGEVGVPRNRDSFNGMIEGYRQGGQFEEAIKAYVEMEKARCDPDERTLEAVLSVYCFAGLVDESEEQFQEIKSLGIQPSIICCCMMLAIYAKSERWNMAHELLNDVMTNKTSDMHQVIGQMIHGDFDDENNWQMVEYVFDKLNSEGCGLSMRFYNTLIEALWWLGQKERAARVLNEATKRGLFPELFRRNKLVWSVDVHRMWPGGACTAISVWLNDMEELFHKGEELPQLASVVVVRGQTEKSSITRDFPVAKAAYSFLKDTVSSSFCFPGWNKGRIVCQKTQLKRIFSSAEPSSGSSKGDRLIPLSNSPISLLGTQTSVSDAKRSESANADSKRSTKSDSELMASSV

Entity 7 polymer

描述 description	Protein PLASTID TRANSCRIPTIONALLY ACTIVE 10-like
分子量 formula_weight	80403.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MQTLQSSSLFFTFPSSKTLLKPQSSKFSSFSLFPSSLSKPSRPLTLHCFSSDEFPVGDDDAFLEAFGPKEKESEEEARRKNWVDRGWAPWEEILSPEANFARKSLNEGEEVALQSPEAIEAFKMLSPNYRKKKISDMGITEDEYYAKQFEIKGEIPEPLSTMWAGPLVVRHVPPRDWPPRGWEVDKKELEFIRETHKLQSVRVDYDKVEEMVKMETDDMGLDRYKMFLKQYNEWVAANKDRLEKESYKYDQDYYPGRRKRGKDYQDGMYELPFYYPGQICAGKVTAIHLYQGAFVDIGGVHDGWVPIKRNDWYWIRHHIKVGMHVIVEILAKRDPYRFRFPIEMRFIDPNIDHLIFNRFDFAPIFHRDEDTNLDELRRDCGRQPLPRKDPGVKVEEEPLLSNHPYVDKLWQIHNAEQMILDDMEANPVKYKGKNLTELTDDEDFDEENRIEYSKAYYKKALLPKMITKVSVKELDLEAAFAERQHHNKLRMEAQERGEVYKIPKLRRNIEMDEYDFIHWRRSLEEREAMLRDISCRRALGLPLEEPGRYVDPSAFGKDQYDPDSPLYRYDYWGEPKNSEKSKQERMTDVHNKSIVGKGTVWYEMAYEDAVKERMQMEAQGIVRELYDEDSDSDEVGTDDDDDDEEDFDYSILGDPSANVSNQPYVNGTESRLSDEGMFEDKS

Entity 8 polymer

描述 description	superoxide dismutase
分子量 formula_weight	30420.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MSWSSCNSLCTSSSRQLLVTTDLSSQLNIPSRLSNVKRSLHGHHGVPKVFAYYGLKTPPYKLDALEPYMSQKMLEVHWGEHHRSYVEALNKQLEKNDILYGCTMEELIKVTYNNGNPLPEFSDAAQVWNHDFFWESMQPGGGDMPKLGLLQQIEKDFGSFTNFREKFTEAALALFGSGWIWLVLKREEKRLAIVKTSNAVNPLVWNDIPLIGLDLWEHAYYLDYKNDKAKYVNVFMNHLVSWDAALGRMARAQAFVNLGEPKIPVA

Entity 9 polymer

描述 description	Protein PLASTID TRANSCRIPTIONALLY ACTIVE 12-like
分子量 formula_weight	61281.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MASVLSTSLYQDRGLRTMVSTDGFVPSFCCPYRKTLFTGTIPVSIWQFKLVSSSPFQKAPLAPCIKCENKEKDQASQGSFEQVSVERYPYHSYMDSTSGQLEPASGARASIPGQEYWPEGTASRVRAARAPEPTGTSTGTPSYGKNPGSRRKKYKASAAASKPSEINIISDDSAESPDNLPEEPKDLSSEYVIYQPEQEEEELTGYELDKRLGRPHPFIDPKTKKKIEKPLTSEELWWNWRKPEKEQWSRWQRRRPDVETVFLKAMAETGQVKLYGDHPTLTETALYRARRHLYKKERLQAEKEKLEKIGPIAYYSEWVQAWKKDTSREAIQKHFEETGEDENTQLIEMFCHQTDREYRIMMGTDIRIPRDPLAMRMREDQIKQIWGGDPVYPTINYIQDPDEVIDYRGPDFHEPTPNMLAYLKEHGKIISREELEKILAKEKTEEIEVAEIDEAMARAVDIGENDDEEEGSDAEVEEGDEKITRNWSVLKSNPELRKSKEKPKKKDMSLEEAVDDSENLTDFLMDFDEDE

Entity 10 polymer

描述 description	Fructokinase-like 1, chloroplastic
分子量 formula_weight	55770.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MASIHFLPQSLPHHSHNSLTHFNFSSIFFSSKLPHRKNTLKCSSNDHSTTTQEPPKHSPRGPKKSSRTAKKTSKPQKDSNFETNIEKSNTQMELSKNADDKIEKYDDGVDFPYPNPPLVICFGAAQKEFVPTVRVSHEQMHQDKYSEWKMLQWNPPEFVRAPGGPPSNVAISHVRLGGRAAFMGKVGNDEFGQEMVLLMNKEKVQTRAVKFDDSMRTGCTHMKIKFEDGKMKVEKVKEPAEDSLSSSELNLDVLKEARIFHFNSEVLTSSSMRSTLFKAISLSKKFGGLVFFDLNLPLPLWRSRDETRNLIKEAWEQANIIEVSRQELEFLLDEEHYERKRNYRPQYFAENFEQTKQRRDYYHYTPAEIAPLWHDGLKLLFVTDGTLRLHYYSPSFDGVVVGTEDVLITPFTCDRTGSGDAVVAGIMRKLTTQPEMYHDQDVLERQLRFAIAAGIISQWTIGAVRGFPTESATQNLKEQVYVPSMW

Entity 11 polymer

描述 description	Fructokinase-like 2, chloroplastic
分子量 formula_weight	72534.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MAALSFSLLSTLPRQHLHWNFYPNMKVMQLQDLGLKNKWVLMAVSKEGTPEAIAKELSKTEVFGAGKKTVRISKRAPVMARRKKVVETSNDDPVNVEEAENTSGSTEEPKKTQRRTRKKKEIVESSFGDSISDAEGNVIDAEAVTEPESSAKPKKTRRTRKKKETVVSTFEDSTLDVEGNVTDEEVLPTSGSSEGSVEIRKRTSKKAASSSSSLEKEPTQKVTRRRRKKVNNLEDEGSQTELSDIEEELHVANADADSEEELDFDGGEDISFSYGWPPLVCCFGAAQHAFVPSGRPSNRLVDHEWHERMKDAIWDPEKFTRAPGGCSSNVAVALASLGGKVAFMGKLGDDDFGQSLVYFMNINKVQTRSVRLDSKKATAITHMKIGKRGGLRMTTTKPSAEDSLLKSEINIDVLKEAKMFYFNTFSMLDPNMRLTTLRATKISKKLGGVVFYDVNLPFPLWESGDKAKTFIQQAWDLADIIEVTKQELEFLCGIKPSERFDTKDNDRSKFTHYPPEVIAPLWHENLKVLFVTNGTSKIHYYTKEHNSAVLGLEDVPLTPYTSDMSASGDGIIAGIIRMLTVQPHLMTDKGYLERTLKYAISCGVVDQWLQARRLGYPPKEGMEDDVVPDDHGIKSVTEREYRILVPVS

Entity 12 polymer

描述 description	Protein PLASTID TRANSCRIPTIONALLY ACTIVE 14-like isoform X2
分子量 formula_weight	58183.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MVSSTILIQQPTNLFHQPEFQHQLWRQGCAAPLQKQPIIICSSNKGRSRPLRVTASANGAATSSTLEGYDSSPTPSAFPLFTPPSQPHDTPASQLELADPDFYKIGYVRSFRAYGIEFREGPDGYGVFASRDVEPLRRARVIMEIPLELMLTISKKLPWMFFPDIIPVGHPIFDIINSTNPETDSDLRLACLLLYAFDCKDNFWQLYGDFLPSDDECTSFLLATEEDLLELQDEKLASTMREQQQRALEFWEKNWHSAVPLKIKRLARDPERFIWAMCIAQSRSINLQMRIGALVQDANLLVPYADMMNHSFQPNCFFHWRFKDRMLEVMINAGQRIRKGDEMTVDYMAGQKNNFFMQRYGFSSPVNPWDVIHFTGDAKIHLDTFLSVFNISGLPGEYYHNSRLSNDGDSFVDGAIIAAARTLPTWSDGDLPPIPSLERKAVKELQEECHQMLAEFPTTSDEDQKILDSMPDCRRTLEAAIKYRLHRKLLIEKVIQALDIYQDRILF

Entity 13 polymer

描述 description	PAP8(pTAC6)
分子量 formula_weight	38014.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	K

MSAAQLFFPLPPNLSTFSTTPSSQALFTISFAKTISSNPNSVKQSLTTKRRRDFRVFADDGDADGGGPDDYDMDEDEVEEADNKKDFDVDYDTLLGGASLTVAATGDDIAMVHSSSFVFTQGWDSEKIVDYRINEEEFHKISLLDCDFFIRKPPDPDNDVYDFREMYVTPPDTDIYAIPRVLAPMPQKYIRCAMSDYGCYNVTEPPIDAPRDPMYKSEREVSKVFLTKHYRNRRAGDPEFALDFEEIYVIDSKTKSITRAKVVVTVPGGRNRDRKNDLLVIRDNGTSFKIIPSEERDDPTTVIEKEEWKKSRQDMERHLRKLRDFSVSNWF

Entity 14 polymer

描述 description	superoxide dismutase
分子量 formula_weight	34825.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L

MMAATASTTLTSAFLPFQGFRESCRTLNWRTHKKQFARKAGPVKVTAKFELMPPPYPMNALEPHMSHTTFEYHWGKHHRAYVDNLNKQIDGTELDGMTLEDIILITYNRGDLLPPFNNAAQAWNHQFFWESMKPSGGGKPSGELLQLINRDFGSFEAFVKEFKAAAATQFGSGWAWLAYKANRLNVGNTSNPHPTDEDKKLVVVKTPNAVNPLVWDYSPLLTIDVWEHAYYLDFRNRRPDYISIFMEKLVSWEAVSSRLEVAKAKAAEREEEEERKKREKEEEYKAGGEVREMYVESTDSDAE

Entity 15 polymer

描述 description	Thioredoxin-like protein CITRX1, chloroplastic
分子量 formula_weight	20142.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M,m

MQAATLSFHPLAPPPQTSACHFSSNQRKYSLFSYTCPTPRPSLLSTQTLSRKSICKPPAVATGKYVREDYLVKKVSAKDIQELIKGERNVPLIIDFYATWCGPCILMAQELEMLAVEYESNALIVKVDTDDEYEFARDMQVRGLPTLYFISPDPNKDAIRTEGLIPIQMMRDIINNDL

Entity 16 polymer

描述 description	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate--2, 6-diaminopimelate ligase-like
分子量 formula_weight	85288.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MPFTLFSLPPFPSLLHHNPPPLQFKPFTSLHHLRLKYPTTLTTVSAIGADGKYYPNPSDDDPPEAPEDSMHGVNKFQQIQRQAAKAKKQQEELFKKEQSIFVNALADVEDAPDNPALNDNDNSGDDLFGEIDKAIALKRKEFVKQGLLKPNPPKNSTLVESEVENVDELEPEEVVDLEEIDGLSGLAEIEESDEEKSDFEVSDDMGKSEFSDLSSFDIDFDEFGKTKPRIVEPKFRMSLAELLDESRVVPLSVYGDLEVGISGVQHDSRLVESGDLFVCCVGRKTDGHLYLSEADKRGAVAVVASKEIDIEETLGCKALVIVEDTNAVLAVLAASFYRHPSKSMTLIGITGTNGKTTTSYLIKAMYEAMGLRTGMLSTVGYYIYGDNKLESPHTTPDAVLVQKLMAKMVHNGTEALVMEASSHGLALGRCDKVDFDIAVFTNLTRDHLDFHGTEEEYRDAKAKLFARMVDPARHRKIVNIDDPNAAFFLAQGNPDVPIVTFAMENKSADVHPLKFQLSLFETQVLVNTPQGILEISSGLLGRHNIYNILAAVAVGIAVGAPLEDIVKGIEEVDAVPGRCELIDEEQAFGVIVDYAHTPDALSRLLDYVRELGPRRVITVFGCAGESDRGKRPIMAKIATDKSDVTILTSDNPKTEDPLDILDDMLAGVGWSMQDYLKHGENDYYPPLPNGHRLFLHDIRRVAVRCAVAMGEEGDIVVVAGKGHETYQIEGDKKEFFDDREECREALQYVDELHQAGIDTSEFPWRLPESH

Entity 17 polymer

描述 description	Protein PLASTID TRANSCRIPTIONALLY ACTIVE 7-like isoform X1
分子量 formula_weight	19254.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MAASTLTFSGFSTLQTFPKIAAVENTKRVNFSIRSQSASNSKNESRGGRRIWRRRKLTKKDETLDAKMERIPFLEEQVRKIRDGGKLLTMDIHRLLLNEDNRFDFVNEIAAEAKQYVENNRDEYGAKKAILHVLSNRMNDAGVYRAEAYMESDPFKPGPGYMKDELL

Entity 18 polymer

描述 description	PAP13(pTAC18)
分子量 formula_weight	17054.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P

MASFITMPALSYLSTNTSSLERTNFRPSSRGYQGVRAMRTEKPLEELYNVRVERNVTKDRLMELGVPRWSMWKTGKCKLPWDWHVDQLVYIEEGEVRVVPEGSQRFMQFVAGDLVRYPKWFEADLYFNDFYQERYSFRAYGDS

Entity 19 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 20 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 21 non-polymer

描述 description	FE (III) ION
分子量 formula_weight	55.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	triclinic

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	410910

fit	/app/data/saxs_computation/w9/8w9z/8w9z.fit
pddf	/app/data/pr_computation/w9/8w9z/8w9z.pr.out
profile	/app/data/saxs_computation/w9/8w9z/8w9z.dat
