8wa2

cryo-EM structure of native mastigonemes isolated from Chlamydomonas reinhardtii at 3.0 angstrom resolution

Method: ELECTRON MICROSCOPY D_max: 403.1 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8wa2
沉积日期 deposition_date	2023-09-06
结构标题 title	cryo-EM structure of native mastigonemes isolated from Chlamydomonas reinhardtii at 3.0 angstrom resolution
关键词 keywords	Cilia, arabinoglycan, PKD2, PPII helix, mechanosensation., MEMBRANE PROTEIN; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	147.30 Å
零角强度 I(0) i0	20984200000.00
分子量 molecular_weight	1222200.0 kDa
排除体积 excluded_volume	1522600 Å³
包络体积 envelope_volume	2976500 Å³
水化壳体积 shell_volume	209950 Å³
包络直径 envelope_diameter	539.5 Å
壳层 Rg shell_rg	80.00 Å
包络 Rg envelope_rg	146.80 Å
形状 Rg shape_rg	147.40 Å
总 Rg total_rg	146.60 Å
总原子数 total_atoms	85288
残基数 n_residues	9536
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

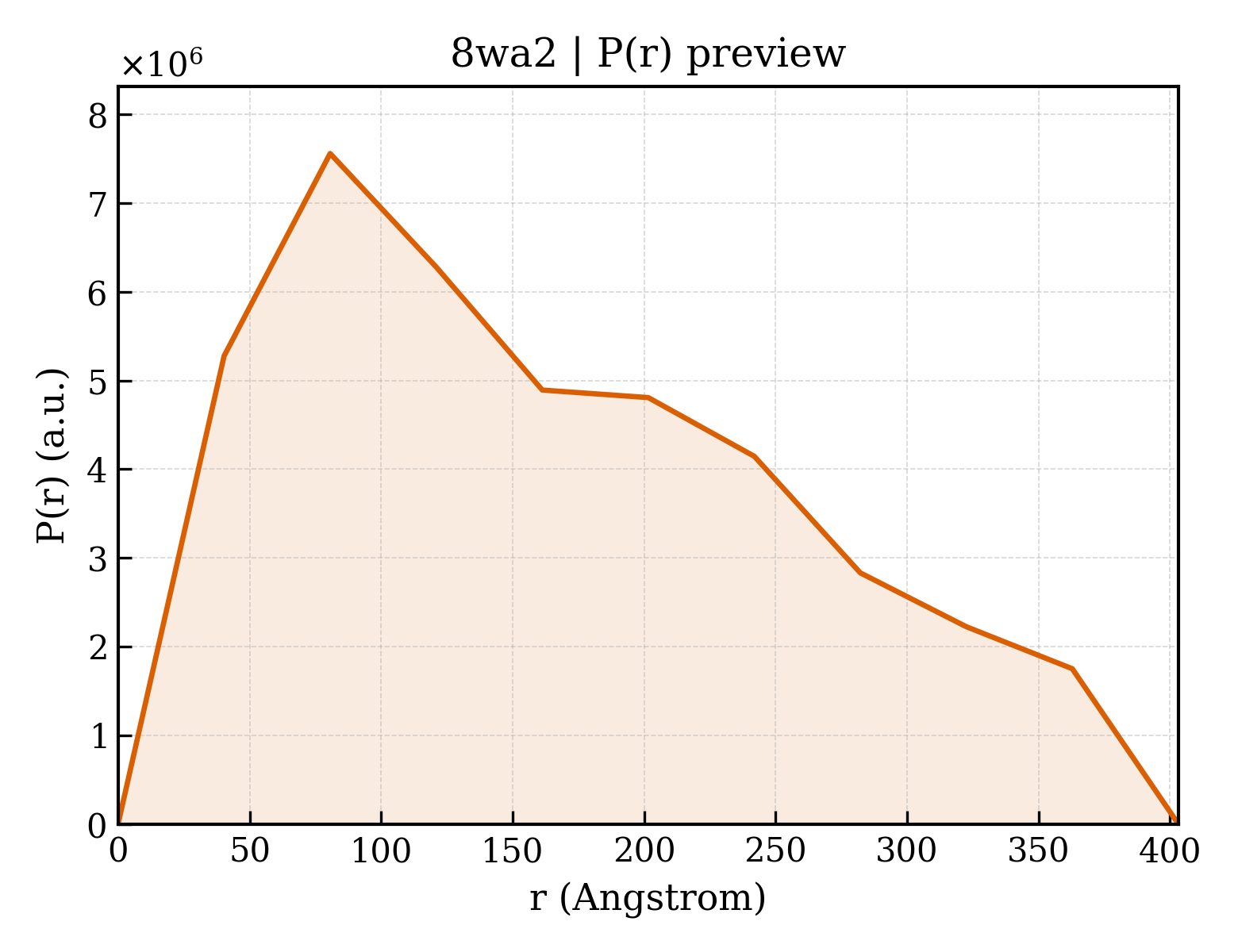

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	403.1 Å
Rg (实空间) rg_real	132.80 Å
Rg 误差 (实空间) rg_real_error	2.96 Å
I(0) (实空间) i0_real	2.0150e+10
I(0) 误差 (实空间) i0_real_error	5.0620e+08
Rg (倒空间) rg_reciprocal	104.50 Å
I(0) (倒空间) i0_reciprocal	18580000000.0000
解质量估计 total_estimate	0.8485
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	80.6 Å
偏度 Skewness skewness	0.485
峰度 Kurtosis kurtosis	-0.777
角度范围 angular_range	— – 0.0500 Å⁻¹
当前正则化参数 α current_alpha	0.7075
最高正则化参数 α highest_alpha	309000000.0000
实空间数据点数 n_real_points	11
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.050; Oscil: 0.712; Stabil: 0.978; Sysdev: 1.000; Positv: 1.000; Valcen: 0.920; Smooth: 0.043

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (28)

Entity 1 polymer

描述 description	Mst1
分子量 formula_weight	206316.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	6

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D,E,F
原子数 atom_count	85288

MAMPRHGRRPARCSSNRASQWLLLVLGVALAASPRFLLLVEAATYTLTLDKLGPTVNPTTSDAVTFTATVASPDSTTAVFFTLDYGDGVTAETTRTTTGALSTTPTANLVSAGTYTVTYASIGTKFVTLRLYDSAVAPGVLLASKTVPIYVEDSTLTATLLQSGVPRLNLAFSGFKGRVSSSTANRADMWATIQLDTAPGVFESSRIFIGIAPTASTNYDFVIPDQVYNLEGAKTTVLRIYDAPVGGTLLRTFTPAAANAVYVVDPSKYVLTLTVGPTSVTTADQVTFTQTTTEVSYSASATSPILQWRFNWDDPSVVETPLAYPDALTAASNFPTTATAVSSAAASTFRYTSTGSKNARLRLYDGANNVIAEKIVVITVSNAGYTLALAKTTADPVTTDDTIAFSAGAKHLSSTSQVWWTIDYGAGESSPRTALTMTNVGAAAPNAIASLSNQYTSGGTKLATLRIYDRDGVGANTGLLLASTTVTFTVTPVLYALESAVEPFSPIATVAAKWSFRIQRSKATPAGVTESIKCAFFGADTGTAPADLAAWLTAANGAGGLTATILPSSIPSDIISFTRTYAAAAASLQGKLQCFIGSTPLWDPYYPTPVFQVLAAAPTYTLSASVTPAVVPVDTATLWTYNIIRSVPVPAGGPSLPILCSFWDGKTGAAPTTDAGWAALAGSANGKGTSMAPGSTTATCSFTPSYSTTGTATPTLQLIQNSFALDAATTVGFLSPVYTAPAFATVTAASYTISSYLNPVTPVAGGAAAVWRIVITRNAAVTASAKTLTCQMPDNGQGGSPADVTADIAVGGTTTVCVFSIAGYTTATPGPYFATVNVVDGAVTTSHITKNFTVLASGTTAPTYAVTSVVSPATPVKVSTPVTYTFTITRTTAVPAGGIPQPIICEFFNGEGTAPASAAAYWRVSTTIPDADTVVAVMAPGETTTTCTFTTYYTTVSAGGFTAKLMVFGESATAAPLLTSLSVTPSQLLAAVHSFATPMVVAAAVVAVESTTISPNYNPTTPYTNIPTYFTFTLLRDPPVPPSASSGVQFACALYTGQNVNPASAPSAITDAVYKTFTDVTTAVATDANYFADQQLRVVTMAPGTGRVSCTFPTLYAAAGPFSPKFFVFEYASSTVGANALAVADTVTSLTSFTTQAAPTFITGPTNVPQRVPLPKGFRTTCFDGYELIFSNDNYTNGVRVAVDAYPYPVGQCRKCPGGTATMDGYRCIPCPSGYWSNEGARECTACPAGTIAKPAALTARAKYSIDPTTYHFVTHLAMGPESCKKCPKGYFQPNIAGTVCLPCPSGFVSTSGATGCTACSEGTYHTDGVGTTTPGEATSLDTTDTFGSIYPIIPNTCRQCPANTYLPLRGQAAIASMNLAAVSSATPCRPCEDGTWSKAGAAGCQKCPPGTYRNTWFSGQLGSPFITADGVPVATTLTELGSGCSQCPPGTYAPTFGMSVCLPCPAGTFASAPGATACQQCKPGTNSLMGDRTQQMALVVTNAANDFPALRAYTISGMVAGPAYAKPIVTGPDTNFFMAGKSETCSTNLPGYYTDVDGLPIQLPCKPGTFMPFDTATANLLDTGLTVDGTQCYTCQTGTFNDEFSQPVCKACWSGSFASKRGLPTCEIAQPGTFTNVAAAANATFNTATLIPTGLVKGAQAPTPCGMGYFQSSAETTTCTACAVGTYADQAGLAACKPCQPGRYQNSIGQRVCKPCDMGTYSRYGGELCTKCPAGTVASKTGSSQCTPCAAGFYANAPDSATSCRACPRGYYGPYSGAYADNLGDEFEGPRGCYKCPYDFFADRPGVRQCTACPPLDLGGGNLVEQCTEDLGSQRCKPCSLLSKPKTARTEQSPPPPSPSPPPPPPPSPRPPSPNPPSPRPPSPAPPSPNPPPTSPPPSPPPSPPPPRPPPPPPPPPSPPPPNRSPPPPPPASSAINPGGGVNQNGDPVGHRRAILSLMEDEDAEAAQEEQAIVDVDAEMQPQDDE

Entity 2 polymer

描述 description	Mstax
分子量 formula_weight	6239.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,H,I

PPPPPPPPPPPGTPDQPAAPAAPAAPAAPAAPPPALPGAPPPPPPPPPPPPPGVPPAAAAAAAA

Entity 3 branched

描述 description	beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	414.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	95

Entity 4 branched

描述 description	alpha-L-arabinofuranose-(1-3)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	546.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	43

Entity 5 branched

描述 description	;alpha-L-arabinofuranose-(1-3)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose ;
分子量 formula_weight	678.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 branched

描述 description	beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	444.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	48

Entity 7 branched

描述 description	beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)]beta-L-arabinofuranose
分子量 formula_weight	546.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 8 branched

描述 description	;alpha-L-arabinofuranose-(1-2)-alpha-L-arabinofuranose-(1-3)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose ;
分子量 formula_weight	678.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 9 branched

描述 description	beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	282.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 10 branched

描述 description	;alpha-L-arabinofuranose-(1-3)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)]beta-L-arabinofuranose ;
分子量 formula_weight	678.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 11 branched

描述 description	alpha-L-arabinofuranose-(1-3)-[alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose
分子量 formula_weight	414.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 12 branched

描述 description	;alpha-L-arabinofuranose-(1-3)-beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)]beta-L-arabinofuranose ;
分子量 formula_weight	708.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 13 branched

描述 description	alpha-L-arabinofuranose-(1-3)-beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	576.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	30

Entity 14 branched

描述 description	beta-L-arabinofuranose-(1-5)-beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	576.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 15 branched

描述 description	;alpha-L-arabinofuranose-(1-2)-alpha-L-arabinofuranose-(1-3)-beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose ;
分子量 formula_weight	708.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 16 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 17 branched

描述 description	;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 18 branched

描述 description	;beta-D-galactofuranose-(1-2)-[alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)]beta-L-arabinofuranose ;
分子量 formula_weight	708.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

Entity 19 branched

描述 description	beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)]beta-L-arabinofuranose
分子量 formula_weight	576.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 20 branched

描述 description	beta-D-galactofuranose-(1-2)-[alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose-(1-2)-beta-L-arabinofuranose
分子量 formula_weight	576.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	12

Entity 21 branched

描述 description	;beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)][alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose ;
分子量 formula_weight	708.6 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 22 branched

描述 description	;beta-D-galactofuranose-(1-2)-[alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-2)-alpha-L-arabinofuranose-(1-3)]beta-L-arabinofuranose ;
分子量 formula_weight	840.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	8

Entity 23 branched

描述 description	;beta-D-galactofuranose-(1-2)-[alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-3)][alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose ;
分子量 formula_weight	840.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 24 branched

描述 description	;beta-D-galactofuranose-(1-2)-beta-L-arabinofuranose-(1-2)-[alpha-L-arabinofuranose-(1-2)-alpha-L-arabinofuranose-(1-3)][alpha-L-arabinofuranose-(1-5)]beta-L-arabinofuranose ;
分子量 formula_weight	840.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 25 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 26 non-polymer

描述 description	alpha-L-arabinofuranose
分子量 formula_weight	150.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	20

Entity 27 non-polymer

描述 description	alpha-D-galactopyranose
分子量 formula_weight	180.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	62

Entity 28 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	7

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.00 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	69065

fit	/app/data/saxs_computation/wa/8wa2/8wa2.fit
pddf	/app/data/pr_computation/wa/8wa2/8wa2.pr.out
profile	/app/data/saxs_computation/wa/8wa2/8wa2.dat
