8wib

Cryo- EM structure of Mycobacterium smegmatis 70S ribosome, E- tRNA and RafH.

Method: ELECTRON MICROSCOPY D_max: 293.1 Å Quality: EXCELLENT

SAXS 散射曲线 SAXS Profile

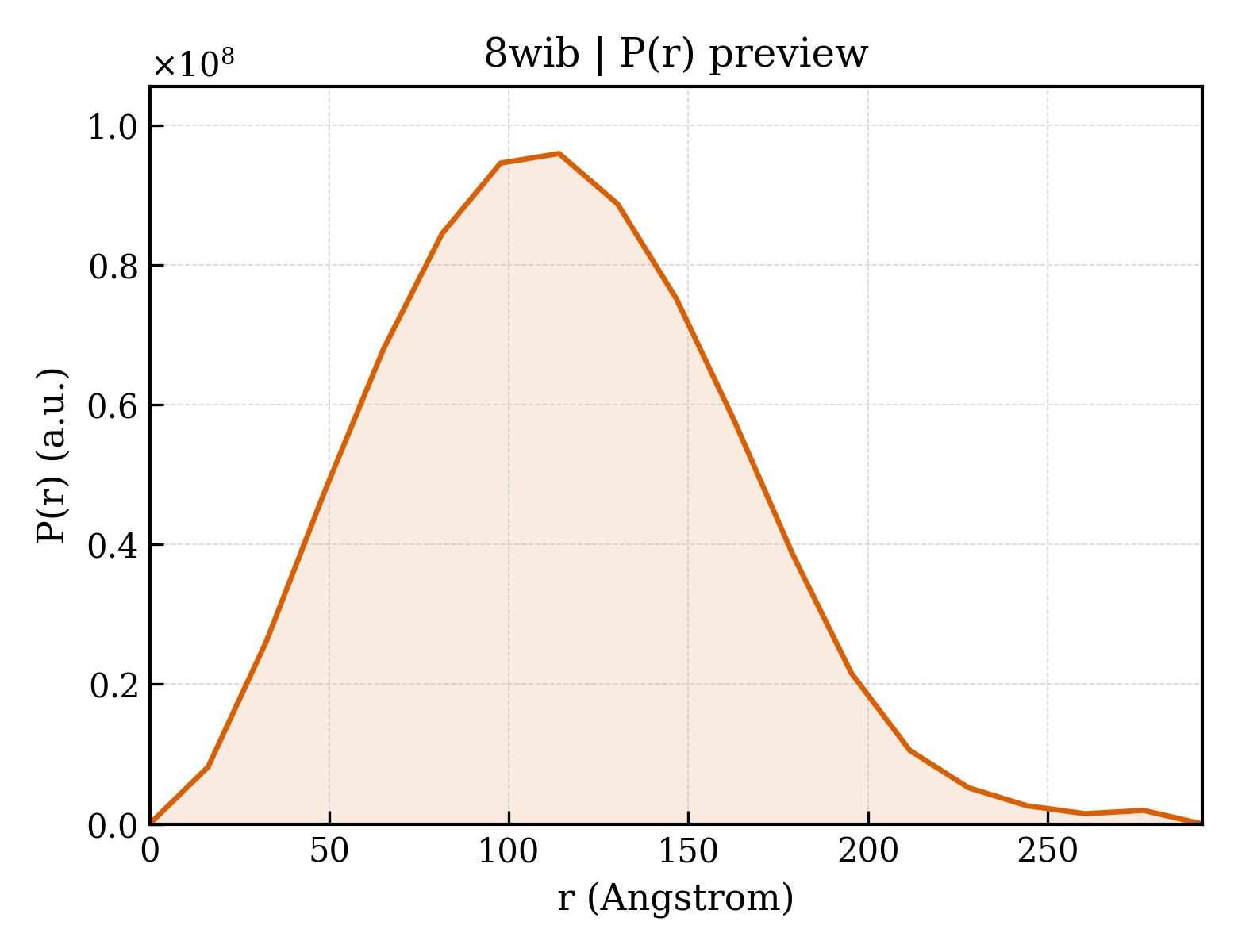

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8wib
沉积日期 deposition_date	2023-09-24
最后修订 last_revision	2024-02-28
结构标题 title	Cryo- EM structure of Mycobacterium smegmatis 70S ribosome, E- tRNA and RafH.
关键词 keywords	;Ribosome, protein synthesis, Mycobacterium smegmatis, hibernation promotion factor, RafH, hypoxia stress, Cryo- EM, Single particle reconstruction. ;; RIBOSOME
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	85.04 Å
回转半径 Rg (电子) rg_electron	85.62 Å
零角强度 I(0) i0	150700000000.00
分子量 molecular_weight	2117200.0 kDa
排除体积 excluded_volume	2155500 Å³
包络体积 envelope_volume	3877900 Å³
水化壳体积 shell_volume	348590 Å³
包络直径 envelope_diameter	277.6 Å
壳层 Rg shell_rg	99.07 Å
包络 Rg envelope_rg	83.45 Å
形状 Rg shape_rg	85.66 Å
总 Rg total_rg	85.59 Å
总原子数 total_atoms	142247
残基数 n_residues	9943
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	293.1 Å
Rg (实空间) rg_real	86.88 Å
Rg 误差 (实空间) rg_real_error	1.44 Å
I(0) (实空间) i0_real	1.4910e+11
I(0) 误差 (实空间) i0_real_error	2.9490e+09
Rg (倒空间) rg_reciprocal	86.53 Å
I(0) (倒空间) i0_reciprocal	151400000000.0000
解质量估计 total_estimate	0.9025
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	114.0 Å
偏度 Skewness skewness	0.318
峰度 Kurtosis kurtosis	-0.071
角度范围 angular_range	— – 0.0900 Å⁻¹
当前正则化参数 α current_alpha	1.2360
最高正则化参数 α highest_alpha	6971000000.0000
实空间数据点数 n_real_points	19
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.807; Stabil: 0.918; Sysdev: 1.000; Positv: 1.000; Valcen: 0.911; Smooth: 0.654

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (50)

Entity 1 polymer

描述 description	50S ribosomal protein L2
分子量 formula_weight	30425.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E
原子数 atom_count	142247

MGIRKYKPTTPGRRGASVSDFAEITRSTPEKSLVRPLHGKGGRNAHGRITTRHKGGGHKRAYRVIDFRRHDKDGVNAKVAHIEYDPNRTANIALLHYLDGEKRYIIAPQGLKQGDVIESGANADIKPGNNLPLRNIPAGTVIHAVELRPGGGAKLARSAGVSIQLLGKEGTYAALRMPSGEIRRVDVRCRATVGEVGNAEQSNINWGKAGRMRWKGKRPTVRGVVMNPVDHPHGGGEGKTSGGRHPVSPWGKPEGRTRKPNKPSDKLIVRRRRTGKKR

Entity 2 polymer

描述 description	50S ribosomal protein L3
分子量 formula_weight	23011.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

MARKGILGTKLGMTQVFDENNKVVPVTVVKAGPNVVTRIRTTERDGYSAVQLAYGEISPRKVIKPVAGQFAAAGVNPRRHVAELRLDDEAAVAEYEVGQELTAEIFSDGAYVDVTGTSKGKGFAGTMKRHGFRGQGAAHGAQAVHRRPGSIGGCATPGRVFKGTRMSGRMGNDRVTTQNLKVHKVDAENGVLLIKGAIPGRNGGLVVVRSAIKRGEK

Entity 3 polymer

描述 description	50S ribosomal protein L4
分子量 formula_weight	22920.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MTLKVDVKTPAGKTDGSVELPAELFDVEPNIALMHQVVTAQLAAKRQGTHSTKTRGEVSGGGKKPYRQKGTGRARQGSTRAPQFTGGGTVHGPKPRDYSQRTPKKMIAAALRGALSDRARNDRIHAVTELVEGQTPSTKSAKTFLGTLTENKKVLVVIGRTDEVGAKSVRNLPGVHVISPDQLNTYDVLNADDVVFSVEALNAYISANSKEGASV

Entity 4 polymer

描述 description	50S ribosomal protein L5
分子量 formula_weight	21152.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MTTTEKALPRLKQRYREEIREALQQEFNYANVMQIPGVVKVVVNMGVGDAARDAKLINGAINDLALITGQKPEVRRARKSIAQFKLREGMPIGARVTLRGDRMWEFLDRLISIALPRIRDFRGLSPKQFDGTGNYTFGLNEQSMFHEIDVDSIDRPRGMDITVVTTATNDAEGRALLRALGFPFKEN

Entity 5 polymer

描述 description	50S ribosomal protein L6
分子量 formula_weight	19483.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	I

MSRIGKQPVPVPSGVDVTINGQNLSVKGPKGTLTLDVAEPISVSRAEDGAIVVTRPDDERRSRSLHGLSRTLIANLVTGVTEGYTQKMEIFGVGYRVQLKGQNLEFALGYSHPVLIEAPEGITFAVESPTKFSVSGIDKQKVGQISAVIRRLRRPDPYKGKGVRYEGEQIRRKVGKTGK

Entity 6 polymer

描述 description	50S ribosomal protein L9
分子量 formula_weight	15949.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	J

MKLILTAEVEHLGAAGDTVEVKDGYGRNYLLPRGLAIVASRGAERQAEEIRRARESKVIRDIEHANELKTALEGLGDVTLSVNAAGDTGKLFGSVTAADVVNAIKKAGGPNLDKRTVQLAKAHIKSVGTHPVTVKLHTGVEAKVSLNVVAQ

Entity 7 polymer

描述 description	50S ribosomal protein L13
分子量 formula_weight	16146.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	M

MPTYTPKAGDTTRSWYVIDASDVVLGRLASAAATLLRGKHKPTFTPNVDGGDFVIVINADKIAVSGDKLTKKFAYRHSGYPGGLRKRTIGELLEKHPTRVVENAIIGMLPHNKLGRQIQKKLKVYAGPDHPHAAQQPIPFEIKQVAQ

Entity 8 polymer

描述 description	50S ribosomal protein L14
分子量 formula_weight	13400.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	N

MIQQESRLKVADNTGAKEILCIRVLGGSSRRYAGIGDVIVATVKDAIPGGNVKRGDVVKAVVVRTVKERRRADGSYIKFDENAAVIIKNDNDPRGTRIFGPVGRELREKKFMKIVSLAPEVL

Entity 9 polymer

描述 description	50S ribosomal protein L15
分子量 formula_weight	15602.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O

MSVIKLHDLKPAPGEKKAKTRVGRGEGSKGKTAGRGTKGTKARKNVPVMFEGGQMPIHMRLPKLKGFKNRFRTEYQVVNVGDINKAFPQGGTVGVDELVAKGLVRKNSLVKVLGDGKLTVKVDVTANKFSGSAREAITAAGGSATEL

Entity 10 polymer

描述 description	50S ribosomal protein L17
分子量 formula_weight	21892.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Q

MPKPTKGPRLGGSSSHQSALLANLATSLFEHGRIKTTEPKARALRPYAEKLITHAKKGALHNRREVMKKIRDKDVVHTLFAEIGPFYADRNGGYTRIIKVENRKGDNAPMAVIELVREKTVTDEANRARRAAASQAKADERADEKADEKAEETVEETTEAPAEESTEAAAEETVEETTEAPAEESTEAAEESEAKDDTK

Entity 11 polymer

描述 description	50S ribosomal protein L18
分子量 formula_weight	13711.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	R

MAHKPVGQNISEVRRNARLRRHARLRKKVAGTAEVPRLVVNRSARHIHVQLVNDLNGTTLAAASSIEADVRAIDGDKKAHSVRVGQLIAERAKAAGVETVVFDRGGYTYGGRIAALADAAREAGLKF

Entity 12 polymer

描述 description	50S ribosomal protein L19
分子量 formula_weight	12892.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	S

MNTLDFVDQASLRDDIPTFSPGDTVNVHVKVIEGSKERIQVFKGVVIRRQGGGISETFTVRKESYGVGVERTFPVHSPNIDHIDVLTRGDVRRAKLYYLRELRGKKAKIKEKR

Entity 13 polymer

描述 description	50S ribosomal protein L20
分子量 formula_weight	14494.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	T

MARVKRALNAQKKRRTVLKASKGYRGQRSRLYRKAKEQQLHSLTYAYRDRRARKGEFRKLWISRINAAARANDITYNRLIQGLKAAGVEVDRKNLAELAVSDPAAFTALVDVARAALPEDVNAPSGEAA

Entity 14 polymer

描述 description	50S ribosomal protein L21
分子量 formula_weight	11055.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	U

MATYAIVKTGGKQYKVAAGDVVKVEKLDSEPGASVSLPVALVVDGANVTSKADDLAKVAVTAEVLEHTKGPKIRIHKFKNKTGYHKRQGHRQQLTVLKVTGIK

Entity 15 polymer

描述 description	50S ribosomal protein L22
分子量 formula_weight	16353.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	V

MSTVTEFPSATAKARYVRVSATKARRVIDLVRGKSVEEALDILRWAPQAASEPVAKVIASAAANAQNNEGLDPSTLVVATVYADEGPTAKRIRPRAQGRAFRIRKRTSHITVIVESRPPKQKGASAASARSRRAQGSKAAATKKSAETKEGSE

Entity 16 polymer

描述 description	50S ribosomal protein L23
分子量 formula_weight	11047.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	W

MATITDPRDIILAPVISEKSYGLIEDNVYTFVVHPDSNKTQIKIAIEKIFDVKVDSVNTANRQGKRKRTRTGFGKRKSTKRAIVKLAAGSKPIDLFGAPA

Entity 17 polymer

描述 description	50S ribosomal protein L24
分子量 formula_weight	11228.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	X

MKVHKGDTVLVISGKDKGAKGKVLVAYPDRNKVLVEGVNRIKKHTAVSANERGASSGGIVTQEAPIHVSNVMVVDSDGKPTRVGYRIDDETGKKVRIAKTNGKDI

Entity 18 polymer

描述 description	50S ribosomal protein L27
分子量 formula_weight	9249.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Z

MAHKKGASSSRNGRDSAAQRLGVKRFGGQVVKAGEILVRQRGTHFHPGVNVGRGGDDTLFALAPGAVEFGAKRGRKTVNIVPVARPEA

Entity 19 polymer

描述 description	50S ribosomal protein L28
分子量 formula_weight	6891.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	1

MAAVCDICGKGPGFGKSVSHSHRRTSRRWNPNIQPVRAVTRPGGNKQRINACTSCIKAGKVSRA

Entity 20 polymer

描述 description	50S ribosomal protein L29
分子量 formula_weight	8790.9 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	2

MAVGTTPGELRELTDDELKDKLRESKEELFNLRFQMATGQLSNNRRLRTVRQEIARVYTVLRERELGLASGPAGEES

Entity 21 polymer

描述 description	50S ribosomal protein L30
分子量 formula_weight	7022.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	3

MAELKITQVRSTIGARWKQRESLRTLGLKKIRQSVVREDNAQTRGLINTVHHLVEVEEVGK

Entity 22 polymer

描述 description	50S ribosomal protein L32
分子量 formula_weight	6467.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	5

MAVPKRRMSRANTRSRRAQWKAEAPGLVTVSVAGQQRKVPRRLLKAARLGLVDLDKR

Entity 23 polymer

描述 description	50S ribosomal protein L33A
分子量 formula_weight	6468.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	6

MASSTDVRPKITLACEVCKHRNYITKKNRRNDPDRLEIKKFCPNCGTHQPHKESR

Entity 24 polymer

描述 description	50S ribosomal protein L34
分子量 formula_weight	5522.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	7

MAKGKRTFQPNNRRRARVHGFRLRMRTRAGRAIVANRRSKGRRALTA

Entity 25 polymer

描述 description	50S ribosomal protein L35
分子量 formula_weight	7298.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	8

MPKAKTHSGASKRFRRTGTGKIVRQKANRRHLLEHKPTKRTRRLDGRTTVSAADNSRINKLLNG

Entity 26 polymer

描述 description	50S ribosomal protein L31
分子量 formula_weight	8312.5 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	4

MKTGIHPEYVDTTVQCGCGHSFTTRSTKQSGTIVVEVCSQCHPFYTGKQKILDSGGRVARFEKRYGKRNKAAADK

Entity 27 polymer

描述 description	23S rRNA
分子量 formula_weight	1011834.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A

AAGUGUUUAAGGGCGCAUGGUGGAUGCCUUGGCACUGGGAGCCGAUGAAGGACGUAGGAGGCUGCGAUAAGCCUCGGGGAGCUGUCAACCGAGCGUUGAUCCGAGGAUGUCCGAAUGGGGAAACCCGGCACGAGUGAUGUCGUGUCACCAGGCGCUGAAUAUAUAGGCGUCUGGGGGGAACGCGGGGAAGUGAAACAUCUCAGUACCCGUAGGAAGAGAAAACAAAAUGUGAUUCCGUGAGUAGUGGCGAGCGAAAGCGGAGGAUGGCUAAACCGUAUGCAUGUGAUACCGGGUAGGGGUUGUGUGUGCGGGGUUGUGGGACCUAUCUUUCCGGCUCUACCUGGCUGGAGGGCAGUGAGAAAAUGUUGUGGUUAGCGGAAAUGGCUUGGGAUGGCCUGCCGUAGACGGUGAGAGCCCGGUACGUGAAAACCCGACGUCUGUCUUGAUGGUGUUCCCGAGUAGCAGCGGGCCCGUGGAAUCUGCUGUGAAUCUGCCGGGACCACCCGGUAAGCCUGAAUACUUCCCAGUGACCGAUAGCGGAUUAGUACCGUGAGGGAAUGGUGAAAAGUACCCCGGGAGGGGAGUGAAAGAGUACCUGAAACCGUGCGCUUACAAUCCGUCAGAGCCCUCGACGUGUCGUGGGGUGAUGGCGUGCCUUUUGAAGAAUGAGCCUGCGAGUCAGGGACAUGUCGCGAGGUUAACCCGGGUGGGGUAGCCGCAGCGAAAGCGAGUCUGAAUAGGGCGUAUCCACACAAGAGUGUGUGGUGUAGUGGUGUGUUCUGGACCCGAAGCGGAGUGAUCUACCCAUGGCCAGGGUGAAGCGCGGGUAAGACCGCGUGGAGGCCCGAACCCACUUAGGUUGAAGACUGAGGGGAUGAGCUGUGGGUAGGGGUGAAAGGCCAAUCAAACUCCGUGAUAGCUGGUUCUCCCCGAAAUGCAUUUAGGUGCAGCGUCGCAUGUUUCUUGCCGGAGGUAGAGCUACUGGAUGGCCGAUGGGCCCCACAGGGUUACUGACGUCAGCCAAACUCCGAAUGCCGGUAAGUCCAAGAGUGCGGCAGUGAGACGGCGGGGGAUAAGCUCCGUGCGUCGAGAGGGAAACAGCCCAGAUCGCCGGCUAAGGCCCCUAAGCGUGUGCUAAGUGGAAAAGGAUGUGCAGUCGCGAAGACAACCAGGAGGUUGGCUUAGAAGCAGCCACCCUUGAAAGAGUGCGUAAUAGCUCACUGGUCAAGUGAUUGUGCGCCGAUAAUGUAGCGGGGCUCAAGCACACCGCCGAAGCCGCGGCAGCCAACGUGUUGGCUGGGUAGGGGAGCGUCCUGCAUCCGGUGAAGCCGCCGAGUGAUCGAGUGGUGGAGGGUGUGGGAGUGAGAAUGCAGGCAUGAGUAGCGAUUAGGCAAGUGAGAACCUUGCCCGCCGAAAGACCAAGGGUUCCUGGGCCAGGCCAGUCCGCCCAGGGUGAGUCGGGACCUAAGGCGAGGCCGACAGGCGUAGUCGAUGGACAACGGGUUGAUAUUCCCGUACCCGUGUAUGUGCGUCCAUGAUGAAUCAGCGGUACUAACCAUCCAAAACCACCGUGACCGCACCUUUCGGGGUGUGGCGUUGGUGGGGCUGCAUGGGACCUUCGUUGGUAGUAGUCAAGCGAUGGGGUGACGCAGGAAGGUAGCCGUACCGGUCAGUGGUAAUACCGGGGUAAGCCUGUAGGGAGUCAGAUAGGUAAAUCCGUCUGGCAUAUAUCCUGAGAGGUGAUGCAUAGCCGAGUGAGGCGAAUUCGGUGAUCCUAUGCUGCCGAGAAAAGCCUCUAGCGAGGACAUACACGGCCCGUACCCCAAACCAACACAGGUGGUCAGGUAGAGAAUACUAAGGCGUACGAGUGAACUAUGGUUAAGGAACUCGGCAAAAUGCCCCCGUAACUUCGGGAGAAGGGGGACCCACAUGGCGUGUAAGCCUUUACGGCCCAAGCGUGAGUGGGUGGCACAAACCAGUGAGAAGCGACUGUUUACUAAAAACACAGGUCCGUGCGAAGUCGCAAGACGAUGUAUACGGACUGACGCCUGCCCGGUGCUGGAAGGUUAAGAGGACCCGUUAACUCCCUUUGGGGGUGAAGCGGAGAAUUUAAGCCCCAGUAAACGGCGGUGGUAACUAUAACCAUCCUAAGGUAGCGAAAUUCCUUGUCGGGUAAGUUCCGACCUGCACGAAUGGCGUAACGACUUCUCAACUGUCUCAACCAUAGACUCGGCGAAAUUGCACUACGAGUAAAGAUGCUCGUUACGCGCGGCAGGACGAAAAGACCCCGGGACCUUCACUACAACUUGGUAUUGGUGCUCGAUACGGUUUGUGUAGGAUAGGUGGGAGACUGUGAAGCUCACACGCCAGUGUGGGUGGAGUCGUUGUUGAAAUACCACUCUGAUCGUAUUGGGCCUCUAACCUCGGACCGUAUAUCCGGUUCAGGGACAGUGCCUGGUGGGUAGUUUAACUGGGGCGGUUGCCUCCUAAAAUGUAACGGAGGCGCCCAAAGGUUCCCUCAACCUGGACGGCAAUCAGGUGUUGAGUGUAAGUGCACAAGGGAGCUUGACUGCGAGACGGACAUGUCGAGCAGGGACGAAAGUCGGGACUAGUGAUCCGGCACCUCUGAGUGGAAGGGGUGUCGCUCAACGGAUAAAAGGUACCCCGGGGAUAACAGGCUGAUCUUCCCCAAGAGUCCAUAUCGACGGGAUGGUUUGGCACCUCGAUGUCGGCUCGUCGCAUCCUGGGGCUGGAGCAGGUCCCAAGGGUUGGGCUGUUCGCCCAUUAAAGCGGCACGCGAGCUGGGUUUAGAACGUCGUGAGACAGUUCGGUCUCUAUCCGCCGCGCGCGUCAGAAGCUUGAGGAAACCUGUCCCUAGUACGAGAGGACCGGGACGGACGAACCUCUGGUAUACCAGUUGUCCCACCAGGGGCACGGCUGGAUAGCCACGUUCGGACAGGAUAACCGCUGAAAGCAUCUAAGCGGGAAACCUCUUCCAAGACCAGGCUUCUCACCCUCUAGGAGGGAUAAGGCCCCCCGCAGACCACGGGAUUGAUAGACCAGACCUGGAAGCCUAGUAAUAGGUGCAGGGAACUGGCACUAACCGGCCGAAAACUUAC

Entity 28 polymer

描述 description	5S rRNA
分子量 formula_weight	38061.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GUUACGGCGGUCCAUAGCGGCAGGGAAACGCCCGGUCCCAUCCCGAACCCGGAAGCUAAGCCUGCCAGCGCCGAUGAUACUACCCAUCCGGGUGGAAAAGUAGGACACCGCCGAACAC

Entity 29 polymer

描述 description	E-tRNA
分子量 formula_weight	24465.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	C

CGCGGGGUGGAGCAGCCGGUAGCUCGUCUGGCUCAUAACCAGAAGAUCGUCGGUUCAAAUCCGGCCCCCGCAACCA

Entity 30 polymer

描述 description	16S rRNA
分子量 formula_weight	495373.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	a

UUUUUGUUUGGAGAGUUUGAUCCUGGCUCAGGACGAACGCUGGCGGCGUGCUUAACACAUGCAAGUCGAACGGAAAGGCCCUUUCGGGGGUACUCGAGUGGCGAACGGGUGAGUAACACGUGGGUGAUCUGCCCUGCACUUUGGGAUAAGCCUGGGAAACUGGGUCUAAUACCGAAUACACCCUGCUGGUCGCAUGGCCUGGUAGGGGAAAGCUUUUGCGGUGUGGGAUGGGCCCGCGGCCUAUCAGCUUGUUGGUGGGGUGAUGGCCUACCAAGGCGACGACGGGUAGCCGGCCUGAGAGGGUGACCGGCCACACUGGGACUGAGAUACGGCCCAGACUCCUACGGGAGGCAGCAGUGGGGAAUAUUGCACAAUGGGCGCAAGCCUGAUGCAGCGACGCCGCGUGAGGGAUGACGGCCUUCGGGUUGUAAACCUCUUUCAGCACAGACGAAGCGCAAGUGACGGUAUGUGCAGAAGAAGGACCGGCCAACUACGUGCCAGCAGCCGCGGUAAUACGUAGGGUCCGAGCGUUGUCCGGAAUUACUGGGCGUAAAGAGCUCGUAGGUGGUUUGUCGCGUUGUUCGUGAAAACUCACAGCUUAACUGUGGGCGUGCGGGCGAUACGGGCAGACUAGAGUACUGCAGGGGAGACUGGAAUUCCUGGUGUAGCGGUGGAAUGCGCAGAUAUCAGGAGGAACACCGGUGGCGAAGGCGGGUCUCUGGGCAGUAACUGACGCUGAGGAGCGAAAGCGUGGGGAGCGAACAGGAUUAGAUACCCUGGUAGUCCACGCCGUAAACGGUGGGUACUAGGUGUGGGUUUCCUUCCUUGGGAUCCGUGCCGUAGCUAACGCAUUAAGUACCCCGCCUGGGGAGUACGGCCGCAAGGCUAAAACUCAAAGGAAUUGACGGGGGCCCGCACAAGCGGCGGAGCAUGUGGAUUAAUUCGAUGCAACGCGAAGAACCUUACCUGGGUUUGACAUGCACAGGACGCCGGCAGAGAUGUCGGUUCCCUUGUGGCCUGUGUGCAGGUGGUGCAUGGCUGUCGUCAGCUCGUGUCGUGAGAUGUUGGGUUAAGUCCCGCAACGAGCGCAACCCUUGUCUCAUGUUGCCAGCACGUUAUGGUGGGGACUCGUGAGAGACUGCCGGGGUCAACUCGGAGGAAGGUGGGGAUGACGUCAAGUCAUCAUGCCCCUUAUGUCCAGGGCUUCACACAUGCUACAAUGGCCGGUACAAAGGGCUGCGAUGCCGUGAGGUGGAGCGAAUCCUUUCAAAGCCGGUCUCAGUUCGGAUCGGGGUCUGCAACUCGACCCCGUGAAGUCGGAGUCGCUAGUAAUCGCAGAUCAGCAACGCUGCGGUGAAUACGUUCCCGGGCCUUGUACACACCGCCCGUCACGUCAUGAAAGUCGGUAACACCCGAAGCCGGUGGCCUAACCCUUGUGGAGGGAGCCGUCGAAGGUGGGAUCGGCGAUUGGGACGAAGUCGUAACAAGGUAGCCGUACCGGAAGGUGCGGCUGGAUCACCUCCUUUCU

Entity 31 polymer

描述 description	30S ribosomal protein S22
分子量 formula_weight	4164.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	v

MGSVIKKRRKRMSKKKHRKLLRRTRVQRRKLGK

Entity 32 polymer

描述 description	30S ribosomal protein S3
分子量 formula_weight	30191.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	d

MGQKINPHGFRLGITTEWKSRWYADKQYKDYVKEDVAIRKLLATGLERAGIADVEIERTRDRVRVDIHTARPGIVIGRRGTEADRIRADLEKLTGKQVQLNILEVKNPESQAQLVAQGVAEQLSNRVAFRRAMRKAIQSAMRQPNVKGIRVQCSGRLGGAEMSRSEFYREGRVPLHTLRADIDYGLYEAKTTFGRIGVKVWIYKGDIVGGKRELAAAAPASDRPRRERPSGTRPRRSGSAGTTATSTEAGRAATSDAPAAGTAAAAEAPAESTES

Entity 33 polymer

描述 description	30S ribosomal protein S4
分子量 formula_weight	23415.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	e

MARYTGPATRKSRRLGVDLVGGDQSFEKRPYPPGQHGRARIKESEYRQQLQEKQKARFSYGVMEKQFRRYYEEANRQPGKTGDNLLRILESRLDNVVYRAGLARTRRMARQLVSHGHFLVNGVKVDIPSYRVSQYDIIDVKEKSLNTLPFQIARETAGERPIPSWLQVVGERQRILVHQLPERAQIDVPLTEQLIVELYSK

Entity 34 polymer

描述 description	30S ribosomal protein S5
分子量 formula_weight	21946.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	f

MAEQAGAGSAQDNRGGRGRRDDRGGRGRDGGDKSNYIERVVSINRVSKVVKGGRRFSFTALVIVGDGKGMVGVGYGKAKEVPAAIAKGVEEARKNFFRVPLIGSTITHPVQGEAAAGVVMLRPASPGTGVIAGGAARAVLECAGVHDILAKSLGSDNAINVVHATVAALKLLQRPEEVAARRGLPIEDVAPAGMLKARRESEALAAAAAREGSA

Entity 35 polymer

描述 description	30S ribosomal protein S6
分子量 formula_weight	10991.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	g

MRPYEIMVILDPTLDERTVAPSLETFLNVIRKDGGTVDKVDIWGRRRLAYEIAKHAEGIYAVIDVKAEPATVSELDRQLNLNESVLRTKVLRTDKH

Entity 36 polymer

描述 description	30S ribosomal protein S7
分子量 formula_weight	17660.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	h

MPRKGPAPKRPLVNDPVYGSQLVTQLVNKVLLEGKKSLAERIVYGALEQAREKTGTDPVVTLKRALDNVKPALEVRSRRVGGATYQVPVEVRPDRSTTLALRWLVNFSRQRREKTMVERLANEILDASNGLGASVKRREDTHKMAEANRAFAHYRW

Entity 37 polymer

描述 description	30S ribosomal protein S8
分子量 formula_weight	14492.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	i

MTMTDPIADFLTRLRNANSAYHDEVTLPHSKLKANIAEILKREGYISDYRTEDARVGKSLVVQLKYGPSRERSIAGLRRVSKPGLRVYAKSTNLPRVLGGLGVAIISTSSGLLTDRQAARQGVGGEVLAYVW

Entity 38 polymer

描述 description	30S ribosomal protein S9
分子量 formula_weight	16794.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	j

MTDVTETEVVTESAEPREPVIIDRPIQTVGRRKEAVVRVRLVPGTGQFNLDGRTLENYFPNKVHQQLIKAPLVTVDRVDQFDIYAHLDGGGPSGQAGALRLAIARALILVQPEDRPALKKAGFLTRDPRAIERKKYGLKKARKAPQYSKR

Entity 39 polymer

描述 description	30S ribosomal protein S10
分子量 formula_weight	11454.3 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	k

MAGQKIRIRLKAYDHEAIDASARKIVETVTRTGASVVGPVPLPTEKNVYCVIRSPHKYKDSREHFEMRTHKRLIDILDPTPKTVDALMRIDLPASVDVNIQ

Entity 40 polymer

描述 description	30S ribosomal protein S11
分子量 formula_weight	14671.8 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	l

MAQAKKGGTAAKKGQKTRRREKKNVPHGAAHIKSTFNNTIVSITDPQGNVIAWASSGHVGFKGSRKSTPFAAQLAAENAARKAQEHGVKKVDVFVKGPGSGRETAIRSLQAAGLEVGTISDVTPQPHNGCRPPKRRRV

Entity 41 polymer

描述 description	30S ribosomal protein S12
分子量 formula_weight	13896.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	m

MPTIQQLVRKGRRDKIAKVKTAALKGSPQRRGVCTRVYTTTPKKPNSALRKVARVKLTSQVEVTAYIPGEGHNLQEHSMVLVRGGRVKDLPGVRYKIIRGSLDTQGVKNRKQARSRYGAKKEKS

Entity 42 polymer

描述 description	30S ribosomal protein S13
分子量 formula_weight	14249.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	n

MARLVGVDLPRDKRMEIALTYIYGIGRTRSNEILAATGIDKNMRTKDLTDDQVTVLRDYIEGNLKVEGDLRREVQADIRRKIEIGCYQGLRHRRGLPVRGQRTKTNARTRKGPKRTIAGKKKAR

Entity 43 polymer

描述 description	30S ribosomal protein S14A
分子量 formula_weight	11792.7 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	o

MAKKSKIVKNEQRRELVQRYAERRAELKRTIRDPASSPERRAAAVSALQRLPRDSSPVRLRNRDVVDGRPRGHLRKFGLSRVRVREMAHRGELPGVRKASW

Entity 44 polymer

描述 description	30S ribosomal protein S15
分子量 formula_weight	10368.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	p

MALTAEQKKEILGQYGLHDTDTGSPEAQVALLTKRIQDLTEHLKVHKHDHHSRRGLLLLVGRRRRLLKYVAQVDVARYRSLIERLGLRR

Entity 45 polymer

描述 description	30S ribosomal protein S16
分子量 formula_weight	16795.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	q

MAVKIKLTRLGKIRNPQYRIIVADARTRRDGRAIEVIGRYHPKEEPSLIQIDSERAQYWLGVGAQPTEPVLALLKITGDWQKFKGLPGAEGTLKVKEPKPSKLDLFNAALAEAESGTTAAATTPKKKKAPKKDEAAEAPAEAAEAPAEAADAASES

Entity 46 polymer

描述 description	30S ribosomal protein S17
分子量 formula_weight	11127.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	r

MADQKGPKYTPAAEKPRGRRKTAIGYVVSDKMQKTIVVELEDRKSHPLYGKIIRTTKKVKAHDENGEAGIGDRVSLMETRPLSATKRWRLVEILEKAK

Entity 47 polymer

描述 description	30S ribosomal protein S18B
分子量 formula_weight	9524.2 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	s

MAKSNKRRPAPEKPVKTRKCVFCSKKGQTIDYKDTALLRTYISERGKIRARRVTGNCVQHQRDIAVAVKNAREVALLPFGSSTR

Entity 48 polymer

描述 description	30S ribosomal protein S19
分子量 formula_weight	10800.6 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	t

MPRSLKKGPFVDDHLLKKVDVQNEKNTKQVIKTWSRRSTIIPDFIGHTFAVHDGRKHVPVFVTEAMVGHKLGEFAPTRTFKGHIKDDRKSKRR

Entity 49 polymer

描述 description	30S ribosomal protein S20
分子量 formula_weight	9556.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	u

MANIKSQIKRIRTNERRRLRNQSVKSSLRTAIRGFREAVDAGDKDKASELLHATSRKLDKAASKGVIHPNQAANKKSALALALNKL

Entity 50 polymer

描述 description	Ribosome hibernation promotion factor RafH
分子量 formula_weight	29898.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	w

MDVDVSTDGELPGAAEYAREKIGRLSRRAHRPVLHARVRLTRHGDPAVERPVIAQANLDVNGRQVRAQVEGVNAREAVDRLEARLRSRLERIAEHWEARRGGVPAEAGREWRHESEPARRPGYFPRPPEERRIIRRKSFSMVPCTVDEAALEMEMLDYDFHLFTEKGTGFAAVLYKGGPTGYRLVLVIPVPADELSPFEKPITISTHPAPCLTQRDAVERLGLLGLPFLFYIDAAEGRASVIYRRYDGHYGLITPADGHHHHHH

来源 Source

来源生物 organism	Mycolicibacterium smegmatis MC2 155
NCBI 分类编号 ncbi_taxonomy_id	246196
宿主生物 host_organism	Escherichia coli BL21(DE3)

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.50 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	44299

fit	/app/data/saxs_computation/wi/8wib/8wib.fit
pddf	/app/data/pr_computation/wi/8wib/8wib.pr.out
profile	/app/data/saxs_computation/wi/8wib/8wib.dat

Cryo- EM structure of Mycobacterium smegmatis 70S ribosome, E- tRNA and RafH.

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

1. 结构基本信息 1. Structure Basics

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

4. 晶体学与实验 4. Crystallography & Experiment

冷冻电镜 EM 3D

5. 实体与聚合体信息 (50)

Entity 1 polymer

聚合体 Polymer

Entity 2 polymer

聚合体 Polymer

Entity 3 polymer

聚合体 Polymer

Entity 4 polymer

聚合体 Polymer

Entity 5 polymer

聚合体 Polymer

Entity 6 polymer

聚合体 Polymer

Entity 7 polymer

聚合体 Polymer

Entity 8 polymer

聚合体 Polymer

Entity 9 polymer

聚合体 Polymer

Entity 10 polymer

聚合体 Polymer

Entity 11 polymer

聚合体 Polymer

Entity 12 polymer

聚合体 Polymer

Entity 13 polymer

聚合体 Polymer

Entity 14 polymer

聚合体 Polymer

Entity 15 polymer

聚合体 Polymer

Entity 16 polymer

聚合体 Polymer

Entity 17 polymer

聚合体 Polymer

Entity 18 polymer

聚合体 Polymer

Entity 19 polymer

聚合体 Polymer

Entity 20 polymer

聚合体 Polymer

Entity 21 polymer

聚合体 Polymer

Entity 22 polymer

聚合体 Polymer

Entity 23 polymer

聚合体 Polymer

Entity 24 polymer

聚合体 Polymer

Entity 25 polymer

聚合体 Polymer

Entity 26 polymer

聚合体 Polymer

Entity 27 polymer

聚合体 Polymer

Entity 28 polymer

聚合体 Polymer

Entity 29 polymer

聚合体 Polymer

Entity 30 polymer

聚合体 Polymer

Entity 31 polymer

聚合体 Polymer

Entity 32 polymer

聚合体 Polymer

Entity 33 polymer

聚合体 Polymer

Entity 34 polymer

聚合体 Polymer

Entity 35 polymer

聚合体 Polymer

Entity 36 polymer
