SAXSdb — 8wmc

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8wmc
沉积日期 deposition_date	2023-10-03
结构标题 title	Cryo-EM structure of DiCas7-11-crRNA in complex with regulator
关键词 keywords	CRISPR-Cas, Gene editing, TPR-CHAT, IMMUNE SYSTEM; IMMUNE SYSTEM
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.03 Å
回转半径 Rg (电子) rg_electron	44.83 Å
零角强度 I(0) i0	930404000.00
分子量 molecular_weight	241230.0 kDa
排除体积 excluded_volume	297430 Å³
包络体积 envelope_volume	418210 Å³
水化壳体积 shell_volume	77851 Å³
包络直径 envelope_diameter	166.5 Å
壳层 Rg shell_rg	49.29 Å
包络 Rg envelope_rg	44.51 Å
形状 Rg shape_rg	44.85 Å
总 Rg total_rg	44.97 Å
总原子数 total_atoms	16929
残基数 n_residues	2021
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	158.3 Å
Rg (实空间) rg_real	45.19 Å
Rg 误差 (实空间) rg_real_error	1.39 Å
I(0) (实空间) i0_real	9.3040e+08
I(0) 误差 (实空间) i0_real_error	1.8900e+07
Rg (倒空间) rg_reciprocal	45.03 Å
I(0) (倒空间) i0_reciprocal	930200000.0000
解质量估计 total_estimate	0.8488
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	49.7 Å
偏度 Skewness skewness	0.490
峰度 Kurtosis kurtosis	-0.208
角度范围 angular_range	— – 0.1750 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	241300000.0000
实空间数据点数 n_real_points	36
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.731; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.941; Smooth: 0.897

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	CHAT domain-containing protein
分子量 formula_weight	88311.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B
原子数 atom_count	16929

MSNPIRDIQDRLKTAKFDNKDDMMNLASSLYKYEKQLMDSSEATLCQQGLSNRPNSFSQLSQFRDSDIQSKAGGQTGKFWQNEYEACKNFQTHKERRETLEQIIRFLQNGAEEKDADDLLLKTLARAYFHRGLLYRPKGFSVPARKVEAMKKAIAYCEIILDKNEEESEALRIWLYAAMELRRCGEEYPENFAEKLFYLANDGFISELYDIRLFLEYTEREEDNNFLDMILQENQDRERLFELCLYKARACFHLNQLNDVRIYGESAIDNAPGAFADPFWDELVEFIRMLRNKKSELWKEIAIKAWDKCREKEMKVGNNIYLSWYWARQRELYDLAFMAQDGIEKKTRIADSLKSRTTLRIQELNELRKDAHRKQNRRLEDKLDRIIEQENEARDGAYLRRNPPCFTGGKREEIPFARLPQNWIAVHFYLNELESHEGGKGGHALIYDPQKAEKDQWQDKSFDYKELHRKFLEWQENYILNEEGSADFLVTLCREIEKAMPFLFKSEVIPEDRPVLWIPHGFLHRLPLHAAMKSGNNSNIEIFWERHASRYLPAWHLFDPAPYSREESSTLLKNFEEYDFQNLENGEIEVYAPSSPKKVKEAIRENPAILLLLCHGEADMTNPFRSCLKLKNKDMTIFDLLTVEDVRLSGSRILLGACESDMVPPLEFSVDEHLSVSGAFLSHKAGEIVAGLWTVDSEKVDECYSYLVEEKDFLRNLQEWQMAETENFRSENDSSLFYKIAPFRIIGFPAE

来源 Source

来源生物 organism	Desulfonema ishimotonii
NCBI 分类编号 ncbi_taxonomy_id	45657
宿主生物 host_organism	Escherichia coli

Entity 2 polymer

描述 description	CRISPR-associated RAMP family protein
分子量 formula_weight	183933.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A

MTTTMKISIEFLEPFRMTKWQESTRRNKNNKEFVRGQAFARWHRNKKDNTKGRPYITGTLLRSAVIRSAENLLTLSDGKISEKTCCPGKFDTEDKDRLLQLRQRSTLRWTDKNPCPDNAETYCPFCELLGRSGNDGKKAEKKDWRFRIHFGNLSLPGKPDFDGPKAIGSQRVLNRVDFKSGKAHDFFKAYEVDHTRFPRFEGEITIDNKVSAEARKLLCDSLKFTDRLCGALCVIRFDEYTPAADSGKQTENVQAEPNANLAEKTAEQIISILDDNKKTEYTRLLADAIRSLRRSSKLVAGLPKDHDGKDDHYLWDIGKKKKDENSVTIRQILTTSADTKELKNAGKWREFCEKLGEALYLKSKDMSGGLKITRRILGDAEFHGKPDRLEKSRSVSIGSVLKETVVCGELVAKTPFFFGAIDEDAKQTDLQVLLTPDNKYRLPRSAVRGILRRDLQTYFDSPCNAELGGRPCMCKTCRIMRGITVMDARSEYNAPPEIRHRTRINPFTGTVAEGALFNMEVAPEGIVFPFQLRYRGSEDGLPDALKTVLKWWAEGQAFMSGAASTGKGRFRMENAKYETLDLSDENQRNDYLKNWGWRDEKGLEELKKRLNSGLPEPGNYRDPKWHEINVSIEMASPFINGDPIRAAVDKRGTDVVTFVKYKAEGEEAKPVCAYKAESFRGVIRSAVARIHMEDGVPLTELTHSDCECLLCQIFGSEYEAGKIRFEDLVFESDPEPVTFDHVAIDRFTGGAADKKKFDDSPLPGSPARPLMLKGSFWIRRDVLEDEEYCKALGKALADVNNGLYPLGGKSAIGYGQVKSLGIKGDDKRISRLMNPAFDETDVAVPEKPKTDAEVRIEAEKVYYPHYFVEPHKKVEREEKPCGHQKFHEGRLTGKIRCKLITKTPLIVPDTSNDDFFRPADKEARKEKDEYHKSYAFFRLHKQIMIPGSELRGMVSSVYETVTNSCFRIFDETKRLSWRMDADHQNVLQDFLPGRVTADGKHIQKFSETARVPFYDKTQKHFDILDEQEIAGEKPVRMWVKRFIKRLSLVDPAKHPQKKQDNKWKRRKEGIATFIEQKNGSYYFNVVTNNGCTSFHLWHKPDNFDQEKLEGIQNGEKLDCWVRDSRYQKAFQEIPENDPDGWECKEGYLHVVGPSKVEFSDKKGDVINNFQGTLPSVPNDWKTIRTNDFKNRKRKNEPVFCCEDDKGNYYTMAKYCETFFFDLKENEEYEIPEKARIKYKELLRVYNNNPQAVPESVFQSRVARENVEKLKSGDLVYFKHNEKYVEDIVPVRISRTVDDRMIGKRMSADLRPCHGDWVEDGDLSALNAYPEKRLLLRHPKGLCPACRLFGTGSYKGRVRFGFASLENDPEWLIPGKNPGDPFHGGPVMLSLLERPRPTWSIPGSDNKFKVPGRKFYVHHHAWKTIKDGNHPTTGKAIEQSPNNRTVEALAGGNSFSFEIAFENLKEWELGLLIHSLQLEKGLAHKLGMAKSMGFGSVEIDVESVRLRKDWKQWRNGNSEIPNWLGKGFAKLKEWFRDELDFIENLKKLLWFPEGDQAPRVCYPMLRKKDDPNGNSGYEELKDGEFKKEDRQKKLTTPWTPWA

来源 Source

来源生物 organism	Desulfonema ishimotonii
NCBI 分类编号 ncbi_taxonomy_id	45657
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	RNA (38-MER)
分子量 formula_weight	12134.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	R

UUGAUGUCACGGAACCUUUGUUGUCUUCGACAUGGGUA

来源 Source

来源生物 organism	Escherichia coli
NCBI 分类编号 ncbi_taxonomy_id	562
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.90 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	78984

fit	/app/data/saxs_computation/wm/8wmc/8wmc.fit
pddf	/app/data/pr_computation/wm/8wmc/8wmc.pr.out
profile	/app/data/saxs_computation/wm/8wmc/8wmc.dat

Cryo-EM structure of DiCas7-11-crRNA in complex with regulator

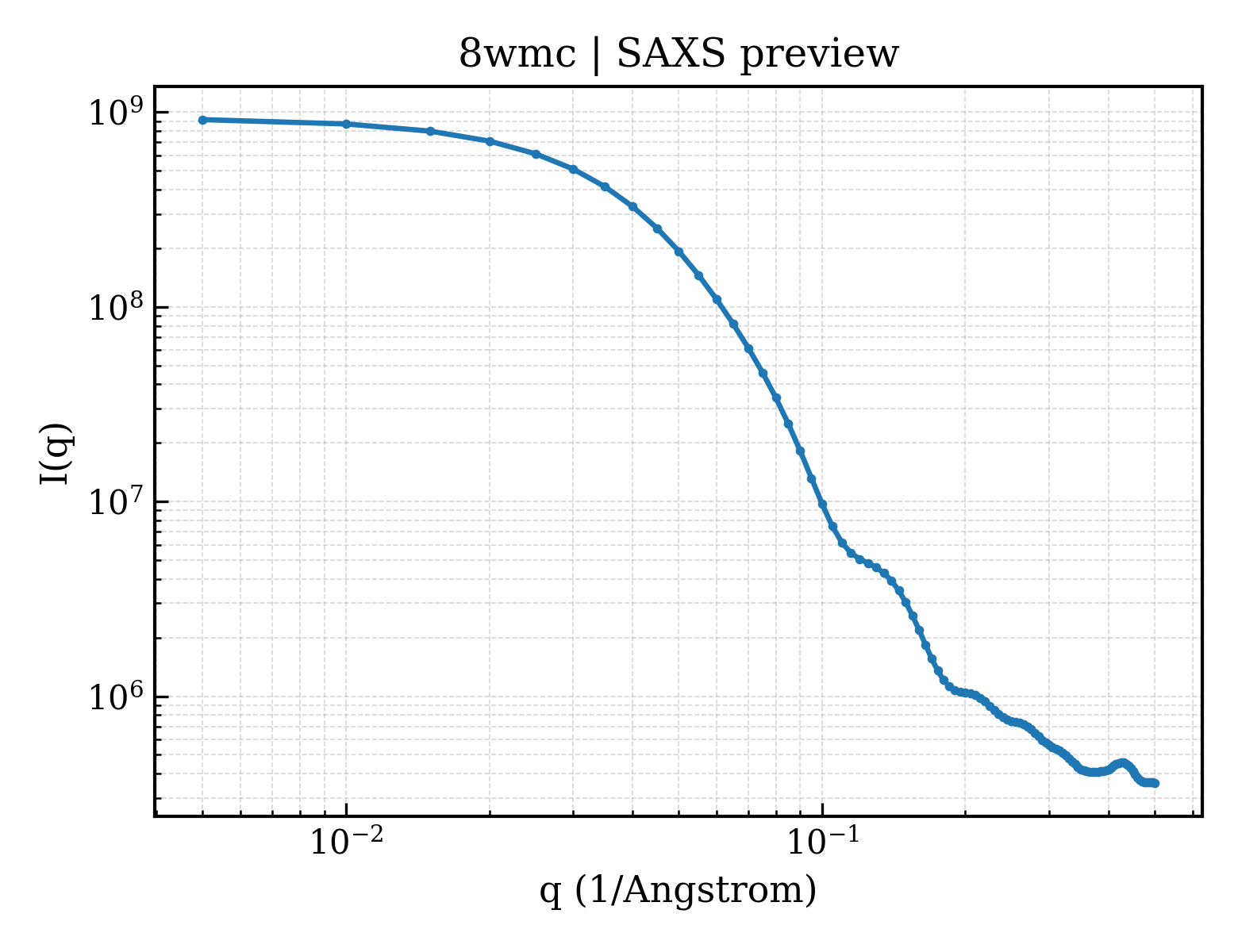

SAXS 散射曲线 SAXS Profile
