8wv2

;Crystal structure of urethanase from Candida parapsilosis and structure-based Engineering to improve the catalytic activity and stability ;

Method: X-RAY DIFFRACTION D_max: 232.9 Å Quality: GOOD

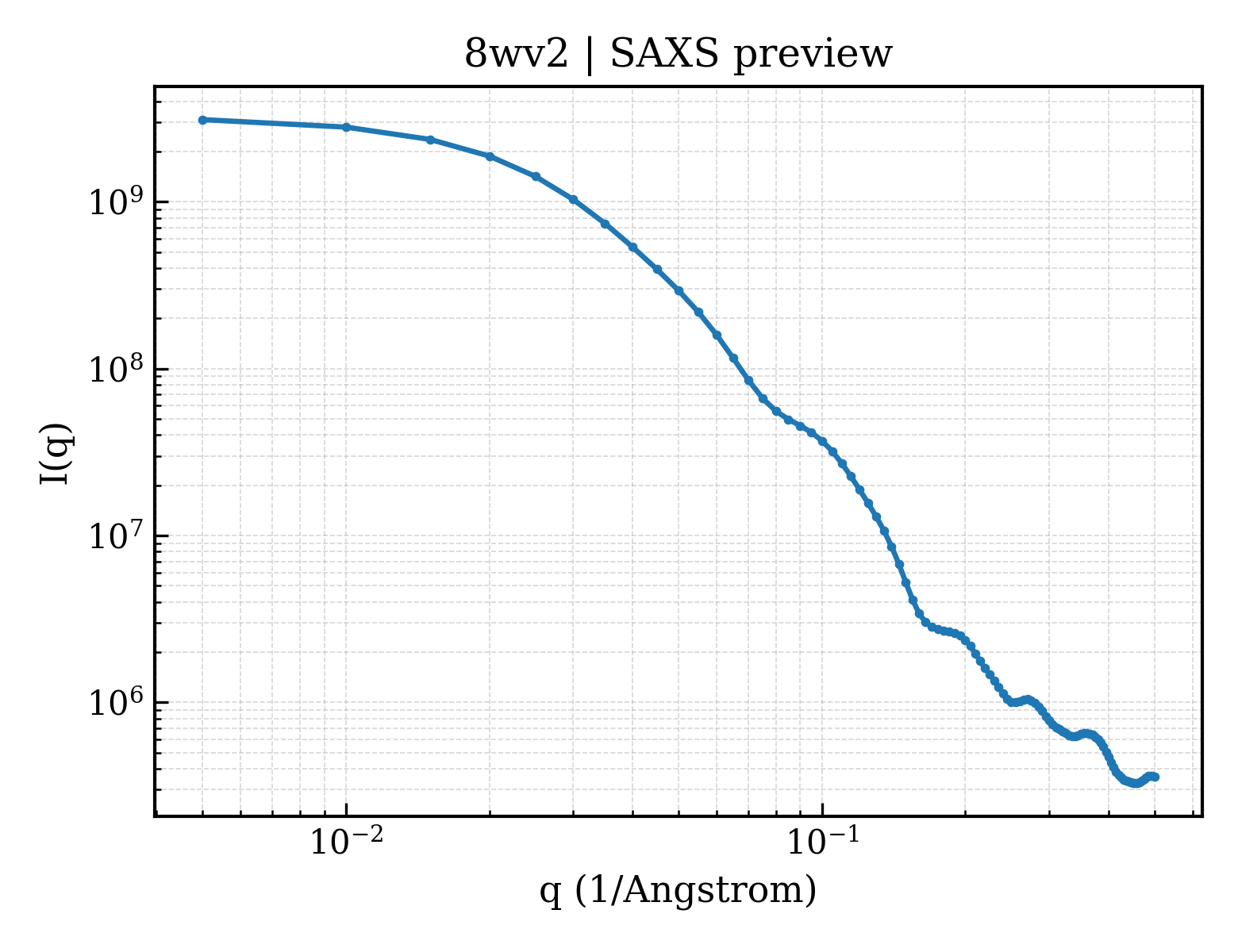

SAXS 散射曲线 SAXS Profile

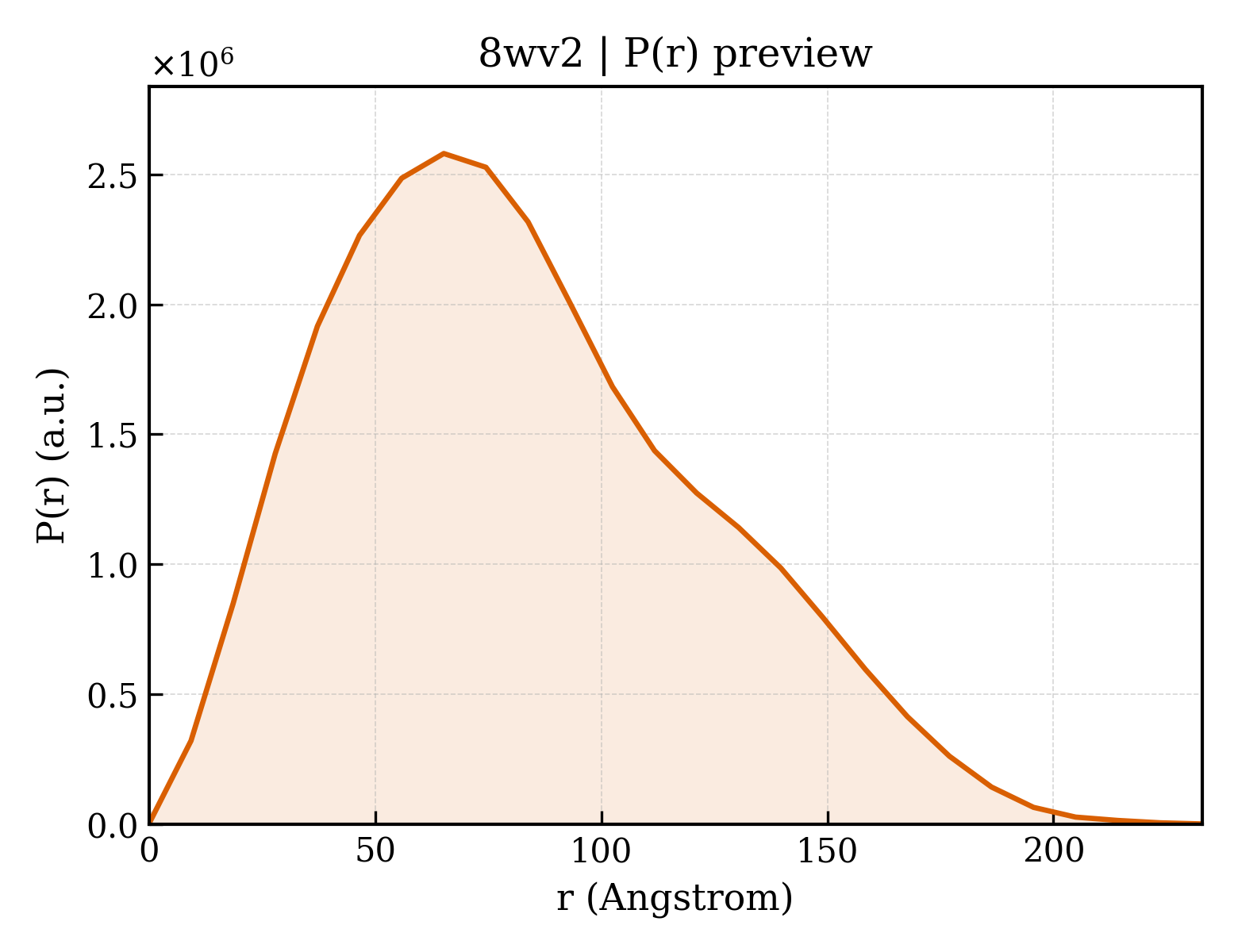

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8wv2
沉积日期 deposition_date	2023-10-22
最后修订 last_revision	2024-10-23
结构标题 title	;Crystal structure of urethanase from Candida parapsilosis and structure-based Engineering to improve the catalytic activity and stability ;
关键词 keywords	urethanase, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	63.98 Å
回转半径 Rg (电子) rg_electron	64.43 Å
零角强度 I(0) i0	3220930000.00
分子量 molecular_weight	493730.0 kDa
排除体积 excluded_volume	623530 Å³
包络体积 envelope_volume	850340 Å³
水化壳体积 shell_volume	113030 Å³
包络直径 envelope_diameter	227.4 Å
壳层 Rg shell_rg	61.63 Å
包络 Rg envelope_rg	63.21 Å
形状 Rg shape_rg	64.42 Å
总 Rg total_rg	64.39 Å
总原子数 total_atoms	34832
残基数 n_residues	4408
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	232.9 Å
Rg (实空间) rg_real	64.65 Å
Rg 误差 (实空间) rg_real_error	2.26 Å
I(0) (实空间) i0_real	3.2220e+09
I(0) 误差 (实空间) i0_real_error	7.4540e+07
Rg (倒空间) rg_reciprocal	63.48 Å
I(0) (倒空间) i0_reciprocal	3215000000.0000
解质量估计 total_estimate	0.8367
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	65.2 Å
偏度 Skewness skewness	0.490
峰度 Kurtosis kurtosis	-0.354
角度范围 angular_range	— – 0.1250 Å⁻¹
当前正则化参数 α current_alpha	0.0219
最高正则化参数 α highest_alpha	135100000.0000
实空间数据点数 n_real_points	26
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.714; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.973; Smooth: 0.758

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	Amidase family protein
分子量 formula_weight	61807.2 kDa
来源方法 src_method	man
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,E,F,G,H,D
原子数 atom_count	35789

MLTDNWKELAGKAQSTFQKSLKQAIELADFDEGLAKRYGALPSAIGANVEDFGSPAQFPLEEYLKALPKKVLDITEKDPVELLKDLKSRKVTCVEVLKAYTAASIVASKLTNCVQEFLPIEALQYAQKLDADYETKKHLPLYGLPFSIKEMIPFVGRSVTHGSLCYLDRIVDYNADIVNILIANGAYPFVRTTNPQSLMMLECVSFSHGRTVNAYNGMLTSGGSSGGEGALNGMRASPFGLGSDIGGSIRCPAAFNGIYGLRSTLGRIPTADYFSCNRGSESILSVTGPLSRSLDTVNLVMKTVIEAKPWLIDPTLVPLDWKRPENKKFRVGIYVSDHIVNPSPPINRALSMVTEKLKSLGNFEVVTFEPYKPEKVTEILGKLYFEDGARDFRATLQTGEPLLEQTRWAIEGAEDLDMHDQWYWNLQKQAYRKEFLKHWCSYTDNDGNVLDAVIAPVFPNVAAKHETTKYWTYTSQWNLLDYPVLAFPVTKVDESLDQPYKNYKPLNDLDKYFYEQYDSPSSFKNAPANLCLVGLRFTDEKLVEIANILRN

来源 Source

来源生物 organism	Candida parapsilosis
NCBI 分类编号 ncbi_taxonomy_id	5480
宿主生物 host_organism	Escherichia coli

Entity 2 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	957

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	63.420 Å
晶胞边长 b length_b	110.158 Å
晶胞边长 c length_c	180.584 Å
晶胞夹角 α angle_alpha	75.84 °
晶胞夹角 β angle_beta	83.62 °
晶胞夹角 γ angle_gamma	73.95 °
晶胞分子数 Z z_pdb	8

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	2.660 Å
最低分辨率 resolution_low	48.910 Å
R 因子 r_factor	0.2060
R_work r_work	0.2044
R_free r_free	0.2370

fit	/app/data/saxs_computation/wv/8wv2/8wv2.fit
pddf	/app/data/pr_computation/wv/8wv2/8wv2.pr.out
profile	/app/data/saxs_computation/wv/8wv2/8wv2.dat
