8x8g

;Crystal structure of EndoSz mutant D234M, from Streptococcus equi subsp. Zooepidemicus Sz105, in complex with oligosaccharide G2S2-oxazoline ;

Method: X-RAY DIFFRACTION D_max: 120.2 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

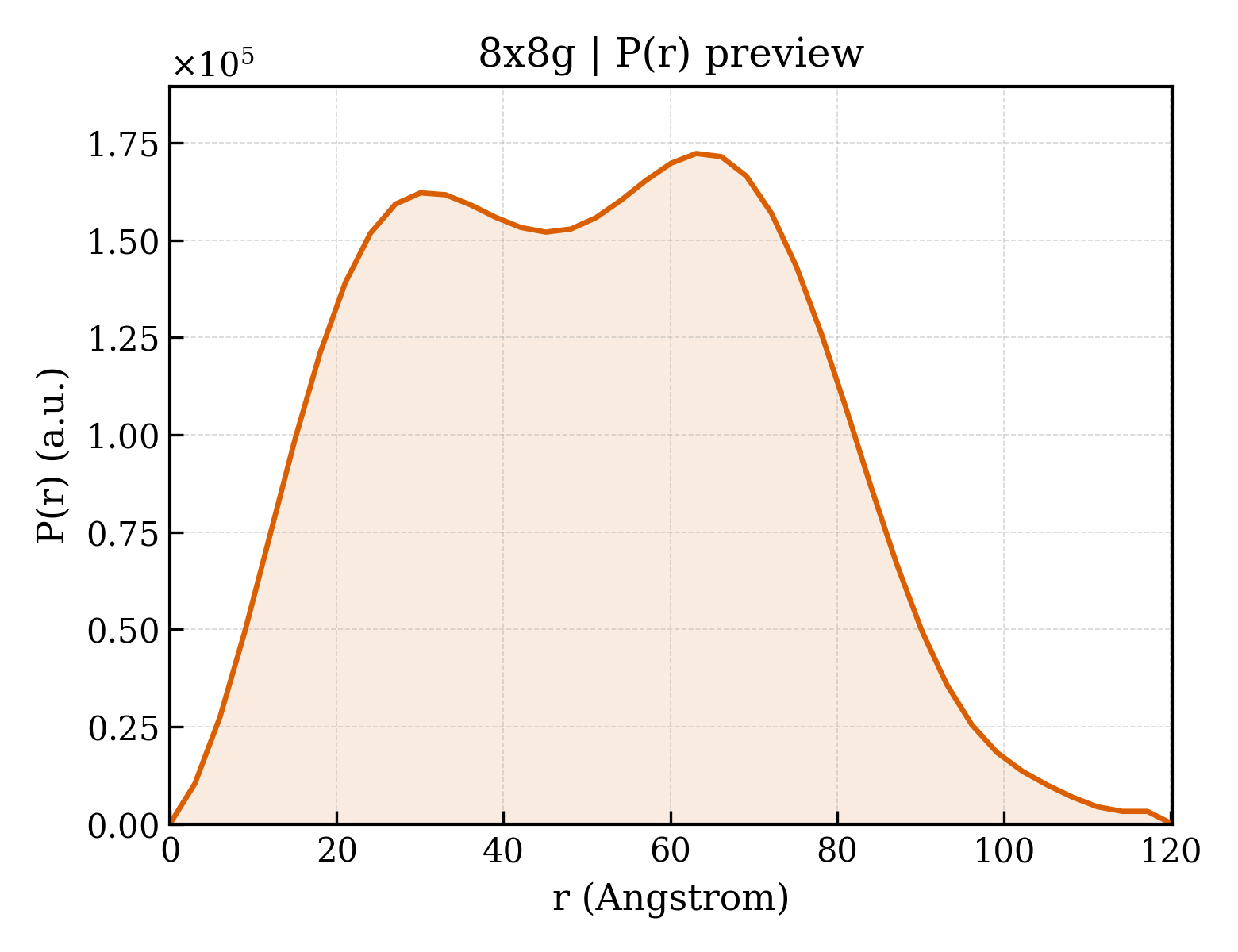

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8x8g
沉积日期 deposition_date	2023-11-27
结构标题 title	;Crystal structure of EndoSz mutant D234M, from Streptococcus equi subsp. Zooepidemicus Sz105, in complex with oligosaccharide G2S2-oxazoline ;
关键词 keywords	N-linked glycan, glycoside hydrolase, transglycosylation, HYDROLASE, G2S2-oxazoline; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	39.20 Å
回转半径 Rg (电子) rg_electron	38.72 Å
零角强度 I(0) i0	149045000.00
分子量 molecular_weight	99921.0 kDa
排除体积 excluded_volume	125560 Å³
包络体积 envelope_volume	180610 Å³
水化壳体积 shell_volume	39151 Å³
包络直径 envelope_diameter	129.7 Å
壳层 Rg shell_rg	44.76 Å
包络 Rg envelope_rg	37.47 Å
形状 Rg shape_rg	38.70 Å
总 Rg total_rg	39.19 Å
总原子数 total_atoms	7040
残基数 n_residues	876
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	120.2 Å
Rg (实空间) rg_real	39.18 Å
Rg 误差 (实空间) rg_real_error	1.15 Å
I(0) (实空间) i0_real	1.4900e+08
I(0) 误差 (实空间) i0_real_error	2.7990e+06
Rg (倒空间) rg_reciprocal	39.20 Å
I(0) (倒空间) i0_reciprocal	149000000.0000
解质量估计 total_estimate	0.8697
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	63.1 Å
偏度 Skewness skewness	0.116
峰度 Kurtosis kurtosis	-0.786
角度范围 angular_range	— – 0.2000 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	12430000.0000
实空间数据点数 n_real_points	41
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.902; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.955; Smooth: 0.642

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	glycoside hydrolase
分子量 formula_weight	107619.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	7334

MVAILAAQHDSLIRVKAEDKLVQTSPSVSAIDALHYLSENSKKEFKEELSKVEKAQPEKLKEIVSKAQQADKQAKTLAEMKVPEKIPMKPLKGPLYGGYFRTWHDKTSDPAEKDKVNSMGELPKEVDLAFVFHDWTKDYSLFWQELATKHVPTLNKQGTRVIRTIPWRFLAGGDHSGIAEDAQKYPNTPEGNKALAKAIVDEYVYKYNLDGLDVMIERDSIPKVNKEESKEGIERSIQVFEEIGKLIGPKGADKSRLFIMDSTYMADKNPLIERGAPYIDLLLVQVYGTQGEKGGFDNANHKAVDTMEERWESYSKYIRPEQYMVGFSFYEEKANSGNLWYDVNVEDDTNPNIGSEIKGTRAERYAKWQPKTGGVKGGIFSYGIDRDGVAHPKKNGPKTPDLDKIVKSDYKVSKALKKVMENDKSYELIDQKDFPDKALREAVIAQVGSRRGNLERFNGTLRLDNPDIKSLEGLNKLKKLAKLELIGLSQITKLDSSVLPENIKPTKDTLVSVLETYKNDDRKEEAKAIPQVALTISGLTGLKELNLAGFDRDSLAGIDAASLTSLEKVDLSSNKLDLAAGTENRQILDTMLATVTKHGGVSEKTFVFDHQKPTGLYPDTYGTKSLQLPVANDTIDLQAKLLFGTVTNQGTLINSEADYKAYQEQEIAGHRFVDSSYDYKAFAVTYKDYKIKVTDSTLGVTDHKDLSTSKEETYKVEFFSPINSTKPVHEAKIVVGEEKTMMVNLAEGATIIGGDADPTNAKKVFDGLLNNDTTTLSTSNKASIIFELKEPGLVKHWRFFNDSKISKADYIKEAKLEAFVGHLEDSSKVKDSLEKSTEWVTVSDYSGEAQEFSQPLNNIGAKYWRITIDNKKSQYGYVSLPELQIIGHRLPEAATVMTTMAAAEELSQQKDKFSQEQLKELEVKVAALKAALDNKMFNADTINASFADVKAYIDKHHHHHH

来源 Source

来源生物 organism	Streptococcus equi subsp. zooepidemicus Sz105
NCBI 分类编号 ncbi_taxonomy_id	1381089
宿主生物 host_organism	Escherichia coli

Entity 2 branched

描述 description	;N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[N-acetyl-alpha-neuraminic acid-(2-6)-beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose ;
分子量 formula_weight	1817.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 3 non-polymer

描述 description	2-METHYL-4,5-DIHYDRO-(1,2-DIDEOXY-ALPHA-D-GLUCOPYRANOSO)[2,1-D]-1,3-OXAZOLE
分子量 formula_weight	204.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	nat
拷贝数 entity_count	1

Entity 5 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	294

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	101.061 Å
晶胞边长 b length_b	232.603 Å
晶胞边长 c length_c	50.654 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	4

空间群 space_group	P 21 21 21
空间群编号 int_tables_number	19
晶系 crystal_system	—

分辨率 resolution	2.270 Å
最低分辨率 resolution_low	46.440 Å
R 因子 r_factor	0.2096
R_work r_work	0.2075
R_free r_free	0.2494
