SAXSdb — 8xa1

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xa1
沉积日期 deposition_date	2023-12-01
最后修订 last_revision	2025-04-30
结构标题 title	Portal vertex capsomer of VZV B-capsid
关键词 keywords	VZV, capsid structure, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.31 Å
回转半径 Rg (电子) rg_electron	66.51 Å
零角强度 I(0) i0	3257460000.00
分子量 molecular_weight	482940.0 kDa
排除体积 excluded_volume	605060 Å³
包络体积 envelope_volume	968240 Å³
水化壳体积 shell_volume	122400 Å³
包络直径 envelope_diameter	216.3 Å
壳层 Rg shell_rg	65.40 Å
包络 Rg envelope_rg	65.29 Å
形状 Rg shape_rg	66.51 Å
总 Rg total_rg	66.48 Å
总原子数 total_atoms	33981
残基数 n_residues	4496
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	234.0 Å
Rg (实空间) rg_real	66.40 Å
Rg 误差 (实空间) rg_real_error	2.42 Å
I(0) (实空间) i0_real	3.2580e+09
I(0) 误差 (实空间) i0_real_error	6.7840e+07
Rg (倒空间) rg_reciprocal	66.17 Å
I(0) (倒空间) i0_reciprocal	3256000000.0000
解质量估计 total_estimate	0.8649
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	58.5 Å
偏度 Skewness skewness	0.225
峰度 Kurtosis kurtosis	-0.690
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0022
最高正则化参数 α highest_alpha	448400000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.806; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.972; Smooth: 0.849

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (5)

Entity 1 polymer

描述 description	Major capsid protein
分子量 formula_weight	149896.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	33981

PAGIIPTGNVLSTIEVCAHRCIFDFFKQIRSDDNSLYSAQFDILLGTYCNTLNFVRFLELGLSVACICTKFPELAYVRDGVIQFEVQQPMIARDGPHPVDQPVHNYMVKRIHKRSLSAAFAIASEALSLLSNTYVDGTEIDSSLRIRAIQQMARNLRTVLDSFERGTADQLLGVLLEKAPPLSLLSPINKFQPEGHLNRVARAALLSDLKRRVCADMFFMTRHAREPRLISAYLSDMVSCTQPSVMVSRITHTNTRGRQVDGVLVTTATLKRQLLQGILQIDDTAADVPVTVLNGANLVTALVMGKAVRSLDDVGRHLLDMQEEQLENARVPADLVIVGDKLVFLEALERRVYQATRVAYPLIGNIDITFIMPMGVFQANSMDRYTRHAGDFSTVSEQDPRQFPPQGIFFYNKDGILTQLTLRDAMGTICHSSLLDVEATLVALRQQHLDRQCYFGVYVAEGTEDTLDVQMGRFMETWADMMPHHPHWVNEHLTILQFIAPSNPRLRFELNPAFDFFVAPGDVDLPGPQRPPEAMPTVNATLRIINGNIPVPLCPISFRDCRGTQLGLGRHTMTPATIKAVKDTFEDRAYPTIFYMLEAVIHGNERNFCALLRLLTQCIRGYWEQSHRVAFVNNFHMLMYITTYLGNGELPEVCINIYRDLLQHVRALRQTITDFTIQGEGHNGETSEALNNILTDDTFIAPILWDCDALIYRDEAARDRLPAIRVSGRNGYQALHFVDMAGHNFQRRDNVLIHGRPVRGDTGQAIPITPHHDREWGILSKIYYYIVIPAFSRGSCCTMGVRYDRLYPALQAVIVPEIPADEEAPTTPEDPRHPLHAHQLVPNSLNVYFHNAHLTVDGDALLTLQELMGDMAERTTAILVSSAPDAGAATATTRNMRIYDGALYHGLIMMAYQAYDETIATGTFFYPVPVNPLFACPEHLASLRGMTNARRVLAKMVPPIPPFLGANHHATIRQPVAYHVTHSKSDFNTLTYSLLGGYFKFTPISLTHQLRTGFHPGIAFTVVRQDRFATEQLLYAERASESYFVGQIQVHHHDAIGGVNFTLTQPRAHVDLGVGYTAVCATAALRCPLTDMGNTAQNLFFSRGGVPMLHDNVTESLRRITASGGRLNPTEPLPIFGGLRPATSAGIARGQASVCEFVAMPVSTDLQYFRTACNPRGRASGMLYMGDRDADIEAIMFDHTQSDVAYTDRATLNPWASQKHSYGDRLYNGTYNLTGASPIYSPCFKFFTPAEVNTNCNTLDRLLMEAKAVASQSSTDTEYQFKRPPGSTEMTQDPCGLFQEAYPPLCSSDAAMLRTAHAGETGADEVHLAQYLIRDASPLRGCLPL

来源 Source

来源生物 organism	Human alphaherpesvirus 3
NCBI 分类编号 ncbi_taxonomy_id	10335
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	major capsid protein
分子量 formula_weight	144341.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

IPAGIIPTGNVLSTIEVCIFFRFLELGLSVACICTKFPELAYVRDGVIQFEVQQPMIARDGPHPVDQPVHNYMVKRIHKRSLSAAFAIASEALSLLSNTYVDGTEIDSSLRIRAIQQMARNLRTVSDSFERGTADQLLGVLLEKAPPLSLLSPINKFQPEGHLNRVARAALLSDLKRRVCADMFFMTRHAREPRLISAYLSDMVSCTQPSVMVSRITHTNTRGRQVDGVLVTTATLKRQLLQGILQIDDTAADVPVTYGEMVLQGTNLVTALVMGKAVRNARVPADLVIVGDKLVFLEALERRVYQATRVAYPLIGNIDITFIMPMGVFQANSMDRYTRHAGDFSTVSEQDPRQFPPQGIFFYNKDGILTQLTLRDAMGTICHSSLLDVEATLVALRQQHLDRQCYFGVYVAEGTEDTLDVQMGRFMETWADMMPHHPHWVNEHLTILQFIAPSNPRLRFELNPAFDFFVAPGDVDLPGPQRPPEAMPTVNATLRIINGNIPVPLCPISFRDCRGTQLGLGRHTMTPATIKAVKDTFEDRAYPTIFYMLEAVIHGNERNFCALLRLLTQCIRGYWEQSHRVAFVNNFHMLMYITTYLGNGELPEVCINIYRDLLQHVRALRQTITDFTIQGEGHNGETSEALNNILTDDTFIAPILWDCDALIYRDEAARDRLPAIRVSGRNGYQALHFVDMAGHNFQRRDNVLIHGRPVRGDTGQAIPITPHHDREWGILSKIYYYIVIPAFSRGSCCTMGVRYDRLYPALQAVIVPEIPADEEAPTTPEDPRHPLHAHQLVPNSLNVYFHNAHLTVDGDALLTLQELMGDMAERTTAILVSSAPDAGAATATTRNMRIYDGALYHGLIMMAYQAYDETIATGTFFYPVPVNPLFACPEHLASLRGMTNARRVLAKMVPPIPPFLGANHHATIRQPVAYHVTHSKSDFNTLTYSLLGGYFKFTPISLTHQLRTGFHPGIAFTVVRQDRFATEQLLYAERASESYFVGQIQVHHHDAIGGVNFTLTQPRAHVDLGVGYTAVCATAALRCPLTDMGNTAQNLFFSRGGVPMLHDNVTESLRRITASGGRLNPTEPLPIFGGLRPATSAGIARGQASVCEFVAMPVSTDLQYFRTACNPRGRASGMLYMGDRDADIEAIMFDHTQSDVAYTDRATLNPWASQKHSYGDRLYNGTYNLTGASPIYSPCFKFFTPAEVNTNCNTLDRLLMEAKAVASQSSTDTEYQFKRPPGSTEMTQDPCGLFQEAYPPLCSSDAAMLRTAHAGETGADEVHLAQYLIRDASPLRGCLPL

来源 Source

来源生物 organism	Human alphaherpesvirus 3
NCBI 分类编号 ncbi_taxonomy_id	10335
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	Tri2A
分子量 formula_weight	32225.6 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G,I

AMPFEIEVLLPGELSPAETSALQKCEGKIITFSTLRHRASLVDIALSSYYINGAPPDTLSLLEAYRMRFAAVITRVIPGKLLAHAIGVGTPTPGLFIQNTSPVDLCNGDYICLLPPVFGSADSIRLDSVGLEIVFPLTIPQTLMREIIAKVVARAVEDLNPDPDLNVLYYNGARLSLVADVQQLASDAAIRTLVLNLMFSINEGCLLILALIPRLLALGYVNALLQMQSVTREAAQLIHPEAPMLMRRLPIYETISSWISTSSRLGDTLGTRAILRVCVFDGPSTVHPGDRTAVIQV

来源 Source

来源生物 organism	Human alphaherpesvirus 3
NCBI 分类编号 ncbi_taxonomy_id	10335
宿主生物 host_organism	Homo sapiens

Entity 4 polymer

描述 description	Tri2B
分子量 formula_weight	33420.5 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,R

AMPFEIEVLLPGEISPAETSALQKCEGKIITFSTLRHRASLVDIALSSYYINGAPPDTLSLLEAYRMRFAAVITRVIPGKLLAHAIGVGTPTPGLFIQNTSPVDLCNGDYICLLPPVFGSADEIRLDSVGLEIVFPLTIPQTLMREIIAKVVARAVERTAAGRTPGELPGADVICYNGRRYELETNLQHRDGSDAAIRTLVLNLMFSINEGTTLILTLITRLLVQGAHDGYVNLLIQTANCVRETGQPMPRIQDGHRRFPIYEAISSWISTSSRLGDTLGTRAILRVCVFDGPSTVHPGDRTAVIQV

来源 Source

来源生物 organism	Human alphaherpesvirus 3
NCBI 分类编号 ncbi_taxonomy_id	10335
宿主生物 host_organism	Homo sapiens

Entity 5 polymer

描述 description	Tri1
分子量 formula_weight	38719.1 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	Y,d

AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAIVINRMNNIQINPTSIGNPQTIRLPLNNFKSTTQLIQQVSLTDFFRPDIEHAGSTVLILRHPTDLPHLARHRAPPGRQTERLAEAWGQLLEASESGCARAYVTSLSFIAACRAEEYTDKQAAEANRTAIVSAYGCSRMGARLIRFSECLRAMVQCHVFPHRFISFFGSLLEYTIQDNLCNITAVAKGPQEAARTDKTSTRRVTANIPACVFWDVDKDLHLSADGLKHVFLVFVYTQRRQREGVRLHLALSQLNEQCFGRGIGFLLGARICMYAAYTLIGTIPSESVRYTRRMERFGGYNVPTIWLEGVVWGGTNTWNECY

来源 Source

来源生物 organism	Human alphaherpesvirus 3
NCBI 分类编号 ncbi_taxonomy_id	10335
宿主生物 host_organism	Homo sapiens

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	4.800 Å
最低分辨率 resolution_low	— Å
R 因子 r_factor	—
R_work r_work	—
R_free r_free	—

分辨率 resolution	4.80 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	25531

fit	/app/data/saxs_computation/xa/8xa1/8xa1.fit
pddf	/app/data/pr_computation/xa/8xa1/8xa1.pr.out
profile	/app/data/saxs_computation/xa/8xa1/8xa1.dat

Portal vertex capsomer of VZV B-capsid

SAXS 散射曲线 SAXS Profile

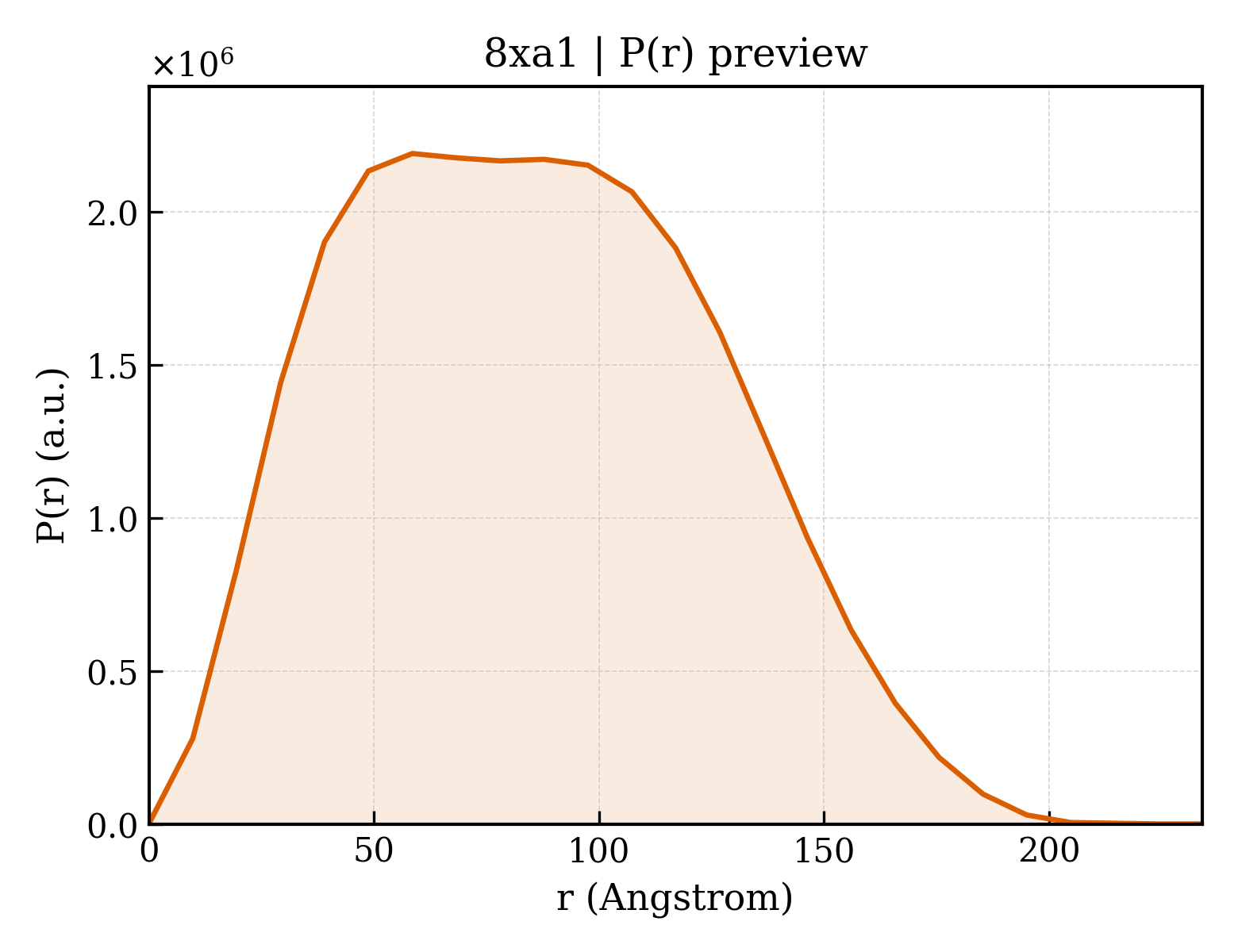

P(r) 距离分布 P(r) Distribution
