8xc4

Nipah virus attachment glycoprotein head domain in complex with a broadly neutralizing antibody 1E5

Method: X-RAY DIFFRACTION D_max: 157.8 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

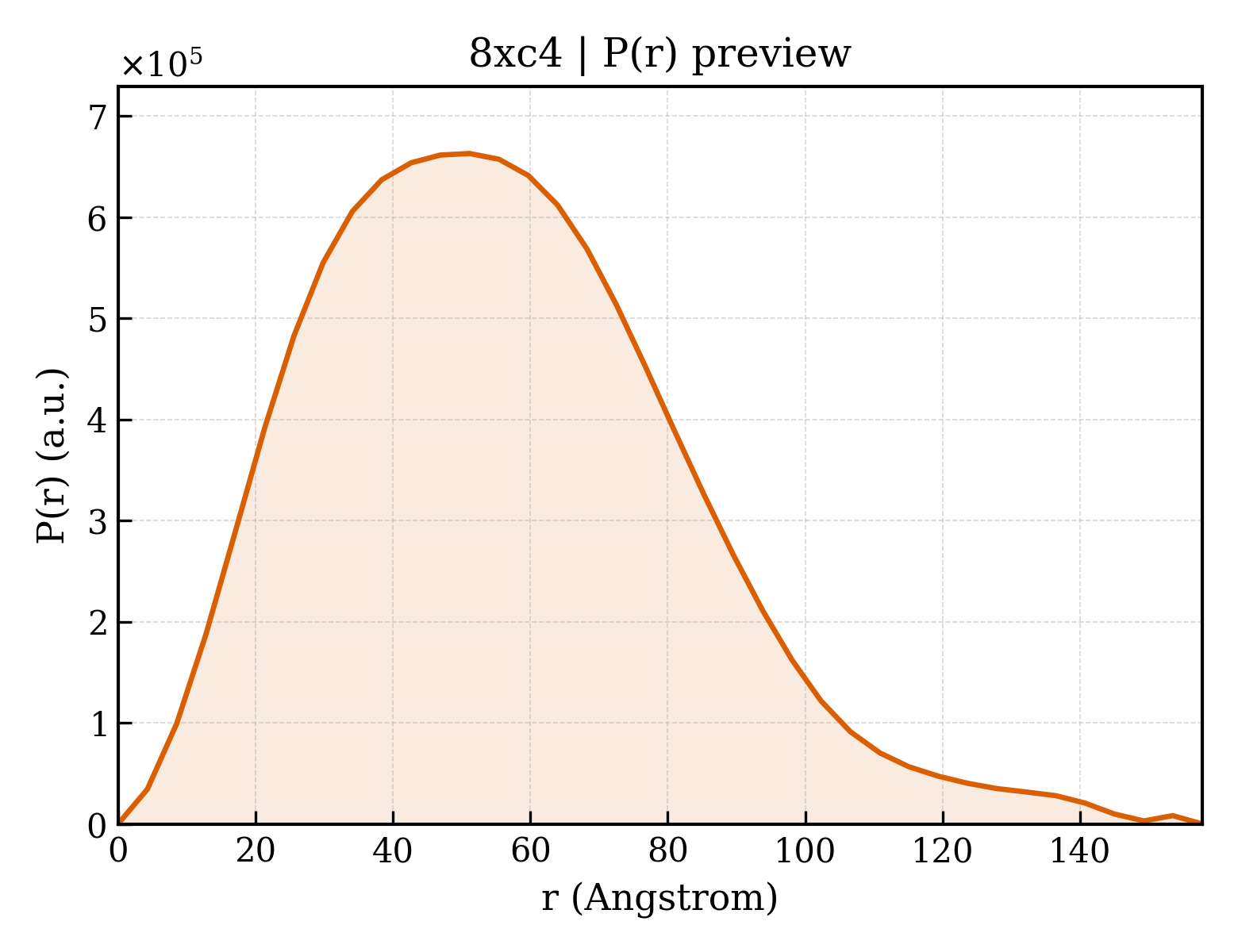

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xc4
沉积日期 deposition_date	2023-12-08
结构标题 title	Nipah virus attachment glycoprotein head domain in complex with a broadly neutralizing antibody 1E5
关键词 keywords	Henipavirus, Glycoprotein, Head domain, Antibody, ANTIVIRAL PROTEIN, ANTIVIRAL PROTEIN-IMMUNE SYSTEM complex; ANTIVIRAL PROTEIN/IMMUNE SYSTEM
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	43.24 Å
回转半径 Rg (电子) rg_electron	43.24 Å
零角强度 I(0) i0	569098000.00
分子量 molecular_weight	195840.0 kDa
排除体积 excluded_volume	244940 Å³
包络体积 envelope_volume	324390 Å³
水化壳体积 shell_volume	63684 Å³
包络直径 envelope_diameter	172.6 Å
壳层 Rg shell_rg	46.45 Å
包络 Rg envelope_rg	43.74 Å
形状 Rg shape_rg	43.21 Å
总 Rg total_rg	43.49 Å
总原子数 total_atoms	13778
残基数 n_residues	1736
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	157.8 Å
Rg (实空间) rg_real	43.48 Å
Rg 误差 (实空间) rg_real_error	1.94 Å
I(0) (实空间) i0_real	5.6910e+08
I(0) 误差 (实空间) i0_real_error	1.0300e+07
Rg (倒空间) rg_reciprocal	43.24 Å
I(0) (倒空间) i0_reciprocal	568900000.0000
解质量估计 total_estimate	0.8303
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	51.2 Å
偏度 Skewness skewness	0.564
峰度 Kurtosis kurtosis	0.228
角度范围 angular_range	— – 0.1850 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	134800000.0000
实空间数据点数 n_real_points	38
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.701; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.934; Smooth: 0.754

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	Glycoprotein
分子量 formula_weight	49310.7 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B
原子数 atom_count	13778

HHHHHHGSGGGSEGVSNLVGLPNNICLQKTSNQILKPKLISYTLPVVGQSGTCITDPLLAMDEGYFAYSHLEKIGSCSRGVSKQRIIGVGEVLDRGDEVPSLFMTNVWTPSNPNTVYHCSAVYNNEFYYVLCAVSVVGDPILNSTYWSGSLMMTRLAVKPKNNGESYNQHQFALRNIEKGKYDKVMPYGPSGIKQGDTLYFPAVGFLVRTEFKYNDSNCPIAECQYSKPENCRLSMGIRPNSHYILRSGLLKYNLSDEENSKIVFIEISDQRLSIGSPSKIYDSLGQPVFYQASFSWDTMIKFGDVQTVNPLVVNWRDNTVISRPGQSQCPRFNKCPEVCWEGVYNDAFLIDRINWISAGVFLDSNQTAENPVFTVFKDNEVLYRAQLASEDTNAQKTITNCFLLKNKIWCISLVEIYDTGDNVIRPKLFAVKIPEQCT

来源 Source

来源生物 organism	Henipavirus nipahense
NCBI 分类编号 ncbi_taxonomy_id	3052225
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	1E5-VH
分子量 formula_weight	26120.0 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C,E

QVQLQESGPGVVKPSETLSLTCAVSGGSISDTYRWSWIRQPPGKGLEWIGYIYGSATSTYYNPSLSSRVTISKDMSKNQFSLNLNSVTAADTAVYYCARDYQYYYSGSYPTPHNWFDVWGPGVLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSGLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHHHHHHH

来源 Source

来源生物 organism	Macaca mulatta
NCBI 分类编号 ncbi_taxonomy_id	9544
宿主生物 host_organism	Homo sapiens

Entity 3 polymer

描述 description	1E5-VL
分子量 formula_weight	23235.8 kDa
来源方法 src_method	man
拷贝数 entity_count	2

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D,F

DIQMTQSPSSLSASVGDRVTITCRASQGIIDYLSWYQQKPGKAPKLLISTASNLESGVPSRFSGSGSGTEFTLTISSLQPEDFATYSCLQGYTTPYTFGQGTKVEIKRTVAAPSVFIFPPSDEQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Macaca mulatta
NCBI 分类编号 ncbi_taxonomy_id	9544
宿主生物 host_organism	Homo sapiens

Entity 4 branched

描述 description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	732.7 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	894.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 6 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

Entity 7 branched

描述 description	;beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-3)][alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	878.8 kDa
来源方法 src_method	syn
拷贝数 entity_count	1

Entity 8 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	2

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	193.422 Å
晶胞边长 b length_b	193.422 Å
晶胞边长 c length_c	198.111 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	16

空间群 space_group	P 41 21 2
空间群编号 int_tables_number	92
晶系 crystal_system	—

分辨率 resolution	3.240 Å
最低分辨率 resolution_low	33.690 Å
R 因子 r_factor	0.2190
R_work r_work	0.2180
R_free r_free	0.2468

fit	/app/data/saxs_computation/xc/8xc4/8xc4.fit
pddf	/app/data/pr_computation/xc/8xc4/8xc4.pr.out
profile	/app/data/saxs_computation/xc/8xc4/8xc4.dat
