8xff

Cryo-EM structure of defence-associatedsirtuin 2 (DSR2) H171A protein in complex with SPR phage tail tube protein

Method: ELECTRON MICROSCOPY D_max: 189.0 Å Quality: REASONABLE

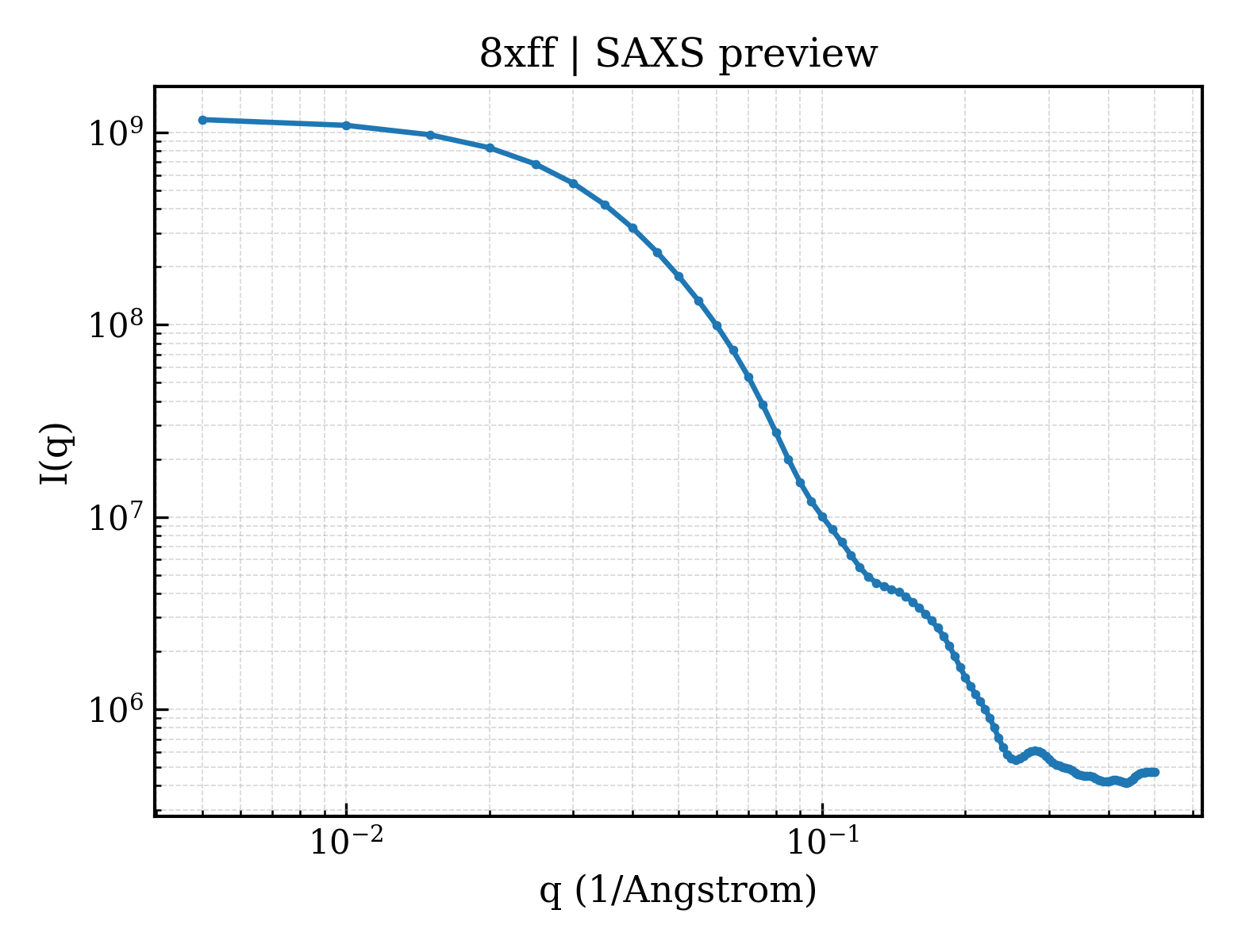

SAXS 散射曲线 SAXS Profile

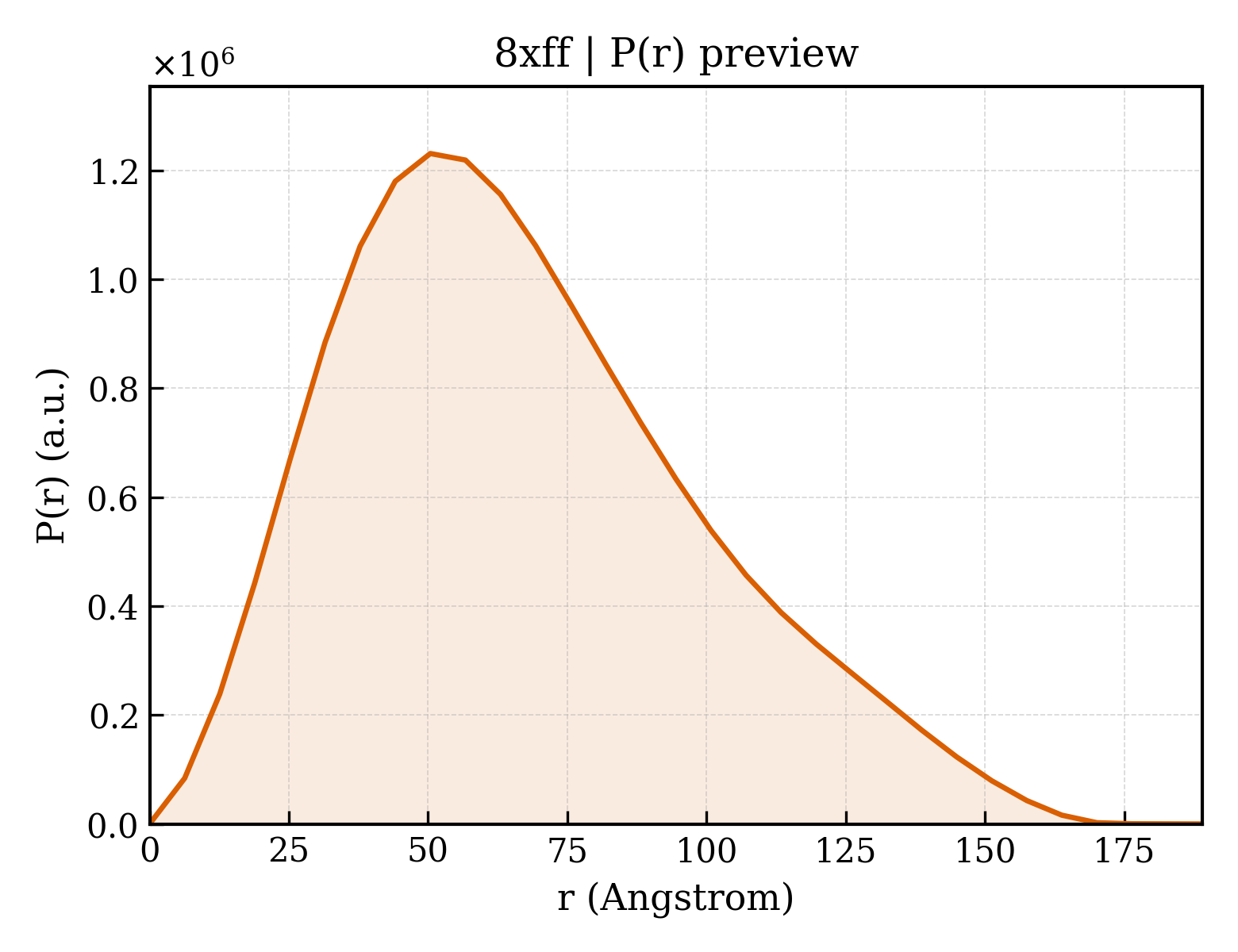

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xff
沉积日期 deposition_date	2023-12-13
最后修订 last_revision	2024-10-23
结构标题 title	Cryo-EM structure of defence-associatedsirtuin 2 (DSR2) H171A protein in complex with SPR phage tail tube protein
关键词 keywords	Cryo-EM, defence-associated sirtuin (DSR)DSR2, SPR phage tail tube, Phage invasion, CELL INVASION; CELL INVASION
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	52.14 Å
回转半径 Rg (电子) rg_electron	52.37 Å
零角强度 I(0) i0	1191420000.00
分子量 molecular_weight	298660.0 kDa
排除体积 excluded_volume	377640 Å³
包络体积 envelope_volume	536080 Å³
水化壳体积 shell_volume	87786 Å³
包络直径 envelope_diameter	183.5 Å
壳层 Rg shell_rg	52.58 Å
包络 Rg envelope_rg	52.21 Å
形状 Rg shape_rg	52.36 Å
总 Rg total_rg	52.42 Å
总原子数 total_atoms	21142
残基数 n_residues	2670
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	189.0 Å
Rg (实空间) rg_real	52.39 Å
Rg 误差 (实空间) rg_real_error	2.23 Å
I(0) (实空间) i0_real	1.1910e+09
I(0) 误差 (实空间) i0_real_error	2.4690e+07
Rg (倒空间) rg_reciprocal	51.92 Å
I(0) (倒空间) i0_reciprocal	1191000000.0000
解质量估计 total_estimate	0.6148
解质量评级 solution_quality	REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	50.4 Å
偏度 Skewness skewness	0.538
峰度 Kurtosis kurtosis	-0.236
角度范围 angular_range	— – 0.1500 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	222100000.0000
实空间数据点数 n_real_points	31
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.656; Stabil: 1.000; Sysdev: 0.062; Positv: 1.000; Valcen: 0.988; Smooth: 0.845

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (2)

Entity 1 polymer

描述 description	SPR tail tube protein
分子量 formula_weight	29304.7 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C
原子数 atom_count	21142

MKTVIQDTADVYFKRKSDGKLVFTAEAQTASFSQAISEEKLRGGIGNKPLYILKSEKEINLTVKNAFFDLEWLAMTQGETIQEETKVKVFDREHGLIVDDTNKVTLKGKPVSDVTFYNKKGLTYKIAVSTDGTYTIPTAFAAAKDKLTAVYQIEKVGRRLAIKASKFSERYEVEYRTIAYNPDTEEVYSDIYIQFPNVSPSGEFEMSLENGNALAPEIKFEALADTDTDEMAVVIEASRDENTAAPVEDTTGSTQSSDLGGTTE

来源 Source

来源生物 organism	Phage #D
NCBI 分类编号 ncbi_taxonomy_id	77920
宿主生物 host_organism	Bacteria Latreille et al. 1825

Entity 2 polymer

描述 description	DSR2(H171A)
分子量 formula_weight	118568.7 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,D,E

MVKVDLESKRYGEKLKEVFLMLDNNVVECIKEITESSRNGKLVFFVGAGVSTLSDYPQWWRLVDKYHEELYGSPKKGNYSSDEYLRIPQIFYNVKGEMAFDGILKDFFQVDKPTNPIHDKILAMNPAHVITTNYDNLIDTACWKRGKYFSVISAEEDVANATSSRYLLKVAGDFRKGFKGENVVLKEDDYLNYDQNYPLISNLMKTIIATHTIVFIGYGLGDYNINMLLNWVRKLQKDSFHKPFFIRTDPSPIENETLIYYENKGLRIIDAASLIDSNEYDYLERYSAVMDLLIESQENKFITKDDEVIDYIYGKISPLFALQYIRKIDLKHVFEYDYHFEVNGTVVRHKNKGFGYMERFFELKESCDERSKLSKKQYERFNALFNFFEKNGVICMAKDAGTLNTSIEINSLAYHGKYDVMKKFIEEQSVSIEDDYKKAFFLACLGRWEESYDLYSNIILNSIDESNGCVYYLSQINRYRIYQSITQAVTQFNGLGLLTFGRHYKPFTDEFLARIEREMTNFNIDDLFNGMPFEFQKKYKILEFLSDNQFLYDDTVKLFELTNKVRSEMSEGSYSFGMSSDIVVLLRLYDNLRFLYENCLWSVSFHEFHQYIRNSMSLLIEKAEYERTRDIDELGFSFFGKKSGFFMEYYDFVNISRHFKIDDIKNLERSCSIDKIRFGEQEKIEEYLVGIAEEITKQFSANGMNVVFYTQFISEAKAALYFAKYVKLSEEGLGKIVKALLFYFPERDLDIGKRYVWLERLTKCNELPKSIISIIDDFLVLQAEKHIDQNYSEVSSNGLYSRDYGALIKHFEKNFISKRLSEITLCLTQDKQKQIDFLFKLLPLLSTNAKSHLLSFKSVENINDLMNGIRIGLIDEFTPEHEELIIEYLETRKVNYIVEKEKGIQTFSSNDYMSTFGIWYFLEEINNSKMEEFIGMDDQYDFFVDPENFDYKKFIPSWLKNYNDKLLGKIAGNKHMKHHVIEVLKERVKNSNDKRYLEILMNYFI

来源 Source

来源生物 organism	Bacillus sp. DSM 5850
NCBI 分类编号 ncbi_taxonomy_id	126787
宿主生物 host_organism	Bacteria Latreille et al., 1825

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.16 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	102635

fit	/app/data/saxs_computation/xf/8xff/8xff.fit
pddf	/app/data/pr_computation/xf/8xff/8xff.pr.out
profile	/app/data/saxs_computation/xf/8xff/8xff.dat
