SAXSdb — 8xlf

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xlf
沉积日期 deposition_date	2023-12-25
最后修订 last_revision	2024-10-30
结构标题 title	Structure of chimeric RyR
关键词 keywords	Ryanodine receptor, Ion channel, Membrane protein; MEMBRANE PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	102.20 Å
零角强度 I(0) i0	39776700000.00
分子量 molecular_weight	1686300.0 kDa
排除体积 excluded_volume	2099500 Å³
包络体积 envelope_volume	4477100 Å³
水化壳体积 shell_volume	352720 Å³
包络直径 envelope_diameter	372.3 Å
壳层 Rg shell_rg	103.50 Å
包络 Rg envelope_rg	100.30 Å
形状 Rg shape_rg	102.40 Å
总 Rg total_rg	101.50 Å
总原子数 total_atoms	118944
残基数 n_residues	16648
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	268.9 Å
Rg (实空间) rg_real	99.50 Å
Rg 误差 (实空间) rg_real_error	0.64 Å
I(0) (实空间) i0_real	3.7960e+10
I(0) 误差 (实空间) i0_real_error	7.2850e+08
Rg (倒空间) rg_reciprocal	103.70 Å
I(0) (倒空间) i0_reciprocal	39790000000.0000
解质量估计 total_estimate	0.9102
解质量评级 solution_quality	EXCELLENT a EXCELLENT solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	125.5 Å
偏度 Skewness skewness	0.125
峰度 Kurtosis kurtosis	-0.666
角度范围 angular_range	— – 0.0750 Å⁻¹
当前正则化参数 α current_alpha	0.9329
最高正则化参数 α highest_alpha	5137000000.0000
实空间数据点数 n_real_points	16
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.001; Oscil: 0.998; Stabil: 0.962; Sysdev: 1.000; Positv: 1.000; Valcen: 0.956; Smooth: 0.000

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (7)

Entity 1 polymer

描述 description	Ryanodine receptor 1
分子量 formula_weight	565880.5 kDa
突变 mutation	R4563K, F4564Y,C4657I, L4792S
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C,D
原子数 atom_count	118944

MGDGGEGEDEVQFLRTDDEVVLQCSATVLKEQLKLCLAAEGFGNRLCFLEPTSNAQNVPPDLAICCFTLEQSLSVRALQEMLANTVEAGVESSQGGGHRTLLYGHAILLRHAHSRMYLSCLTTSRSMTDKLAFDVGLQEDATGEACWWTMHPASKQRSEGEKVRVGDDLILVSVSSERYLHLSTASGELQVDASFMQTLWNMNPICSCCEEGYVTGGHVLRLFHGHMDECLTISAADSDDQRRLVYYEGGAVCTHARSLWRLEPLRISWSGSHLRWGQPLRIRHVTTGRYLALTEDQGLVVVDACKAHTKATSFCFRVSKEKLDTAPKRDVEGMGPPEIKYGESLCFVQHVASGLWLTYAAPDPKALRLGVLKKKAILHQEGHMDDALFLTRCQQEESQAARMIHSTAGLYNQFIKGLDSFSGKPRGSGPPAGPALPIEAVILSLQDLIGYFEPPSEELQHEEKQSKLRSLRNRQSLFQEEGMLSLVLNCIDRLNVYTTAAHFAEYAGEEAAESWKEIVNLLYELLASLIRGNRANCALFSTNLDWVVSKLDRLEASSGILEVLYCVLIESPEVLNIIQENHIKSIISLLDKHGRNHKVLDVLCSLCVCNGVAVRSNQDLITENLLPGRELLLQTNLINYVTSIRPNIFVGRAEGSTQYGKWYFEVMVDEVVPFLTAQATHLRVGWALTEGYSPYPGGGEGWGGNGVGDDLYSYGFDGLHLWTGHVARPVTSPGQHLLAPEDVVSCCLDLSVPSISFRINGCPVQGVFEAFNLDGLFFPVVSFSAGVKVRFLLGGRHGEFKFLPPPGYAPCHEAVLPRERLRLEPIKEYRREGPRGPHLVGPSRCLSHTDFVPCPVDTVQIVLPPHLERIREKLAENIHELWALTRIEQGWTYGPVRDDNKRLHPCLVNFHSLPEPERNYNLQMSGETLKTLLALGCHVGMADEKAEDNLKKTKLPKTYMMSNGYKPAPLDLSHVRLTPAQTTLVDRLAENGHNVWARDRVAQGWSYSAVQDIPARRNPRLVPYRLLDEATKRSNRDSLCQAVRTLLGYGYNIEPPDQEPSQVENQSRWDRVRIFRAEKSYTVQSGRWYFEFEAVTTGEMRVGWARPELRPDVELGADELAYVFNGHRGQRWHLGSEPFGRPWQSGDVVGCMIDLTENTIIFTLNGEVLMSDSGSETAFREIEIGDGFLPVCSLGPGQVGHLNLGQDVSSLRFFAICGLQEGFEPFAINMQRPVTTWFSKSLPQFEPVPPEHPHYEVARMDGTVDTPPCLRLAHRTWGSQNSLVEMLFLRLSLPVQFHQHFRCTAGATPLAPPGLQPPAEDEARAAEPDPDYENLRRSAGGWGEAEGGKEGTAKEGTPGGTPQPGVEAQPVRAENEKDATTEKNKKRGFLFKAKKAAMMTQPPATPALPRLPHDVVPADNRDDPEIILNTTTYYYSVRVFAGQEPSCVWVGWVTPDYHQHDMNFDLSKVRAVTVTMGDEQGNVHSSLKCSNCYMVWGGDFVSPGQQGRISHTDLVIGCLVDLATGLMTFTANGKESNTFFQVEPNTKLFPAVFVLPTHQNVIQFELGKQKNIMPLSAAMFLSERKNPAPQCPPRLEVQMLMPVSWSRMPNHFLQVETRRAGERLGWAVQCQDPLTMMALHIPEENRCMDILELSERLDLQRFHSHTLRLYRAVCALGNNRVAHALCSHVDQAQLLHALEDAHLPGPLRAGYYDLLISIHLESACRSRRSMLSEYIVPLTPETRAITLFPPGRKGGNARRHGLPGVGVTTSLRPPHHFSPPCFVAALPAAGVAEAPARLSPAIPLEALRDKALRMLGEAVRDGGQHARDPVGGSVEFQFVPVLKLVSTLLVMGIFGDEDVKQILKMIEPEVFTEEEEEEEEEEEEEEEEEEDEEEKEEDEEEEEKEDAEKEEEEAPEGEKEDLEEGLLQMKLPESVKLQMCNLLEYFCDQELQHRVESLAAFAERYVDKLQANQRSRYALLMRAFTMSAAETARRTREFRSPPQEQINMLLHFKDEADEEDCPLPEDIRQDLQDFHQDLLAHCGIQLEGEEEEPEEETSLSSRLRSLLETVRLVKKKEEKPEEELPAEEKKPQSLQELVSHMVVRWAQEDYVQSPELVRAMFSLLHRQYDGLGELLRALPRAYTISPSSVEDTMSLLECLGQIRSLLIVQMGPQEENLMIQSIGNIMNNKVFYQHPNLMRALGMHETVMEVMVNVLGGGETKEIRFPKMVTSCCRFLCYFCRISRQNQRSMFDHLSYLLENSGIGLGMQGSTPLDVAAASVIDNNELALALQEQDLEKVVSYLAGCGLQSCPMLLAKGYPDIGWNPCGGERYLDFLRFAVFVNGESVEENANVVVRLLIRKPECFGPALRGEGGSGLLAAIEEAIRISEDPARDGPGVRRDRRREHFGEEPPEENRVHLGHAIMSFYAALIDLLGRCAPEMHLIQAGKGEALRIRAILRSLVPLDDLVGIISLPLQIPTLGKDGALVQPKMSASFVPDHKASMVLFLDRVYGIENQDFLLHVLDVGFLPDMRAAASLDTATFSTTEMALALNRYLCLAVLPLITKCAPLFAGTEHRAIMVDSMLHTVYRLSRGRSLTKAQRDVIEDCLMALCRYIRPSMLQHLLRRLVFDVPILNEFAKMPLKLLTNHYERCWKYYCLPTGWANFGVTSEEELHLTRKLFWGIFDSLAHKKYDQELYRMAMPCLCAIAGALPPDYVDASYSSKAEKKATVDAEGNFDPRPVETLNVIIPEKLDSFINKFAEYTHEKWAFDKIQNNWSYGENVDEELKTHPMLRPYKTFSEKDKEIYRWPIKESLKAMIAWEWTIEKAREGEEERTEKKKTRKISQTAQTYDPREGYNPQPPDLSGVTLSRELQAMAEQLAENYHNTWGRKKKQELEAKGGGTHPLLVPYDTLTAKEKARDREKAQELLKFLQMNGYAVTRGLKDMELDTSSIEKRFAFGFLQQLLRWMDISQEFIAHLEAVVSSGRVEKSPHEQEIKFFAKILLPLINQYFTNHCLYFLSTPAKVLGSGGHASNKEKEMITSLFCKLAALVRHRVSLFGTDAPAVVNCLHILARSLDARTVMKSGPEIVKAGLRSFFESASEDIEKMVENLRLGKVSQARTQVKGVGQNLTYTTVALLPVLTTLFQHIAQHQFGDDVILDDVQVSCYRTLCSIYSLGTTKNTYVEKLRPALGECLARLAAAMPVAFLEPQLNEYNACSVYTTKSPRERAILGLPNSVEEMCPDIPVLDRLMADIGGLAESGARYTEMPHVIEITLPMLCSYLPRWWERGPEAPPPALPAGAPPPCTAVTSDHLNSLLGNILRIIVNNLGIDEATWMKRLAVFAQPIVSRARPELLHSHFIPTIGRLRKRAGKVVAEEEQLRLEAKAEAEEGELLVRDEFSVLCRDLYALYPLLIRYVDNNRAHWLTEPNANAEELFRMVGEIFIYWSKSHNFKREEQNFVVQNEINNMSFLTADSKSKMAKAGDAQSGGSDQERTKKKRRGDRYSVQTSLIVATLKKMLPIGLNMCAPTDQDLIMLAKTRYALKDTDEEVREFLQNNLHLQGKVEGSPSLRWQMALYRGLPGREEDADDPEKIVRRVQEVSAVLYHLEQTEHPYKSKKAVWHKLLSKQRRRAVVACFRMTPLYNLPTHRACNMFLESYKAAWILTEDHSFEDRMIDDLSKAGEQEEEEEEVEEKKPDPLHQLVLHFSRTALTEKSKLDEDYLYMAYADIMAKSCHLEEGGENGEAEEEEVEVSFEEKEMEKQRLLYQQSRLHTRGAAEMVLQMISACKGETGAMVSSTLKLGISILNGGNAEVQQKMLDYLKDKKEVGFFQSIQALMQTCSVLDLNAFERQNKAEGLGMVNEDGTVINRQNGEKVMADDEFTQDLFRFLQLLCEGHNNDFQNYLRTQTGNTTTINIIICTVDYLLRLQESISDFYWYYSGKDVIEEQGKRNFSKAMSVAKQVFNSLTEYIQGPCTGNQQSLAHSRLWDAVVGFLHVFAHMMMKLAQDSSQIELLKELLDLQKDMVVMLLSLLEGNVVNGMIARQMVDMLVESSSNVEMILKFFDMFLKLKDIVGSEAFQDYVTDPRGLISKKDFQKAMDSQKQFTGPEIQFLLSCSEADENEMINFEEFANRFQEPARDIGFNVAVLLTNLSEHVPHDPRLRNFLELAESILEYFRPYLGRIEIMGASRRIERIYFEISETNRAQWEMPQVKESKRQFIFDVVNEGGEAEKMELFVSFCEDTIFEMQIAAQISEPEGEPEADEDEGMGEAAAEGAEEGAAGAEGAAGTVAAGATARLAAAAARALRGLSYRSLRRRVRRLRRLTAREAATALAALLWAVVARAGAAGAGAAAGALRLLWGSLFGGGLVEGAKKVTVTELLAGMPDPTSDEVHGEQPAGPGGDADGAGEGEGEGDAAEGDGDEEVAGHEAGPGGAEGVVAVADGGPFRPEGAGGLGDMGDTTPAEPPTPEGSPILKRKLGVDGEEEELVPEPEPEPEPEPEKADEENGEKEEVPEAPPEPPKKAPPSPPAKKEEAGGAGMEFWGELEVQRVKFLNYLSRNFYTLKYLALFLAFAINFILLFYKVSDSPPGEDDMEGSAAGDLAGAGSGGGSGWGSGAGEEAEGDEDENMVYYFLEESTGYMEPALWCLSLLHTLVAFLIIIGYNCLKVPLVIFKREKELARKLEFDGLYITEQPGDDDVKGQWDRLVLNTPSFPSNYWDKFVKRKVLDKHGDIFGRERIAELLGMDLASLEITAHNERKPDPPPGLLTWLMSIDVKYQIWKFGVIFTDNSFLYSGWYMVMSLLGHYNNFFFAAHLLDIAMGVKTLRTILSSVTHNGKQLVMTVGLLAVVVYLYTVVAFNFFRKFYNKSEDEDEPDMKCDDMMTCYLFHMYVGVRAGGGIGDEIEDPAGDEYELYRVVFDITFFFFVIVILLAIIQGLIIDAFGELRDQQEQVKEDMETKCFICGIGSDYFDTTPHGFETHTLEEHNLANYMFFLMYLINKDETEHTGQESYVWKMYQERCWDFFPAGDCFRKQYEDQLS

来源 Source

来源生物 organism	Oryctolagus cuniculus
通用名 common_name	rabbit
NCBI 分类编号 ncbi_taxonomy_id	9986
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Calmodulin-1
分子量 formula_weight	16491.2 kDa
突变 mutation	E32A, E68A, E105A, E141A
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	L,I,J,K

MADQLTEEQIAEFKEAFSLFDKDGDGTITTKALGTVMRSLGQNPTEAELQDMINEVDADGNGTIDFPAFLTMMARKMKDTDSEEEIREAFRVFDKDGNGYISAAALRHVMTNLGEKLTDEEVDEMIREADIDGDGQVNYEAFVQMMTA

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 3 polymer

描述 description	Peptidyl-prolyl cis-trans isomerase FKBP1B
分子量 formula_weight	11667.3 kDa
EC 编号 ec_number	5.2.1.8
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H,E,F,G

GVEIETISPGDGRTFPKKGQTCVVHYTGMLQNGKKFDSSRDRNKPFKFRIGKQEVIKGFEEGAAQMSLGQRAKLTCTPDVAYGATGHPGVIPPNATLIFDVELLNLE

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 4 non-polymer

描述 description	CALCIUM ION
分子量 formula_weight	40.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 5 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 6 non-polymer

描述 description	ADENOSINE-5'-TRIPHOSPHATE
分子量 formula_weight	507.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

Entity 7 non-polymer

描述 description	CAFFEINE
分子量 formula_weight	194.2 kDa
来源方法 src_method	syn
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

分辨率 resolution	3.62 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	19505

fit	/app/data/saxs_computation/xl/8xlf/8xlf.fit
pddf	/app/data/pr_computation/xl/8xlf/8xlf.pr.out
profile	/app/data/saxs_computation/xl/8xlf/8xlf.dat

Structure of chimeric RyR

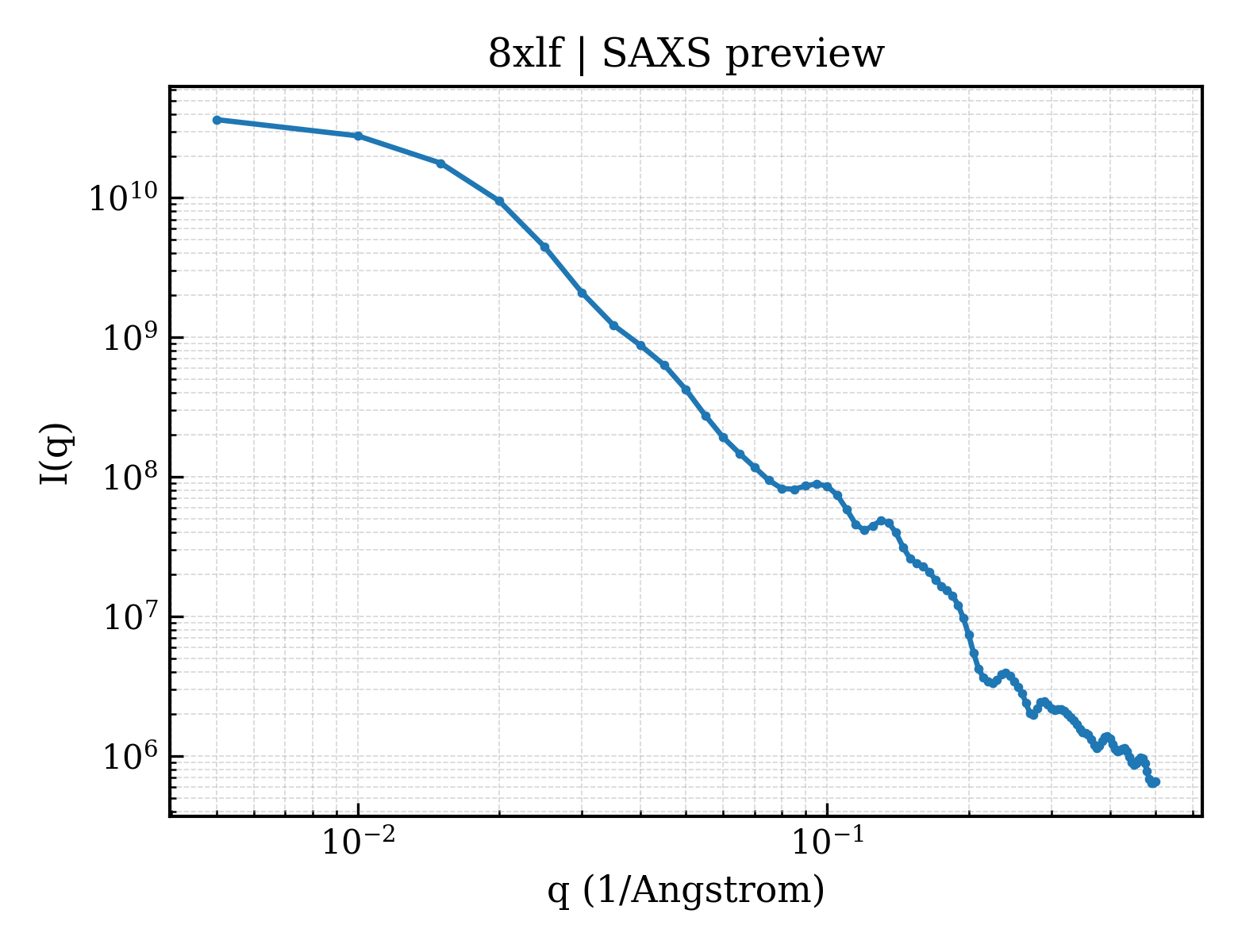

SAXS 散射曲线 SAXS Profile

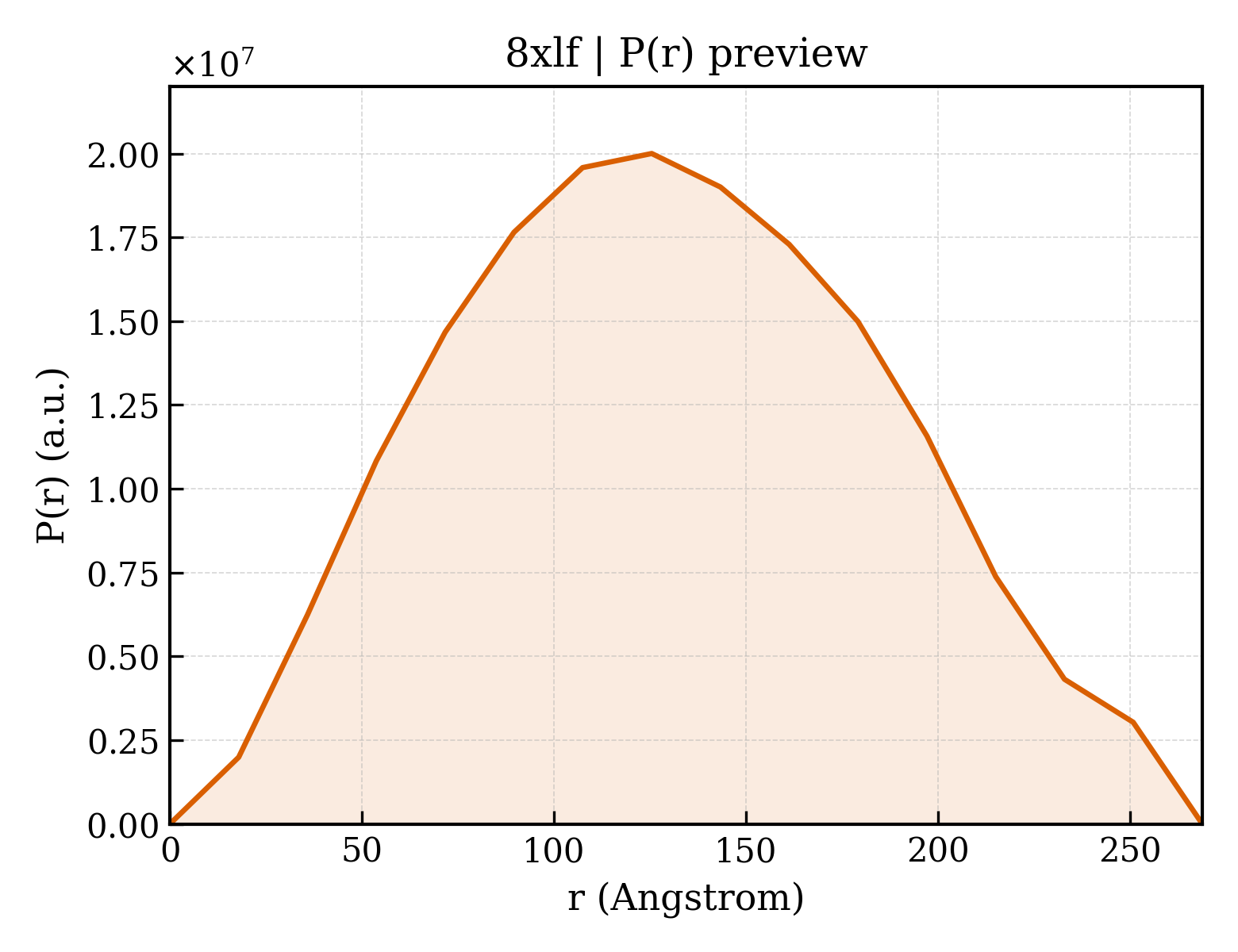

P(r) 距离分布 P(r) Distribution
