8xq3

;Structure of Nipah virus Bangladesh string G protein ectodomain tetramer bound to single-domain antibody n425 at 5.87 Angstroms overall resolution ;

Method: ELECTRON MICROSCOPY D_max: 187.0 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xq3
沉积日期 deposition_date	2024-01-04
结构标题 title	;Structure of Nipah virus Bangladesh string G protein ectodomain tetramer bound to single-domain antibody n425 at 5.87 Angstroms overall resolution ;
关键词 keywords	Antibody, VIRAL PROTEIN; VIRAL PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	54.43 Å
回转半径 Rg (电子) rg_electron	54.06 Å
零角强度 I(0) i0	981732000.00
分子量 molecular_weight	260350.0 kDa
排除体积 excluded_volume	325070 Å³
包络体积 envelope_volume	497650 Å³
水化壳体积 shell_volume	76732 Å³
包络直径 envelope_diameter	204.5 Å
壳层 Rg shell_rg	56.07 Å
包络 Rg envelope_rg	53.12 Å
形状 Rg shape_rg	53.99 Å
总 Rg total_rg	54.36 Å
总原子数 total_atoms	18272
残基数 n_residues	2184
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

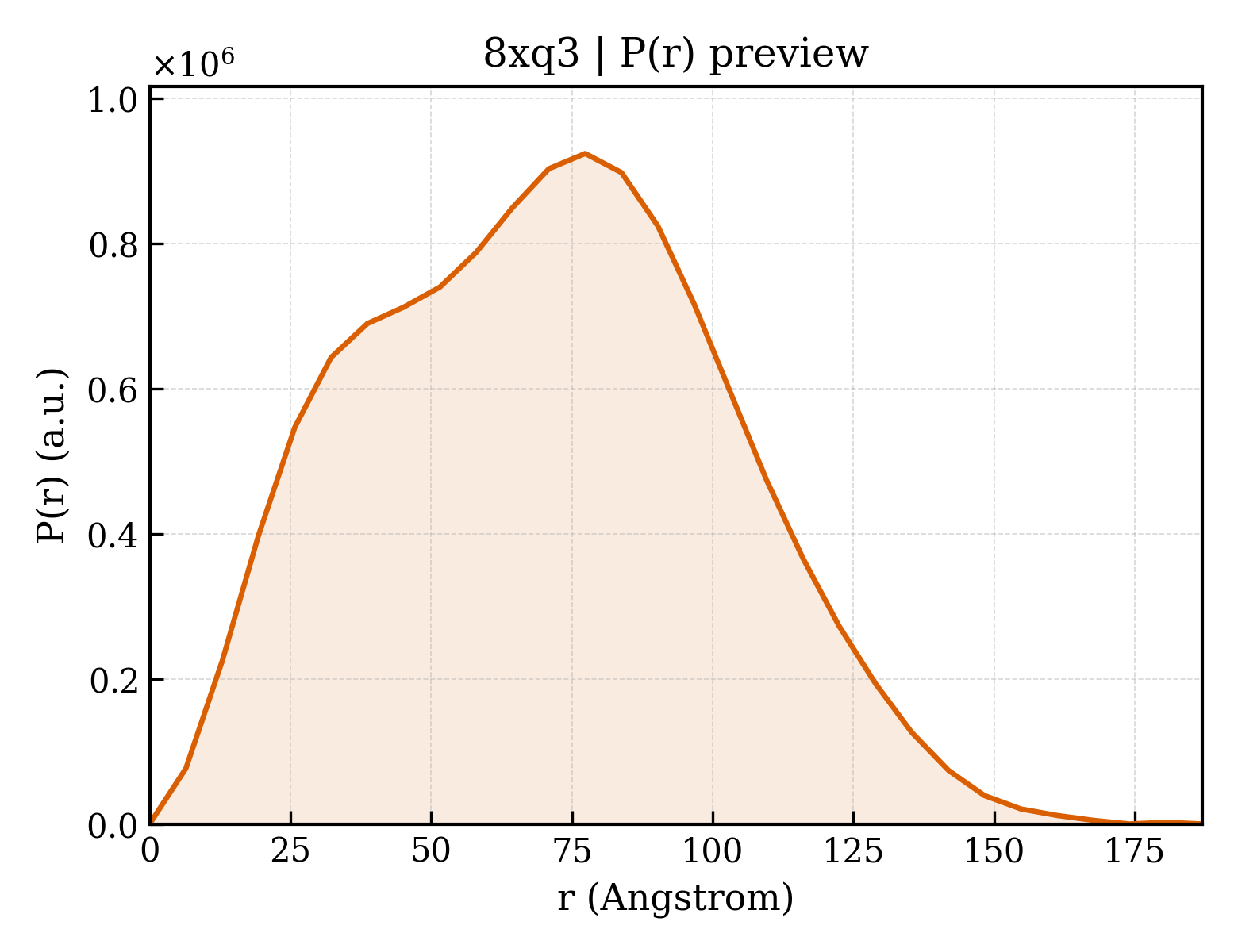

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	187.0 Å
Rg (实空间) rg_real	54.36 Å
Rg 误差 (实空间) rg_real_error	2.02 Å
I(0) (实空间) i0_real	9.8170e+08
I(0) 误差 (实空间) i0_real_error	2.0530e+07
Rg (倒空间) rg_reciprocal	54.47 Å
I(0) (倒空间) i0_reciprocal	981900000.0000
解质量估计 total_estimate	0.8742
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	77.4 Å
偏度 Skewness skewness	0.153
峰度 Kurtosis kurtosis	-0.566
角度范围 angular_range	— – 0.1450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	98250000.0000
实空间数据点数 n_real_points	30
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.809; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.995; Smooth: 0.938

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Nipah virus Bangladesh string G protein
分子量 formula_weight	67284.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B,A,C,D
原子数 atom_count	18272

MPTESKKVRFENTASDKGKNPSKVIKSYYGTMDIKKINEGLLDSKILSAFNTVIALLGSIVIIVMNIMIIQNYTRCTDNQAMIKDALQSIQQQIKGLADKIGTEIGPKVSLIDTSSTITIPANIGLLGSKISQSTASINENVNEKCKFTLPPLKIHECNISCPNPLPFREYKPQTEGVSNLVGLPNNICLQKTSNQILKPKLISYTLPVVGQSGTCITDPLLAMDEGYFAYSHLEKIGSCSRGVSKQRIIGVGEVLDRGDEVPSLFMTNVWTPSNPNTVYHCSAVYNNEFYYVLCAVSVVGDPILNSTYWSGSLMMTRLAVKPKNNGESYNQHQFALRNIEKGKYDKVMPYGPSGIKQGDTLYFPAVGFLVRTEFTYNDSNCPIAECQYSKPENCRLSMGIRPNSHYILRSGLLKYNLSDEENSKIVFIEISDQRLSIGSPSKIYDSLGQPVFYQASFSWDTMIKFGDVQTVNPLVVNWRDNTVISRPGQSQCPRFNKCPEVCWEGVYNDAFLIDRINWISAGVFLDSNQTAENPVFTVFKDNEVLYRAQLASEDTNAQKTITNCFLLKNKIWCISLVEIYDTGDNVIRPKLFAVKIPEQCT

来源 Source

来源生物 organism	Henipavirus nipahense
NCBI 分类编号 ncbi_taxonomy_id	3052225
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	single-domain antibody n425
分子量 formula_weight	12764.1 kDa
来源方法 src_method	man
拷贝数 entity_count	4

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F,E,G,H

EVQLVESGGGLVQPGGSLRLSCAASGFTFSSYAMSWVRQAPGKGLEWVSYISSSSSYTNYADSVKGRFTISRDNSKNTLYLQMNSLRAEDTASYYCARGLAGVWGIDVWGQGTLVTVSS

来源 Source

来源生物 organism	Homo sapiens
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 branched

描述 description	;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 4 branched

描述 description	;alpha-D-mannopyranose-(1-6)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	1073.0 kDa
来源方法 src_method	man
拷贝数 entity_count	4

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	748.7 kDa
来源方法 src_method	man
拷贝数 entity_count	8

Entity 6 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	4

▶

7. 引用文献 (1)

▶

分辨率 resolution	5.87 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	362285

fit	/app/data/saxs_computation/xq/8xq3/8xq3.fit
pddf	/app/data/pr_computation/xq/8xq3/8xq3.pr.out
profile	/app/data/saxs_computation/xq/8xq3/8xq3.dat
