8xtr

Comamonas testosteroni KF-1 circularly permuted group II intron 2S state

Method: ELECTRON MICROSCOPY D_max: 141.9 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

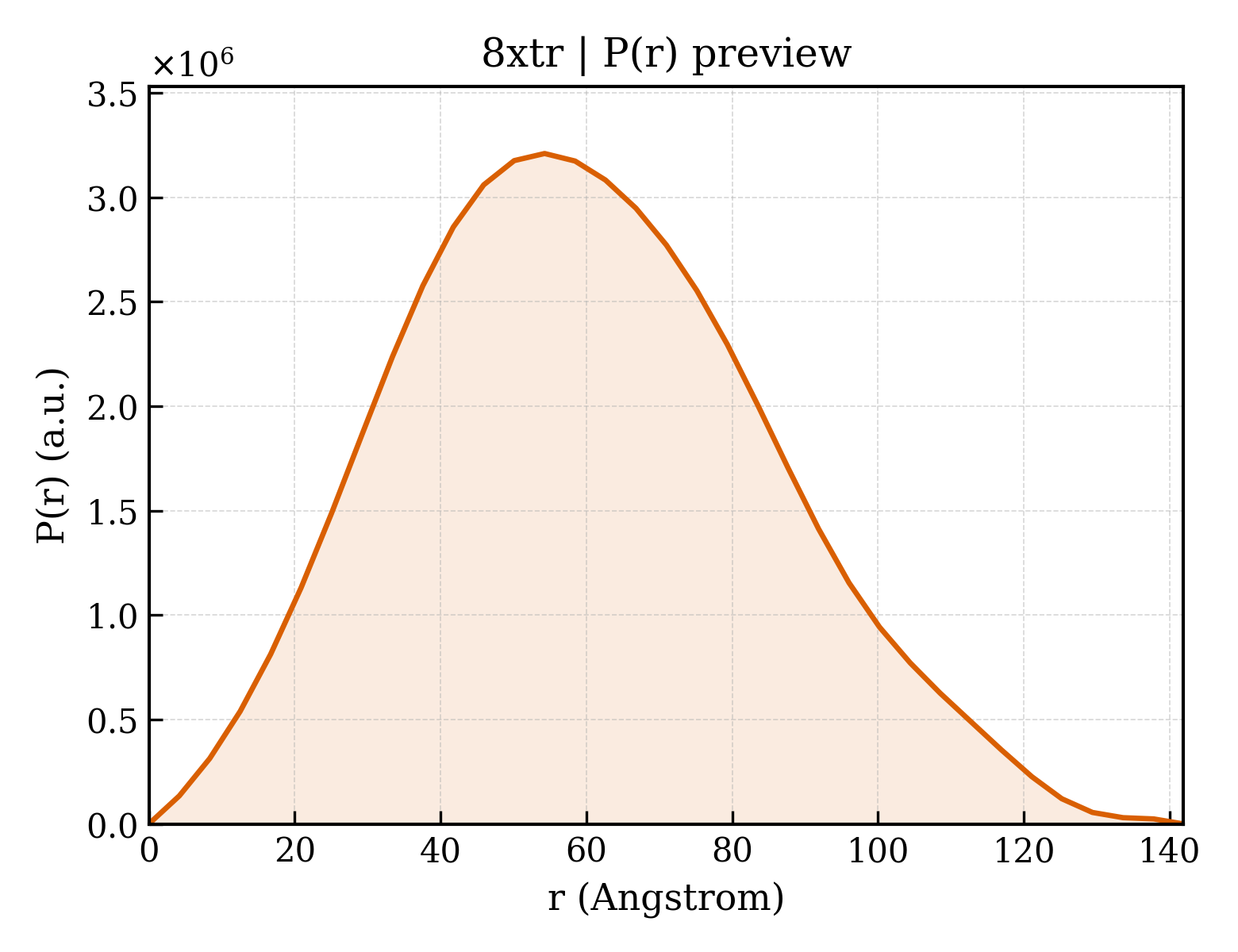

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xtr
沉积日期 deposition_date	2024-01-11
结构标题 title	Comamonas testosteroni KF-1 circularly permuted group II intron 2S state
关键词 keywords	CryoEM, Ribozyme, RNA; RNA
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	45.96 Å
回转半径 Rg (电子) rg_electron	45.64 Å
零角强度 I(0) i0	2629990000.00
分子量 molecular_weight	242070.0 kDa
排除体积 excluded_volume	225350 Å³
包络体积 envelope_volume	442250 Å³
水化壳体积 shell_volume	80665 Å³
包络直径 envelope_diameter	151.5 Å
壳层 Rg shell_rg	50.37 Å
包络 Rg envelope_rg	44.32 Å
形状 Rg shape_rg	45.61 Å
总 Rg total_rg	45.80 Å
总原子数 total_atoms	15952
残基数 n_residues	740
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	141.9 Å
Rg (实空间) rg_real	45.80 Å
Rg 误差 (实空间) rg_real_error	0.94 Å
I(0) (实空间) i0_real	2.6300e+09
I(0) 误差 (实空间) i0_real_error	4.6530e+07
Rg (倒空间) rg_reciprocal	45.96 Å
I(0) (倒空间) i0_reciprocal	2630000000.0000
解质量估计 total_estimate	0.8642
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	54.3 Å
偏度 Skewness skewness	0.251
峰度 Kurtosis kurtosis	-0.380
角度范围 angular_range	— – 0.1700 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	113200000.0000
实空间数据点数 n_real_points	35
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.931; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.971; Smooth: 0.466

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	RNA (219-MER)
分子量 formula_weight	70556.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	A
原子数 atom_count	15952

CCGGGGCGCCACCCCGGAAGUGAUGCGAGUCGCCAACUCGCAUCACAAGCAAACGCUGUAGCCGCGUGCCUCUAAUAGGGCUGGCGCGGUUGCGAAGGGCGCUGGUGAGUGCAACUCUCACCUUCGACCCAAUCCAUCUUGCGGCUCAACCCCGCAAGAUCAUCGCCAGACCGCUGGCGGCGUACUGAGUGACAAACGAGGCAAAACCAAAUUGAAGUU

来源 Source

来源生物 organism	Comamonas testosteroni KF-1
NCBI 分类编号 ncbi_taxonomy_id	399795
宿主生物 host_organism	synthetic construct

Entity 2 polymer

描述 description	RNA (595-MER)
分子量 formula_weight	193640.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polyribonucleotide
链编号 strand_id	B

GGGCGACCGUGAAACGGCGCUGGGCAGGAAAUGGCCCAGUGACCUGGUCAAUGGUGAAAGUCGGUGAAAGACCGACCGGUGGGGCGUAUCGAAAGAGCGCAACACCUGCCGCACAGGAUGGCUUCUGAGGUACCGGUGACGGUACAGAACGCGGAGGGGAAACCUGGAAGCGAGGGCACCUCGGGAAACCGGGGGUCGAUGCAUAGCUCAAACCUGUAACGGCACCAGUGGAGGGUGCUGUGCGGAGCAACGUGGAGCCACAGGCAUGAAGCCGUGGUUCGUAGUCGAUGAGACAAGCGGUGAGUAAGGGAAGGGCUGCGAACAUCGCCUCCCCGAAAUCCAAGGAAAGCCGAAAGGCUAGCCGCUUUGUUGAGACAGUGGCGCCACGUUGCGCAUUAGCCGUGACCUAAACGGGGAACCUCUUGGCCGUACCGACUCGGGUGGCACCGGUCGGGCUCGAUGGCUCAAGAGGGGGAGAUGUGAUGAUUAGGGUUUGACCCGUGAUGCGAUACGACCGAAGCAUCCGGGGAGCUGUCUGACGAAGAGUCGGCAGCAGUGGGUUUGGCGACCCGCUCCGAAAGUCGCAAGCGUUUGC

来源 Source

来源生物 organism	Comamonas testosteroni KF-1
NCBI 分类编号 ncbi_taxonomy_id	399795
宿主生物 host_organism	synthetic construct

Entity 3 non-polymer

描述 description	POTASSIUM ION
分子量 formula_weight	39.1 kDa
来源方法 src_method	syn
拷贝数 entity_count	6

Entity 4 non-polymer

描述 description	MAGNESIUM ION
分子量 formula_weight	24.3 kDa
来源方法 src_method	syn
拷贝数 entity_count	30

▶

7. 引用文献 (1)

▶

分辨率 resolution	2.67 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	65386

fit	/app/data/saxs_computation/xt/8xtr/8xtr.fit
pddf	/app/data/pr_computation/xt/8xtr/8xtr.pr.out
profile	/app/data/saxs_computation/xt/8xtr/8xtr.dat
