SAXSdb — 8xv1

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8xv1
沉积日期 deposition_date	2024-01-14
结构标题 title	Structure of SARS-CoV-2 BA.2.86 spike RBD in complex with ACE2 (down state)
关键词 keywords	spike protein, glycoprotein, VIRUS, VIRAL PROTEIN, VIRAL PROTEIN-PROTEIN BINDING complex; VIRAL PROTEIN/PROTEIN BINDING
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	32.45 Å
回转半径 Rg (电子) rg_electron	32.11 Å
零角强度 I(0) i0	139686000.00
分子量 molecular_weight	94322.0 kDa
排除体积 excluded_volume	117960 Å³
包络体积 envelope_volume	157420 Å³
水化壳体积 shell_volume	42172 Å³
包络直径 envelope_diameter	119.9 Å
壳层 Rg shell_rg	37.91 Å
包络 Rg envelope_rg	31.95 Å
形状 Rg shape_rg	32.08 Å
总 Rg total_rg	32.72 Å
总原子数 total_atoms	6652
残基数 n_residues	794
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	111.8 Å
Rg (实空间) rg_real	32.58 Å
Rg 误差 (实空间) rg_real_error	1.05 Å
I(0) (实空间) i0_real	1.3970e+08
I(0) 误差 (实空间) i0_real_error	2.2880e+06
Rg (倒空间) rg_reciprocal	32.53 Å
I(0) (倒空间) i0_reciprocal	139700000.0000
解质量估计 total_estimate	0.8478
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	2
主峰位置 r_peak_primary	38.8 Å
偏度 Skewness skewness	0.527
峰度 Kurtosis kurtosis	0.027
角度范围 angular_range	— – 0.2450 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	44520000.0000
实空间数据点数 n_real_points	50
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.737; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.827

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (6)

Entity 1 polymer

描述 description	Spike glycoprotein
分子量 formula_weight	137331.3 kDa
突变 mutation	F817P, A892P, A899P, A942P, K986P, V987P, R682G, R683S, R685G
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	6652

SSQCVMPLFNLITTTQSYTNSFTRGVYYPDKVFRSSVLHLTQDLFLPFFSNVTWFHAISGTNGTKRFDNPVLPFNDGVYFASTEKSNIIRGWIFGTTLDSKTQSLLIVNNATNVFIKVCEFQFCNDPFLDVYHKNNKSWMESESGVYSSANNCTFEYVSQPFLMDLEGKQGNFKNLREFVFKNIDGYFKIYSKHTPIIGRDFPQGFSALEPLVDLPIGINITRFQTLLALNRSYLTPGDSSSGWTAGAADYYVGYLQPRTFLLKYNENGTITDAVDCALDPLSETKCTLKSFTVEKGIYQTSNFRVQPTESIVRFPNVTNLCPFHEVFNATRFASVYAWNRTRISNCVADYSVLYNFAPFFAFKCYGVSPTKLNDLCFTNVYADSFVIKGNEVSQIAPGQTGNIADYNYKLPDDFTGCVIAWNSNKLDSKHSGNYDYWYRLFRKSKLKPFERDISTEIYQAGNKPCKGKGPNCYFPLQSYGFRPTYGVGHQPYRVVVLSFELLHAPATVCGPKKSTNLVKNKCVNFNFNGLTGTGVLTKSNKKFLPFQQFGRDIVDTTDAVRDPQTLEILDITPCSFGGVSVITPGTNTSNQVAVLYQGVNCTEVSVAIHADQLTPTWRVYSTGSNVFQTRAGCLIGAEYVNNSYECDIPIGAGICASYQTQTKSRGSAGSVASQSIIAYTMSLGAENSVAYSNNSIAIPTNFTISVTTEILPVSMTKTSVDCTMYICGDSTECSNLLLQYGSFCTQLKRALTGIAVEQDKNTQEVFAQVKQIYKTPPIKYFGGFNFSQILPDPSKPSKRSPIEDLLFNKVTLADAGFIKQYGDCLGDIAARDLICAQKFNGLTVLPPLLTDEMIAQYTSALLAGTITSGWTFGAGPALQIPFPMQMAYRFNGIGVTQNVLYENQKLIANQFNSAIGKIQDSLFSTPSALGKLQDVVNHNAQALNTLVKQLSSKFGAISSVLNDILSRLDPPEAEVQIDRLITGRLQSLQTYVTQQLIRAAEIRASANLAATKMSECVLGQSKRVDFCGKGYHLMSFPQSAPHGVVFLHVTYVPAQEKNFTTAPAICHDGKAHFPREGVFVSNGTHWFVTQRNFYEPQIITTDNTFVSGNCDVVIGIVNNTVYDPLQLELDSFKEELDKYFKNHTSPDVDLGDISGINASVVNIQKEIDRLNEVAKNLNESLIDLQELGKYEQYIASSGYIPEAPRDGQAYVRKDGEWVLLSTFLEGTKHHHHHH

来源 Source

来源生物 organism	Severe acute respiratory syndrome coronavirus 2
通用名 common_name	2019-nCoV,SARS-CoV-2
NCBI 分类编号 ncbi_taxonomy_id	2697049
宿主生物 host_organism	Homo sapiens

Entity 2 polymer

描述 description	Processed angiotensin-converting enzyme 2
分子量 formula_weight	70485.1 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

STIEEQAKTFLDKFNHEAEDLFYQSSLASWNYNTNITEENVQNMNNAGDKWSAFLKEQSTLAQMYPLQEIQNLTVKLQLQALQQNGSSVLSEDKSKRLNTILNTMSTIYSTGKVCNPDNPQECLLLEPGLNEIMANSLDYNERLWAWESWRSEVGKQLRPLYEEYVVLKNEMARANHYEDYGDYWRGDYEVNGVDGYDYSRGQLIEDVEHTFEEIKPLYEHLHAYVRAKLMNAYPSYISPIGCLPAHLLGDMWGRFWTNLYSLTVPFGQKPNIDVTDAMVDQAWDAQRIFKEAEKFFVSVGLPNMTQGFWENSMLTDPGNVQKAVCHPTAWDLGKGDFRILMCTKVTMDDFLTAHHEMGHIQYDMAYAAQPFLLRNGANEGFHEAVGEIMSLSAATPKHLKSIGLLSPDFQEDNETEINFLLKQALTIVGTLPFTYMLEKWRWMVFKGEIPKDQWMKKWWEMKREIVGVVEPVPHDETYCDPASLFHVSNDYSFIRYYTRTLYQFQFQEALCQAAKHEGPLHKCDISNSTEAGQKLFNMLRLGKSEPWTLALENVVGAKNMNVRPLLNYFEPLFTWLKDQNKNSFVGWSTDWSPYADQSGTKHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI 分类编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

Entity 3 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	424.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 4 branched

描述 description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	586.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 5 branched

描述 description	;alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose ;
分子量 formula_weight	910.8 kDa
来源方法 src_method	man
拷贝数 entity_count	1

Entity 6 non-polymer

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	221.2 kDa
来源方法 src_method	man
拷贝数 entity_count	5

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.05 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	82961

fit	/app/data/saxs_computation/xv/8xv1/8xv1.fit
pddf	/app/data/pr_computation/xv/8xv1/8xv1.pr.out
profile	/app/data/saxs_computation/xv/8xv1/8xv1.dat

Structure of SARS-CoV-2 BA.2.86 spike RBD in complex with ACE2 (down state)

SAXS 散射曲线 SAXS Profile

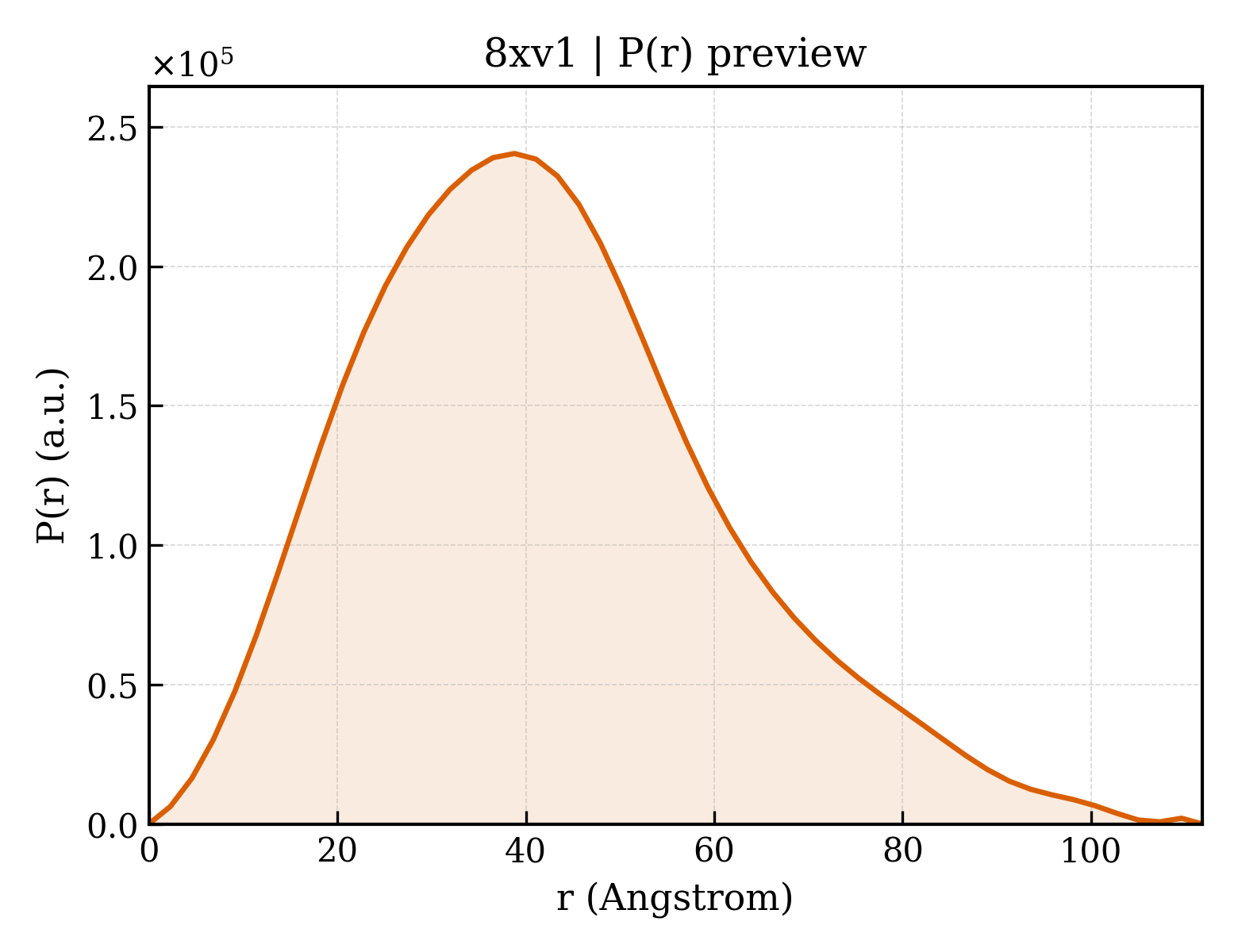

P(r) 距离分布 P(r) Distribution
